Transformation nodes

Transformation nodes are used for changing incoming Message fields like Originator, Message Type, Payload and Metadata.

• Change originator
• Copy key-value pairs
• Deduplication
• Delete key-value pairs
• Duplicate to group
• Duplicate to group by name
• Duplicate to related
• JSON path
• Rename keys
• Script
• Split array msg
• To email

Change originator

All incoming Messages in the Thingsboard have originator field that identifies an entity that submits Message. It could be a Device, Asset, Customer, Tenant, etc.

This node is used in cases when a submitted message should be processed as a message from another entity. For example, Device submits telemetry and telemetry should be copied into higher level Asset or to a Customer. In this case, Administrator should add this node before Save Timeseries Node.

The originator can be changed to:

• Originator’s Customer
• Originator’s Tenant
• Related Entity that is identified by Relations Query

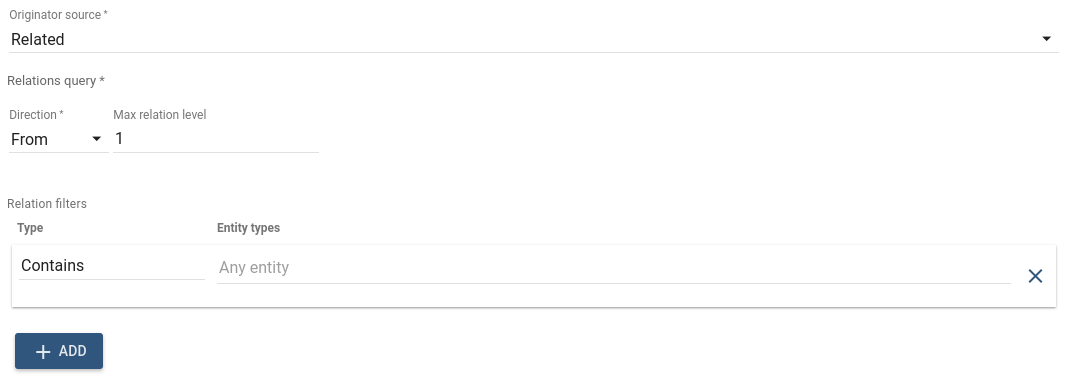

In ‘Relations query’ configuration Administrator can select required Direction and relation depth level. Also set of Relation filters can be configured with required Relation type and Entity Types.

If multiple Related Entities are found, only the first Entity is used as new originator, other entities are discarded.

Failure chain is used if no Related Entity / Customer / Tenant was found, otherwise - Success chain.

Outbound Message will have new originator Id.

Copy key-value pairs

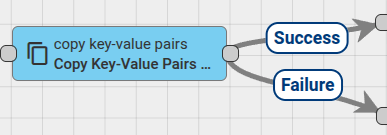

Copies key-value pairs from message to message metadata or vice-versa.

Copies key-value pairs from the message to message metadata, or vice-versa, according to the configured direction and keys. Regular expressions can be used to define which keys- value pairs to copy. Any configured key not found in the source will be ignored.

Output connections: Success, Failure.

Configuration:

Deduplication

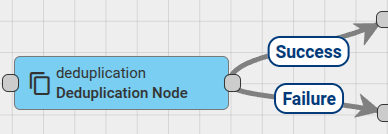

Deduplicate messages within the same Originator entity for a configurable period based on a specified deduplication strategy.

Deduplication strategies:

• FIRST - return first message that arrived during deduplication period.
• LAST - return last message that arrived during deduplication period.
• ALL - return all messages as a single JSON array message. Where each element represents object with msg and metadata inner properties.

Configuration:

Delete key-value pairs

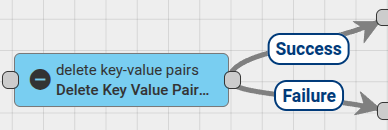

Deletes key-value pairs from message or message metadata.

Deletes key-value pairs from the message or message metadata according to the configured keys and/or regular expressions.

Output connections: Success, Failure.

Configuration:

Duplicate to group

Duplicates message to all entities belonging to specific Entity Group.

Entities are fetched from Entity Group detected according to the configuration.

Entity Group can be specified directly or can be message originator entity itself.

For each entity from group new message is created with entity as originator and message parameters copied from original message.

Configuration:

• Entity group is message originator - if set, message originator will be considered as Entity Group used to fetch entities. In this case incoming message will be routed via Failure chain if message originator type is not Entity Group.
• Target entity group - specific target Entity Group used to fetch entities.

New messages will be duplicated to group entities and forwarded via Success chain if target Entity Group is detected successfully and contains at least one entity. Otherwise original message will be forwarded via Failure chain.

Duplicate to group by name

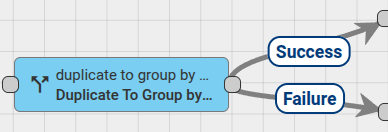

Duplicates message to all entities belonging to resolved Entity group.

Entities are fetched from entity group that is detected according to the configuration. When “search entity group on Tenant level only” is enabled, the search is restricted to the Tenant level only. If “consider originator as a group owner” is enabled and the originator is a Tenant or Customer, the search starts from the originator’s level and goes up the hierarchy to the tenant level if the group isn’t found. Otherwise, the search starts at the same level as the message originator’s owner. Entity group is dynamically resolved based on it’s name and type. For each entity from group new message is created with entity as originator and message parameters copied from original message.

Output connections: Success, Failure.

Configuration:

Duplicate to related

Duplicates message to related entities fetched by relation query.

Related Entities found using configured relation direction and Relation Type.

For each found related entity new message is created with related entity as originator and message parameters copied from original message.

Configuration:

• Relations query - query used to find new entities starting from incoming message originator. In ‘Relations query’ configuration Administrator can select required Direction and relation depth level. Also set of Relation filters can be configured with required Relation type and Entity Types.

New messages will be duplicated to found entities and forwarded via Success chain if at least one entity will be found using Relations Query. Otherwise original message will be forwarded via Failure chain.

JSON path

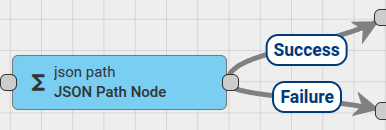

Transforms incoming message body using JSONPath expression.

JSONPath expression specifies a path to an element or a set of elements in a JSON structure.

Output connections: Success, Failure.

Configuration:

Rename keys

Renames message or message metadata keys.

Renames keys in the message or message metadata according to the provided mapping. If key to rename doesn’t exist in the specified source (message or message metadata) it will be ignored.

Output connections: Success, Failure.

Configuration:

Script

Changes Message payload, Metadata or Message type using configured JavaScript function.

JavaScript function receives 3 input parameters:

• msg - is a Message payload.
• metadata - is a Message metadata.
• msgType - is a Message type.

Script should return the following structure:

1
2
3
4
5
{
    msg: new payload,
    metadata: new metadata,
    msgType: new msgType
}

All fields in resulting object are optional and will be taken from original message if not specified.

Outbound Message from this Node will be new Message that was constructed using configured JavaScript function.

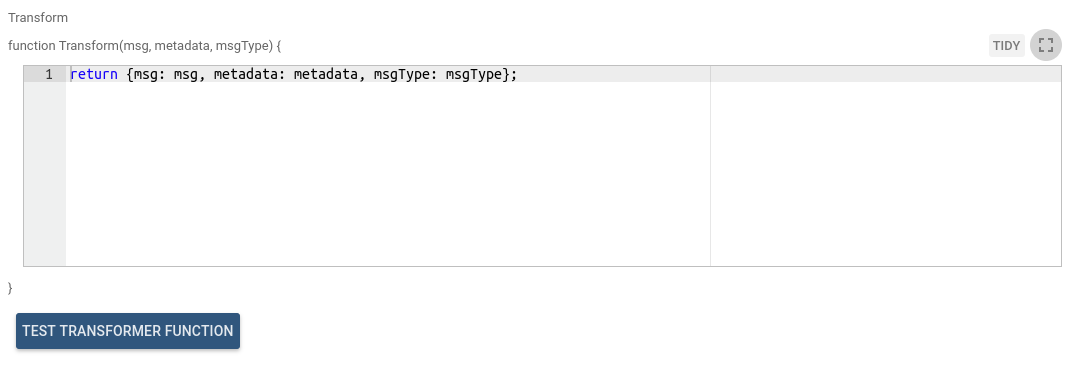

JavaScript transform function can be verified using Test JavaScript function.

Example

Node receives Message with payload:

1
2
3
4
{
    "temperature": 22.4,
    "humidity": 78
}

Original Metadata:

1
{ "sensorType" : "temperature" }

Original Message Type - POST_TELEMETRY_REQUEST

The following modifications should be performed:

• change message type to ‘CUSTOM_UPDATE’
• add additional attribute version into payload with value v1.1
• change sensorType attribute value in Metadata to roomTemp

The following transform function will perform all necessary modifications:

1
2
3
4
var newType = "CUSTOM_UPDATE";
msg.version = "v1.1";
metadata.sensorType = "roomTemp"
return {msg: msg, metadata: metadata, msgType: newType};

You can see real life example, how to use this node in those tutorials:

• Transform incoming telemetry
• Reply to RPC Calls

Split array msg

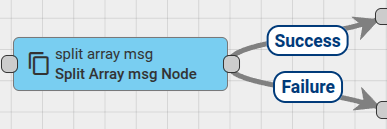

Split array message into several messages.

Splits an array message into individual elements, with each element sent as a separate message. All outbound messages will have the same type and metadata as the original array message.

Output connections: Success, Failure.

Configuration:

To email

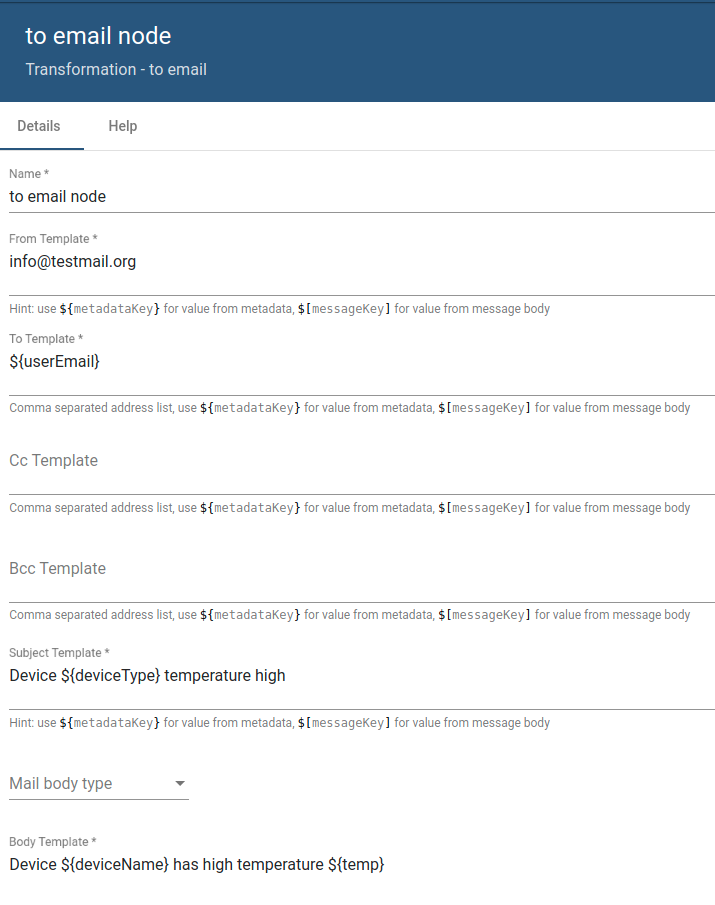

Transforms message to Email Message by populating email fields using values derived from Message metadata. Set ‘SEND_EMAIL’ output Message type that can be accepted later by Send Email Node. All email fields can be configured to use values from metadata. Supports sending of HTML pages and images.

For example incoming message has deviceName field in metadata and email body should contain its value.

In this case value of deviceName can be referenced as ${deviceName} like in the following example:

1
 Device ${deviceName} has high temperature

If you like to send html or image you have to choose HTML or Dynamic in field Mail Body type. See send HTML or image inside email examples.

Additionally, this node can prepare email attachments if incoming message metadata contains attachments field with reference to files stored in DataBase.

Note This is part of File Storage feature supported by ThingsBoard Professional Edition.

You can see the real life example, where this node is used, in the next tutorial:

• Send Email
• Send HTML or image inside email
