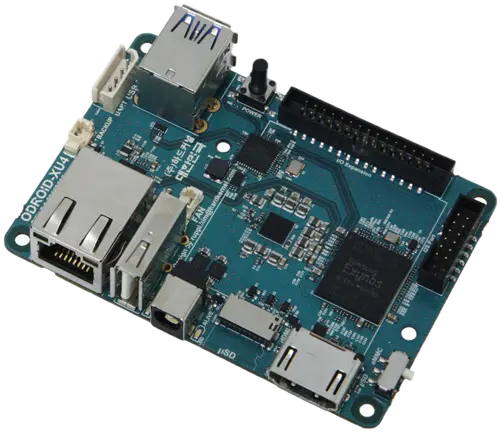

ODROID-XU4
The ODROID-XU4 is a high-performance single-board computer powered by the Samsung Exynos 5422 octa-core SoC (quad Cortex-A15 + quad Cortex-A7 big.LITTLE) with 2 GB LPDDR3 RAM and a Mali-T628MP6 GPU. It features Gigabit Ethernet, USB 3.0, and optional Wi-Fi and Bluetooth via an add-on module, with MQTT enabling IoT platform integration. A 30-pin GPIO connector, eMMC module slot, and microSD card slot provide flexible I/O and storage options for embedded applications.
ODROID-XU4 is a compact single-board computer built for high-performance embedded, server, and multimedia workloads.
Powered by the Samsung Exynos5422 octa-core processor, it combines strong CPU performance, Gigabit Ethernet, USB 3.0 connectivity, and flexible storage options, making it well suited for home servers, development environments, network services, and custom Linux-based projects.
Features
- Samsung Exynos5422 SoC with quad-core Cortex-A15 and quad-core Cortex-A7 CPUs
- 2 GB LPDDR3 RAM
- Mali-T628 MP6 GPU
- Gigabit Ethernet with optional Wi-Fi via USB adapter
- 2x USB 3.0 ports and 1x USB 2.0 port
- HDMI 1.4a output
- eMMC module socket and microSD card slot
- 5V / 4A power input
Overview
| Parameter | Value |
|---|---|
| SoC | Samsung Exynos5422 |
| CPU | Quad Cortex-A15 @ 2.0 GHz + Quad Cortex-A7 @ 1.4 GHz |
| GPU | Mali-T628 MP6 |
| RAM | 2 GB LPDDR3 |
| Storage | eMMC module socket + microSD card slot |
| Ethernet | Gigabit (10/100/1000) |
| Wi-Fi | Optional via USB adapter |
| Bluetooth | Optional via USB adapter |
| USB | 2x USB 3.0, 1x USB 2.0 |
| Video Output | HDMI 1.4a |
| GPIO | 30-pin expansion header |
| Power | 5V / 4A |
Device Technical Documentation
Download datasheets and manuals for the ODROID-XU4
