How to connect WS202 PIR & Light LoRaWAN® Sensor to ThingsBoard?

Introduction

WS202 PIR & Light LoRaWAN® Sensor WS202 PIR & Light Sensor is a PIR sensor based on passive infrared technology to detect a motion or occupancy.
WS202 can detect whether there is a movement within the range of 6-8 m.
Besides, WS202 equips with a light sensor which can link PIR detection results to trigger scenes.
WS202 can be widely used in smart homes, smart offices, schools, warehouses, etc.
Sensor data are transmitted in real-time using the standard LoRaWAN® protocol.
LoRaWAN® enables encrypted radio transmissions over long distances while consuming very little power.

Doc info icon
ThingsBoard PE Feature

Only Professional Edition supports Platform Integrations feature.
Use ThingsBoard Cloud or install your own platform instance.


Prerequisites

To continue with this guide we will need the following:

Device connection

According to the official user manual, we need a smartphone with NFC enabled and the ToolBox application to connect the sensor.
Since this device can only be operated using a LoRaWAN® gateway, we must first connect it to a network server that has an integration configured with ThingsBoard.
Afterward, it can be provisioned to ThingsBoard.

Device configuration

To connect and send data we should configure the device and network server.
At first we are going to configure the device, and save required information for network server configuration.
To add a device to network server and get information from it, we will need the following device parameters:

  • Device EUI - device identifier
  • Application EUI - Application identifier
  • Application Key - Application key to identify device. We recommend to use a generated key, not from the example!

The parameters above are required for connection.

Depending on the network server, you may also need to provide join type (OTAA), LoRaWAN version.

To configure device via NFC, you will need to hold your smartphone like on the picture below:
NFC zone

To read and write configuration on the device you may follow next steps on your smartphone:

  • Open ToolBox application.

  • Click on NFC Read button and hold your smartphone near the device.

  • Go to tab Setting, set and save required fields and any other configuration that you need.

  • Press Write button and hold your smartphone near the device.

Open ToolBox application.

Open ToolBox application.

Click on NFC Read button and hold your smartphone near the device.

Click on NFC Read button and hold your smartphone near the device.

Go to tab Setting, set and save required fields and any other configuration that you need.

Go to tab Setting, set and save required fields and any other configuration that you need.

Press Write button and hold your smartphone near the device.

Press Write button and hold your smartphone near the device.

If you have some issues with configuring the device and your smartphone in the case - it is recommended by vendor to try to configure the smartphone without case.

Now, the device is able to send a data to the network server.

To configure the device we also need to add it to a network server, so select the network server your gateway is connected to:

ChirpStack
TheThingsStack
TheThingsIndustries
Loriot

Add a device on the Chirpstack

We need to add a device on the Chirpstack.

To add a device, you can follow next steps:

  • Login to Chirpstack server.

  • Go to the Device profiles page and click on Add device profile button.

  • Fill the fields and click on Submit button.

  • Go to the Applications page, click on your application and press Add device button.

  • Fill parameters with values from the device configuration. Then choose previously created device profile and click on Submit button.

  • Put your Application key to the field and click on Submit button to save the device.

Login to Chirpstack server.

Login to Chirpstack server.

Go to the Device profiles page and click on Add device profile button.

Go to the Device profiles page and click on Add device profile button.

Fill the fields and click on Submit button.

Fill the fields and click on Submit button.

Go to the Applications page, click on your application and press Add device button.

Go to the Applications page, click on your application and press Add device button.

Fill parameters with values from the device configuration. Then choose previously created device profile and click on Submit button.

Fill parameters with values from the device configuration. Then choose previously created device profile and click on Submit button.

Put your Application key to the field and click on Submit button to save the device.

Put your Application key to the field and click on Submit button to save the device.

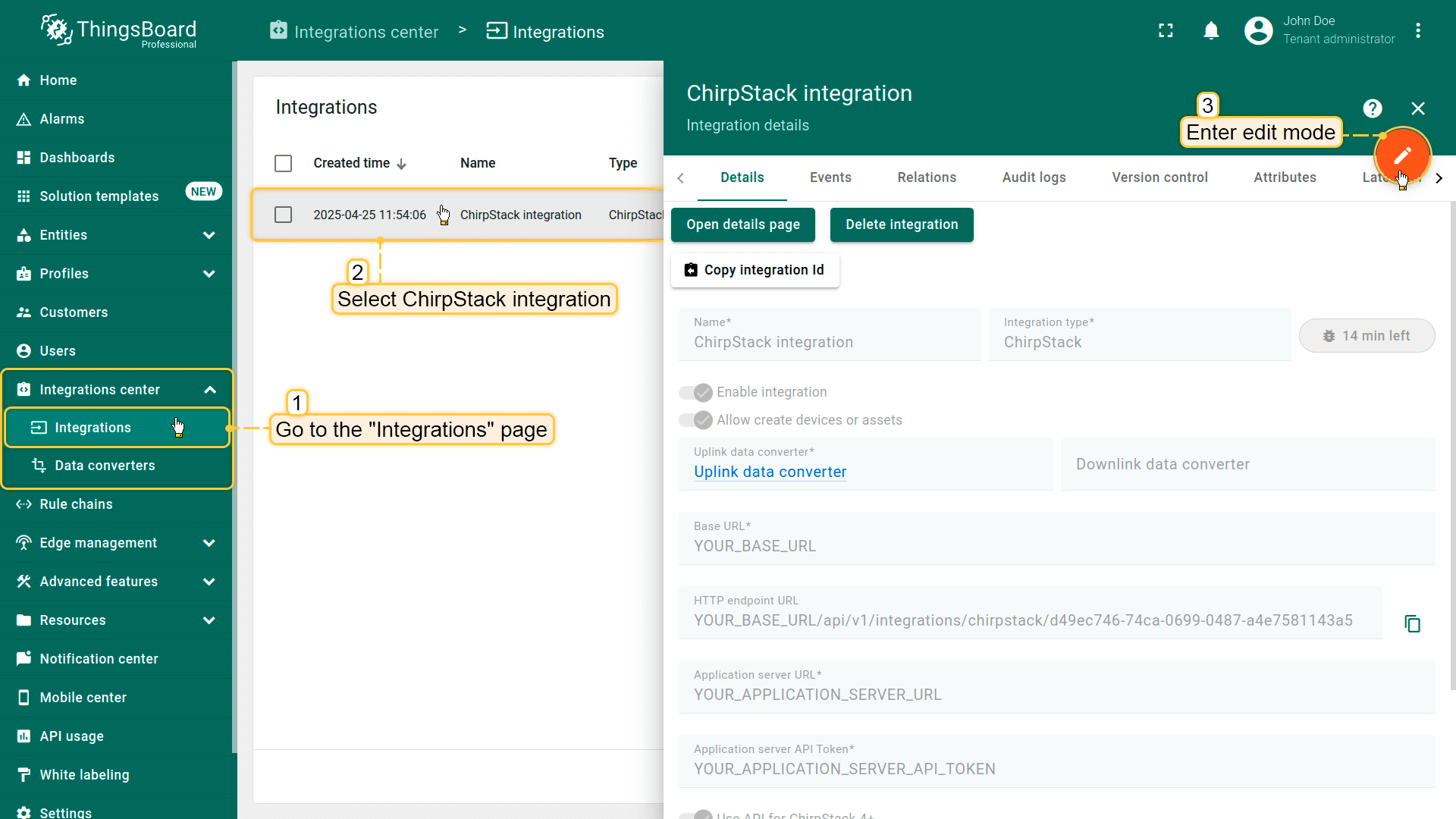

Such as we have already connected gateway and configured integration - we will need to modify the converter and add an ability to parse incoming payload from the device.

To do this you can add code to “Decoding block”, it locates between comments “// — Decoding code — //” in your converter, if you are using the default converters (for ThingsBoard v3.5.2 or above).

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

if (input.length > 0) {
        for (var i = 0; i < input.length; ) {
            var channel_id = input[i++];
            if (i < input.length) {
                var channel_type = input[i++];
                // BATTERY
                if (channel_id === 0x01 && channel_type === 0x75) {
                    output.telemetry.battery = input[i];
                    i += 1;
                }
                // PIR
                else if (channel_id === 0x03 && channel_type === 0x00) {
                    output.telemetry.pir = input[i] === 0 ? "normal" : "trigger";
                    i += 1;
                }
                // DAYLIGHT
                else if (channel_id === 0x04 && channel_type === 0x00) {
                    output.telemetry.daylight = input[i] === 0 ? "dark" : "light";
                    i += 1;
                }
            }
        }
    }

Or you can copy the whole code of the converter and paste it to your converter:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137

var data = decodeToJson(payload);
var deviceName = data.deviceInfo.deviceName;
var deviceType = data.deviceInfo.deviceProfileName;
// var groupName = 'IAQ devices';
// var customerName = 'Customer A';
// use assetName and assetType instead of deviceName and deviceType
// to automatically create assets instead of devices.
// var assetName = 'Asset A';
// var assetType = 'building';

// If you want to parse incoming data somehow, you can add your code to this function.
// input: bytes
// expected output:
//  {
//    "attributes": {"attributeKey": "attributeValue"},
//    "telemetry": {"telemetryKey": "telemetryValue"}
//  }
//
// In the example - bytes will be saved as HEX string and also parsed as light level, battery level and PIR sensor value.
//

function decodePayload(input) {
    var output = { attributes:{}, telemetry: {} };
    // --- Decoding code --- //

    output.telemetry.HEX_bytes = bytesToHex(input);

    if (input.length > 0) {
        for (var i = 0; i < input.length; ) {
            var channel_id = input[i++];
            if (i < input.length) {
                var channel_type = input[i++];
                // BATTERY
                if (channel_id === 0x01 && channel_type === 0x75) {
                    output.telemetry.battery = input[i];
                    i += 1;
                }
                // PIR
                else if (channel_id === 0x03 && channel_type === 0x00) {
                    output.telemetry.pir = input[i] === 0 ? "normal" : "trigger";
                    i += 1;
                }
                // DAYLIGHT
                else if (channel_id === 0x04 && channel_type === 0x00) {
                    output.telemetry.daylight = input[i] === 0 ? "dark" : "light";
                    i += 1;
                }
            }
        }
    }

    // --- Decoding code --- //
    return output;
}

// --- attributes and telemetry objects ---
var telemetry = {};
var attributes = {};
// --- attributes and telemetry objects ---

// --- Timestamp parsing
var dateString = data.time;
var timestamp = -1;
if (dateString != null) {
    timestamp = new Date(dateString).getTime();
    if (timestamp == -1) {
        var secondsSeparatorIndex = dateString.lastIndexOf('.') + 1;
        var millisecondsEndIndex = dateString.lastIndexOf('+');
        if (millisecondsEndIndex == -1) {
            millisecondsEndIndex = dateString.lastIndexOf('Z');
        }
        if (millisecondsEndIndex == -1) {
            millisecondsEndIndex = dateString.lastIndexOf('-');
        }
        if (millisecondsEndIndex == -1) {
        if (dateString.length >= secondsSeparatorIndex + 3) {
            dateString = dateString.substring(0, secondsSeparatorIndex + 3);
        }
    } else {
        dateString = dateString.substring(0, secondsSeparatorIndex + 3) +
        dateString.substring(millisecondsEndIndex, dateString.length);
    }
    timestamp = new Date(dateString).getTime();
    }
}
// If we cannot parse timestamp - we will use the current timestamp
if (timestamp == -1) {
    timestamp = Date.now();
}
// --- Timestamp parsing

// You can add some keys manually to attributes or telemetry
attributes.deduplicationId = data.deduplicationId;

// You can exclude some keys from the result
var excludeFromAttributesList = ["deviceName", "rxInfo", "confirmed", "data", "deduplicationId","time", "adr", "dr", "fCnt"];
var excludeFromTelemetryList = ["data", "deviceInfo", "txInfo", "devAddr", "adr", "time", "fPort", "region_common_name", "region_config_id", "deduplicationId"];

// Message parsing
// To avoid paths in the decoded objects we passing false value to function as "pathInKey" argument.
// Warning: pathInKey can cause already found fields to be overwritten with the last value found.

var telemetryData = toFlatMap(data, excludeFromTelemetryList, false);
var attributesData = toFlatMap(data, excludeFromAttributesList, false);

var uplinkDataList = [];

// Passing incoming bytes to decodePayload function, to get custom decoding
var customDecoding = decodePayload(base64ToBytes(data.data));

// Collecting data to result
if (customDecoding.?telemetry.size() > 0) {
    telemetry.putAll(customDecoding.telemetry);
}

if (customDecoding.?attributes.size() > 0) {
    attributes.putAll(customDecoding.attributes);
}

telemetry.putAll(telemetryData);
attributes.putAll(attributesData);

var result = {
    deviceName: deviceName,
    deviceType: deviceType,
//  assetName: assetName,
//  assetType: assetType,
//  customerName: customerName,
//  groupName: groupName,
    attributes: attributes,
    telemetry: {
        ts: timestamp,
        values: telemetry
    }
};

return result;

Add a device on The Things Stack Community Edition

We need to add a device on The Things Stack Community Edition.

To add a device, you can follow next steps:

  • Login to the cloud and open your console.

  • Go to the Applications page. Then select your application and click on its name.

  • Click on the Register end device button.

  • Put the APP EUI value to the JoinEUI field. Press the Confirm button.

  • Fill the rest parameters and press Register end device button.

Login to the cloud and open your console.

Login to the cloud and open your console.

Go to the Applications page. Then select your application and click on its name.

Go to the Applications page. Then select your application and click on its name.

Click on the Register end device button.

Click on the Register end device button.

Put the APP EUI value to the JoinEUI field. Press the Confirm button.

Put the APP EUI value to the JoinEUI field. Press the Confirm button.

Fill the rest parameters and press Register end device button.

Fill the rest parameters and press Register end device button.

Such as we have already connected gateway and configured integration - we will need to modify the converter and add an ability to parse incoming payload from the device.

To do this you can add code to “Decoding block”, it locates between comments “// — Decoding code — //” in your converter, if you are using the default converters (for ThingsBoard v3.5.2 or above).

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

if (input.length > 0) {
        for (var i = 0; i < input.length; ) {
            var channel_id = input[i++];
            if (i < input.length) {
                var channel_type = input[i++];
                // BATTERY
                if (channel_id === 0x01 && channel_type === 0x75) {
                    output.telemetry.battery = input[i];
                    i += 1;
                }
                // PIR
                else if (channel_id === 0x03 && channel_type === 0x00) {
                    output.telemetry.pir = input[i] === 0 ? "normal" : "trigger";
                    i += 1;
                }
                // DAYLIGHT
                else if (channel_id === 0x04 && channel_type === 0x00) {
                    output.telemetry.daylight = input[i] === 0 ? "dark" : "light";
                    i += 1;
                }
            }
        }
    }

Or you can copy the whole code of the converter and paste it to your converter:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151

var data = decodeToJson(payload);

var deviceName = data.end_device_ids.device_id;
var deviceType = data.end_device_ids.application_ids.application_id;
// var groupName = 'IAQ devices';
// var customerName = 'Customer A';
// use assetName and assetType instead of deviceName and deviceType
// to automatically create assets instead of devices.
// var assetName = 'Asset A';
// var assetType = 'building';

// If you want to parse incoming data somehow, you can add your code to this function.
// input: bytes
// expected output:
//  {
//    "attributes": {"attributeKey": "attributeValue"},
//    "telemetry": {"telemetryKey": "telemetryValue"}
//  }
//
// In the example - bytes will be saved as HEX string and also parsed as light level, battery level and PIR sensor value.
//

function decodeFrmPayload(input) {
    var output = {
        attributes: {}, telemetry: {}
    };
    // --- Decoding code --- //

    output.telemetry.HEX_bytes = bytesToHex(input);

    if (input.length > 0) {
        for (var i = 0; i < input.length; ) {
            var channel_id = input[i++];
            if (i < input.length) {
                var channel_type = input[i++];
                // BATTERY
                if (channel_id === 0x01 && channel_type === 0x75) {
                    output.telemetry.battery = input[i];
                    i += 1;
                }
                // PIR
                else if (channel_id === 0x03 && channel_type === 0x00) {
                    output.telemetry.pir = input[i] === 0 ? "normal" : "trigger";
                    i += 1;
                }
                // DAYLIGHT
                else if (channel_id === 0x04 && channel_type === 0x00) {
                    output.telemetry.daylight = input[i] === 0 ? "dark" : "light";
                    i += 1;
                }
            }
        }
    }

    // --- Decoding code --- //
    return output;
}

// --- attributes and telemetry objects ---
var telemetry = {};
var attributes = {};
// --- attributes and telemetry objects ---

// --- Timestamp parsing
var dateString = data.uplink_message.received_at;
// If data is simulated or device doesn't send his own date string - we will use date from upcoming message, set by network server
if ((data.simulated != null && data.simulated) || dateString == null) {
    dateString = data.received_at;
}
var timestamp = new Date(dateString).getTime();
var timestamp = -1;
if (dateString != null) {
    timestamp = new Date(dateString).getTime();
    if (timestamp == -1) {
        var secondsSeparatorIndex = dateString.lastIndexOf('.') + 1;
        var millisecondsEndIndex = dateString.lastIndexOf('+');
        if (millisecondsEndIndex == -1) {
            millisecondsEndIndex = dateString.lastIndexOf('Z');
        }
        if (millisecondsEndIndex == -1) {
            millisecondsEndIndex = dateString.lastIndexOf('-');
        }
        if (millisecondsEndIndex == -1) {
            if (dateString.length >= secondsSeparatorIndex + 3) {
                dateString = dateString.substring(0, secondsSeparatorIndex + 3);
            }
        } else {
            dateString = dateString.substring(0, secondsSeparatorIndex + 3) +
                dateString.substring(millisecondsEndIndex, dateString.length);
        }
        timestamp = new Date(dateString).getTime();
    }
}
// If we cannot parse timestamp - we will use the current timestamp
if (timestamp == -1) {
    timestamp = Date.now();
}
// --- Timestamp parsing

// You can add some keys manually to attributes or telemetry
attributes.devEui = data.end_device_ids.dev_eui;
attributes.fPort = data.uplink_message.f_port;
// We want to save correlation ids as single object, so we are excluding them from attributes parse and add manually
attributes.correlation_ids = data.correlation_ids;

// You can exclude some keys from the result
var excludeFromTelemetryList = ["uplink_token", "gateway_id", "settings", "f_port", "time", "timestamp", "received_at", "network_ids"];
var excludeFromAttributesList = ["uplink_token", "gateway_id", "f_port", "time", "timestamp", "received_at", "session_key_id", "dev_eui"];

// Message parsing
// To avoid paths in the decoded objects we passing false value to function as "pathInKey" argument.
// Warning: pathInKey can cause already found fields to be overwritten with the last value found, e.g. receive_at from uplink_message will be written receive_at in the root.
var telemetryData = toFlatMap(data.uplink_message, excludeFromTelemetryList, false);
var attributesData = {};
attributesData.putAll(toFlatMap(data.uplink_message.settings, excludeFromAttributesList, false));
attributesData.putAll(toFlatMap(data.uplink_message.network_ids, excludeFromAttributesList, false));
attributesData.putAll(toFlatMap(data.end_device_ids, excludeFromAttributesList, false));

// Passing incoming bytes to decodeFrmPayload function, to get custom decoding
var customDecoding = {};
if (data.uplink_message.get("frm_payload") != null) {
    customDecoding = decodeFrmPayload(base64ToBytes(data.uplink_message.frm_payload));
}

// Collecting data to result
if (customDecoding.?telemetry.size() > 0) {
    telemetry.putAll(customDecoding.telemetry);
}

if (customDecoding.?attributes.size() > 0) {
    attributes.putAll(customDecoding.attributes);
}

telemetry.putAll(telemetryData);
attributes.putAll(attributesData);

var result = {
    deviceName: deviceName,
    deviceType: deviceType,
//  assetName: assetName,
//  assetType: assetType,
//  customerName: customerName
//  groupName: groupName,
    attributes: attributes,
    telemetry: {
        ts: timestamp,
        values: telemetry
    }
};

return result;

Add a device on The Things Industries

We need to add a device on The Things Industries cloud.

To add a device, you can follow next steps:

  • Login to the cloud and open your console.

  • Go to the Applications page. Then select your application and click on its name.

  • Click on the Register end device button.

  • Put the APP EUI value to the JoinEUI field. Press the Confirm button.

  • Fill the rest parameters and press Register end device button.

Login to the cloud and open your console.

Login to the cloud and open your console.

Go to the Applications page. Then select your application and click on its name.

Go to the Applications page. Then select your application and click on its name.

Click on the Register end device button.

Click on the Register end device button.

Put the APP EUI value to the JoinEUI field. Press the Confirm button.

Put the APP EUI value to the JoinEUI field. Press the Confirm button.

Fill the rest parameters and press Register end device button.

Fill the rest parameters and press Register end device button.

Such as we have already connected gateway and configured integration - we will need to modify the converter and add an ability to parse incoming payload from the device.

To do this you can add code to “Decoding block”, it locates between comments “// — Decoding code — //” in your converter, if you are using the default converters (for ThingsBoard v3.5.2 or above).

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

if (input.length > 0) {
        for (var i = 0; i < input.length; ) {
            var channel_id = input[i++];
            if (i < input.length) {
                var channel_type = input[i++];
                // BATTERY
                if (channel_id === 0x01 && channel_type === 0x75) {
                    output.telemetry.battery = input[i];
                    i += 1;
                }
                // PIR
                else if (channel_id === 0x03 && channel_type === 0x00) {
                    output.telemetry.pir = input[i] === 0 ? "normal" : "trigger";
                    i += 1;
                }
                // DAYLIGHT
                else if (channel_id === 0x04 && channel_type === 0x00) {
                    output.telemetry.daylight = input[i] === 0 ? "dark" : "light";
                    i += 1;
                }
            }
        }
    }

Or you can copy the whole code of the converter and paste it to your converter:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148

var data = decodeToJson(payload);

var deviceName = data.end_device_ids.device_id;
var deviceType = data.end_device_ids.application_ids.application_id;
// var groupName = 'IAQ devices';
// var customerName = 'Customer A';
// use assetName and assetType instead of deviceName and deviceType
// to automatically create assets instead of devices.
// var assetName = 'Asset A';
// var assetType = 'building';

// If you want to parse incoming data somehow, you can add your code to this function.
// input: bytes
// expected output:
//  {
//    "attributes": {"attributeKey": "attributeValue"},
//    "telemetry": {"telemetryKey": "telemetryValue"}
//  }
//
// In the example - bytes will be saved as HEX string and also parsed as light level, battery level and PIR sensor value.
//

function decodeFrmPayload(input) {
    var output = { attributes:{}, telemetry: {}};
    // --- Decoding code --- //

    output.telemetry.HEX_bytes = bytesToHex(input);

    if (input.length > 0) {
        for (var i = 0; i < input.length; ) {
            var channel_id = input[i++];
            if (i < input.length) {
                var channel_type = input[i++];
                // BATTERY
                if (channel_id === 0x01 && channel_type === 0x75) {
                    output.telemetry.battery = input[i];
                    i += 1;
                }
                // PIR
                else if (channel_id === 0x03 && channel_type === 0x00) {
                    output.telemetry.pir = input[i] === 0 ? "normal" : "trigger";
                    i += 1;
                }
                // DAYLIGHT
                else if (channel_id === 0x04 && channel_type === 0x00) {
                    output.telemetry.daylight = input[i] === 0 ? "dark" : "light";
                    i += 1;
                }
            }
        }
    }

    // --- Decoding code --- //
    return output;
}

// --- attributes and telemetry objects ---
var telemetry = {};
var attributes = {};
// --- attributes and telemetry objects ---

// --- Timestamp parsing
var dateString = data.uplink_message.received_at;
// If data is simulated or device doesn't send his own date string - we will use date from upcoming message, set by network server
if ((data.simulated != null && data.simulated) || dateString == null) {
    dateString = data.received_at;
}
var timestamp = -1;
if (dateString != null) {
    timestamp = new Date(dateString).getTime();
    if (timestamp == -1) {
        var secondsSeparatorIndex = dateString.lastIndexOf('.') + 1;
        var millisecondsEndIndex = dateString.lastIndexOf('+');
        if (millisecondsEndIndex == -1) {
            millisecondsEndIndex = dateString.lastIndexOf('Z');
        }
        if (millisecondsEndIndex == -1) {
            millisecondsEndIndex = dateString.lastIndexOf('-');
        }
        if (millisecondsEndIndex == -1) {
            if (dateString.length >= secondsSeparatorIndex + 3) {
                dateString = dateString.substring(0, secondsSeparatorIndex + 3);
            }
        } else {
            dateString = dateString.substring(0, secondsSeparatorIndex + 3) +
                dateString.substring(millisecondsEndIndex, dateString.length);
        }
        timestamp = new Date(dateString).getTime();
    }
}
// If we cannot parse timestamp - we will use the current timestamp
if (timestamp == -1) {
    timestamp = Date.now();
}
// --- Timestamp parsing

// You can add some keys manually to attributes or telemetry
attributes.devEui = data.end_device_ids.dev_eui;
attributes.fPort = data.uplink_message.f_port;
// We want to save correlation ids as single object, so we are excluding them from attributes parse and add manually
attributes.correlation_ids = data.correlation_ids;

// You can exclude some keys from the result
var excludeFromTelemetryList = ["uplink_token", "gateway_id", "settings", "f_port", "time", "timestamp", "received_at", "network_ids"];
var excludeFromAttributesList = ["uplink_token", "gateway_id", "f_port", "time", "timestamp", "received_at", "session_key_id", "dev_eui"];

// Message parsing
// To avoid paths in the decoded objects we passing false value to function as "pathInKey" argument.
// Warning: pathInKey can cause already found fields to be overwritten with the last value found, e.g. receive_at from uplink_message will be written receive_at in the root.
var telemetryData = toFlatMap(data.uplink_message, excludeFromTelemetryList, false);
var attributesData = {};
attributesData.putAll(toFlatMap(data.uplink_message.settings, excludeFromAttributesList, false));
attributesData.putAll(toFlatMap(data.uplink_message.network_ids, excludeFromAttributesList, false));
attributesData.putAll(toFlatMap(data.end_device_ids, excludeFromAttributesList, false));

// Passing incoming bytes to decodeFrmPayload function, to get custom decoding
var customDecoding = {};
if (data.uplink_message.get("frm_payload") != null) {
    customDecoding = decodeFrmPayload(base64ToBytes(data.uplink_message.frm_payload));
}

// Collecting data to result
if (customDecoding.?telemetry.size() > 0) {
    telemetry.putAll(customDecoding.telemetry);
}

if (customDecoding.?attributes.size() > 0) {
    attributes.putAll(customDecoding.attributes);
}

telemetry.putAll(telemetryData);
attributes.putAll(attributesData);

var result = {
    deviceName: deviceName,
    deviceType: deviceType,
//  assetName: assetName,
//  assetType: assetType,
//  customerName: customerName,
//  groupName: groupName,
    attributes: attributes,
    telemetry: {
        ts: timestamp,
        values: telemetry
    }
};

return result;

Add a device on the Loriot

We need to add a device on the Loriot.

To add a device, you can follow next steps:

  • Login to Loriot server. We use eu2.loriot.io, but it depends on chosen region during registration.

  • Go to the “Applications” page in left menu.

  • Open your application, in our case it is “SampleApp”.

  • Go to the “Enroll Device” page. Fill in the fields, with a configuration from your device. Then click the “Enroll” button.

Login to Loriot server. We use eu2.loriot.io, but it depends on chosen region during registration.

Login to Loriot server. We use eu2.loriot.io, but it depends on chosen region during registration.

Go to the "Applications" page in left menu.

Go to the “Applications” page in left menu.

Open your application, in our case it is "SampleApp".

Open your application, in our case it is “SampleApp”.

Go to the "Enroll Device" page. Fill in the fields, with a configuration from your device. Then click the "Enroll" button.

Go to the “Enroll Device” page. Fill in the fields, with a configuration from your device. Then click the “Enroll” button.

Such as we have already connected gateway and configured integration - we will need to modify the converter and add an ability to parse incoming payload from the device.

To do this you can add code to “Decoding block”, it locates between comments “// — Decoding code — //” in your converter, if you are using the default converters (for ThingsBoard v3.5.2 or above).

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

if (input.length > 0) {
        for (var i = 0; i < input.length; ) {
            var channel_id = input[i++];
            if (i < input.length) {
                var channel_type = input[i++];
                // BATTERY
                if (channel_id === 0x01 && channel_type === 0x75) {
                    output.telemetry.battery = input[i];
                    i += 1;
                }
                // PIR
                else if (channel_id === 0x03 && channel_type === 0x00) {
                    output.telemetry.pir = input[i] === 0 ? "normal" : "trigger";
                    i += 1;
                }
                // DAYLIGHT
                else if (channel_id === 0x04 && channel_type === 0x00) {
                    output.telemetry.daylight = input[i] === 0 ? "dark" : "light";
                    i += 1;
                }
            }
        }
    }

Or you can copy the whole code of the converter and paste it to your converter:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133

var data = decodeToJson(payload);
var deviceName = data.EUI;
var deviceType = "LoraDevices";
// groupName = 'IAQ devices';
// var customerName = 'Customer A';
// use assetName and assetType instead of deviceName and deviceType
// to automatically create assets instead of devices.
// var assetName = 'Asset A';
// var assetType = 'building';
var gatewayDeviceType = "LoraGateway";

// If you want to parse incoming data somehow, you can add your code to this function.
// input: bytes
// expected output:
//  {
//    "attributes": {"attributeKey": "attributeValue"},
//    "telemetry": {"telemetryKey": "telemetryValue"}
//  }
//
// In the example - bytes will be saved as HEX string and also parsed as light level, battery level and PIR sensor value.
//

function decodePayload(input) {
    var output = { attributes:{}, telemetry: {} };
    // --- Decoding code --- //

    output.telemetry.HEX_bytes = bytesToHex(input);

    if (input.length > 0) {
        for (var i = 0; i < input.length; ) {
            var channel_id = input[i++];
            if (i < input.length) {
                var channel_type = input[i++];
                // BATTERY
                if (channel_id === 0x01 && channel_type === 0x75) {
                    output.telemetry.battery = input[i];
                    i += 1;
                }
                // PIR
                else if (channel_id === 0x03 && channel_type === 0x00) {
                    output.telemetry.pir = input[i] === 0 ? "normal" : "trigger";
                    i += 1;
                }
                // DAYLIGHT
                else if (channel_id === 0x04 && channel_type === 0x00) {
                    output.telemetry.daylight = input[i] === 0 ? "dark" : "light";
                    i += 1;
                }
            }
        }
    }

    // --- Decoding code --- //
    return output;
}

// --- attributes and telemetry objects ---
var telemetry = {};
var attributes = {};
// --- attributes and telemetry objects ---

// --- Timestamp parsing
var timestamp = data.ts;
// If we cannot parse timestamp - we will use the current timestamp
if (timestamp == -1) {
    timestamp = Date.now();
}
// --- Timestamp parsing

// You can add some keys manually to attributes or telemetry
attributes.fPort = data.port;
attributes.dataRange = data.dr;

// You can exclude some keys from the result
var excludeFromAttributesList = ["data", "gws", "EUI", "ts", "cmd", "port", "seqno", "fcnt", "toa", "dr", "ack", "bat", "snr", "rssi"];
var excludeFromTelemetryList = ["gws", "EUI", "ts", "freq", "port", "data", "cmd", "dr", "offline"];

// Message parsing
// To avoid paths in the decoded objects we passing false value to function as "pathInKey" argument.
// Warning: pathInKey can cause already found fields to be overwritten with the last value found.

var telemetryData = toFlatMap(data, excludeFromTelemetryList, false);
var attributesData = toFlatMap(data, excludeFromAttributesList, false);

var uplinkDataList = [];

// Passing incoming bytes to decodePayload function, to get custom decoding
var customDecoding = decodePayload(hexToBytes(data.data));

// Collecting data to result
if (customDecoding.?telemetry.size() > 0) {
    telemetry.putAll(customDecoding.telemetry);
}

if (customDecoding.?attributes.size() > 0) {
    attributes.putAll(customDecoding.attributes);
}

telemetry.putAll(telemetryData);
attributes.putAll(attributesData);

var deviceInfo = {
    deviceName: deviceName,
    deviceType: deviceType,
//  assetName: assetName,
//  assetType: assetType,
//  customerName: customerName,
//  groupName: groupName,
    attributes: attributes,
    telemetry: {
        ts: timestamp,
        values: telemetry
    }
};

uplinkDataList.add(deviceInfo);

if (data.cmd == "gw") {
    foreach( gatewayInfo : data.gws ) {
        var gatewayInfoMsg = {
            deviceName: gatewayInfo.gweui,
            deviceType: gatewayDeviceType,
            attributes: {},
            telemetry: {
                "ts": gatewayInfo.ts,
                "values": toFlatMap(gatewayInfo, ["ts", "time", "gweui"], false)
            }
        };
        uplinkDataList.add(gatewayInfoMsg);
    }
}

return uplinkDataList;

Check data on ThingsBoard

So, the device was added and if it sends any data - it should appear in Devices.
To check it you may open Devices page in Entities section. The device should be in devices list. You can check the data by click on it and open tab Attributes or Latest telemetry.

Check telemetry on device


In order to get more user-friendly view - you can use dashboards.
You can download a simple dashboard for this device, it is configured to display a data from “pir”, “light” and “battery” telemetry keys for device with name “eui-24e124538b223213”.

ThingsBoard provides the ability to create and customize interactive visualizations (dashboards) for monitoring and managing data and devices.
Through ThingsBoard dashboards, you can efficiently manage and monitor your IoT devices and data. So, we will create the dashboard, for our device.

To add the dashboard to ThingsBoard, we need to import it. To import a dashboard, follow these steps:

  • Navigate to the “Dashboards” page. By default, you navigate to the dashboard group “All”. Click on the “+” icon in the top right corner. Select “Import dashboard”.

  • In the dashboard import window, upload the JSON file and click “Import” button.

  • Dashboard has been imported.

Navigate to the "Dashboards" page. By default, you navigate to the dashboard group "All". Click on the "+" icon in the top right corner. Select "Import dashboard".

Navigate to the “Dashboards” page. By default, you navigate to the dashboard group “All”. Click on the “+” icon in the top right corner. Select “Import dashboard”.

In the dashboard import window, upload the JSON file and click "Import" button.

In the dashboard import window, upload the JSON file and click “Import” button.

Dashboard has been imported.

Dashboard has been imported.

To open the imported dashboard, click on it. Then you should specify your device in entity alias of the dashboard.

To do this, follow these steps:

  • Open the dashboard and enter edit mode. Click the “Entity aliases” icon, then in the pop-up window click the “Edit alias” icon next to the alias.

  • In edit alias window select your device from dropdown list and save entity alias.

  • Apply all changes.

Open the dashboard and enter edit mode. Click the "Entity aliases" icon, then in the pop-up window click the "Edit alias" icon next to the alias.

Open the dashboard and enter edit mode. Click the “Entity aliases” icon, then in the pop-up window click the “Edit alias” icon next to the alias.

In edit alias window select your device from dropdown list and save entity alias.

In edit alias window select your device from dropdown list and save entity alias.

Apply all changes.

Apply all changes.

Now you should be able to see the data from the device.

Example of the dashboard with data:

Dashboard

Conclusion

With the knowledge outlined in this guide, you can easily connect your WS202 PIR & Light LoRaWAN® Sensor and send data to ThingsBoard.

Explore the platform documentation to learn more about key concepts and features. For example, configure alarm rules or dashboards.
