function decodeUplink(input) {
    const res = Decoder(input.bytes, input.fPort);
    if (res.error) {
      return { errors: [res.error] };
    }
    return { data: res };
  }

function Decoder(bytes, port) {
    const readUInt8 = b => b & 0xFF;
    const readUInt16LE = b => (b[1] << 8) + b[0];
    const readInt16LE = b => {
      const ret = readUInt16LE(b);
      return (ret > 0x7ffff) ? ret - 0x10000 : ret;
    }
    const readUInt32LE = b => (b[3] << 24) + (b[2] << 16) + (b[1] << 8) + b[0];
    const readInt32LE = b => {
      const ret = readUInt32LE(b);
      return (ret > 0x7FFFFFFF) ? ret - 0x100000000 : ret;
    }
    const readFloatLE = b => {
      const buf = new ArrayBuffer(4);
      const view = new DataView(buf);
      for (let i = 0; i < 4; i++) view.setUint8(i, b[i]);
      return view.getFloat32(0, true); // ieee754 float
    };

    const head = readUInt8(bytes[0]);
    const model = readUInt8(bytes[1]);

    if (head === 11) {
      // Check-in frame
      const timestamp = readUInt32LE(bytes.slice(2, 6));
      const date = new Date(timestamp * 1000);
      const yyyy = date.getUTCFullYear();
      const mm = (date.getUTCMonth() + 1).toString().padStart(2, '0');
      const dd = date.getUTCDate().toString().padStart(2, '0');
      const verFormatted = parseInt(`${yyyy}${mm}${dd}`);

      const interval = readUInt16LE(bytes.slice(6, 8));
      const splrate = interval;
      const bat = readUInt8(bytes[8]);
      const millivolt = readUInt16LE(bytes.slice(9, 11));
      const volt = (millivolt / 1000).toFixed(3);
      const freqband = readUInt8(bytes[11]);
      const subband = readUInt8(bytes[12]);

      return {
        head,
        ver: verFormatted,
        interval,
        splrate,
        bat,
        volt,
        freqband,
        subband
      };
    }

    else if (head === 12 || head === 13) {
      // Sensor / Hold
      const tsmode = readUInt8(bytes[2]);
      const timestamp = readUInt32LE(bytes.slice(3, 7));
      const splfmt = readUInt8(bytes[7]);

      if (splfmt !== 2) {
        return { error: "Unsupported Sensor Data Format: " + splfmt };
      }

      const raw_size = 4;
      const data = bytes.slice(8);
      const ch_count = data.length / raw_size;
      const data_size = data.length;

      let offset = 0;
      let temperature = null, humidity = null;

      if (ch_count < 2) {
        return { error: "Unsupported Sensor Data Size: " + ch_count };
      }

      temperature = parseFloat(readFloatLE(data.slice(offset, offset + raw_size)).toFixed(2));
      if (temperature <= -9999.0) temperature = null;
      offset += raw_size;

      humidity = parseFloat(readFloatLE(data.slice(offset, offset + raw_size)).toFixed(2));
      if (humidity <= -9999.0) humidity = null;

      return {
        head,
        model,
        tsmode,
        timestamp,
        splfmt,
        data_size,
        temperature,
        humidity
      };

    }

    return { error: "Unsupported head frame: " + head };
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68

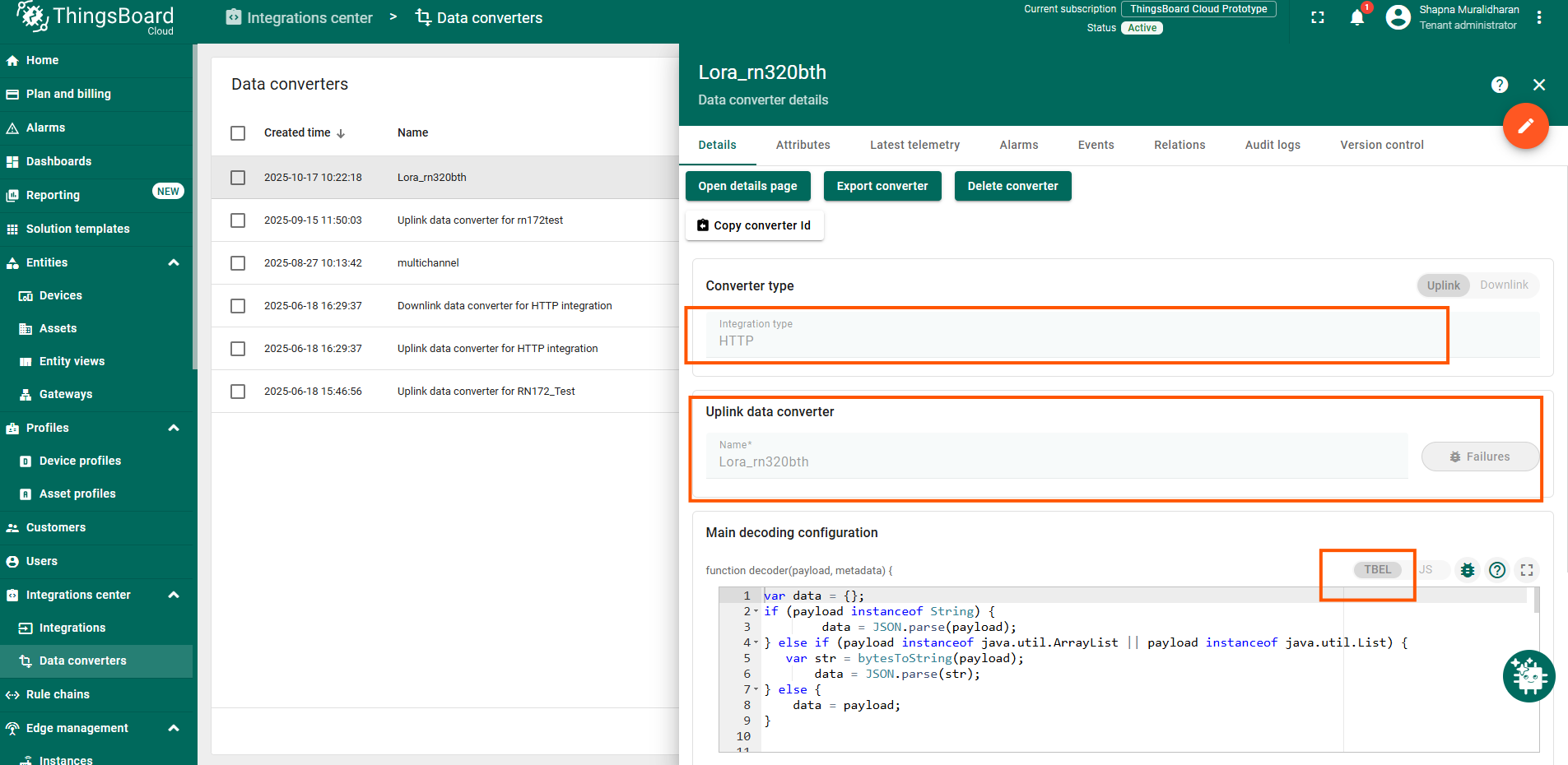

var data = {};
if (payload instanceof String) {
        data = JSON.parse(payload);
} else if (payload instanceof java.util.ArrayList || payload instanceof java.util.List) {
   var str = bytesToString(payload);
       data = JSON.parse(str);
} else {
    data = payload;
}


var deviceName = data.?end_device_ids.?device_id;
if (deviceName == null){
    deviceName = "Unknown_Device";
}

var applicationId = data.?end_device_ids.?application_ids.?application_id;
if (applicationId == null) applicationId = "Unknown_App";

var uplink = data.?uplink_message;
var decoded = {};
if (uplink != null && uplink.decoded_payload != null) {
    decoded = uplink.decoded_payload;
}

var rx = {};
if (uplink != null && uplink.rx_metadata != null && uplink.rx_metadata.size() > 0) {
    rx = uplink.rx_metadata[0];
}

var telemetry = {};

if (decoded.?temperature != null) telemetry.temperature = decoded.temperature;
if (decoded.?humidity != null) telemetry.humidity = decoded.humidity;
if (decoded.?model != null) telemetry.model = decoded.model;
if (decoded.?timestamp != null) telemetry.timestamp = decoded.timestamp;

if (rx.?rssi != null) telemetry.rssi = rx.rssi;
if (rx.?snr != null) telemetry.snr = rx.snr;

var tsString = uplink.?received_at;
var tsMillis = new Date().getTime();

if (tsString != null) {
    tsMillis = new Date(tsString).getTime();
}


var attributes = {
    "app_id": applicationId,
    "f_port": uplink.?f_port,
    "frequency": uplink.?settings.?frequency,
    "spreading_factor": uplink.?settings.?data_rate.?lora.?spreading_factor,
    "gateway_id": rx.?gateway_ids.?gateway_id,
    "dev_eui": data.?end_device_ids.?dev_eui
};

var result = {
    "deviceName": deviceName,
    "deviceType": "RN320-BTH",
    "telemetry": {
        "ts": tsMillis,
        "values": telemetry
    },
    "attributes": attributes
};

return result;
