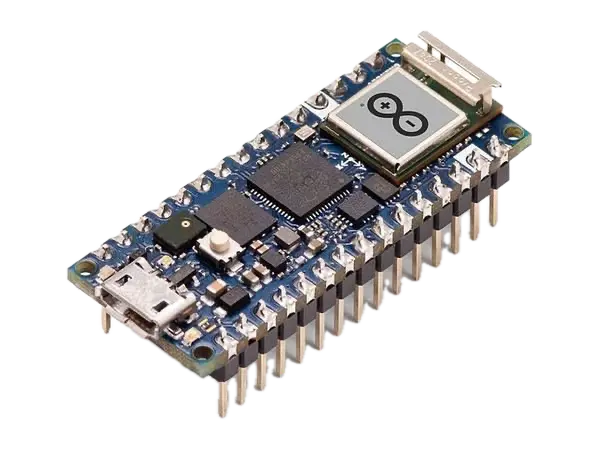

Arduino Nano RP2040 Connect
The Arduino Nano RP2040 Connect brings the Raspberry Pi RP2040 dual-core Cortex-M0+ microcontroller to the compact Nano form factor. It features Wi-Fi and Bluetooth via the u-blox NINA-W102 module, an onboard 6-axis IMU, MEMS microphone, and 16 MB flash, making it ideal for IoT prototyping, embedded machine learning, and edge AI applications.
The Arduino Nano RP2040 Connect is a compact development board built on the Raspberry Pi RP2040 microcontroller, featuring dual-core ARM Cortex-M0+ processor with Wi-Fi and Bluetooth Low Energy connectivity via the u-blox Nina W102 module.
Features
- Dual-core ARM Cortex-M0+ at 133 MHz (RP2040)
- 264 KB SRAM, 16 MB Flash
- Wi-Fi 802.11 b/g/n + Bluetooth 4.2 (u-blox Nina W102)
- Built-in 6-axis IMU (LSM6DSOX), microphone (MP34DT06JTR), and RGB LED
- 22 digital I/O pins, 8 analog inputs
- Nano form factor (45 x 18 mm)
Specifications
| Parameter | Value |
|---|---|
| Microcontroller | RP2040 (Dual ARM Cortex-M0+) |
| Clock Speed | 133 MHz |
| Flash | 16 MB |
| SRAM | 264 KB |
| Operating Voltage | 3.3V |
| Input Voltage | 5V (USB Type-C) |
| Wi-Fi | 802.11 b/g/n (2.4 GHz) |
| Bluetooth | BLE 4.2 |
Device Technical Documentation
Download datasheets and manuals for the Arduino Nano RP2040 Connect
