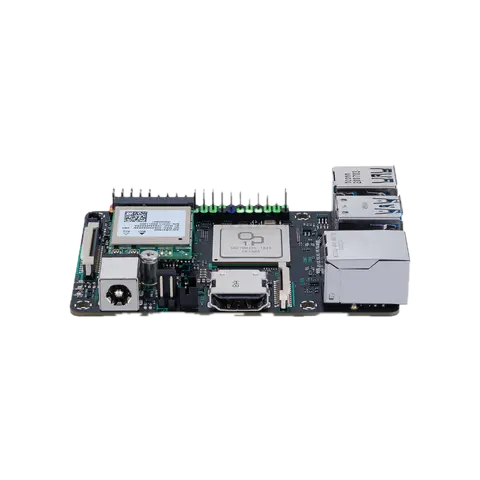

ASUS Tinker Board 2S
The ASUS Tinker Board 2S is a high-performance single-board computer powered by the Rockchip RK3399 hexa-core SoC with dual Cortex-A72 and quad Cortex-A53 cores, 2 GB LPDDR4 RAM, and 16 GB eMMC storage. Featuring Gigabit Ethernet, Wi-Fi 802.11ac, Bluetooth 5.0, 4K HDMI output, and a 40-pin GPIO header, it is ideal for IoT, edge computing, and embedded applications.
The ASUS Tinker Board 2S is a powerful single-board computer built around the Rockchip RK3399 SoC, featuring a dual-core Cortex-A72 and quad-core Cortex-A53 CPU with 2 GB RAM, Gigabit Ethernet, Wi-Fi, and Bluetooth for IoT and edge computing applications.
Features
- Rockchip RK3399 SoC (dual Cortex-A72 + quad Cortex-A53)
- 2 GB LPDDR4 RAM, 16 GB eMMC onboard storage
- Mali-T860MP4 GPU
- Gigabit Ethernet, Wi-Fi 802.11 ac, Bluetooth 5.0
- USB 3.2 Gen 1, USB 2.0, PCIe M.2 slot
- HDMI 2.0a output (up to 4K @ 60 Hz)
- 40-pin GPIO header
Specifications
| Parameter | Value |
|---|---|
| SoC | Rockchip RK3399 |
| CPU | Dual Cortex-A72 @ 2.0 GHz + Quad Cortex-A53 @ 1.5 GHz |
| GPU | Mali-T860MP4 |
| RAM | 2 GB LPDDR4 |
| Storage | 16 GB eMMC |
| Ethernet | Gigabit (10/100/1000) |
| Wi-Fi | 802.11 a/b/g/n/ac (2.4 GHz + 5 GHz) |
| Bluetooth | 5.0 |
| USB | 1x USB 3.2 Gen 1, 3x USB 2.0 |
| Video Output | HDMI 2.0a (4K @ 60 Hz) |
| GPIO | 40-pin header |
| Power | 5V / 3A (DC jack or USB-C) |
Device Technical Documentation
Download datasheets and manuals for the ASUS Tinker Board 2S
ASUS Tinker Board 2S Product page ASUS Tinker Board 2S DatasheetAdd Your Device to the Community
