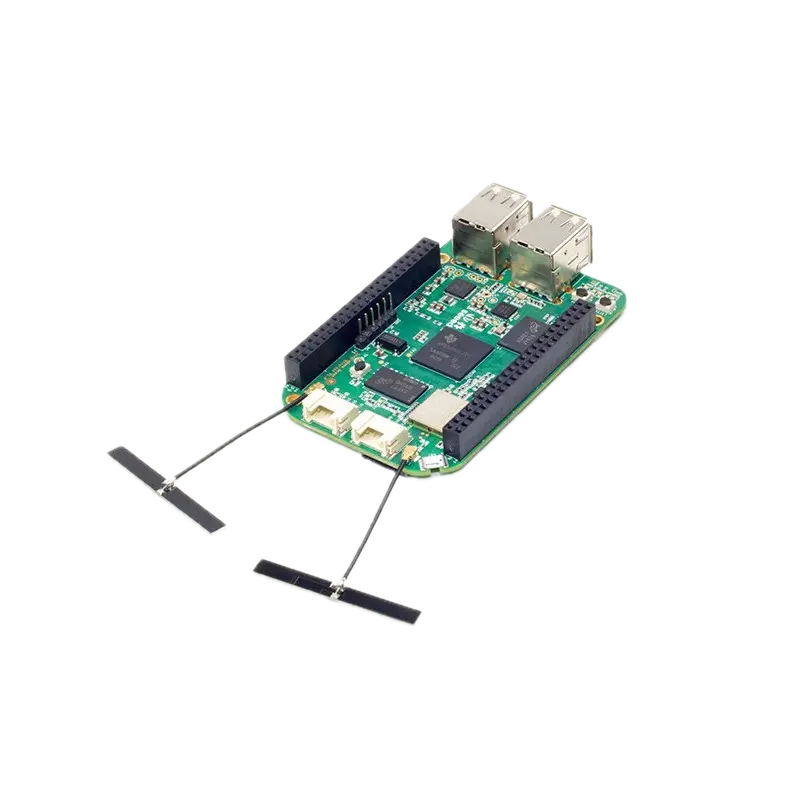

BeagleBone Green Wireless
The BeagleBone Green Wireless is an open-source single-board computer by Seeed Studio and BeagleBoard.org, based on the Texas Instruments AM3358 Cortex-A8 SoC at 1.0 GHz, 512 MB DDR3 RAM, and 4 GB eMMC storage. It features Wi-Fi 802.11 b/g/n, Bluetooth 4.1/BLE, two Grove connectors, and dual 46-pin GPIO headers for IoT and wireless embedded applications.
The BeagleBone Green Wireless is a low-cost, open-source, single-board computer based on the BeagleBone Black design. It includes Wi-Fi and Bluetooth connectivity, and is ideal for IoT applications and other projects that require wireless communication.
Features
- Texas Instruments AM3358 SoC (single Cortex-A8)
- 512 MB DDR3 RAM, 4 GB eMMC onboard storage
- PowerVR SGX530 GPU
- 100 Mbps Ethernet, Wi-Fi 802.11 b/g/n, Bluetooth 4.1
- 2x USB 2.0 host, 1x USB 2.0 client (Mini-USB)
- No video output (headless board)
- 2x 46-pin GPIO headers (92 pins total)
Specifications
| Parameter | Value |
|---|---|
| SoC | Texas Instruments AM3358 |
| CPU | Single Cortex-A8 @ 1.0 GHz |
| GPU | PowerVR SGX530 |
| RAM | 512 MB DDR3 |
| Storage | 4 GB eMMC + MicroSD card slot |
| Ethernet | 10/100 Mbps |
| Wi-Fi | 802.11 b/g/n (2.4 GHz) |
| Bluetooth | 4.1 / BLE |
| USB | 2x USB 2.0 host, 1x USB 2.0 Mini-B client |
| Video Output | None (headless) |
| GPIO | 2x 46-pin headers (P8 + P9) |
| Power | 5V / 2A (DC jack or Mini-USB) |
