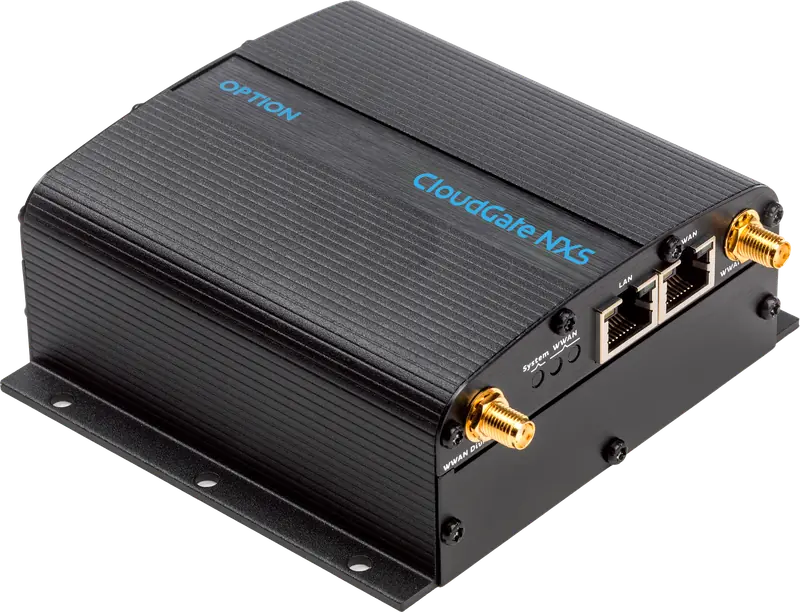

CloudGate NXS
The CloudGate NXS is an industrial-grade, highly customizable secure cellular gateway from Option, available in both 4G and 5G RedCap cellular variants (specifications below are for the 5G RedCap variant). Built on an NXP i.MX93 dual-core ARM application processor with hardware security (NXP EdgeLock secure enclave, Infineon TPM2.0), it’s designed for system integrators who need to tailor connectivity to site-specific requirements — via front expansion cards (Modbus, M-Bus, GPIO, serial, USB, extra Ethernet) and internal mPCIe/M.2 slots (LoRaWAN concentrator, Wi-Fi/BLE). It ships LuvitRED-enabled, so field protocols can be wired up visually without writing code.
Connectivity
- 5G RedCap (Sub-6 FDD/TDD, NR Standalone) and LTE Cat 4 cellular, worldwide band support
- Active/passive GNSS (L1 + L5)
- 2x Gigabit Ethernet (RJ45), independently LAN/WAN configurable
- Optional eSIM
- Front expansion cards: Modbus (serial master), M-Bus, GPIO, USB, RS232 serial, 4-port Ethernet switch
- Internal mPCIe slot (LoRaWAN concentrator card) and M.2 E-key slot (Wi-Fi/BLE)
- Protocol support via LuvitRED: Modbus RTU/TCP, LoRaWAN, M-Bus, and others
- Open, protocol-agnostic connection to ThingsBoard — no proprietary lock-in
How it connects to ThingsBoard
The CloudGate NXS ships with LuvitRED, a visual flow tool for wiring up field devices without writing code. Data collected by LuvitRED (from Modbus, M-Bus, LoRaWAN, or other connected devices) is forwarded to ThingsBoard by running the official thingsboard/tb-gateway Docker container on the gateway — no custom software or vendor-specific client required. This listing sets up that container and its REST connector automatically: LuvitRED posts JSON to a local HTTP endpoint, and it’s relayed to ThingsBoard as device telemetry.
Specifications
| Spec | Value |
|---|---|
| Modem | Telit FEP10C04-WWD |
| Cellular | 5G Sub-6 NR SA (223 Mbps DL / 123 Mbps UL), LTE Cat 4 (200 Mbps DL / 100 Mbps UL) |
| GNSS | L1 + L5, active/passive antenna pad |
| SIM | Optional eSIM |
| Processor | NXP i.MX93, dual-core Cortex-A55 @ 1.7GHz, optional NPU |
| Memory | 2GB LPDDR4, 4GB eMMC |
| Ethernet | 2x Gigabit Ethernet (RJ45), LAN/WAN configurable |
| Storage | microSD 3.0, up to 2TB |
| Security | NXP EdgeLock secure enclave, Infineon SLM 9670 TPM2.0 |
| Battery | Optional Li-ion card (last-gasp, up to 1h limited function) |
| Power input | 9–60V DC, Micro-Fit 2.0 connector |
| Expansion | Front cards (Modbus/M-Bus/GPIO/USB/serial/Ethernet switch), internal mPCIe + M.2 E-key slots |
| Dimensions | 115 x 106 x 46 mm |
| Weight | 330 g |
| Operating temp | -25°C to +75°C |
| Storage temp | -40°C to +85°C |
| Humidity | 5–95% |
| Certifications | CE (RED-OA), FCC, PTCRB, IEEE, major US carriers |
