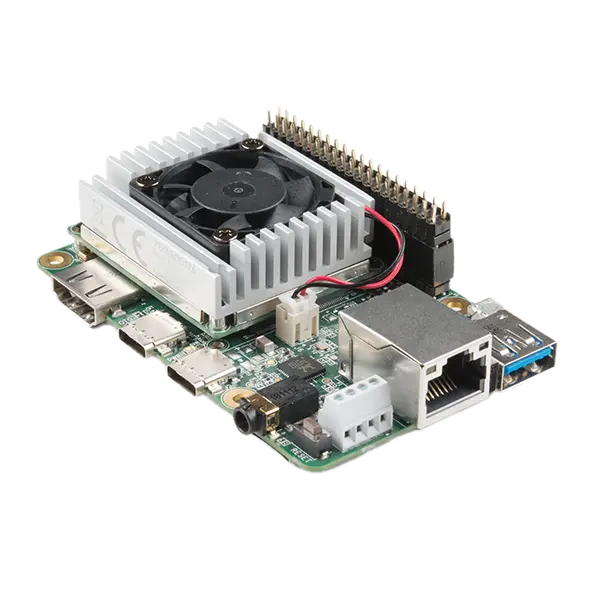

Coral Dev Board
The Coral Dev Board is a single-board computer featuring the NXP i.MX 8M SoC, 1 GB LPDDR4 RAM, 8 GB eMMC, and Google’s Edge TPU coprocessor capable of 4 TOPS inference at just 2 watts. With Wi-Fi, Bluetooth, HDMI, and a removable System-on-Module, it is purpose-built for fast, private, on-device machine learning and edge AI prototyping.
The Coral Dev Board is a single-board computer with a removable system-on-module (SOM) that contains the Google Edge TPU ML accelerator coprocessor. It is designed for developers who want to prototype and deploy machine learning models at the edge.
Features
- NXP i.MX 8M SoC (quad Cortex-A53 + Cortex-M4) + Google Edge TPU coprocessor
- 1 GB LPDDR4 RAM, 8 GB eMMC onboard storage
- Vivante GC7000Lite GPU
- Gigabit Ethernet, Wi-Fi 802.11 ac, Bluetooth 5.0
- USB 3.0, USB 2.0, no PCIe M.2 slot
- HDMI 2.0a output (up to 4K @ 60 Hz)
- 40-pin GPIO header
Specifications
| Parameter | Value |
|---|---|
| SoC | NXP i.MX 8M |
| CPU | Quad Cortex-A53 @ 1.5 GHz + Cortex-M4 @ 266 MHz |
| GPU | Vivante GC7000Lite |
| RAM | 1 GB LPDDR4 |
| Storage | 8 GB eMMC + MicroSD card slot |
| Ethernet | Gigabit (10/100/1000) |
| Wi-Fi | 802.11 a/b/g/n/ac (2.4 GHz + 5 GHz) |
| Bluetooth | 5.0 |
| USB | 1x USB 3.0, 1x USB 2.0 Micro-B |
| Video Output | HDMI 2.0a (4K @ 60 Hz) |
| GPIO | 40-pin header |
| Power | 5V / 3A (DC jack) |
Device Technical Documentation
Download datasheets and manuals for the Coral Dev Board
