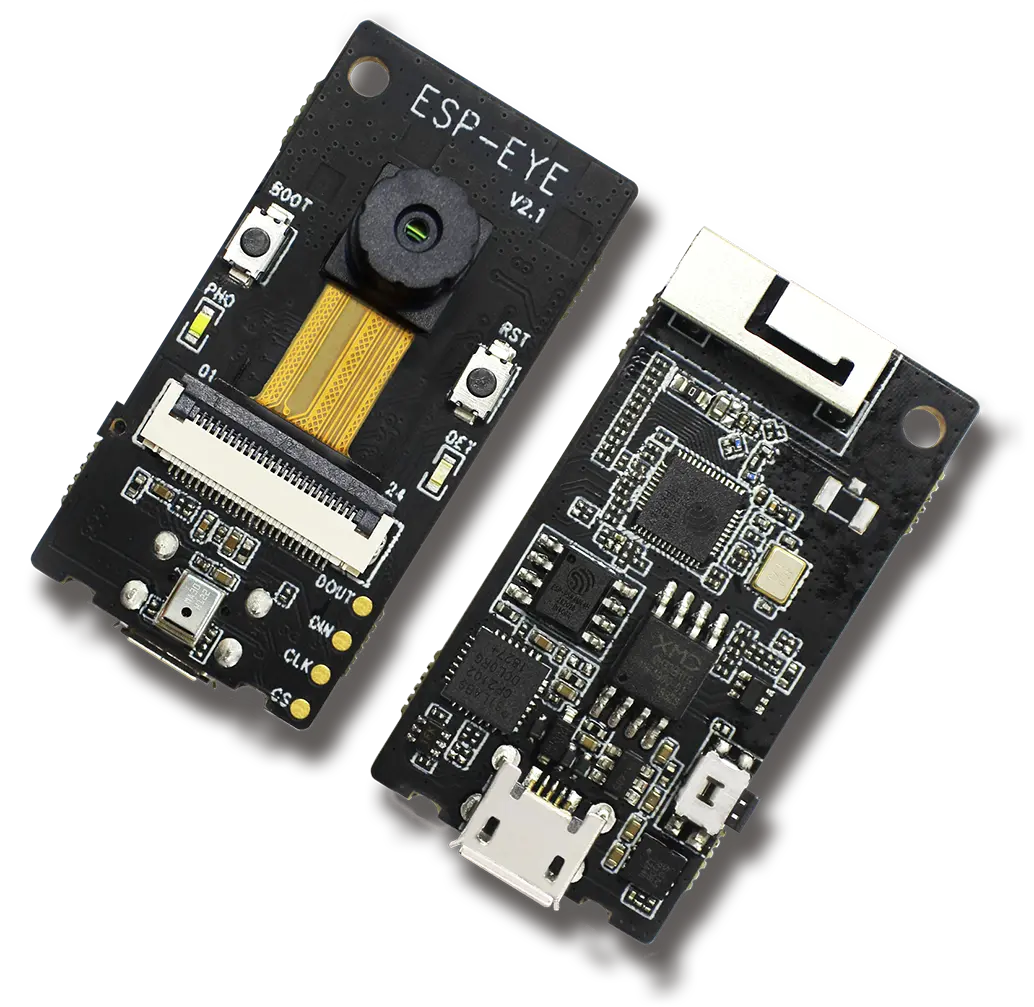

ESP-EYE
ESP-EYE is an Espressif development board designed for AI-assisted image recognition and audio processing, built around the ESP32 dual-core Xtensa LX6 processor supplemented by 8 MB PSRAM for frame buffering and model inference. It integrates a 2-megapixel OV2640 camera module and a digital microphone, enabling simultaneous vision and voice input processing directly on the device.
Overview
The ESP-EYE is a development board by Espressif designed for image recognition and audio processing in AIoT applications. It is built around the ESP32 chip and integrates a 2-Megapixel OV2640 camera and a digital microphone, making it suitable for smart surveillance, face detection, and edge-AI scenarios. With 8 MB PSRAM and 4 MB Flash, it provides enough memory for on-device image buffering and Wi-Fi transmission of captured frames to ThingsBoard.
Key Features
- Dual-core processor: Xtensa LX6 @ up to 240 MHz
- Wireless: Wi-Fi 802.11 b/g/n (2.4 GHz) + Bluetooth 4.2/BLE
- Camera: 2-Megapixel OV2640, supports JPEG, RGB, and YUV output
- Microphone: Digital MEMS microphone
- Memory: 8 MB PSRAM + 4 MB SPI Flash
- Debug/Power: Micro-USB port
- SDK support: Arduino IDE, ESP-IDF, MicroPython
Hardware Specifications
| Parameter | Value |
|---|---|
| Chip | ESP32-D0WDQ6 |
| CPU | Dual-core Xtensa LX6, up to 240 MHz |
| PSRAM | 8 MB |
| Flash | 4 MB SPI Flash |
| Camera | OV2640 2-Megapixel |
| Microphone | Digital MEMS |
| Wi-Fi | 802.11 b/g/n (2.4 GHz) |
| Bluetooth | Bluetooth 4.2 / BLE |
| USB | Micro-USB (debug and power) |
| Operating voltage | 3.3V (I/O) |
| Power supply | 5V via USB |
Supported Use Cases
- Smart security: Wi-Fi camera with remote image capture via RPC
- Environment monitoring with visual sensing
- AIoT prototyping: face detection, object recognition
- Smart retail and smart office automation
Device Technical Documentation
Download datasheets and manuals for the ESP-EYE
