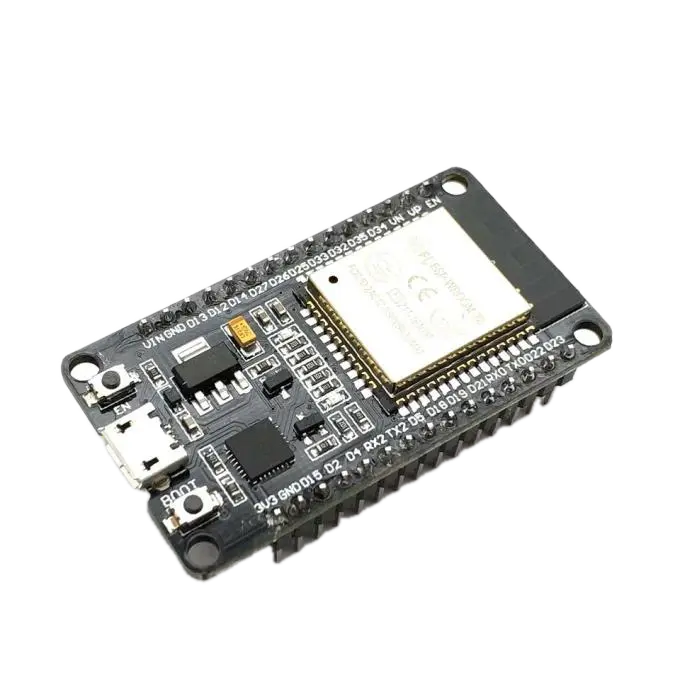

ESP32 Dev Kit V1
The ESP32 Dev Kit V1 is a development board built around the ESP-WROOM-32 module, which integrates Espressif’s ESP32 dual-core Xtensa LX6 processor running at up to 240 MHz with 520 KB SRAM. Onboard 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 4.2/BLE eliminate the need for external radio components, enabling wireless MQTT connectivity straight out of the box.
Overview
The ESP32 Dev Kit V1 is a compact development board built around the Espressif ESP32-WROOM-32 module. It carries a dual-core Xtensa LX6 processor running at up to 240 MHz with integrated 2.4 GHz Wi-Fi and Bluetooth 4.2, on a 55 x 28 mm board. This page lists the board specification and how it connects to ThingsBoard over MQTT.
Key features
- Dual-core Xtensa LX6 microprocessor at up to 240 MHz
- 520 KB SRAM, 4 MB flash
- Wi-Fi 802.11 b/g/n (2.4 GHz) and Bluetooth 4.2 (Classic and BLE)
- 34 GPIO pins, including capacitive touch, ADC, DAC, I2C, SPI and UART
- Built-in hall effect sensor and internal temperature sensor
- Ultra-low power co-processor for deep sleep modes
- USB-to-UART bridge (CP2102 or CH340) for programming
Device profile
Classification fields, using the same connectivity vocabulary the Hub itself uses for the badges on this page. Connectivity is the roll-up of the three rows below it.
| Field | Value |
|---|---|
| Hardware Type | Development Board |
| Connectivity | Bluetooth, I2C, SPI, UART, USB, Wi-Fi |
| Physical Interface | USB, UART, SPI, I2C |
| Wireless Technology | Wi-Fi, Bluetooth |
| Industrial Protocol | None |
| Application Protocol | MQTT |
Technical specifications
| Parameter | Value |
|---|---|
| Processor | ESP32, dual-core Xtensa LX6 |
| Clock speed | Up to 240 MHz |
| SRAM | 520 KB, plus 16 KB RTC SRAM |
| Flash | 4 MB |
| Wi-Fi | 802.11 b/g/n, 2.4 GHz, up to 150 Mbps |
| Bluetooth | Bluetooth 4.2 Classic and BLE |
| GPIO | 34 pins |
| ADC | 18 channels, 12-bit |
| DAC | 2 channels, 8-bit |
| Bus interfaces | 3x UART, 4x SPI, 2x I2C, 2x I2S, PWM |
| Capacitive touch | 10 channels |
| On-board sensors | Hall effect, internal temperature |
| Co-processor | Ultra-low power co-processor for deep sleep |
| Security | Secure boot, flash encryption, hardware AES / SHA / RSA |
| USB | Micro-USB, CP2102 or CH340 USB-to-UART bridge |
| Operating voltage | 3.3 V |
| Power supply | 5 V via micro-USB |
| Deep sleep current | 10 uA |
| Operating temperature | -40 °C to +85 °C |
| Dimensions | 55 x 28 mm |
| Mounting | Desktop or breadboard |
| Certifications | FCC, CE |
| Toolchains | Arduino IDE, ESP-IDF, MicroPython |
Supported use cases
- IoT prototyping and development boards
- Environment monitoring: temperature, humidity, air quality
- Smart home and smart office automation
- Energy monitoring and data logging
Device technical documentation
Download datasheets and manuals for the ESP32 Dev Kit V1
