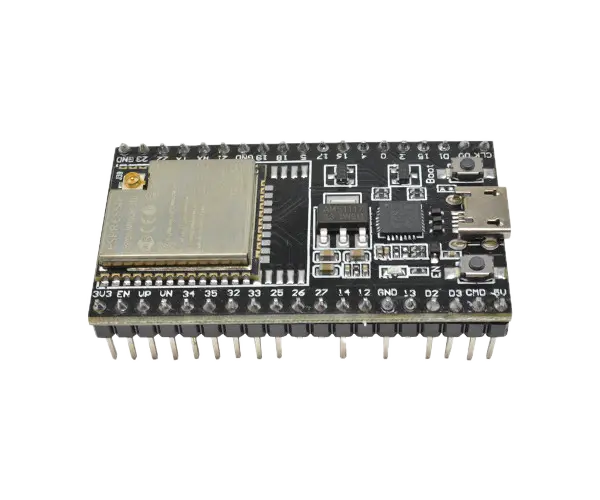

ESP32 Dev Kit V4
ESP32 Dev Kit V4 is a versatile development board built around Espressif’s ESP-WROOM-32 module, featuring a dual-core Xtensa LX6 processor running at up to 240 MHz with 520 KB of SRAM. It integrates 802.11 b/g/n Wi-Fi, Classic Bluetooth, and Bluetooth Low Energy (BLE), making it suitable for a wide range of connected IoT applications. The board exposes 38 GPIO pins including SPI, I²C, UART, ADC, DAC, and PWM interfaces, enabling seamless integration with sensors, actuators, and peripherals.
Overview
The ESP32 Dev Kit V4 is a development board built around the Espressif ESP-WROOM-32 module. It pairs a dual-core Xtensa LX6 processor at up to 240 MHz with 2.4 GHz Wi-Fi and Bluetooth, and exposes 38 GPIO pins for sensors, actuators and peripherals. This page lists the board specification and how it connects to ThingsBoard over MQTT.
Key features
- Dual-core Xtensa 32-bit LX6 at up to 240 MHz (ESP32)
- 520 KB SRAM, 4 MB flash
- Wi-Fi 802.11 b/g/n and Bluetooth 4.2 / BLE
- 38 GPIO pins, 18 ADC channels, 2 DAC channels
- USB powered via micro-USB (CP2102 USB-to-UART bridge)
- On-board EN and BOOT buttons
- Hardware security: secure boot, flash encryption, AES / SHA / RSA acceleration
Device profile
Classification fields, using the same connectivity vocabulary the Hub itself uses for the badges on this page. Connectivity is the roll-up of the three rows below it.
| Field | Value |
|---|---|
| Hardware Type | Development Board |
| Connectivity | Bluetooth, I2C, SPI, UART, USB, Wi-Fi |
| Physical Interface | USB, UART, SPI, I2C |
| Wireless Technology | Wi-Fi, Bluetooth |
| Industrial Protocol | None |
| Application Protocol | MQTT |
Technical specifications
| Parameter | Value |
|---|---|
| Processor | ESP32, dual-core Xtensa LX6 |
| Clock speed | 80 to 240 MHz |
| SRAM | 520 KB, plus 16 KB RTC SRAM |
| Flash | 4 MB, external |
| Wi-Fi | 802.11 b/g/n, 2.4 GHz, up to 150 Mbps |
| Bluetooth | Bluetooth 4.2 BR/EDR and BLE |
| GPIO | 38 pins |
| ADC | 18 channels, 12-bit SAR |
| DAC | 2 channels, 8-bit |
| Bus interfaces | 3x UART, 4x SPI, 2x I2C, 2x I2S, PWM |
| Capacitive touch | 10 channels |
| Security | Secure boot, flash encryption, hardware AES / SHA / RSA |
| USB | Micro-USB, CP2102 USB-to-UART bridge |
| Operating voltage | 3.3 V |
| Power supply | 5 V via micro-USB |
| Deep sleep current | 10 uA |
| Operating temperature | -40 °C to +85 °C |
| Mounting | Desktop or breadboard |
| Certifications | FCC, CE |
| Toolchains | Arduino IDE, ESP-IDF, MicroPython |
Supported use cases
- IoT prototyping and development boards
- Environment monitoring: temperature, humidity, air quality
- Smart home and smart office automation
- Edge processing and embedded machine learning
Device technical documentation
Download datasheets and manuals for the ESP32 Dev Kit V4
