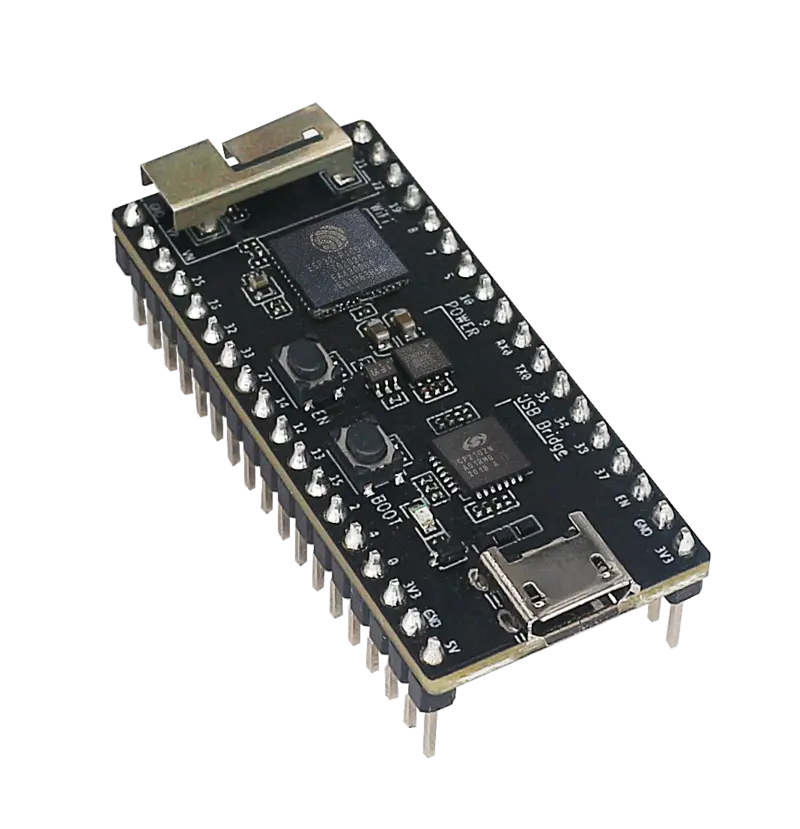

ESP32 PICO KIT
The ESP32-PICO-KIT is a compact development board centered on the ESP32-PICO-D4 system-in-package, which integrates the ESP32 dual-core Xtensa LX6 processor, 4 MB SPI flash, a crystal oscillator, and passive components in a single 7×7 mm package. Onboard 2.4 GHz Wi-Fi and Bluetooth 4.2/BLE provide wireless MQTT connectivity in an especially small footprint, making it one of Espressif’s most space-efficient evaluation platforms.
The ESP32-PICO-KIT is a compact development board built around the ESP32-PICO-D4 SiP module by Espressif Systems, featuring a dual-core Xtensa LX6 CPU with Wi-Fi and Bluetooth connectivity for IoT prototyping and production.
Features
- Dual-core Xtensa 32-bit LX6 at up to 240 MHz (ESP32-PICO-D4)
- 520 KB SRAM, 4 MB Flash (integrated in SiP)
- Wi-Fi 802.11 b/g/n + Bluetooth 4.2 / BLE
- 34 GPIO pins, 18 ADC channels, 2 DAC channels
- Ultra-compact SiP module (7 x 7 mm)
- USB-powered via micro-USB
Specifications
| Parameter | Value |
|---|---|
| SoC | ESP32-PICO-D4 (Dual Xtensa LX6) |
| Clock Speed | Up to 240 MHz |
| Flash | 4 MB (in-package) |
| SRAM | 520 KB |
| Operating Voltage | 3.3V |
| Input Voltage | 5V (micro-USB) |
| Wi-Fi | 802.11 b/g/n (2.4 GHz) |
| Bluetooth | Classic + BLE 4.2 |
Device Technical Documentation
Download datasheets and manuals for the ESP32 PICO KIT
