LattePanda

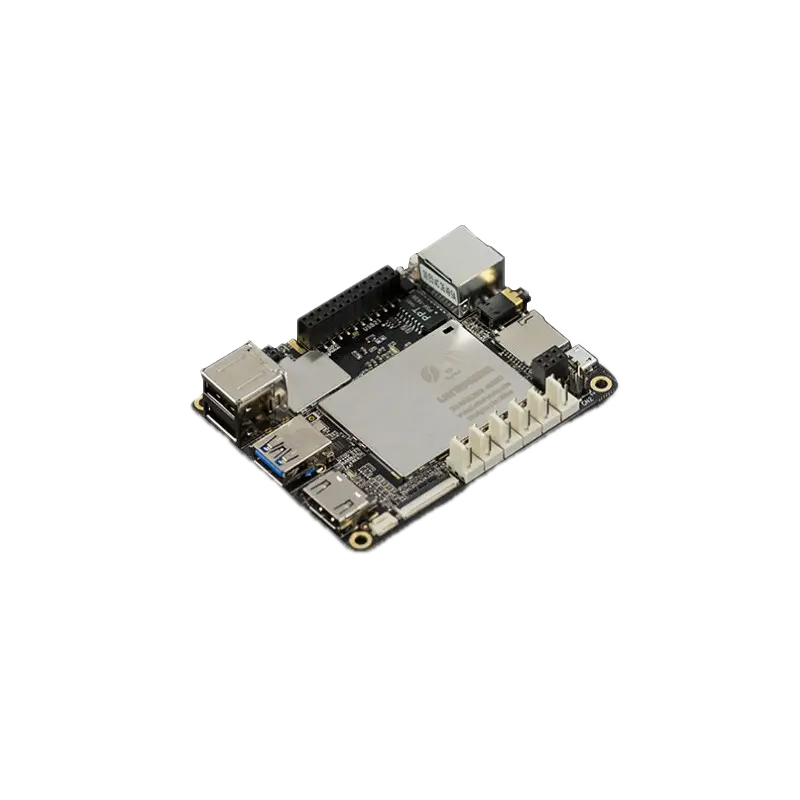

The LattePanda is a single-board computer based on the Intel Atom x5-Z8350 processor. It features 4GB of RAM, WIFI, Bluetooth 4. 0, and a USB 3.0 port. The board also has a microSD card slot, HDMI port, and 40-pin GPIO header, allowing it to interface with a variety of peripherals and sensors. The LattePanda runs Windows 10 or Linux, which makes it an excellent choice for developers, hobbyists, and DIY enthusiasts looking to build anything from robots to media centers. The LattePanda also comes in a variety of models, including ones with built-in Arduino functionality and ones with higher performance specs.

Features

• Intel Cherry Trail Z8350 SoC (quad-core x86)
• 4 GB LPDDR3 RAM, 64 GB eMMC onboard storage
• Intel HD Graphics 400 GPU
• Gigabit Ethernet, Wi-Fi 802.11 ac, Bluetooth 4.0
• USB 3.0, USB 2.0, no PCIe M.2 slot
• HDMI 2.0 output (up to 1080p @ 60 Hz)
• 20-pin GPIO header + Arduino Leonardo co-processor

Specifications

Parameter	Value
SoC	Intel Cherry Trail Z8350
CPU	Quad-core Intel Atom x5-Z8350 @ 1.92 GHz
GPU	Intel HD Graphics 400
RAM	4 GB LPDDR3
Storage	64 GB eMMC + MicroSD card slot
Ethernet	Gigabit (10/100/1000)
Wi-Fi	802.11 a/b/g/n/ac (2.4 GHz + 5 GHz)
Bluetooth	4.0
USB	1x USB 3.0, 2x USB 2.0
Video Output	HDMI 2.0 (1080p @ 60 Hz)
GPIO	20-pin header + Arduino Leonardo (ATmega32U4)
Power	5V / 2A (Micro-USB)

Device Technical Documentation

Download datasheets and manuals for the LattePanda

LattePanda Product page LattePanda Datasheet
