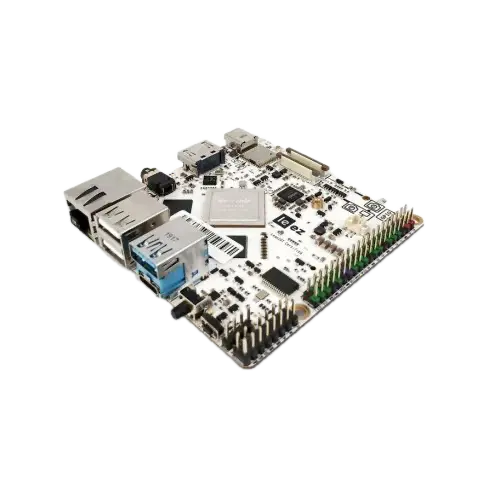

Lenovo Leez SBC P710
The Lenovo Leez SBC P710 is a powerful open-source single-board computer powered by the Rockchip RK3399 hexa-core SoC, 4 GB LPDDR4 RAM, and 16 GB eMMC storage. Featuring Gigabit Ethernet, Wi-Fi 802.11ac, Bluetooth 5.0, optional 4G LTE via M.2, triple display output up to 4K, and a 40-pin GPIO header, it supports Android 9.0 and Linux for IoT and edge AI applications.
The Lenovo Leez SBC P710 is a high-performance single-board computer powered by the Rockchip RK3399 hexa-core SoC (dual Cortex-A72 and quad Cortex-A53). It features 4 GB of LPDDR4 RAM and 16 GB of eMMC 5.1 flash storage, providing robust power for edge AI and IoT applications. For connectivity, the board is equipped with Gigabit Ethernet, dual-band Wi-Fi 802.11ac, and Bluetooth 5.0. Its versatile expansion options include a 40-pin GPIO header and an M.2 slot for 4G LTE or SSD modules.
Features
- Rockchip RK3399 SoC (dual Cortex-A72 + quad Cortex-A53)
- 4 GB LPDDR4 RAM, 16 GB eMMC onboard storage
- Mali-T860MP4 GPU
- Gigabit Ethernet, Wi-Fi 802.11 ac, Bluetooth 5.0
- USB 3.0, USB 2.0, PCIe M.2 slot
- HDMI 2.0 output (up to 4K @ 60 Hz)
- 40-pin GPIO header (Raspberry Pi compatible)
Specifications
| Parameter | Value |
|---|---|
| SoC | Rockchip RK3399 |
| CPU | Dual Cortex-A72 @ 1.8 GHz + Quad Cortex-A53 @ 1.4 GHz |
| GPU | Mali-T860MP4 |
| RAM | 4 GB LPDDR4 |
| Storage | 16 GB eMMC + MicroSD card slot |
| Ethernet | Gigabit (10/100/1000) |
| Wi-Fi | 802.11 a/b/g/n/ac (2.4 GHz + 5 GHz) |
| Bluetooth | 5.0 |
| USB | 2x USB 3.0, 2x USB 2.0 |
| Video Output | HDMI 2.0 (4K @ 60 Hz) |
| GPIO | 40-pin header (Raspberry Pi compatible) |
| Power | 12V / 2A (DC jack) |
