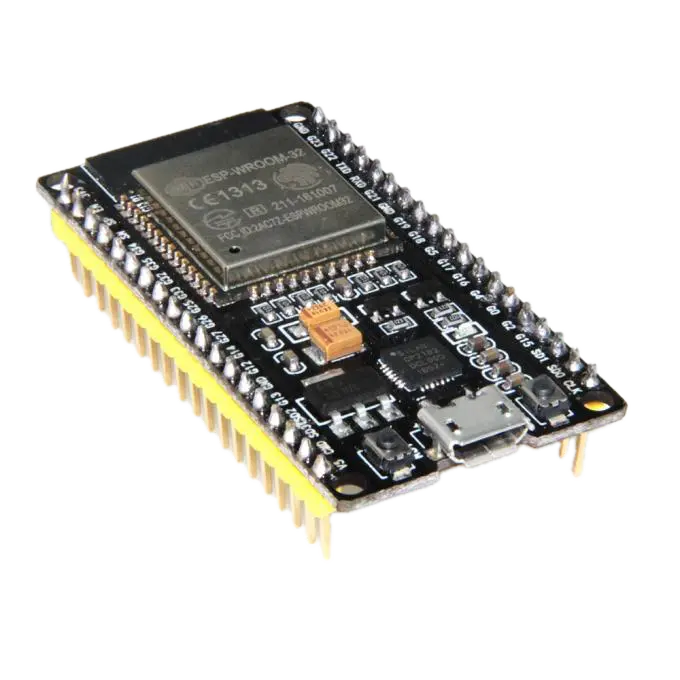

LuaNode32
LuaNode32 is a compact ESP32-based development board built on the ESP-WROOM-32 module, housing Espressif’s dual-core Xtensa LX6 processor with 520 KB SRAM, 4 MB SPI flash, integrated 2.4 GHz Wi-Fi, and Bluetooth 4.2 with BLE. The board exposes GPIO, UART, SPI, I2C, ADC, DAC, and PWM interfaces through standard headers, and a USB-to-serial chip simplifies programming and monitoring. Wi-Fi and MQTT connectivity enable direct integration with IoT platforms for telemetry and remote control.
Overview
The LuaNode32 is a compact development board built on Espressif’s ESP-WROOM-32 module. It features a dual-core Xtensa LX6 processor with variable clock frequency from 80 MHz to 240 MHz, integrated Wi-Fi 802.11 b/g/n, Bluetooth 4.2 Classic and BLE. The miniature 25.5 mm × 18 mm form factor includes on-board Flash memory, a 40 MHz crystal oscillator, and a PCB antenna — making it well-suited for portable and autonomous IoT applications.
Key Features
- Dual-core processor: Xtensa LX6 @ 80–240 MHz with individual core power control
- Wireless: Wi-Fi 802.11 b/g/n (2.4 GHz) + Bluetooth 4.2 Classic & BLE
- Compact size: 25.5 mm × 18 mm with PCB antenna
- On-board Flash: 4 MB SPI Flash
- GPIO: Multiple GPIO pins with SPI, I2C, I2S, UART, ADC, DAC, and PWM support
- Power: Low-power modes for battery-operated deployments
- SDK support: Arduino IDE, ESP-IDF, MicroPython, Lua (NodeMCU)
Hardware Specifications
| Parameter | Value |
|---|---|
| Chip | ESP32 (Espressif ESP-WROOM-32) |
| CPU | Dual-core Xtensa LX6, 80–240 MHz |
| Flash | 4 MB SPI Flash |
| RAM | 520 KB SRAM |
| Wi-Fi | 802.11 b/g/n (2.4 GHz) |
| Bluetooth | BT 4.2 Classic + BLE |
| Antenna | On-board PCB antenna |
| Board size | 25.5 mm × 18 mm |
| USB | Micro-USB (USB-to-UART bridge) |
| Operating voltage | 3.3V (I/O) |
| Power supply | 5V via USB |
| Operating temperature | −40°C to +85°C |
Supported Use Cases
- Environmental monitoring: temperature, humidity, air quality sensors
- Smart home and smart office automation
- Smart farming: soil moisture, ambient conditions
- Energy monitoring and data logging
- Wearable and portable IoT prototypes leveraging the compact form factor
Device Technical Documentation
Download datasheets and manuals for the LuaNode32
