NCD Vibration Temperature Sensor
The NCD Gen4 Industrial IoT Wireless Vibration & Temperature Sensor is an IP67-rated predictive maintenance sensor featuring triaxial MEMS accelerometers with an industry-leading 25.6 kHz sample rate, surface temperature monitoring, RPM tracking, and machine uptime detection. With magnetic mount installation, up to 2-mile sub-GHz mesh range, 10-year battery life, and out-of-the-box MQTT, AWS IoT, Azure, and Node-RED compatibility, it suits motors, pumps, compressors, and turbines.

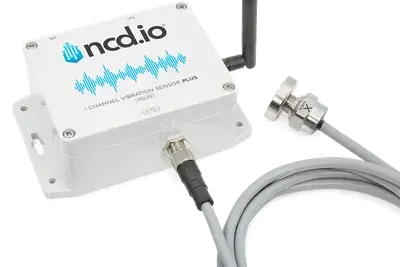

Industrial IoT Wireless Vibration Temperature Sensor
This IIoT sensor is designed to monitor vibration, frequency, and temperature in industrial environments. It provides valuable data that can be used for predictive maintenance, equipment monitoring, and overall operational efficiency.
Some Vibration Plus Applications:
- Advanced Predictive Maintenance for Rotating Equipment
- Comprehensive Structural Health Monitoring
- Process Automation and Quality Control in Manufacturing
- Optimization of Energy Efficiency in Industrial Systems
In this tutorial, we will guide you through the process of setting up the NCD Industrial IoT Wireless Vibration and Temperature Sensor with the Enterprise IIoT Gateway.This includes creating a device, configuring parameters, transmitting sensor data to ThingsBoard via the MQTT protocol, and designing a real-time dashboard for sensor data monitoring and analysis.

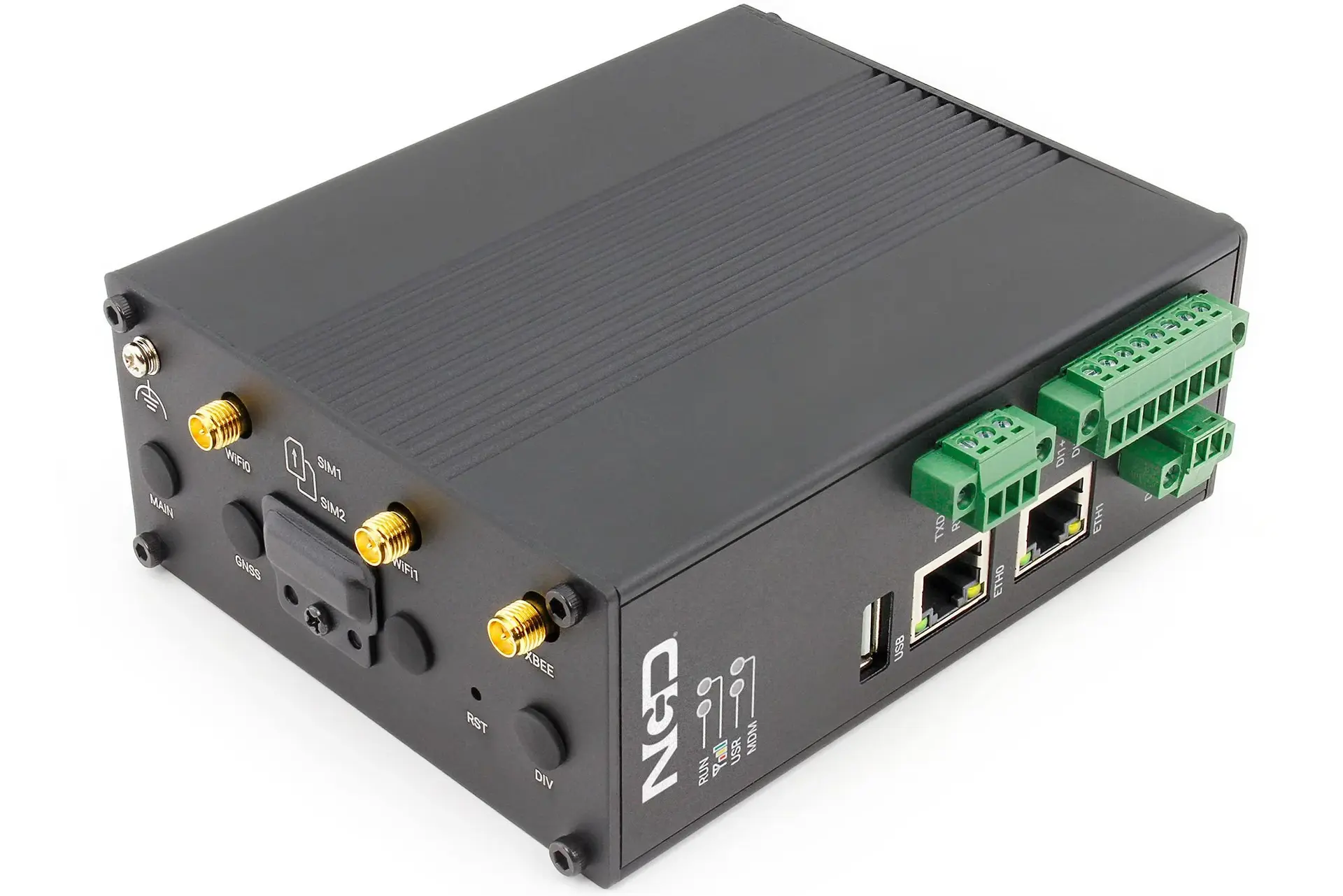

Enterprise IIoT Gateway Lite
The Enterprise IIoT Gateway gets, processes, decodes, and transmits data from the NCD Industrial IoT sensor to various cloud services or Industrial protocols. You can think of it as a Wi-Fi router, but it uses a specialized wireless protocol called DigiMesh®. Both the NCD sensor and the Enterprise IIoT Gateway communicate using this protocol, which is specifically designed and tested for industrial applications.
Overview

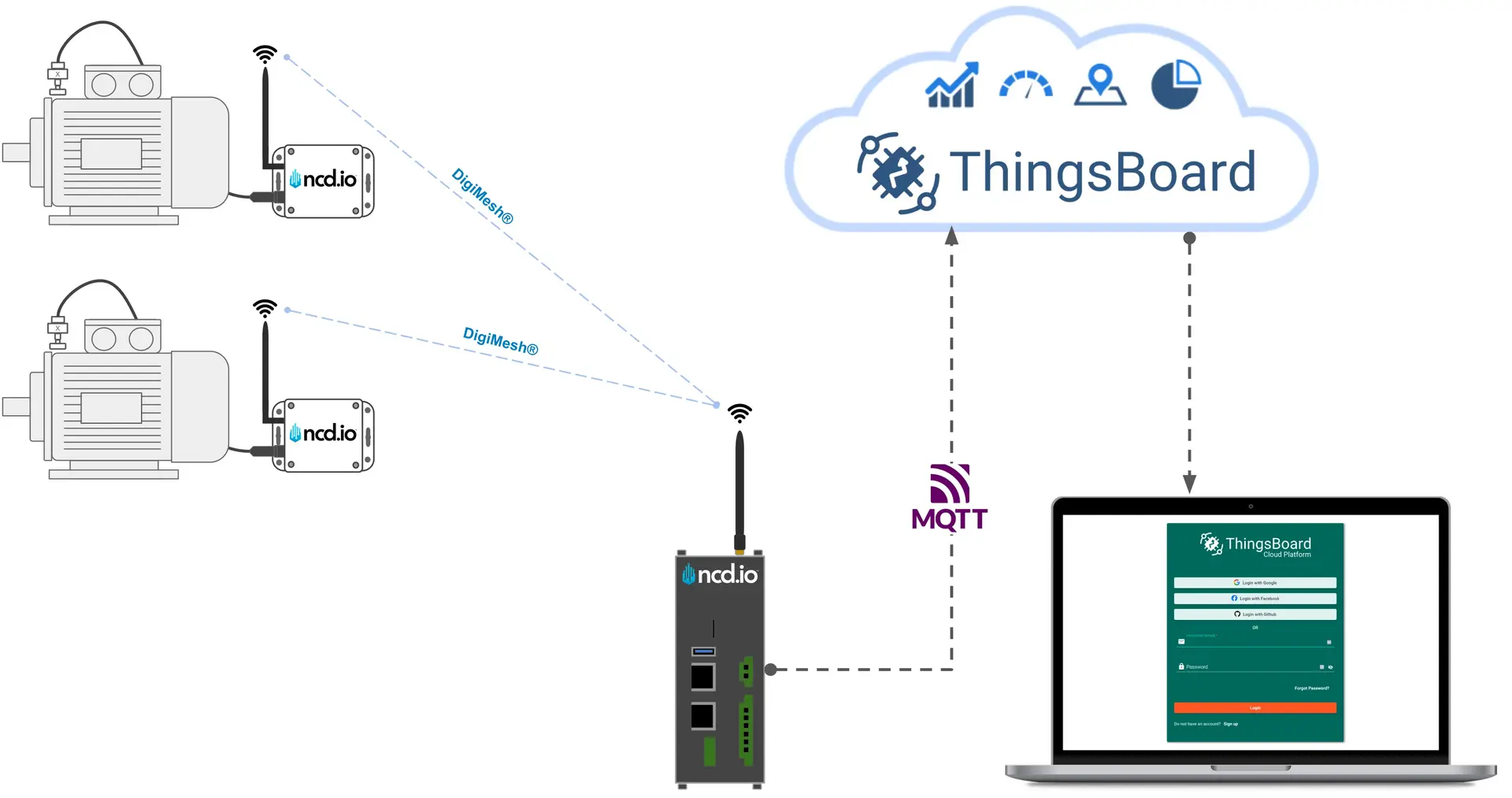

The Industrial IoT Wireless Vibration and Temperature Sensor captures critical field parameters, including temperature and vibration data. Utilizing the robust DigiMesh® industrial protocol, the sensor transmits this data to the Enterprise IIoT Gateway. The gateway, equipped with the NCD Node-RED library, receives, decodes, and filters the data for further processing. Once prepared, the data is transmitted to the ThingsBoard platform via the MQTT protocol. Within ThingsBoard, the data can be queried, analyzed, and visualized in real-time through custom dashboards, providing actionable insights for monitoring and decision-making.
Device Technical Documentation
Download datasheets and manuals for the NCD Vibration Temperature Sensor
NCD Vibration Temperature Sensor Product page NCD Vibration Temperature Sensor DatasheetAdd Your Device to the Community
