NodeMCU V3
NodeMCU V3 is a popular Wi-Fi development board built around the ESP8266 ESP-12E module, featuring a Tensilica L106 32-bit RISC processor and 4 MB SPI flash in a slightly wider PCB than the V2 revision. It integrates a CH340G USB-to-serial chip, providing cost-effective firmware flashing and serial debugging over Micro-USB. Eleven digital GPIO pins plus one analog input support UART, SPI, and I2C protocols for connecting sensors and modules, and MQTT over Wi-Fi enables direct integration with IoT platforms.
Overview

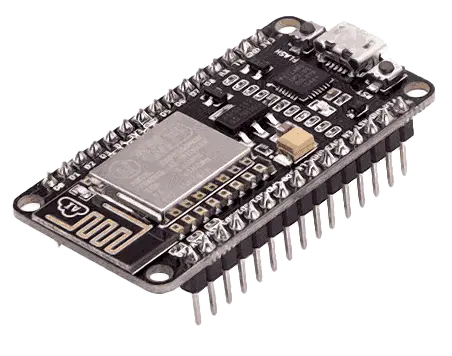

The NodeMCU V3 (LoLin) is a Wi-Fi development board based on the Espressif ESP8266 ESP-12E module. It combines a built-in CH340G USB-to-serial programmer with a breadboard-friendly 30-pin layout, so firmware can be flashed straight from the Arduino IDE. This page lists the board specification and how it connects to ThingsBoard over MQTT.
Key features
- Single-core Tensilica L106 processor at 80 / 160 MHz
- Wi-Fi 802.11 b/g/n (2.4 GHz)
- 11 digital I/O pins (3.3 V logic) and 1 analog input (A0, 0 to 3.2 V)
- On-board CH340G USB-to-serial programmer, no external programmer needed
- Breadboard-compatible 30-pin layout
- Reset and flash buttons, built-in LED on GPIO2
- 5 V via micro-USB, with an on-board 3.3 V regulator
Device profile
Classification fields, using the same connectivity vocabulary the Hub itself uses for the badges on this page. Connectivity is the roll-up of the three rows below it.
| Field | Value |
|---|---|
| Hardware Type | Development Board |
| Connectivity | I2C, SPI, UART, USB, Wi-Fi |
| Physical Interface | USB, UART, SPI, I2C |
| Wireless Technology | Wi-Fi |
| Industrial Protocol | None |
| Application Protocol | MQTT |
Technical specifications
| Parameter | Value |
|---|---|
| Chip | ESP8266, Espressif ESP-12E module |
| Processor | Tensilica L106, 32-bit RISC |
| Clock speed | 80 / 160 MHz |
| SRAM | 160 KB total, about 80 KB usable by the application |
| Flash | 4 MB SPI flash |
| Wi-Fi | 802.11 b/g/n, 2.4 GHz |
| Bluetooth | Not supported |
| Digital I/O | 11 pins, 3.3 V logic |
| Analog input | 1 pin, 0 to 3.2 V |
| Bus support | UART, SPI, I2C |
| USB | Micro-USB, CH340G USB-to-UART bridge |
| Operating voltage | 3.3 V I/O |
| Power supply | 5 V via micro-USB, on-board 3.3 V regulator |
| Operating temperature | 0 °C to +40 °C for the assembled board; the ESP8266 die is rated -40 °C to +125 °C |
| Form factor | Breadboard-compatible, 30-pin layout |
| Mounting | Desktop or breadboard |
| Certifications | FCC, CE |
| Toolchains | Arduino IDE, MicroPython, NodeMCU Lua |
