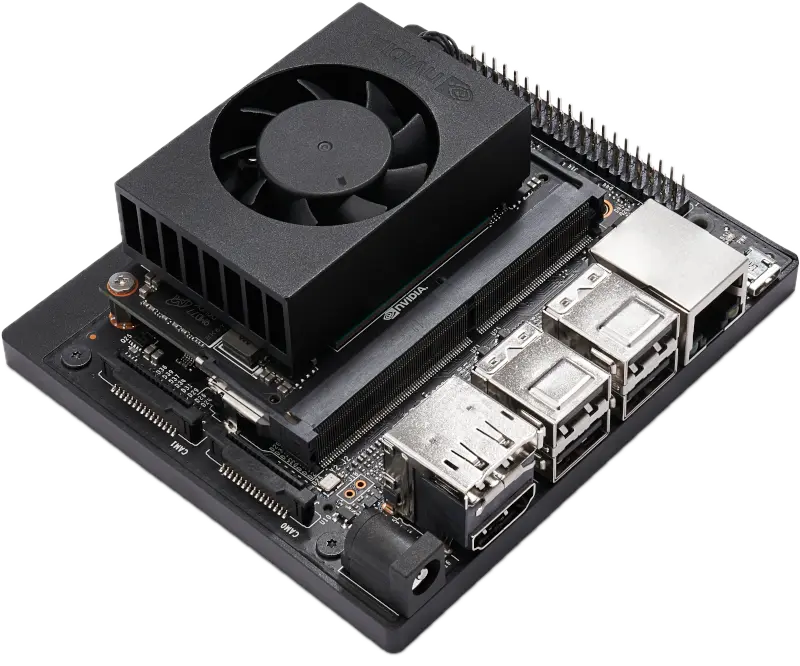

NVIDIA Jetson Xavier NX Developer Kit
The NVIDIA Jetson Xavier NX Developer Kit is a compact, high-performance AI edge computing platform featuring a 6-core NVIDIA Carmel ARMv8.2 CPU, 384-core Volta GPU with 48 Tensor cores, and up to 21 TOPS of AI performance at 15W. With 8 GB LPDDR4x RAM, Wi-Fi, Bluetooth, and full JetPack SDK support, it targets robotics, smart cities, healthcare, and industrial AI applications.
The NVIDIA Jetson Xavier NX Developer Kit is a powerful, compact AI computer that delivers up to 21 TOPS of accelerated computing in a small form factor. It’s designed for autonomous machines, industrial robots, and embedded systems that require high-performance AI at the edge.
Features
- NVIDIA Volta GPU (384 CUDA cores + 48 Tensor cores) + 6-core Carmel ARMv8.2 CPU
- 8 GB LPDDR4x RAM, 16 GB eMMC onboard storage
- 384-core NVIDIA Volta GPU with 48 Tensor cores
- Gigabit Ethernet, Wi-Fi 802.11 ac, Bluetooth 5.0
- USB 3.2 Gen 1, USB 2.0, PCIe M.2 slot
- HDMI 2.0 and DisplayPort output (up to 4K @ 60 Hz)
- 40-pin header
Specifications
| Parameter | Value |
|---|---|
| SoC | NVIDIA Xavier NX |
| CPU | 6-core NVIDIA Carmel ARMv8.2 @ 1.9 GHz |
| GPU | 384-core NVIDIA Volta + 48 Tensor cores |
| RAM | 8 GB LPDDR4x |
| Storage | 16 GB eMMC + MicroSD card slot |
| Ethernet | Gigabit (10/100/1000) |
| Wi-Fi | 802.11 a/b/g/n/ac (2.4 GHz + 5 GHz) |
| Bluetooth | 5.0 |
| USB | 3x USB 3.2 Gen 1, 1x USB 2.0 Micro-B |
| Video Output | HDMI 2.0 / DisplayPort 1.4 (4K @ 60 Hz) |
| GPIO | 40-pin header |
| Power | 9–20V (DC jack) |
