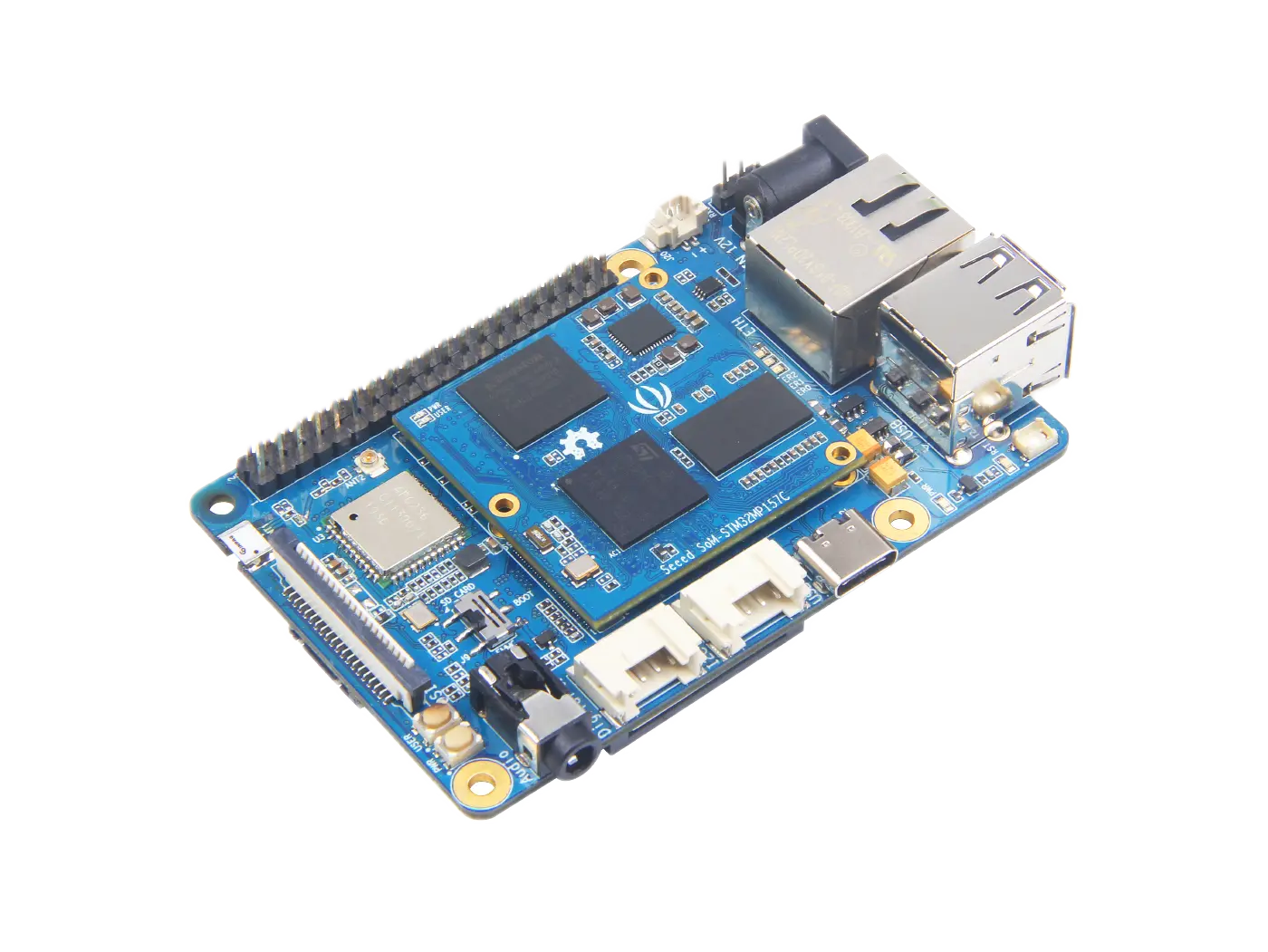

ODYSSEY STM32MP157C
ODYSSEY STM32MP157C is a single-board computer from Seeed Studio built on the STMicroelectronics STM32MP157C SoC, which integrates a dual-core ARM Cortex-A7 running Linux alongside a Cortex-M4 real-time coprocessor for deterministic control tasks. It provides 802.11n Wi-Fi, Bluetooth 5.0, and Gigabit Ethernet for network connectivity, with MQTT enabling integration with IoT platforms and cloud services.
ODYSSEY STM32MP157C is a single-board computer with an STM32MP157C processor, 2GB DDR3L RAM, and 16GB eMMC flash storage. It also features Gigabit Ethernet, WIFI, Bluetooth, and an array of connectors for peripherals and expansion.
Features
- STM32MP157C SoC with dual-core Cortex-A7 and Cortex-M4 coprocessor
- 512 MB DDR3 RAM with 4 GB eMMC storage
- Integrated graphics acceleration with multimedia-oriented interfaces
- Gigabit Ethernet, Wi-Fi 802.11 b/g/n, and Bluetooth 4.1
- 2x USB host ports
- HDMI / display-oriented interfaces including MIPI DSI support
- 40-pin GPIO header
- DC input and USB Type-C power options
Overview
| Parameter | Value |
|---|---|
| SoC | STM32MP157C |
| CPU | Dual Cortex-A7 @ 650 MHz + Cortex-M4 coprocessor |
| GPU | 3D GPU support / multimedia acceleration |
| RAM | 512 MB DDR3 |
| Storage | 4 GB eMMC + microSD slot |
| Ethernet | Gigabit (10/100/1000) |
| Wi-Fi | 802.11 b/g/n (2.4 GHz) |
| Bluetooth | 4.1 |
| USB | 2x USB Host |
| Video Output | HDMI/display interfaces, MIPI DSI support |
| GPIO | 40-pin header |
| Power | 12V DC input or USB Type-C |
Device Technical Documentation
Download datasheets and manuals for the ODYSSEY STM32MP157C
