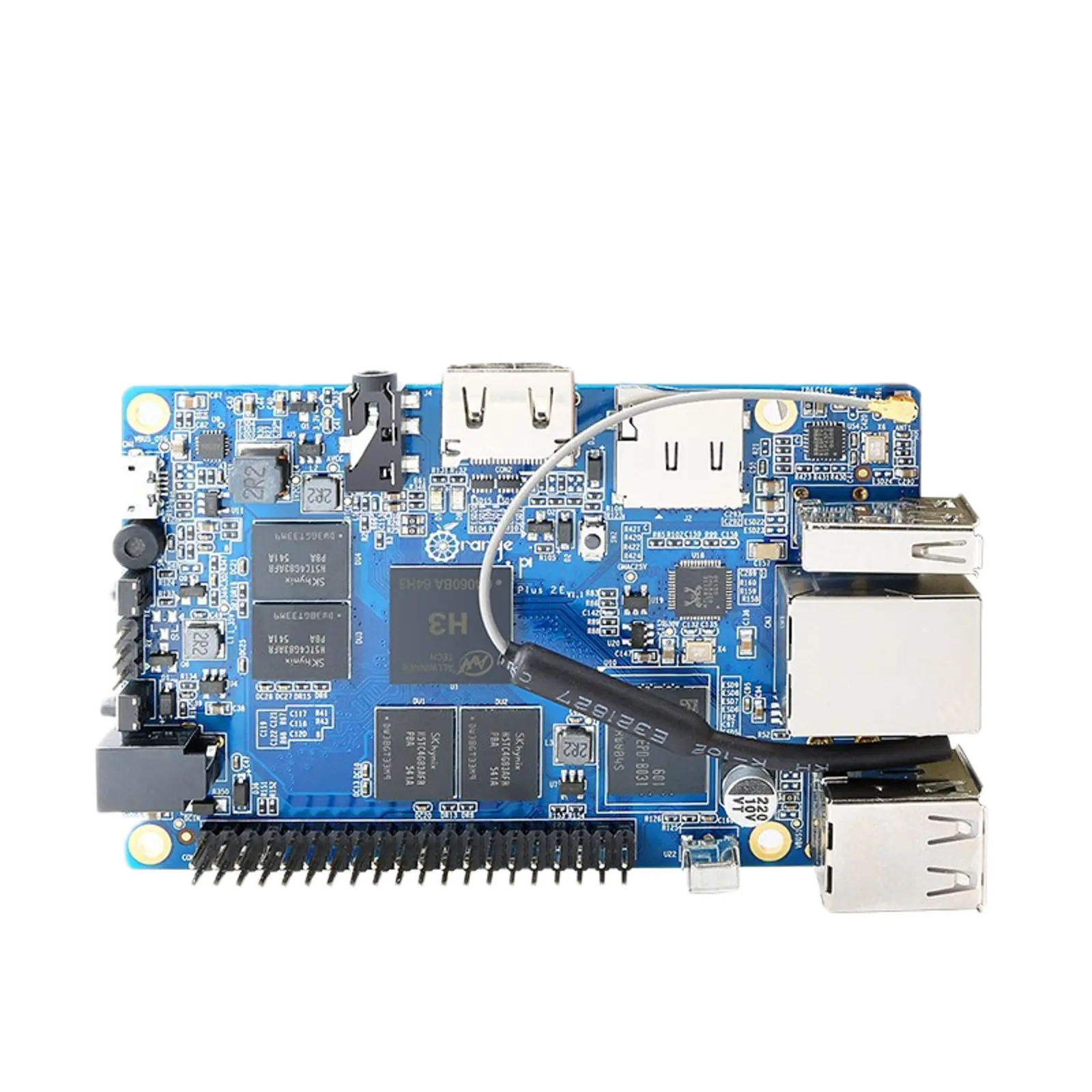

Orange Pi Plus 2E
Orange Pi Plus 2E is a feature-rich single-board computer powered by the Allwinner H3 quad-core ARM Cortex-A7 processor with a Mali-400MP2 GPU and 2 GB DDR3 RAM, plus 16 GB onboard eMMC storage for stable operation. It integrates 802.11n Wi-Fi and 100 Mbps Ethernet for network connectivity, with MQTT enabling integration with IoT platforms and cloud services. A 40-pin GPIO header, USB 2.0 ports, HDMI, MIPI CSI, and a SATA interface provide broad expansion options for sensors, cameras, and storage devices.
Orange Pi Plus 2E is a versatile single-board computer designed for embedded Linux, IoT, networking, and multimedia projects. Built around the Allwinner H3, it combines a quad-core Cortex-A7 CPU, 2 GB DDR3 memory, onboard 16 GB eMMC storage, Gigabit Ethernet, and integrated Wi-Fi in a compact development-friendly platform.
Features
- Allwinner H3 SoC with quad-core Cortex-A7 CPU
- 2 GB DDR3 RAM with 16 GB eMMC flash storage
- Mali400MP2 GPU with OpenGL ES 2.0 support
- Gigabit Ethernet and integrated Wi-Fi 802.11 b/g/n
- 3x USB 2.0 host ports and 1x USB 2.0 OTG port
- HDMI output, AV output, and onboard IR receiver
- CSI camera connector and expansion headers
- 5V DC power input
Overview
| Parameter | Value |
|---|---|
| SoC | Allwinner H3 |
| CPU | Quad Cortex-A7 @ up to 1.6 GHz |
| GPU | Mali400MP2 |
| RAM | 2 GB DDR3 |
| Storage | 16 GB eMMC + microSD/TF card slot |
| Ethernet | Gigabit (10/100/1000) |
| Wi-Fi | 802.11 b/g/n |
| Bluetooth | Supported in ThingsBoard device page |
| USB | 3x USB 2.0 Host, 1x USB 2.0 OTG |
| Video Output | HDMI + AV |
| Camera | CSI connector |
| Power | 5V DC input |
Device Technical Documentation
Download datasheets and manuals for the Orange Pi Plus 2E
