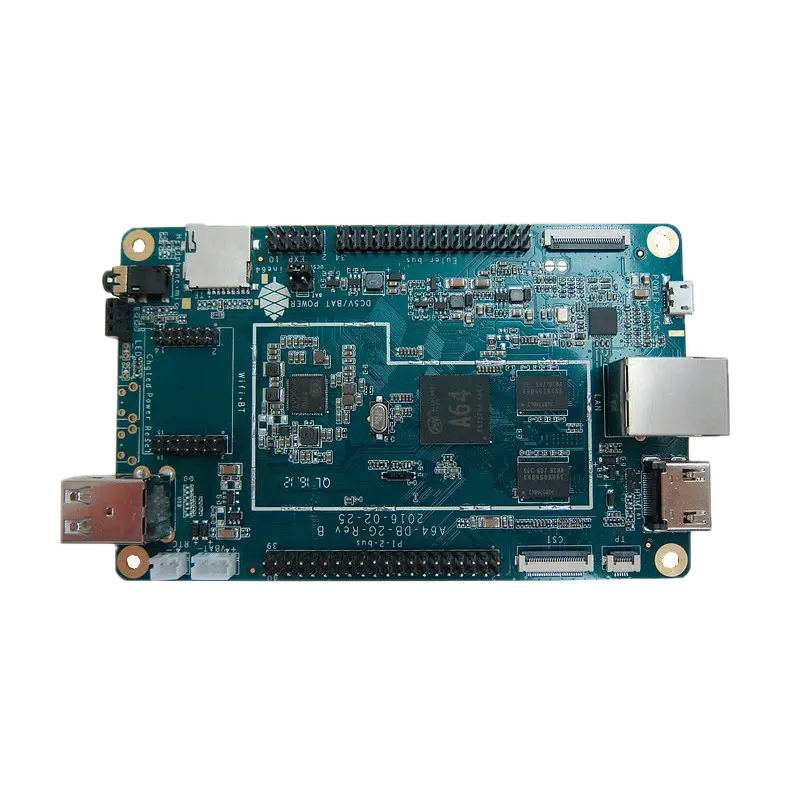

PINE A64
PINE A64 is a 64-bit single-board computer powered by the Allwinner A64 quad-core ARM Cortex-A53 SoC with a Mali-400MP2 GPU and up to 2 GB DDR3 RAM, running Linux or Android. Connectivity options include 802.11n Wi-Fi, Bluetooth, and Gigabit Ethernet, with MQTT enabling structured telemetry delivery to IoT platforms. A 40-pin Euler header and a 2×17 pin Euler connector expose GPIO, UART, SPI, I2C, and other peripherals for sensors, displays, and expansion modules.
PINE A64 is a compact single-board computer designed for Linux, embedded, and maker-focused workloads. Built around the Allwinner A64 quad-core 64-bit platform, it offers efficient processing, flexible storage, multimedia support, and broad expansion options, making it well suited for IoT gateways, lightweight desktop use, home projects, and custom hardware development.
Features
- Allwinner A64 SoC with quad-core ARM Cortex-A53 CPU
- Up to 2 GB LPDDR3 RAM
- Mali-400 MP2 GPU
- microSD-based storage, with eMMC support on some variants
- Gigabit Ethernet on A64+ models
- Optional Wi-Fi and Bluetooth via module/header support
- 2x USB 2.0 host ports
- Digital video output and multimedia interfaces
- 40-pin Pi-2 GPIO header plus additional expansion buses
Overview
| Parameter | Value |
|---|---|
| SoC | Allwinner A64 |
| CPU | Quad Cortex-A53 @ up to 1.152 GHz |
| GPU | Mali-400 MP2 |
| RAM | 1 GB / 2 GB LPDDR3 |
| Storage | microSD slot, eMMC on some variants |
| Ethernet | Gigabit on A64+ models |
| Wi-Fi | Optional via module |
| Bluetooth | Optional via module |
| USB | 2x USB 2.0 host |
| Video Output | Digital Video Type A |
| GPIO | 40-pin Pi-2 header |
| Power | 5V via microUSB DC input |
Device Technical Documentation
Download datasheets and manuals for the PINE A64
