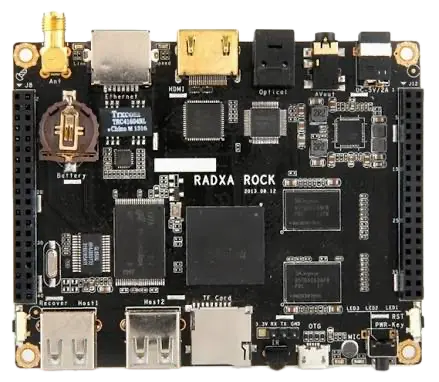

Radxa Rock Pro
Radxa Rock Pro is a credit-card-sized single-board computer built on the Rockchip RK3188 quad-core ARM Cortex-A9 processor with a Mali-400MP4 GPU and up to 2 GB DDR3 RAM. It provides 802.11n Wi-Fi, Bluetooth, and 100 Mbps Ethernet for network connectivity, with MQTT enabling IoT platform integration. Expansion interfaces include GPIO, USB 2.0, HDMI, LVDS, and a SATA connector for connecting displays, storage, and sensors.
Radxa Rock Pro is a single-board computer built for Linux, embedded, and multimedia projects, combining quad-core ARM performance, expandable interfaces, and onboard connectivity in a compact development-friendly platform.
Features
- Rockchip RK3188 SoC with quad-core ARM Cortex-A9 CPU
- 2 GB DDR3 RAM
- Mali-400 class integrated graphics
- Ethernet, Wi-Fi, and Bluetooth connectivity
- USB 2.0 and HDMI interfaces
- Linux and Android software support
- Expansion options for embedded and maker use cases
Overview
| Parameter | Value |
|---|---|
| SoC | Rockchip RK3188 |
| CPU | Quad Cortex-A9 |
| RAM | 2 GB DDR3 |
| Ethernet | Supported |
| Wi-Fi | Supported |
| Bluetooth | Supported |
| USB | USB 2.0 |
| Video Output | HDMI |
| OS Support | Linux, Android |
Device Technical Documentation
Download datasheets and manuals for the Radxa Rock Pro
