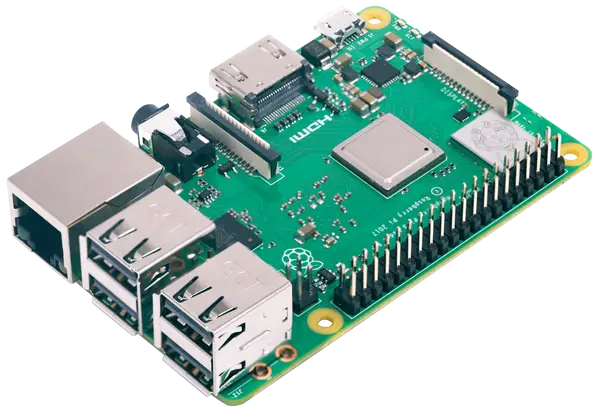

Raspberry Pi 3 Model B+
The Raspberry Pi 3 Model B+ is a versatile single-board computer powered by the Broadcom BCM2837B0 quad-core Cortex-A53 SoC at 1.4 GHz with 1 GB LPDDR2 RAM. Featuring 300 Mbps Ethernet, dual-band Wi-Fi 802.11ac, Bluetooth 4.2/BLE, 4x USB 2.0, HDMI output, and a 40-pin GPIO header, it is widely used for IoT, education, and embedded Linux projects.
The Raspberry Pi 3 Model B+ is currently the best Raspberry Pi computer you can buy. While the price stays at $35, the new board one-ups its predecessor in several ways, most notably with a faster processor and Wi-Fi. The co-creator of the board Eben Upton describes it as lying somewhere between the 2016 Raspberry Pi 3 and a future Raspberry Pi 4 in terms of power and features. The hardware improvements, along with refinements to the Pi 3 B+’s official Raspbian OS, elevate the board to the status of a perfectly acceptable everyday PC — impressive for a computer the price of a restaurant meal.
Features
- Broadcom BCM2837B0 SoC (quad Cortex-A53)
- 1 GB LPDDR2 RAM, MicroSD card storage
- VideoCore IV GPU
- 300 Mbps Ethernet, Wi-Fi 802.11 ac, Bluetooth 4.2
- 4x USB 2.0
- HDMI 1.3 output (up to 1080p @ 60 Hz)
- 40-pin GPIO header
Overview
| Parameter | Value |
|---|---|
| SoC | Broadcom BCM2837B0 |
| CPU | Quad Cortex-A53 @ 1.4 GHz |
| GPU | VideoCore IV |
| RAM | 1 GB LPDDR2 |
| Storage | MicroSD card slot |
| Ethernet | Gigabit (10/100/1000) |
| Wi-Fi | 802.11 a/b/g/n/ac (2.4 GHz + 5 GHz) |
| Bluetooth | 4.2 / BLE |
| USB | 4x USB 2.0 |
| Video Output | HDMI 1.3 (1080p @ 60 Hz) |
| GPIO | 40-pin header |
| Power | 5V / 2.5A (Micro-USB) |
Device Technical Documentation
Download datasheets and manuals for the Raspberry Pi 3 Model B+
