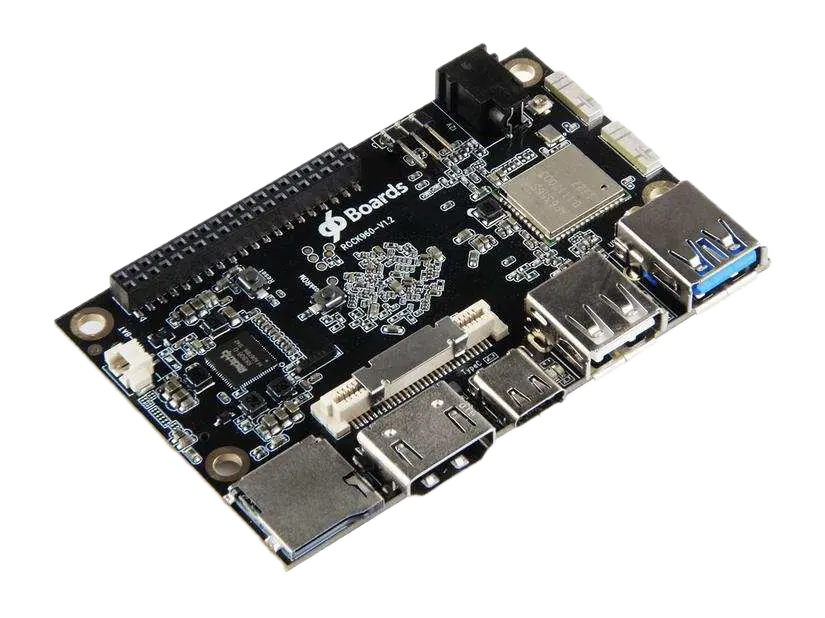

Rock960
Rock960 is a high-performance 96Boards Consumer Edition SBC built on the Rockchip RK3399 hexa-core SoC (dual Cortex-A72 + quad Cortex-A53) with a Mali-T860MP4 GPU and 4 GB LPDDR4 RAM for demanding embedded Linux workloads. Connectivity includes 802.11ac Wi-Fi, Bluetooth 5.0, and Gigabit Ethernet, enabling MQTT-based integration with IoT platforms across wired and wireless networks.
Rock960 is a high-performance single-board computer built on the Rockchip RK3399 hexa-core SoC, combining dual Cortex-A72 and quad Cortex-A53 cores with up to 4 GB RAM, onboard wireless connectivity, expandable storage, PCIe, and HDMI output for demanding embedded Linux, AI, IoT, and robotics applications.
Features
- Rockchip RK3399 SoC with dual Cortex-A72 + quad Cortex-A53 CPU
- 2 GB or 4 GB RAM
- 16 GB / 32 GB eMMC 5.1 with microSD support
- Gigabit-class networking available through USB expansion
- Wi-Fi 802.11ac/a/b/g/n + Bluetooth 4.2
- 1x USB 3.0 Type-A, 1x USB 2.0 Type-A, 1x USB 3.0 Type-C OTG
- PCIe 2.1 x4 via M.2
- HDMI 2.0 output (up to 4K @ 60 Hz)
- MIPI-CSI camera support
- 40-pin low-speed expansion header + 60-pin high-speed connector
- 12V / 2A DC power input
Overview
| Parameter | Value |
|---|---|
| SoC | Rockchip RK3399 |
| CPU | Dual Cortex-A72 + Quad Cortex-A53 |
| RAM | 2 GB / 4 GB |
| Storage | 16/32 GB eMMC 5.1 + microSD support |
| Wi-Fi | 802.11ac/a/b/g/n |
| Bluetooth | 4.2 |
| USB | 1x USB 3.0 Type-A, 1x USB 2.0 Type-A, 1x USB 3.0 Type-C OTG |
| PCIe | PCIe 2.1 x4 via M.2 |
| Video Output | HDMI 2.0, DP 1.2 via Type-C |
| Camera | 1x 4-lane MIPI CSI |
| GPIO | 40-pin low-speed header, 60-pin high-speed connector |
| Power | 12V / 2A DC |
Device Technical Documentation
Download datasheets and manuals for the Rock960
