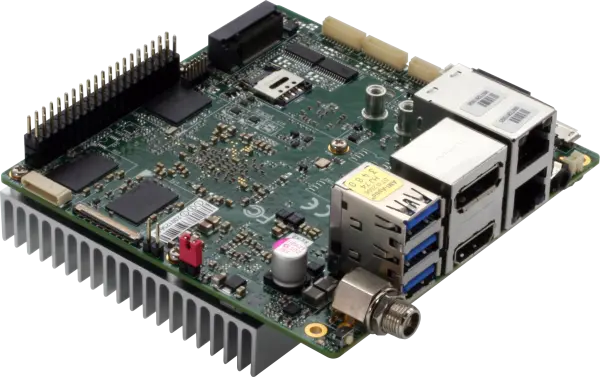

UP Squared Pro AI Edge
The AAEON UP Squared Pro AI Edge is an industrial-grade x86 single-board computer powered by Intel Apollo Lake processors (Celeron N3350, Pentium N4200, or Atom E3950), with up to 8 GB LPDDR4 RAM and 64 GB eMMC. Featuring three M.2 slots for AI accelerators and 5G, dual Gigabit Ethernet, RS-232/RS-485, hardware TPM 2.0, and a 40-pin GPIO header, it targets industrial IoT and edge AI applications.
The UP Squared Pro AI Edge is a high-performance single-board computer designed for AI applications. It features an Intel Atom x7-E3950 Processor and 8GB of RAM, and comes with a range of connectivity options including Gigabit Ethernet, Wi-Fi 5, and Bluetooth 4. With its powerful computing capabilities, this board is well-suited for complex deep learning tasks, computer vision applications, and robotics projects.
Features
- Intel Atom x7425E SoC (quad-core x86) + Intel Movidius VPU
- 8 GB LPDDR4 RAM, 64 GB eMMC onboard storage
- Intel UHD Graphics (Gen 12) GPU
- Dual Gigabit Ethernet, Wi-Fi 802.11 ax, Bluetooth 5.2
- USB 3.2 Gen 2, USB 2.0, PCIe M.2 slot
- HDMI 2.0b and DisplayPort 1.4 output (up to 4K @ 60 Hz)
- 40-pin GPIO header (Raspberry Pi compatible)
Specifications
| Parameter | Value |
|---|---|
| SoC | Intel Atom x7425E (Alder Lake-N) |
| CPU | Quad-core Intel Atom x7425E @ 3.4 GHz |
| GPU | Intel UHD Graphics (Gen 12) |
| RAM | 8 GB LPDDR4 |
| Storage | 64 GB eMMC + M.2 NVMe/SATA slot |
| Ethernet | 2x Gigabit (10/100/1000) |
| Wi-Fi | 802.11 a/b/g/n/ac/ax (2.4 GHz + 5 GHz) |
| Bluetooth | 5.2 |
| USB | 2x USB 3.2 Gen 2, 2x USB 2.0 |
| Video Output | HDMI 2.0b / DisplayPort 1.4 (4K @ 60 Hz) |
| GPIO | 40-pin header (Raspberry Pi compatible) |
| Power | 12V / 3A (DC jack) |
Device Technical Documentation
Download datasheets and manuals for the UP Squared Pro AI Edge
