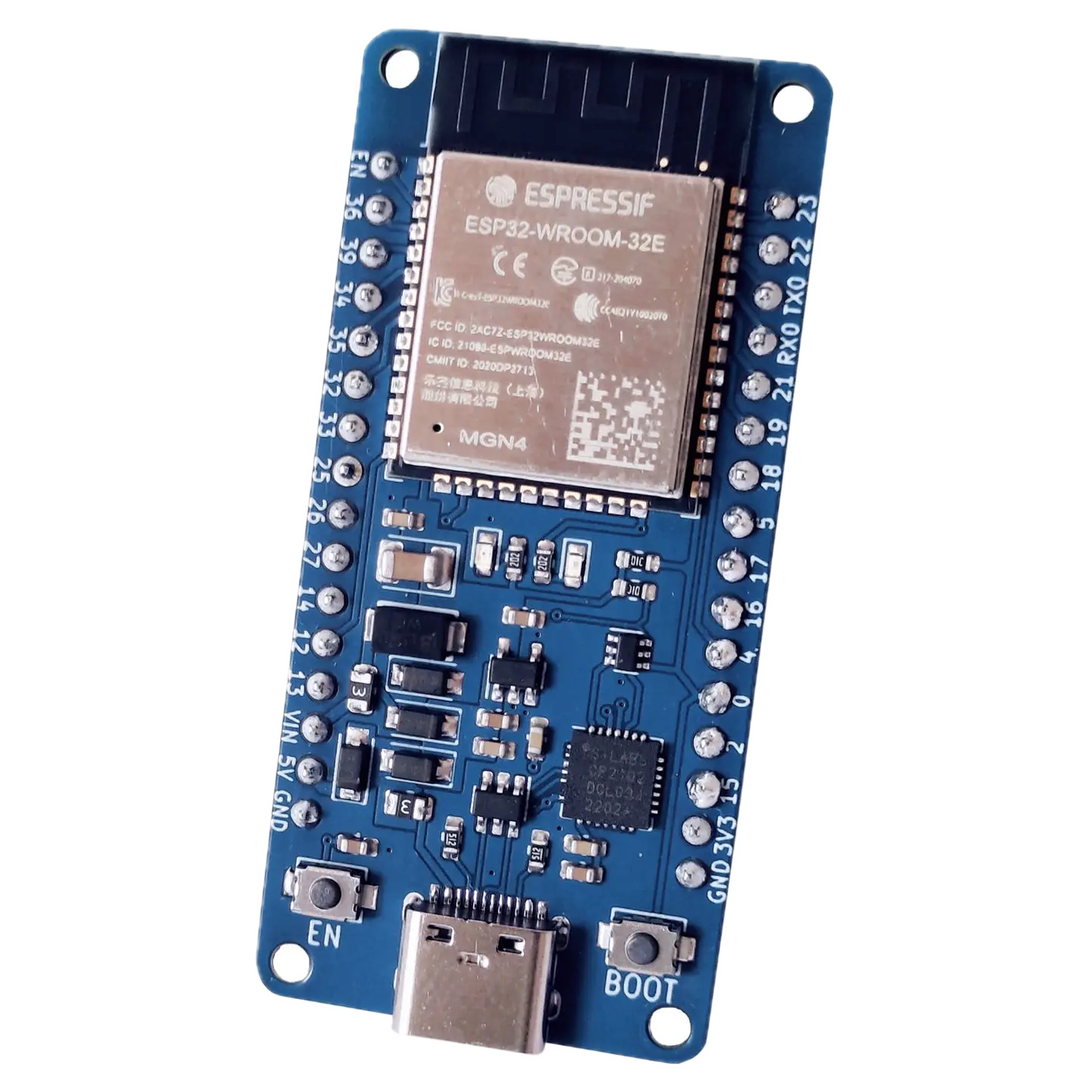

uPesy ESP32 Wroom DevKit v2
The uPesy ESP32 Wroom DevKit v2 is a compact development board built on the ESP-WROOM-32E module, which houses Espressif’s ESP32 dual-core Xtensa LX6 processor with 4 MB flash and integrated 2.4 GHz Wi-Fi and Bluetooth 4.2/BLE. An onboard USB-to-serial bridge enables straightforward firmware flashing and serial monitoring via a USB-C connector, improving on older Micro-USB designs.
The uPesy ESP32 Wroom DevKit v2 is a compact and beginner-friendly development board built on the ESP-WROOM-32E module from Espressif Systems. It features a dual-core ESP32 processor with integrated Wi-Fi, Bluetooth Classic, and BLE, making it suitable for a wide range of IoT applications — from low-power wireless sensors to more demanding projects such as audio streaming and data encoding.
The board includes all necessary minimum peripherals for a quick start: USB-to-serial converter, 3.3 V LDO regulator, reset and boot buttons, and a PCB antenna that delivers reliable RF performance. It is pin-compatible with most ESP32 DevKit form factors and supported natively in the Arduino IDE with the ESP32 board package from Espressif.
Features
- Dual-core Xtensa 32-bit LX6 processor (ESP32-WROOM-32E)
- Variable clock frequency from 80 MHz to 240 MHz with per-core power control
- 4 MB Flash memory, 520 KB SRAM
- Wi-Fi 802.11 b/g/n (2.4 GHz) + Bluetooth 4.2 Classic and BLE
- 40 MHz crystal oscillator and PCB antenna
- USB-to-UART via CP2102 (or CH340) for programming and Serial Monitor
- 30 GPIO pins with PWM, ADC, DAC, I2C, SPI, UART, and touch inputs
- Reset and BOOT buttons on board
- 3.3 V I/O levels with 5 V USB power input
Specifications
| Parameter | Value |
|---|---|
| SoC | ESP32-WROOM-32E (dual-core Xtensa LX6) |
| Clock Speed | 80 – 240 MHz |
| Flash | 4 MB |
| SRAM | 520 KB |
| Wi-Fi | 802.11 b/g/n, 2.4 GHz |
| Bluetooth | Classic 4.2 + BLE |
| GPIO | 30 pins |
| ADC | 18 channels (12-bit) |
| DAC | 2 channels (8-bit) |
| Operating Voltage | 3.3 V |
| Input Voltage | 5 V (USB) |
| Dimensions | ~55 × 28 mm |
Device Technical Documentation
Download datasheets and manuals for the uPesy ESP32 Wroom DevKit v2
