WeMos D1 Mini
WeMos D1 Mini is a miniature Wi-Fi development board based on the ESP8266 ESP-12F module, packing a Tensilica L106 32-bit RISC processor, 4 MB flash, and integrated 2.4 GHz Wi-Fi into a tiny 34.2×25.6 mm PCB. The board exposes 11 digital GPIO pins and one analog input supporting I2C, SPI, and UART through standard headers, and a Micro-USB port with an onboard USB-to-serial converter simplifies firmware uploads.
Overview

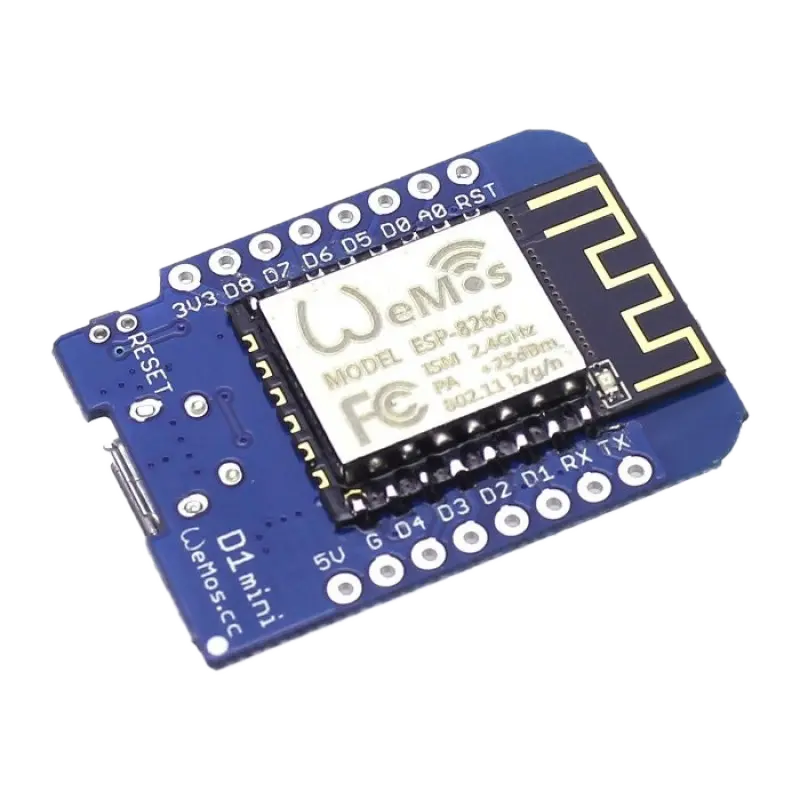

The WeMos D1 Mini is a miniature Wi-Fi development board built around the Espressif ESP8266 ESP-12F module. It packs a Tensilica L106 processor, 4 MB of flash and 2.4 GHz Wi-Fi onto a 34.2 x 25.6 mm PCB, and exposes 11 digital GPIO pins and one analog input through standard headers. This page lists the board specification and how it connects to ThingsBoard over MQTT.
Key features
- Single-core Tensilica L106 processor at 80 / 160 MHz
- Wi-Fi 802.11 b/g/n (2.4 GHz)
- 11 digital I/O pins (3.3 V logic) and 1 analog input (A0, 0 to 3.2 V)
- Compact 34.2 x 25.6 mm form factor for space-constrained builds
- Compatible with the WeMos D1 Mini shield ecosystem
- On-board USB-to-serial bridge (CH340 / CH9102), reset button and LED
- 5 V via USB or external supply, with an on-board 3.3 V regulator
Device profile
Classification fields, using the same connectivity vocabulary the Hub itself uses for the badges on this page. Connectivity is the roll-up of the three rows below it.
| Field | Value |
|---|---|
| Hardware Type | Development Board |
| Connectivity | I2C, SPI, UART, USB, Wi-Fi |
| Physical Interface | USB, UART, SPI, I2C |
| Wireless Technology | Wi-Fi |
| Industrial Protocol | None |
| Application Protocol | MQTT |
Technical specifications
| Parameter | Value |
|---|---|
| Chip | ESP8266, Espressif ESP-12F module |
| Processor | Tensilica L106, 32-bit RISC |
| Clock speed | 80 / 160 MHz |
| SRAM | 160 KB total, about 80 KB usable by the application |
| Flash | 4 MB SPI flash |
| Wi-Fi | 802.11 b/g/n, 2.4 GHz |
| Digital I/O | 11 pins, 3.3 V logic |
| Analog input | 1 pin, 0 to 3.2 V |
| Bus support | I2C, SPI, UART |
| USB | Micro-USB, CH340 or CH9102 USB-to-UART bridge |
| Operating voltage | 3.3 V I/O |
| Power supply | 5 V via USB, on-board 3.3 V regulator |
| Operating temperature | 0 °C to +40 °C for the assembled board; the ESP8266 die is rated -40 °C to +125 °C |
| Dimensions | 34.2 x 25.6 mm |
| Mounting | Desktop or breadboard, WeMos D1 Mini shield ecosystem |
| Certifications | FCC, CE |
| Toolchains | Arduino IDE, MicroPython, NodeMCU |
Supported use cases
- Smart home: Wi-Fi connected switches, sensors and displays
- Environment monitoring: temperature, humidity, air quality
- Smart office and smart farming automation
- Energy monitoring and data logging
