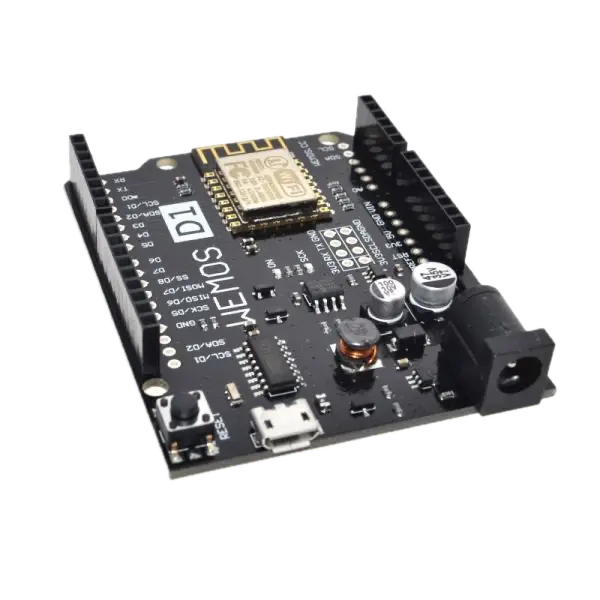

WeMos D1 R2
WeMos D1 R2 is an Arduino Uno R3-compatible Wi-Fi development board built on the ESP8266 ESP-12E module, allowing the large ecosystem of Arduino shields to be used with an ESP8266-based Wi-Fi platform. It runs a Tensilica L106 32-bit RISC processor with 4 MB flash and integrates 2.4 GHz Wi-Fi for MQTT-based IoT platform connectivity. Eleven digital GPIO pins and one analog input support I2C, SPI, UART, and PWM, and a CH340G USB-to-serial chip enables straightforward flashing with the Arduino IDE.
Overview
The WeMos D1 R2 is a compact Wi-Fi development board built around Espressif’s ESP8266 module. Its Arduino Uno R3 compatible form factor makes it straightforward to reuse existing Arduino shields, while the on-board Wi-Fi lets you connect devices directly to ThingsBoard over MQTT without any additional hardware.
Key Features
- Single-core processor: Xtensa L106 @ 80/160 MHz
- Wireless: Wi-Fi 802.11 b/g/n (2.4 GHz)
- GPIO: 11 digital I/O pins (3.3V logic) and 1 analog input (A0, 0–3.2V)
- Arduino Uno R3 compatible: Standard shield pin spacing
- On-board: USB-to-serial bridge (CH340/CH9102), reset button, built-in LED (D4/GPIO2)
- Power: 5V via USB or external supply; 3.3V onboard regulator
- SDK support: Arduino IDE, MicroPython, NodeMCU
Hardware Specifications
| Parameter | Value |
|---|---|
| Chip | ESP8266 (Espressif) |
| CPU | Xtensa L106, 80/160 MHz |
| Flash | 4 MB SPI Flash |
| RAM | ~80 KB usable SRAM |
| Wi-Fi | 802.11 b/g/n (2.4 GHz) |
| Digital I/O | 11 pins (3.3V logic) |
| Analog input | 1 pin (0–3.2V) |
| USB | Micro-USB (CH340 / CH9102 USB-to-UART bridge) |
| Operating voltage | 3.3V (I/O) |
| Power supply | 5V via USB |
| Operating temperature | −40°C to +125°C |
Supported Use Cases
- Smart home: Wi-Fi-connected switches, sensors, and displays
- Environment monitoring: temperature, humidity, air quality
- Smart office and smart farming automation
- Energy monitoring and data logging
Device Technical Documentation
Download datasheets and manuals for the WeMos D1 R2
