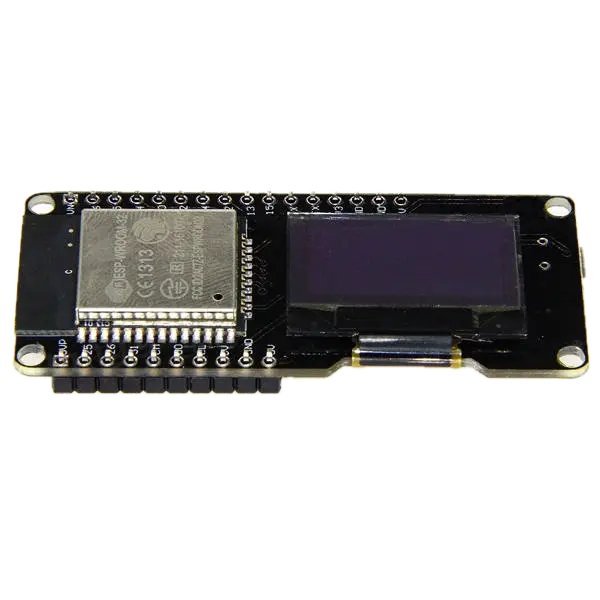

Wemos Lolin ESP32 OLED
The Wemos Lolin ESP32 OLED is an ESP32-based development board with an integrated 128×64 SSD1306 OLED display connected via I2C, enabling local data visualization without any additional display hardware. It features Espressif’s dual-core Xtensa LX6 processor with 2.4 GHz Wi-Fi, Bluetooth 4.2, and BLE, supporting MQTT-based IoT platform connectivity alongside local display feedback.
Overview
The Wemos Lolin ESP32 OLED is a compact ESP32 development board with an integrated 128×64 pixel SSD1306 OLED display. The display is connected over I2C (SDA on GPIO 5, SCL on GPIO 4), enabling on-device data visualisation without any additional wiring. The board provides Wi-Fi 802.11 b/g/n, Bluetooth, and BLE connectivity, making it well suited for smart home and building automation prototypes that require both local display output and cloud connectivity.
Key Features
- Processor: Dual-core ESP32, up to 240 MHz
- Wireless: Wi-Fi 802.11 b/g/n (2.4 GHz), Bluetooth 4.2 + BLE
- Display: 128×64 SSD1306 OLED (I2C, SDA/SCL on GPIO 5/4)
- Flash: 4 MB
- USB: Micro-USB (programming and power)
Hardware Specifications
| Parameter | Value |
|---|---|
| Chip | ESP32 |
| CPU | Dual-core, up to 240 MHz |
| Flash | 4 MB |
| Wi-Fi | 802.11 b/g/n (2.4 GHz) |
| Bluetooth | 4.2 + BLE |
| Display | SSD1306 OLED 128×64 |
| Display interface | I2C (GPIO 5 SDA, GPIO 4 SCL) |
| USB | Micro-USB |
Supported Use Cases
- Smart building and office dashboards with on-device status display
- Smart home automation with visual feedback
- IoT prototyping with LED control, blinking modes, and remote screen text updates
Device Technical Documentation
Download datasheets and manuals for the Wemos Lolin ESP32 OLED
