Raspberry Pi with Grove Base Hat and ThingsBoard

Introduction

This guide describes how to connect a Raspberry Pi with a Grove Base Hat to ThingsBoard over MQTT, collect data from Grove sensors, and control actuators from a ThingsBoard dashboard.

The Raspberry Pi runs a Python script that reads sensor data, sends telemetry to ThingsBoard, and responds to RPC commands for servo and LED control.

Prerequisites

Hardware:

Raspberry Pi 3 Model B (or Raspberry Pi 4) — 1×
Grove Base Hat for Raspberry Pi — 1×
Grove modules used in this guide:

Software:

ThingsBoard instance: use ThingsBoard Cloud or install a local server
Python 3 on the Raspberry Pi

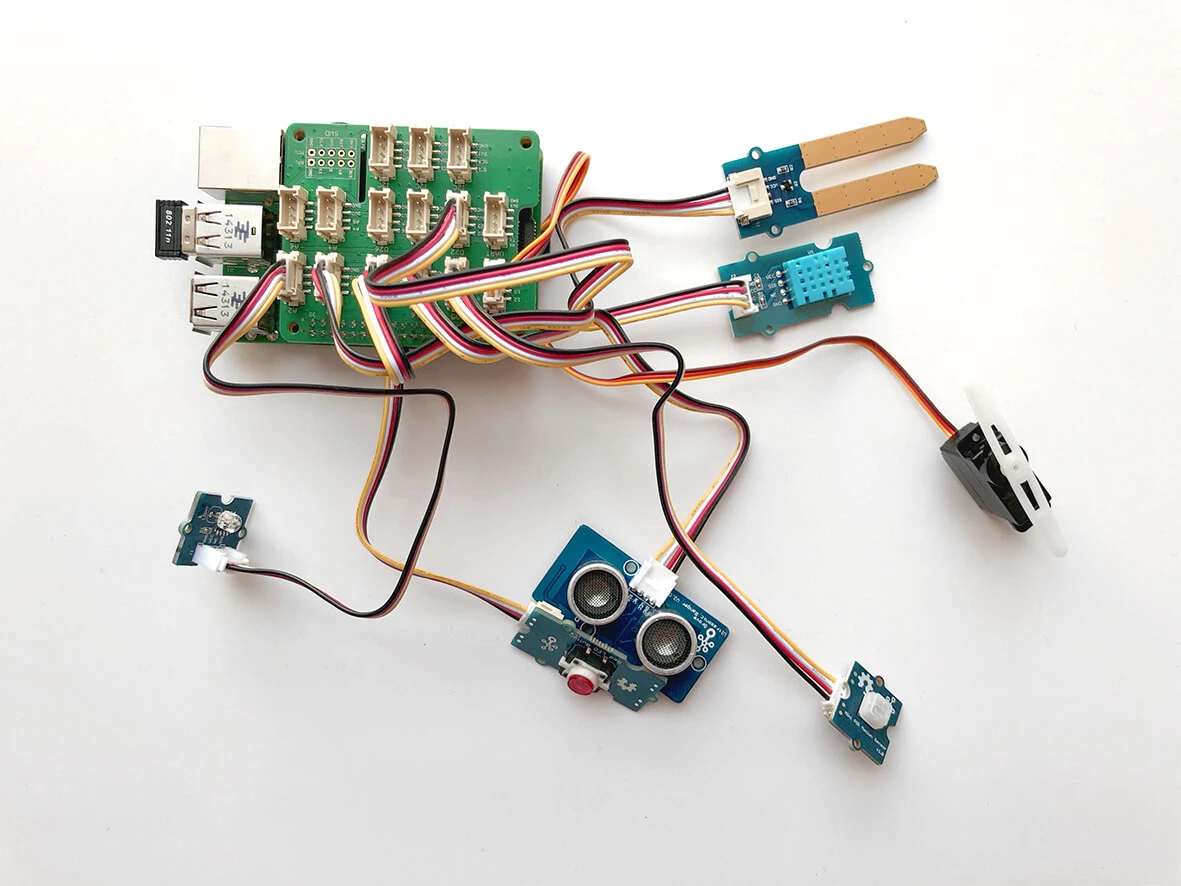

Raspberry Pi with Grove Base Hat and connected Grove modules

Wiring scheme

Connect the Grove modules to the Grove Base Hat using the following ports:

Module	Port on Grove Base Hat
Analog Servo	PWM (12)
Mini PIR Motion Sensor v1.0	D5
Ultrasonic Ranger v2.0	D16
Red LED Button v1.0	D18
Moisture Sensor v1.4	A0
Light Sensor v1.2	A2
Temperature & Humidity Sensor v1.2	D22

Configure the Raspberry Pi

Follow the Grove Base HAT configuration guide to set up the Raspberry Pi.
Install the ThingsBoard Python client SDK:
Terminal window
```
pip3 install tb-mqtt-client
```

Clone and install the Seeed-Studio Grove library:

git clone https://github.com/Seeed-Studio/grove.py.git

pip3 install ./grove.py/

If you are using the Temperature & Humidity Sensor (DHT11/DHT22), install the Seeed DHT library:
Terminal window
```
git clone https://github.com/Seeed-Studio/Seeed_Python_DHT.git
```
Terminal window
```
sudo python3 ./Seeed_Python_DHT/setup.py install
```

Create a device in ThingsBoard

Log in to ThingsBoard.
Go to Entities ⇾ Devices and add a new device (e.g., name: Grove Main Device, type: grove).

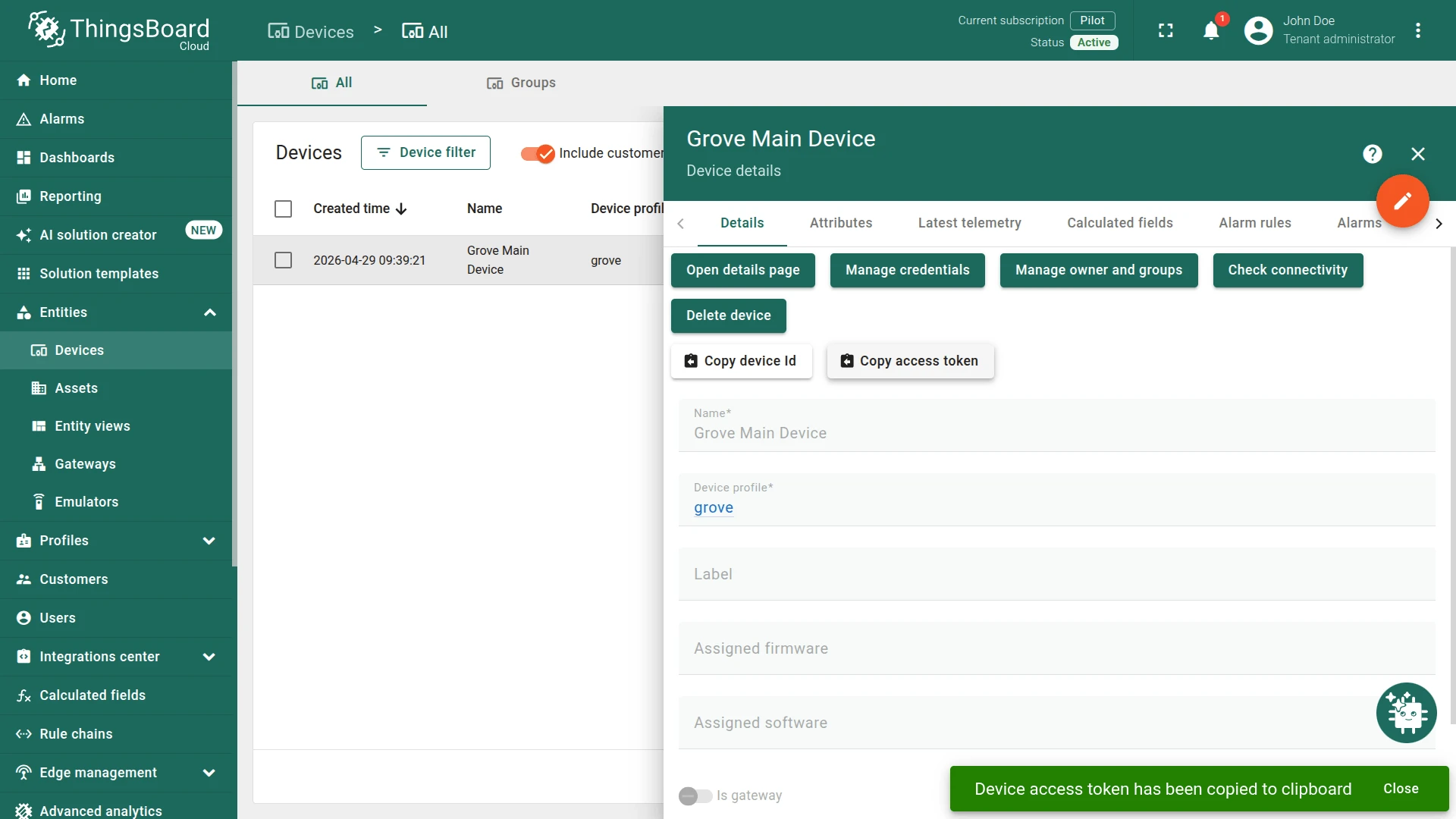

Open the device details and click Copy access token. Save this token — it will be used as ACCESS_TOKEN in the script.

Application source code

Download the tb_grove.py script or use the code below.

Replace THINGSBOARD_HOST with your ThingsBoard server address. For ThingsBoard Cloud, use mqtt.thingsboard.cloud (North America) or mqtt.eu.thingsboard.cloud (Europe). Replace ACCESS_TOKEN with the token copied in the previous step.

#
# Copyright © 2019-2024 The Thingsboard Authors
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#     http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
#

import logging
import time
from tb_device_mqtt import TBDeviceMqttClient, TBPublishInfo
from grove.grove_mini_pir_motion_sensor import GroveMiniPIRMotionSensor
from grove.grove_ultrasonic_ranger import GroveUltrasonicRanger
from Seeed_Python_DHT.seeed_dht import DHT
from grove.grove_moisture_sensor import GroveMoistureSensor
from grove.button import Button
from grove.grove_ryb_led_button import GroveLedButton
from grove.grove_light_sensor_v1_2 import GroveLightSensor
from grove.grove_servo import GroveServo

# Configuration of logger, in this case it will send messages to console
logging.basicConfig(level=logging.INFO,
                    format='%(asctime)s - %(levelname)s - %(module)s - %(lineno)d - %(message)s',
                    datefmt='%Y-%m-%d %H:%M:%S')

log = logging.getLogger(__name__)

THINGSBOARD_SERVER = 'THINGSBOARD_HOST'
ACCESS_TOKEN = 'ACCESS_TOKEN'


def main():

    # Grove - Servo connected to PWM port
    servo = GroveServo(12)
    servo_angle = 90

    # Grove - mini PIR motion pir_sensor connected to port D5
    pir_sensor = GroveMiniPIRMotionSensor(5)

    # Grove - Ultrasonic Ranger connected to port D16
    ultrasonic_sensor = GroveUltrasonicRanger(16)

    # Grove - LED Button connected to port D18
    button = GroveLedButton(18)

    # Grove - Moisture Sensor connected to port A0
    moisture_sensor = GroveMoistureSensor(0)

    # Grove - Light Sensor connected to port A2
    light_sensor = GroveLightSensor(2)
    light_state = False

    # Grove - Temperature&Humidity Sensor connected to port D22
    dht_sensor = DHT('11', 22)

    # Callback for server RPC requests (Used for control servo and led blink)
    def on_server_side_rpc_request(client, request_id, request_body):
        log.info('received rpc: {}, {}'.format(request_id, request_body))
        if request_body['method'] == 'getLedState':
            client.send_rpc_reply(request_id, light_state)
        elif request_body['method'] == 'setLedState':
            light_state = request_body['params']
            button.led.light(light_state)
        elif request_body['method'] == 'setServoAngle':
            servo_angle = float(request_body['params'])
            servo.setAngle(servo_angle)
        elif request_body['method'] == 'getServoAngle':
            client.send_rpc_reply(request_id, servo_angle)

    # Connecting to ThingsBoard
    client = TBDeviceMqttClient(THINGSBOARD_SERVER, username=ACCESS_TOKEN)
    client.set_server_side_rpc_request_handler(on_server_side_rpc_request)
    client.connect()

    # Callback on detect the motion from motion sensor
    def on_detect():
        log.info('motion detected')
        telemetry = {"motion": True}
        client.send_telemetry(telemetry)
        time.sleep(5)
        # Deactivating the motion in Dashboard
        client.send_telemetry({"motion": False})
        log.info("Motion alert deactivated")

    # Callback from button if it was pressed or unpressed
    def on_event(index, event, tm):
        if button._GroveLedButton__btn.is_pressed():
            log.debug('button: single click')
            telemetry = {"button_press": True}
            client.send_telemetry(telemetry)
            log.info("Pressed")
        else:
            log.debug('button: single click')
            telemetry = {"button_press": False}
            client.send_telemetry(telemetry)
            log.info("Unpressed")
        if event & Button.EV_SINGLE_CLICK:
            button.led.light(True)
        elif event & Button.EV_DOUBLE_CLICK:
            button.led.blink()
        elif event & Button.EV_LONG_PRESS:
            button.led.light(False)

    # Adding the callback to the motion sensor
    pir_sensor.on_detect = on_detect
    # Adding the callback to the button
    button.on_event = on_event
    try:
        while True:
            distance = ultrasonic_sensor.get_distance()
            log.debug('distance: {} cm'.format(distance))

            humidity, temperature = dht_sensor.read()
            log.debug('temperature: {}C, humidity: {}%'.format(temperature, humidity))

            moisture = moisture_sensor.moisture
            log.debug('moisture: {}'.format(moisture))

            log.debug('light: {}'.format(light_sensor.light))

            # Formatting the data for sending to ThingsBoard
            telemetry = {'distance': distance,
                         'temperature': temperature,
                         'humidity': humidity,
                         'moisture': moisture,
                         'light': light_sensor.light}

            # Sending the data
            client.send_telemetry(telemetry).get()

            time.sleep(.1)
    except Exception as e:
        raise e
    finally:
        client.disconnect()


if __name__ == '__main__':
    main()

Data visualization

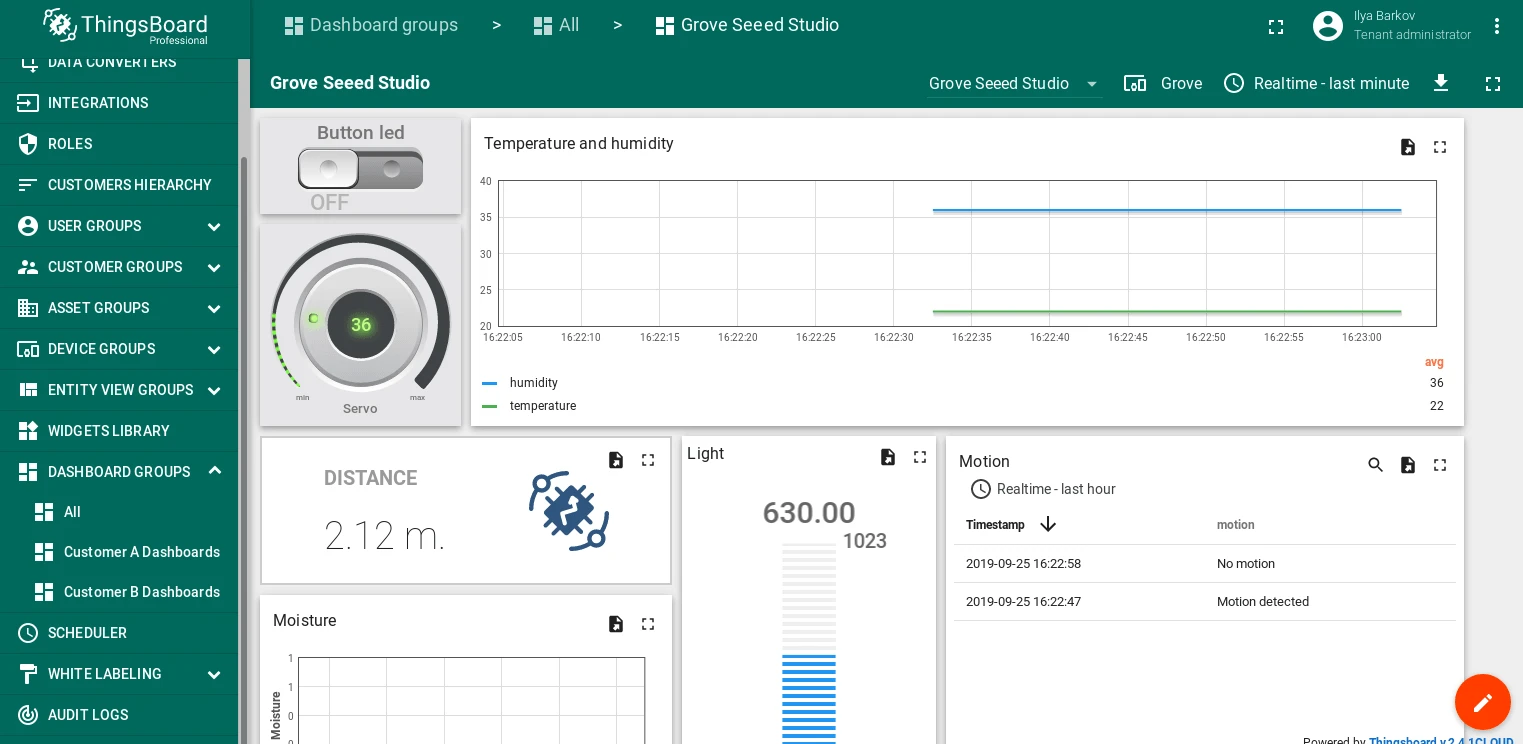

Import the dashboard

Download the Grove dashboard JSON and import it into ThingsBoard.
See the dashboard import instructions for details.

After importing, open the dashboard and edit the alias of the Grove widget: set Filter type to Single entity, set Type to Device, and select your grove device from the list.

Run the application

Run the script on the Raspberry Pi:

python3 tb_grove.py

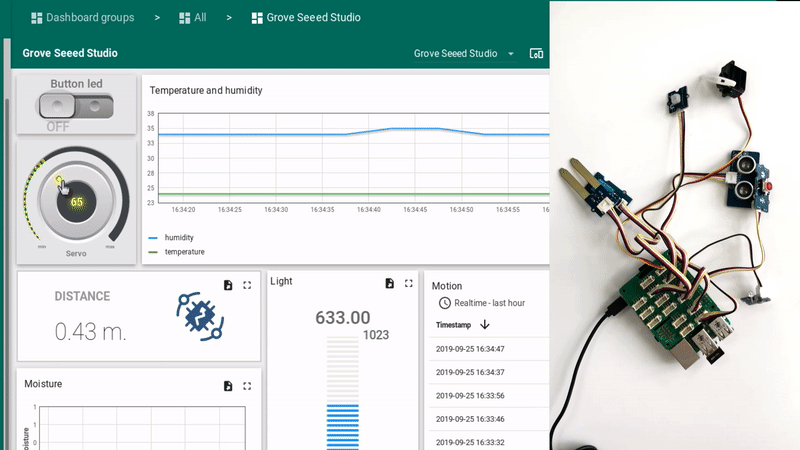

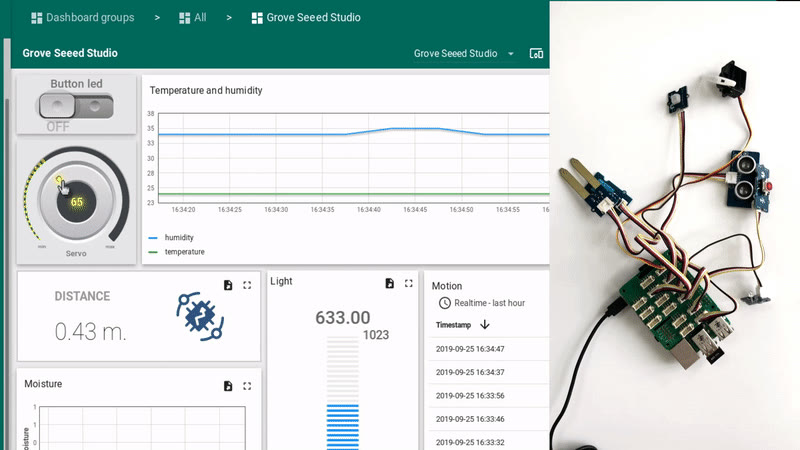

The script starts sending sensor telemetry to ThingsBoard. Open the dashboard to see live data and use the Servo knob to rotate the servo or the Button Led toggle to control the LED.
