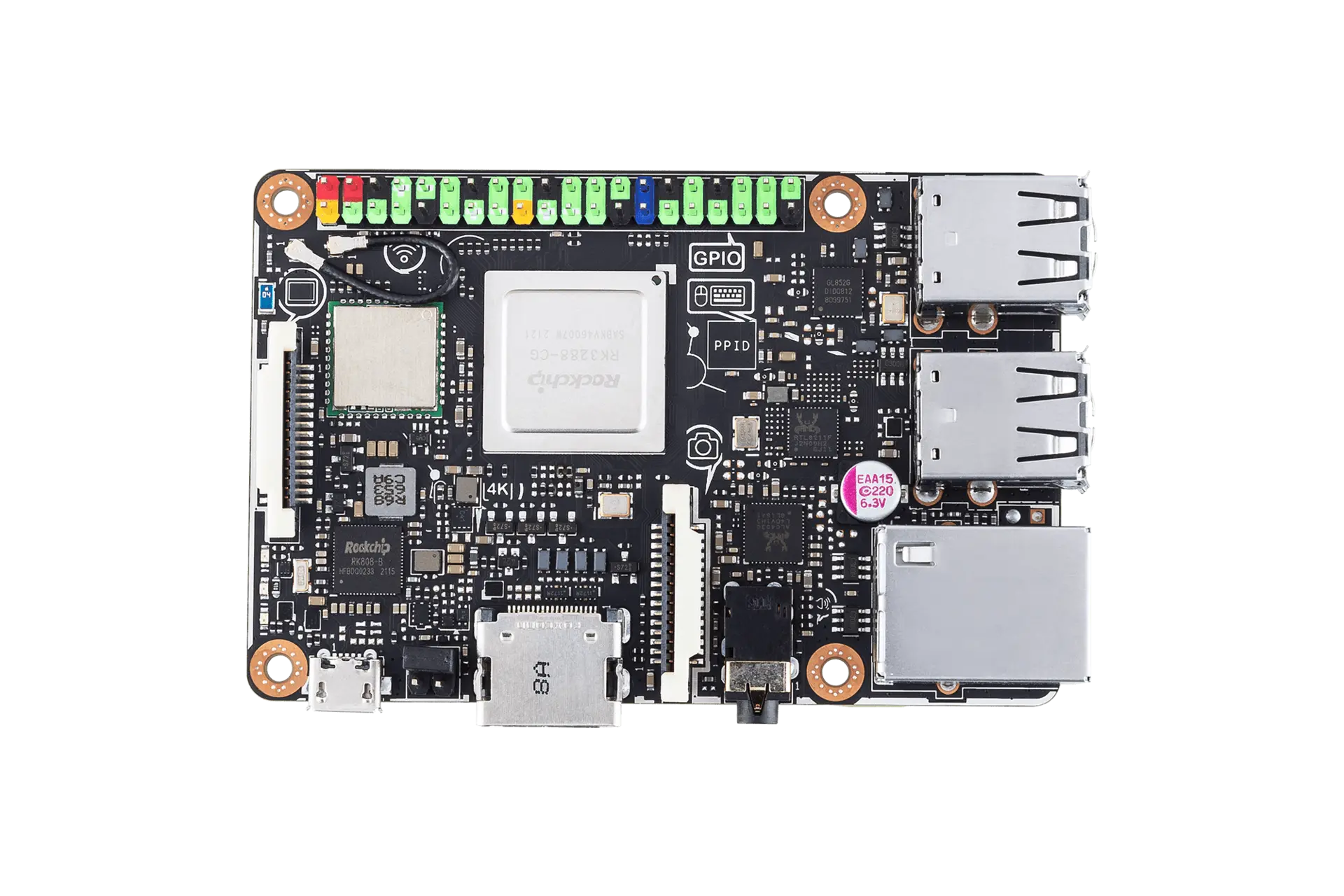

ASUS Tinker Board S
The ASUS Tinker Board S is a robust single-board computer powered by the Rockchip RK3288 quad-core Cortex-A17 SoC, 2 GB LPDDR3 RAM, and 16 GB eMMC storage. Featuring Gigabit Ethernet, Wi-Fi 802.11 b/g/n, Bluetooth 4.0, HDMI 4K output, and a 40-pin GPIO header, it is designed for makers, DIY enthusiasts, and IoT edge computing applications.
Tinker Board S is a single board computer (SBC) that offers greater durability, better stability and an overall improved user experience for DIY enthusiasts and makers everywhere. Onboard 16GB eMMC storage to enhance performance and stability, plus a microSD slot for greater flexibility. Onboard power-on pin for makers giving more freedom when bringing their ideas to life. Low-voltage input detection to avoid power issue and ensure system stability if using a non-qualified* power supply. Enhanced I2S pin with Slave mode and an improved software API for better compatibility.
Features
- Rockchip RK3288 SoC (quad Cortex-A17)
- 2 GB LPDDR3 RAM, 16 GB eMMC onboard storage
- Mali-T760MP4 GPU
- Gigabit Ethernet, Wi-Fi 802.11 b/g/n, Bluetooth 4.0
- USB 3.0, USB 2.0
- HDMI 2.0 output (up to 4K @ 60 Hz)
- 40-pin GPIO header
Specifications
| Parameter | Value |
|---|---|
| SoC | Rockchip RK3288 |
| CPU | Quad Cortex-A17 @ 1.8 GHz |
| GPU | Mali-T760MP4 |
| RAM | 2 GB LPDDR3 |
| Storage | 16 GB eMMC |
| Ethernet | Gigabit (10/100/1000) |
| Wi-Fi | 802.11 b/g/n (2.4 GHz) |
| Bluetooth | 4.0 |
| USB | 1x USB 3.0, 3x USB 2.0 |
| Video Output | HDMI 2.0 (4K @ 60 Hz) |
| GPIO | 40-pin header |
| Power | 5V / 2.5A (DC jack) |
Device Technical Documentation
Download datasheets and manuals for the Tinker Board S
