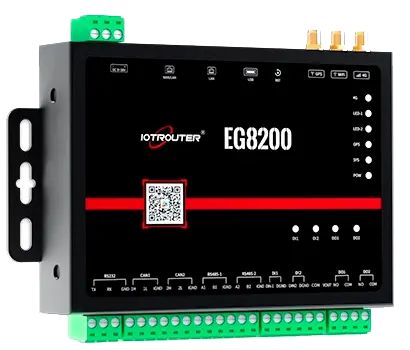

EG8200 Gateway
The IOTRouter EG8200 is an industrial edge computing gateway featuring an ARM-based processor and a drag-and-drop Zero Code programming environment that simplifies protocol conversion and data routing without custom software. It supports Modbus RTU/TCP, OPC UA, IEC 60870-5-104, and BACnet protocols natively, bridging legacy industrial equipment to modern IoT platforms. Connectivity options include 4G LTE, dual Ethernet ports, and Wi-Fi, with MQTT as the uplink transport for cloud and platform integration.
Overview
The IOTRouter EG8200 is an industrial edge computing gateway built around a drag-and-drop Zero Code programming model. It collects data from RS485, RS232 and CAN field devices, speaks Modbus, IEC 60870-5-104, OPC UA and BACnet, and forwards it over 4G LTE, Ethernet or Wi-Fi. This page lists the gateway specification and how it connects to ThingsBoard over MQTT.
Key features
- Zero Code programming: drag-and-drop node editor in the browser, no firmware writing required
- Industrial interfaces: 2x RS485, 1x RS232, 2x CAN, 2x digital output, 2x digital input, 1x USB
- Industrial protocols: Modbus RTU and TCP, IEC 60870-5-104, OPC UA, BACnet
- Upstream connectivity over 4G LTE, LAN, WAN or Wi-Fi
- Cloud protocols: MQTT, HTTP, TCP
- Dual-core 1.2 GHz processor running Ubuntu Linux 20.04.5
- 4 GB eMMC on board, expandable by microSD up to 128 GB
Device profile
Classification fields, using the same connectivity vocabulary the Hub itself uses for the badges on this page. Connectivity is the roll-up of the three rows below it.
| Field | Value |
|---|---|
| Hardware Type | Gateway |
| Connectivity | 4G, BACnet, CAN, Ethernet, Modbus RTU, Modbus TCP, OPC-UA, RS232, RS485, USB, Wi-Fi |
| Physical Interface | Ethernet, RS485, RS232, CAN, USB |
| Wireless Technology | Wi-Fi, 4G |
| Industrial Protocol | Modbus RTU, Modbus TCP, OPC-UA, BACnet |
| Application Protocol | MQTT, HTTP, TCP/IP |
Technical specifications
| Parameter | Value |
|---|---|
| Processor | Dual-core, 1.2 GHz |
| RAM | 512 MB |
| Storage | 4 GB eMMC, plus microSD up to 128 GB |
| Operating system | Linux, Ubuntu 20.04.5 |
| Cellular | Quectel CAT 4 (4G LTE) |
| Ethernet | LAN and WAN ports |
| Wi-Fi | Supported |
| Serial interfaces | 2x RS485, 1x RS232 |
| CAN bus | 2x CAN |
| Digital I/O | 2x digital output, 2x digital input |
| USB | 1x USB |
| Industrial protocols | Modbus RTU and TCP, IEC 60870-5-104, OPC UA, BACnet |
| Cloud protocols | MQTT, HTTP, TCP |
| Programming | Zero Code visual node editor, browser-based |
| Power supply | 12 to 48 V DC, optional PoE |
| Operating temperature | -20 °C to +60 °C |
| Ingress protection | IP40 |
| Dimensions | 180 x 130 x 50 mm |
| Weight | 700 g |
| Mounting | DIN rail or wall |
Wiring
Connect RS485 sensors to the EG8200 RS485-1 port before powering on:
Supported use cases
- Industrial manufacturing: data collection from PLCs, sensors and meters over RS485 and RS232
- Smart energy: substation monitoring over IEC 60870-5-104 or Modbus
- Smart city: environmental sensors and street lighting control
- Remote monitoring over 4G LTE where fixed connectivity is unavailable
