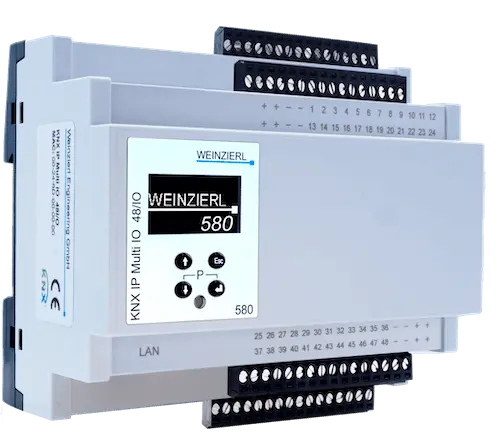

KNX IP Multi IO 580
The Weinzierl KNX IP Multi IO 580 is a universal DIN-rail input/output module for KNX IP building automation, offering 48 freely configurable digital channels usable as binary inputs or outputs. Connected directly via Ethernet/LAN, it supports pulse counting for energy meters, controls lights and blinds, and integrates with ETS 4.2 or higher without requiring KNX TP infrastructure.
Overview
The Weinzierl KNX IP Multi IO 580 is a universal DIN-rail input and output module for KNX building automation. It provides 48 freely configurable binary lines, each usable as an input or an output, and connects over Ethernet as a KNX IP device, so no KNX TP infrastructure is required. This page lists the module specification and how it connects to ThingsBoard through the ThingsBoard IoT Gateway.
Key features
- 48 configurable binary I/O lines, each usable as input or output
- KNX IP medium, connected over a LAN RJ-45 socket
- Configured with ETS 4.2 or higher, with native group objects
- 24 V DC I/O supply, open-drain outputs rated at 100 mA
- Inputs with pull-up resistors, outputs with flyback diode protection
- Impulse counting for energy meters
- OLED display with 4 buttons for manual installation testing
Device profile
Classification fields, using the same connectivity vocabulary the Hub itself uses for the badges on this page. Connectivity is the roll-up of the three rows below it.
| Field | Value |
|---|---|
| Hardware Type | Other devices |
| Connectivity | Ethernet, KNX |
| Physical Interface | Ethernet |
| Wireless Technology | None |
| Industrial Protocol | KNX |
| Application Protocol | None |
Technical specifications
| Parameter | Value |
|---|---|
| I/O channels | 48 binary lines, each configurable as input or output |
| Bus medium | KNX IP over Ethernet |
| Network interface | RJ-45 LAN socket |
| Configuration | ETS 4.2 or higher |
| I/O supply | 24 V DC, external |
| Outputs | Open-drain, 100 mA per channel, flyback diode protection |
| Inputs | Pull-up resistors, impulse counting for meters |
| Local control | OLED display with 4 buttons |
| Mounting | DIN rail, 6 units wide |
| Dimensions | 108 mm wide, 6 DIN units |
| Weight | 260 g |
| Operating temperature | -5 °C to +45 °C |
| Ingress protection | IP20 |
| Certifications | CE, RoHS |
Supported use cases
- Smart building lighting and blind control over KNX
- Smart metering: impulse counting from energy meters
- Smart office installations on DIN rail
- Retrofitting KNX installations that have no TP backbone
