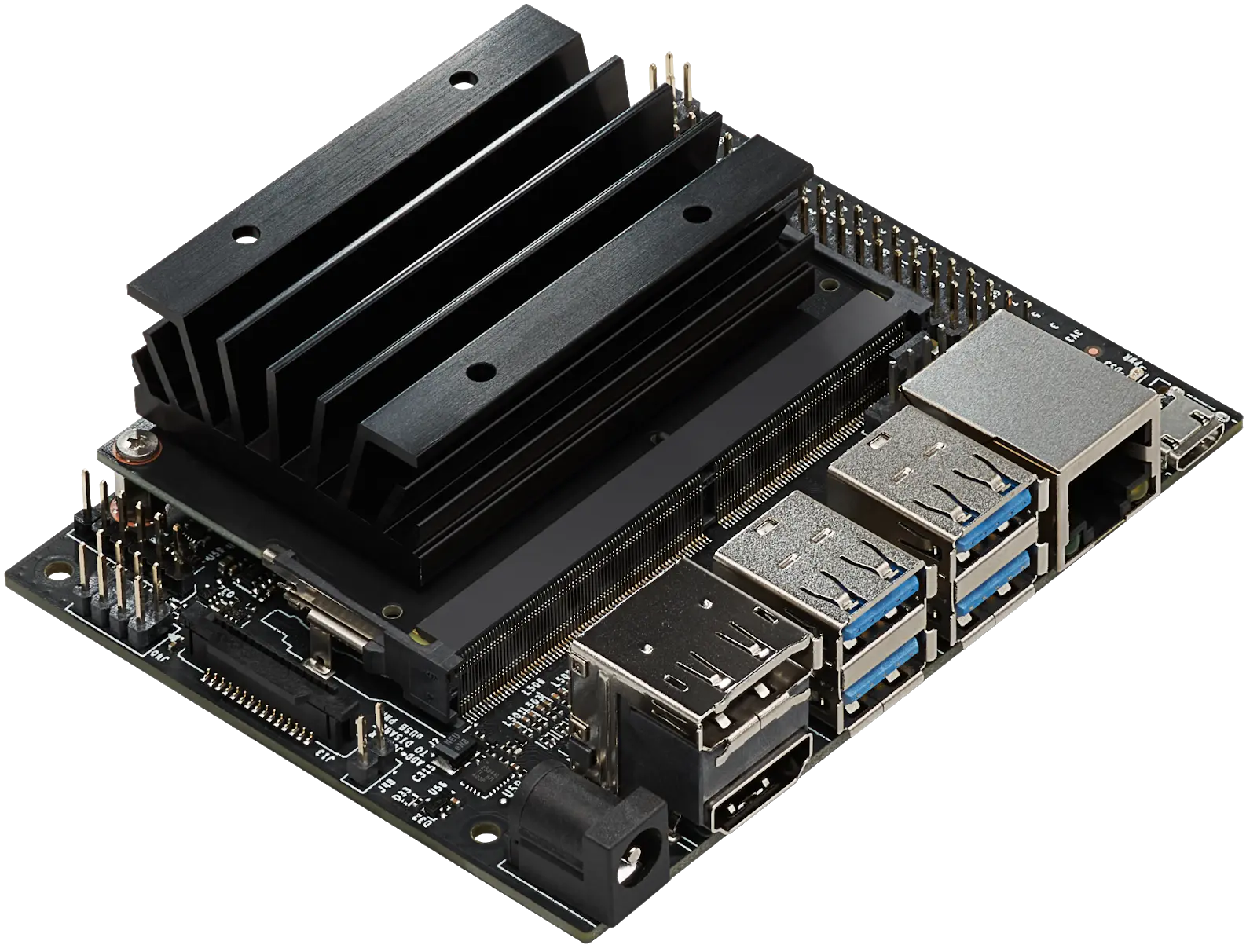

NVIDIA Jetson Nano Developer Kit
The NVIDIA Jetson Nano Developer Kit is a compact AI computing platform powered by a quad-core Cortex-A57 CPU and 128-core Maxwell GPU, with 4 GB LPDDR4 RAM. Supporting NVIDIA JetPack SDK with CUDA, cuDNN, and TensorRT, it enables parallel neural network inference, computer vision, and deep learning at just 5–10 watts, ideal for edge AI and robotics applications.
The NVIDIA Jetson Nano Developer Kit is a small, powerful computer that lets you run multiple neural networks in parallel for applications like image classification, object detection, and speech processing. It’s ideal for makers and developers who want to create intelligent devices at the edge.
Features
- NVIDIA Maxwell GPU (128 CUDA cores) + quad Cortex-A57 CPU
- 4 GB LPDDR4 RAM, MicroSD card storage
- 128-core NVIDIA Maxwell GPU
- Gigabit Ethernet, Wi-Fi and Bluetooth via optional M.2 module
- 4x USB 3.0, USB 2.0, PCIe M.2 slot
- HDMI 2.0 and DisplayPort output (up to 4K @ 30 Hz)
- 40-pin GPIO header
Specifications
| Parameter | Value |
|---|---|
| SoC | NVIDIA Tegra X1 (T210) |
| CPU | Quad Cortex-A57 @ 1.43 GHz |
| GPU | 128-core NVIDIA Maxwell |
| RAM | 4 GB LPDDR4 |
| Storage | MicroSD card slot |
| Ethernet | Gigabit (10/100/1000) |
| Wi-Fi | Optional via M.2 Key-E module (802.11 a/b/g/n/ac) |
| Bluetooth | Optional via M.2 Key-E module |
| USB | 4x USB 3.0, 1x USB 2.0 Micro-B |
| Video Output | HDMI 2.0 / DisplayPort 1.2 (4K @ 30 Hz) |
| GPIO | 40-pin header |
| Power | 5V / 4A (DC jack) or 5V / 2A (Micro-USB) |
Device Technical Documentation
Download datasheets and manuals for the NVIDIA Jetson Nano Developer Kit
NVIDIA Jetson Nano Developer Kit Product page NVIDIA Jetson Nano Developer Kit DatasheetAdd Your Device to the Community
