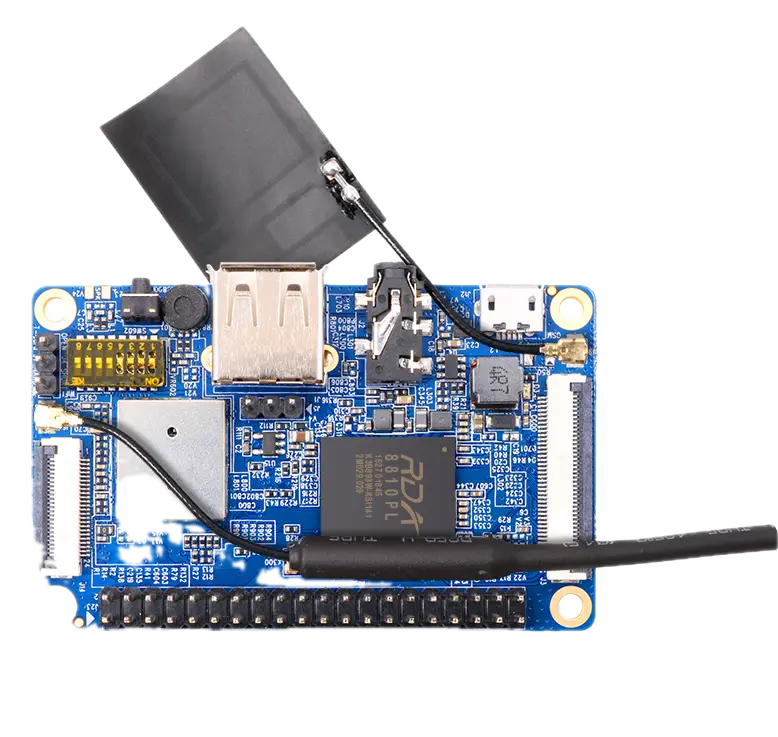

OrangePi 2G IoT
OrangePi 2G IoT is a compact single-board computer built on the RDA8810PL ARM Cortex-A5 SoC, combining processing capability with an integrated 2G GSM/GPRS modem for cellular data and voice communication. Onboard Wi-Fi, Bluetooth, and the GPRS modem provide versatile connectivity options for cloud and IoT platform integration over MQTT, even in areas without fixed broadband infrastructure. GPIO, UART, I2C, SPI, and a 26-pin expansion header facilitate connections to sensors and peripheral modules.
OrangePi 2G IoT is a compact single-board computer built around the RDA8810PL SoC with a built-in 2G GSM/GPRS modem, making it ideal for IoT deployments that require cellular connectivity. It runs Debian or Ubuntu Linux and supports Wi-Fi, Bluetooth, and cellular out of the box.
Features
- RDA8810PL SoC with ARM Cortex-A5 CPU @ 1 GHz
- 256 MB DDR2 RAM with 512 MB NAND Flash storage
- Built-in 2G GSM/GPRS/EDGE modem for cellular connectivity
- Wi-Fi 802.11 b/g/n (Realtek RTL8189ETV)
- Bluetooth 4.0 (AP6181)
- 40-pin GPIO expansion header
- USB 2.0 OTG port
- MIPI CSI camera connector
- 3.5mm audio headphone jack
- 5V/2A power input via Micro USB
Overview
| Parameter | Value |
|---|---|
| SoC | RDA8810PL |
| CPU | ARM Cortex-A5 @ 1 GHz |
| RAM | 256 MB DDR2 |
| Storage | 512 MB NAND Flash + microSD/TF card slot |
| Cellular | 2G GSM/GPRS/EDGE modem |
| Wi-Fi | 802.11 b/g/n |
| Bluetooth | 4.0 |
| GPIO | 40-pin header |
| USB | 1x USB 2.0 OTG |
| Camera | MIPI CSI connector |
| Audio | 3.5mm headphone jack |
| Power | 5V/2A via Micro USB |
Device Technical Documentation
Download datasheets and manuals for the OrangePi 2G IoT
OrangePi 2G IoT Product page OrangePi 2G IoT DatasheetAdd Your Device to the Community
