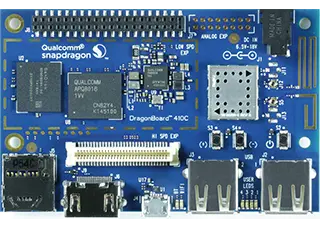

Qualcomm DragonBoard 410C
The Qualcomm DragonBoard 410C is a compact single-board computer powered by the Qualcomm Snapdragon 410 quad-core ARM Cortex-A53 processor with an integrated Adreno 306 GPU. It features 802.11n Wi-Fi, Bluetooth 4.1, GPS, and a Snapdragon X5 LTE modem option, making it suitable for connected edge applications. A 40-pin low-speed and 60-pin high-speed expansion connector provide access to GPIO, UART, SPI, I2C, and USB interfaces for attaching sensors and peripherals.
Qualcomm DragonBoard 410C is a compact single-board computer designed for embedded, IoT, and rapid prototyping workloads. Built around the Qualcomm Snapdragon 410 / APQ8016E platform, it combines 64-bit processing, wireless connectivity, GPS, and expandable interfaces in a credit-card-sized form factor, making it well suited for robotics, smart devices, cameras, digital signage, and edge development projects.
Features
- Qualcomm APQ8016E / Snapdragon 410 platform
- Quad-core 64-bit ARM Cortex-A53 CPU
- 1 GB LPDDR3 RAM with microSD card storage
- Adreno 306 GPU
- Wi-Fi, Bluetooth, and GPS connectivity
- USB host and micro-USB OTG connectivity
- HDMI display output
- 40-pin low-speed expansion header plus 60-pin high-speed connector
- 96Boards Consumer Edition compliant design
Overview
| Parameter | Value |
|---|---|
| SoC | Qualcomm APQ8016E / Snapdragon 410 |
| CPU | Quad Cortex-A53 |
| GPU | Adreno 306 |
| RAM | 1 GB LPDDR3 |
| Storage | microSD card slot |
| Wi-Fi | Supported |
| Bluetooth | Supported |
| GPS | Supported |
| USB | USB host + micro-USB OTG |
| Video Output | HDMI |
| GPIO | 40-pin low-speed header, 60-pin high-speed connector |
| Form Factor | 96Boards Consumer Edition |
Device Technical Documentation
Download datasheets and manuals for the Qualcomm DragonBoard 410C
