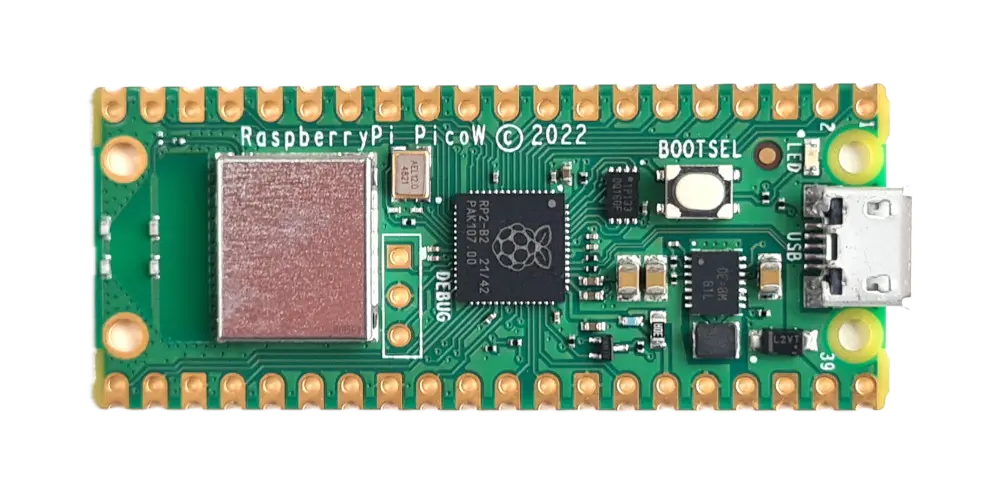

Raspberry Pi Pico W
The Raspberry Pi Pico W is a compact wireless microcontroller board built around the RP2040 dual-core Cortex-M0+ chip at up to 133 MHz, with 264 KB SRAM and 2 MB onboard flash. Featuring Wi-Fi 802.11 b/g/n and Bluetooth 5.2 via the Infineon CYW43439, 26 multi-function GPIO pins, and MicroPython/C++ support, it is ideal for IoT and embedded wireless applications.
The Raspberry Pi Pico W is a compact microcontroller board built around the RP2040 chip by Raspberry Pi Ltd, featuring a dual-core Cortex-M0+ CPU with Wi-Fi and Bluetooth connectivity for IoT prototyping and embedded applications.
Features
- Dual-core Cortex-M0+ at up to 133 MHz (RP2040)
- 264 KB SRAM, 2 MB onboard Flash
- Wi-Fi 802.11 b/g/n + Bluetooth 5.2 / BLE (via CYW43439)
- 26 multi-function GPIO pins, 3 ADC channels, no DAC
- Ultra-compact form factor (51 x 21 mm)
- USB-powered via micro-USB
Specifications
| Parameter | Value |
|---|---|
| SoC | RP2040 (Dual Cortex-M0+) |
| Clock Speed | Up to 133 MHz |
| Flash | 2 MB (onboard) |
| SRAM | 264 KB |
| Operating Voltage | 3.3V |
| Input Voltage | 5V (micro-USB) |
| Wi-Fi | 802.11 b/g/n (2.4 GHz) |
| Bluetooth | BLE 5.2 (via CYW43439) |
Device Technical Documentation
Download datasheets and manuals for the Raspberry Pi Pico W
