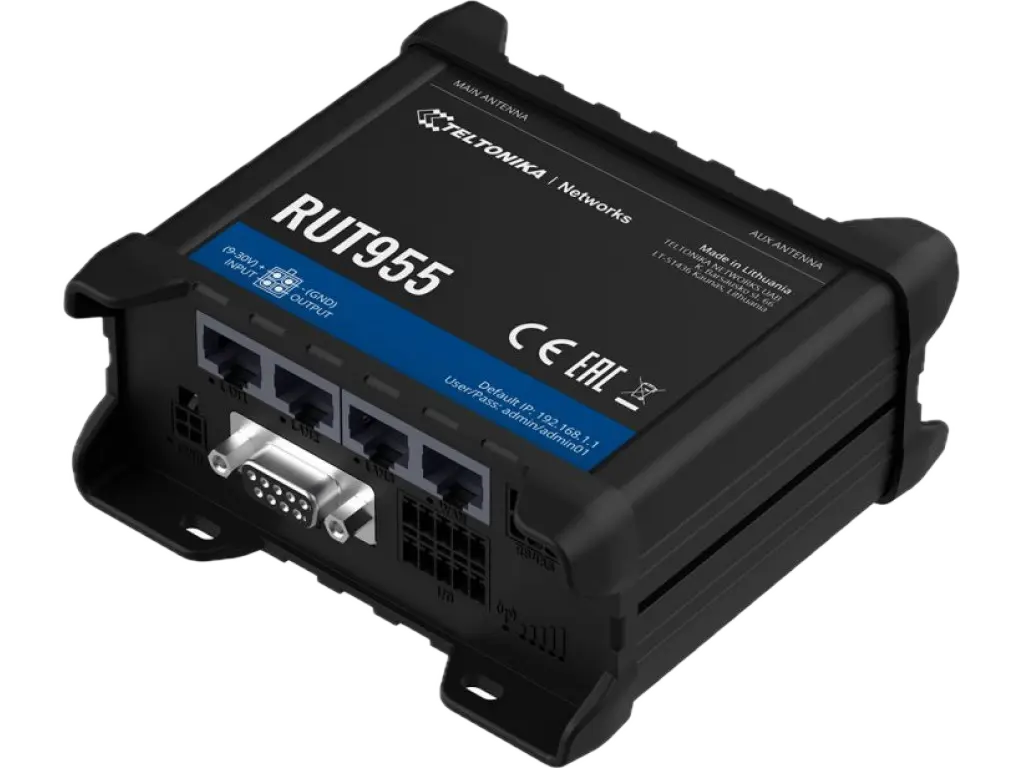

Teltonika RUT955
The Teltonika RUT955 is a rugged industrial 4G LTE cellular router with dual SIM failover, featuring 3x LAN and 1x WAN 10/100 Mbps Ethernet ports, Wi-Fi 802.11 b/g/n, RS-232, RS-485, digital I/O, and a GPS module. Running RutOS (OpenWrt-based), it supports MQTT, Modbus, VPN, and remote management, making it ideal for industrial IoT and M2M connectivity.
Overview
The Teltonika RUT955 is a rugged industrial 4G LTE cellular router with dual SIM failover, four Ethernet ports, Wi-Fi, RS232 and RS485 serial interfaces, digital and analog I/O and a GNSS receiver. It runs RutOS, an OpenWrt-based Linux, and speaks MQTT, Modbus, SNMP and TR-069. This page lists the router specification and how it connects to ThingsBoard over MQTT.
Key features
- LTE Cat 4 cellular, up to 150 Mbps downlink, with dual SIM automatic failover
- 4x Ethernet ports: 1x WAN and 3x LAN, 10/100 Mbps
- Wi-Fi 802.11 b/g/n access point and client
- GNSS (GPS and GLONASS) positioning with geofencing
- RS232 and RS485 serial interfaces with 3 digital or analog I/O channels
- RutOS with Modbus, SNMP, MQTT, TR-069 and NTRIP support
- 9 to 30 V DC supply in an aluminium housing, rated to -40 C
Device profile
Classification fields, using the same connectivity vocabulary the Hub itself uses for the badges on this page. Connectivity is the roll-up of the three rows below it.
| Field | Value |
|---|---|
| Hardware Type | Gateway |
| Connectivity | 4G, Ethernet, Modbus RTU, Modbus TCP, RS232, RS485, Wi-Fi |
| Physical Interface | Ethernet, RS232, RS485 |
| Wireless Technology | Wi-Fi, 4G |
| Industrial Protocol | Modbus RTU, Modbus TCP |
| Application Protocol | MQTT, HTTP, SNMP |
Technical specifications
| Parameter | Value |
|---|---|
| Cellular | LTE Cat 4, up to 150 Mbps downlink |
| SIM | 2x SIM with automatic failover |
| Ethernet | 4x 10/100 Mbps: 1x WAN, 3x LAN |
| Wi-Fi | 802.11 b/g/n, 2.4 GHz |
| Positioning | GNSS: GPS and GLONASS, with geofencing |
| Serial interfaces | 1x RS232, 1x RS485 |
| Digital and analog I/O | 3 channels |
| Industrial protocols | Modbus RTU and Modbus TCP |
| Management and telemetry | MQTT, SNMP, TR-069, NTRIP |
| Operating system | RutOS, OpenWrt-based Linux |
| Power supply | 9 to 30 V DC |
| Operating temperature | -40 °C to +75 °C |
| Housing | Aluminium |
| Dimensions | 100 x 110 x 50 mm |
| Weight | 287 g |
| Certifications | CE, EAC |
Supported use cases
- Fleet tracking and vehicle telemetry
- Remote monitoring over cellular where fixed connectivity is unavailable
- Industrial IoT and SCADA backhaul over Modbus
- Smart energy and smart metering sites
Device technical documentation
Download datasheets and manuals for the Teltonika RUT955
