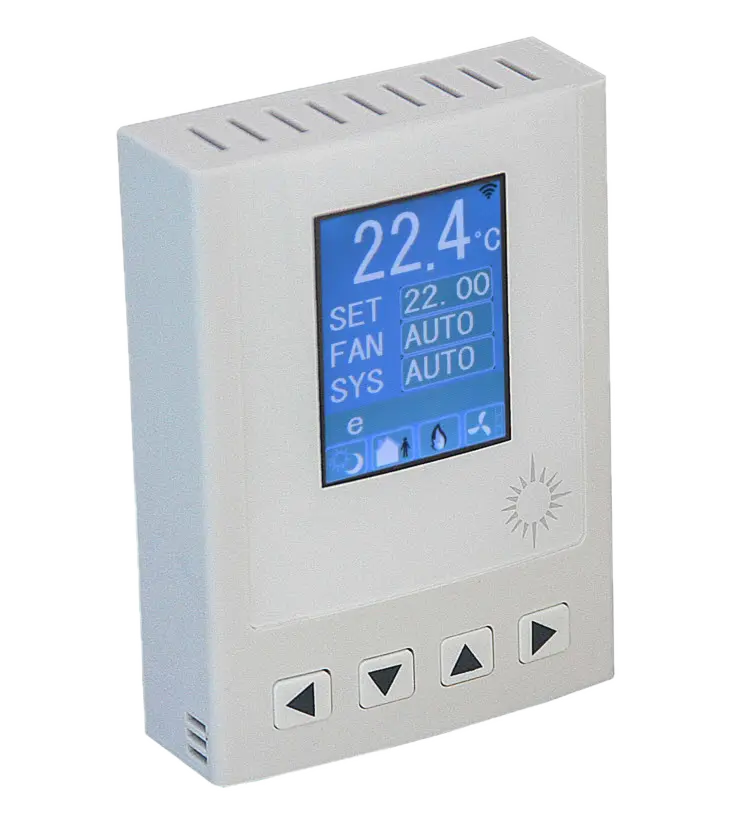

Temco Tstat10
The Temco Controls Tstat10 is a fully programmable thermostat and building automation controller featuring 8 universal inputs, 5 relay outputs, and 2 analog outputs. Supporting BACnet MSTP, BACnet IP, and Modbus RTU over RS-485, it integrates with major BMS platforms including Niagara and Siemens. Optional Wi-Fi, occupancy sensor, and humidity modules make it suitable for any HVAC application.
Temco Tstat10 Bacnet programmable controller is a low-cost high performance programmable controller. With an I/O configuration, it can be extended through external I/O modules to form a complete building automation solution. There are five relays and two analog outputs as well as 8 universal inputs. These i/o can be configured using the free software. There are more than 300 settings with many options for each of the settings so it’s possible to configure these devices for almost any application. Once the unit is configured, save the config file for copying to other controllers and backing up project settings. Options are available for occupancy sensor, zigbee, and humidity / enthalpy. Supports Bacnet MSTP and Modbus RTU for the RS485 model. Wi-Fi version supports Bacnet IP and Modbus IP.
Device Technical Documentation
Download datasheets and manuals for the Temco Tstat10
