SCADA Oil & Gas drilling system

💡 Solution Description

The SCADA Drilling System template is a production-ready accelerator for the Oil & Gas industry. It bridges the gap between traditional industrial equipment and modern IoT platforms, providing a unified SCADA interface for real-time drilling operations.

✨ Highlights

Transform your drilling operations with the SCADA Drilling System solution template. Designed for the Oil & Gas sector, this solution modernizes legacy industrial protocols into a cloud-native monitoring suite. 🛢️📊

Press Install to generate a complete SCADA ecosystem — populated with device emulators, gateway configurations, and alarm logic.

📦 What’s inside the box?

We have auto-generated a comprehensive industrial platform for you:

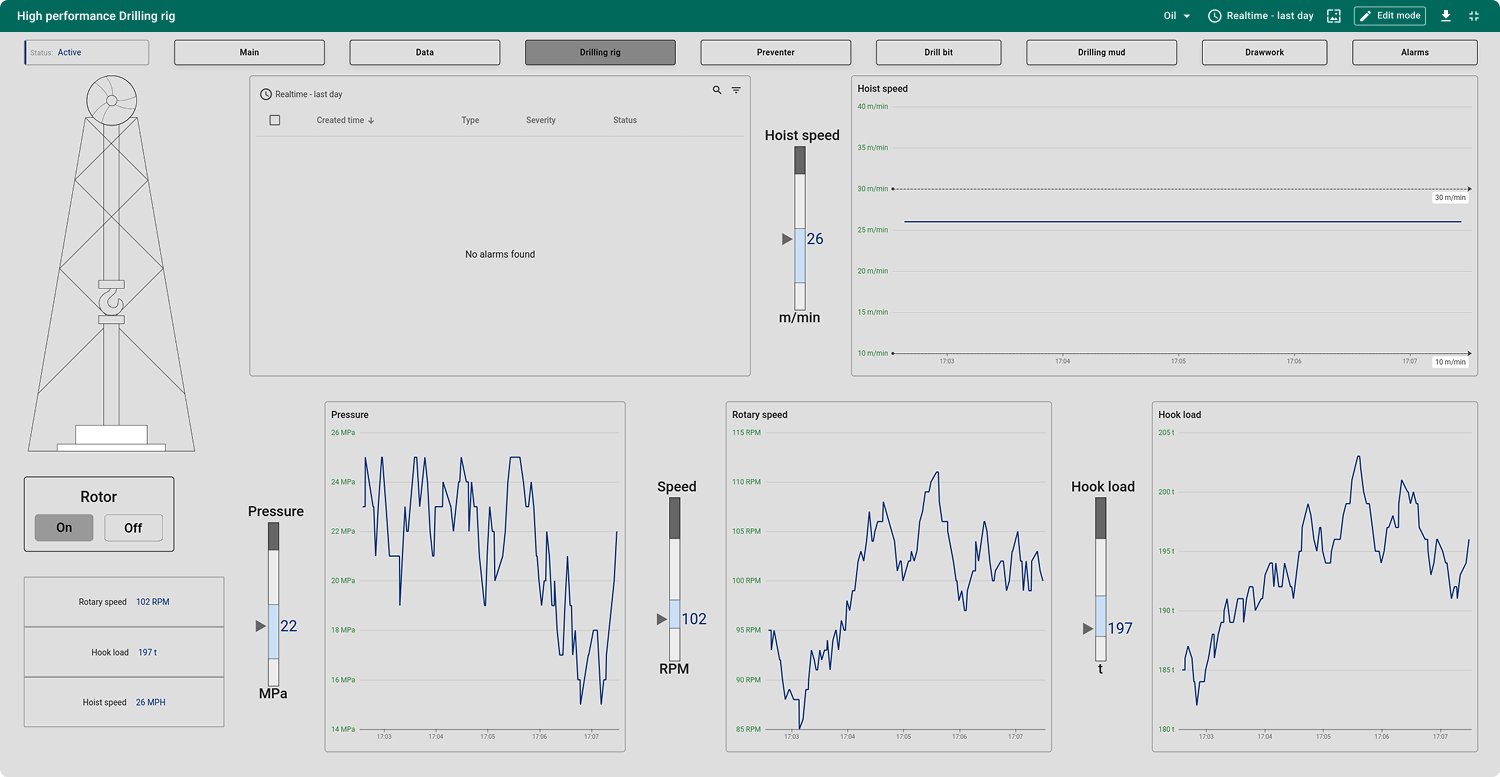

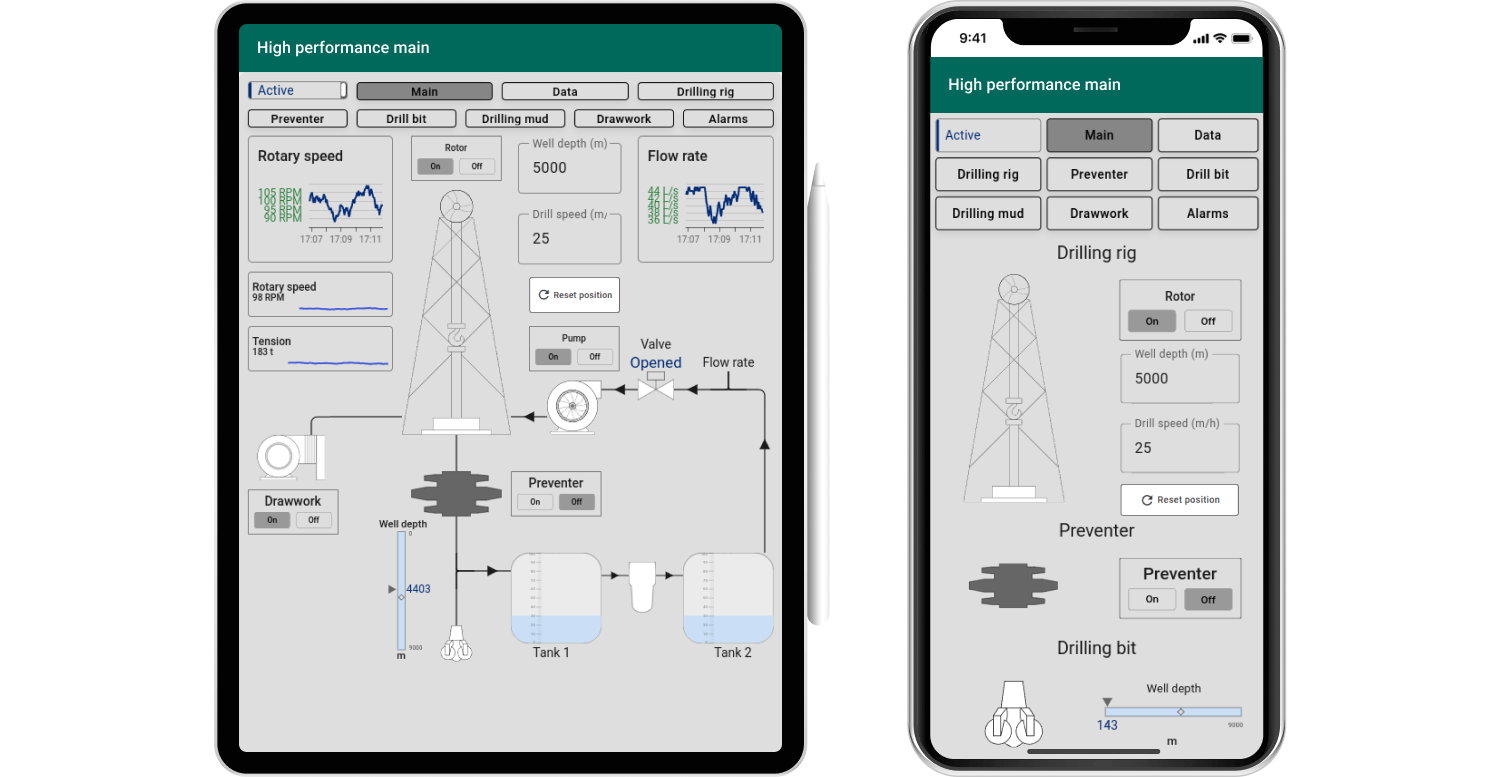

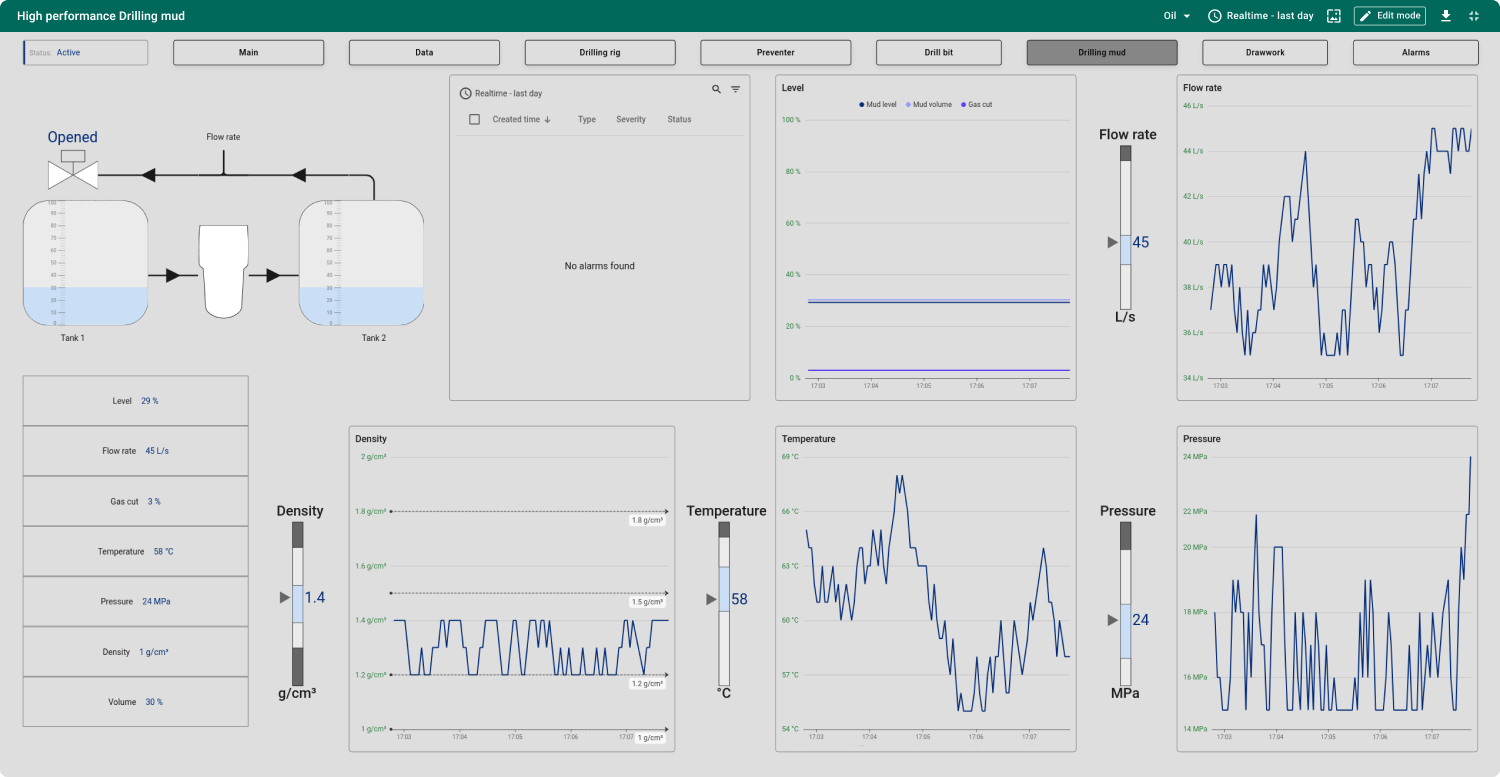

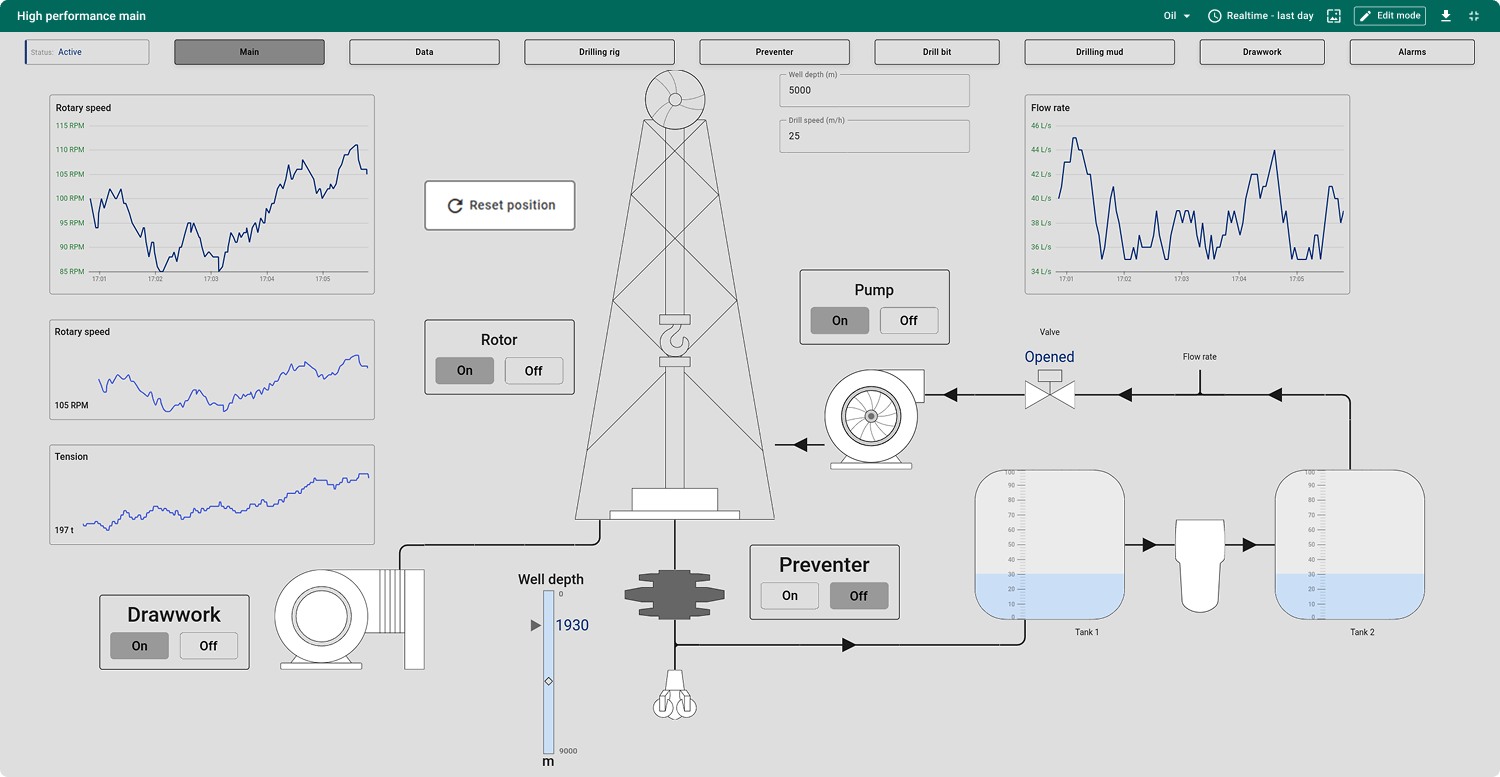

• 🎛️ SCADA Dashboard: A high-fidelity “SCADA Oil & Gas” visualization for real-time tracking of rotary speed, well depth, and mud flow.
• 🤖 Modbus Emulator: A complete Docker environment simulating 5 distinct Modbus devices, allowing you to see the solution in action immediately.
• ⚙️ Industrial Profiles: Pre-configured profiles for Drill Bit, Drawworks, Mud Sensor, Rig Monitor, and Blowout Preventer.
• 🚨 Safety Alarms: Automated rules that trigger on critical events, such as BOP Pressure Drop or Drill Bit Overheating.
• 📡 Auto-Configured Gateway: Ready-to-use IoT Gateway configuration to communicate with the drilling devices, removing the need for manual setup.

🌟 Why use this template?

• 🛡️ Operational Safety: Drilling involves high-risk machinery. This solution includes pre-configured monitoring for the Blowout Preventer (BOP) and Rig Health, ensuring critical safety thresholds are never breached.
• 🔌 Seamless Integration: Legacy equipment often speaks Modbus. This template comes with a pre-configured IoT Gateway setup to instantly connect, decode, and visualize data from industrial controllers.
• 📉 Predictive Maintenance: Instead of waiting for failure, use real-time telemetry from Drill Bits and Drawworks to detect wear, vibration, and mechanical stress before they cause downtime.

✨ Key Features

• Unified SCADA View: Consolidate data from 5 distinct subsystems (Drill Bit, Mud, Drawworks, Rig, BOP) into a single, real-time command center.
• Remote Control: Go beyond monitoring. The dashboard includes write-attributes and RPC commands to remotely control actuators, pumps, and preventer valves.
• Digital Twin Simulation: Includes a Dockerized Modbus Emulator that simulates a full drilling rig, allowing you to test logic and alarms without risking physical hardware.

🌍 Real-World Applications

This template serves as a robust foundation for various sectors:

• 🛢️ Onshore & Offshore Rigs: Centralize monitoring for distributed drilling sites to optimize extraction and ensure worker safety.
• 🔧 Equipment Manufacturers: Offer remote diagnostics and “Rig-as-a-Service” capabilities to customers by embedding IoT connectivity.
• 🧪 Training & Simulation: Use the included emulator to train operators on SCADA systems without the cost of running actual machinery.

🔌 How to connect real devices?

• IoT Gateway: The solution is designed to use the ThingsBoard IoT Gateway to connect Modbus TCP/UDP or RTU devices.
• Modbus Protocol: Direct integration with PLCs and controllers for Drill Bits, HVAC, and pumps via Modbus Connector.
• MQTT API: Alternatively, integrate custom SCADA servers or proprietary gateways using the MQTT Gateway API.
