Swimming pool SCADA system

💡 Solution Description

The Swimming Pool SCADA System template is a production-ready accelerator for swimming pool facility management. It bridges the gap between mechanical pool equipment and modern IoT platforms, providing a unified SCADA interface for water quality, temperature control, and energy management.

✨ Highlights

Transform your swimming pool facility management with the Swimming Pool SCADA System solution template. Designed for facility managers and system integrators, this solution brings advanced SCADA capabilities to pool operations, enhancing sustainability and efficiency. 🏊‍♂️📊

Press Install to generate a complete SCADA ecosystem — populated with device emulators, gateway configurations, and flow logic.

📦 What’s inside the box?

We have auto-generated a comprehensive industrial platform for you:

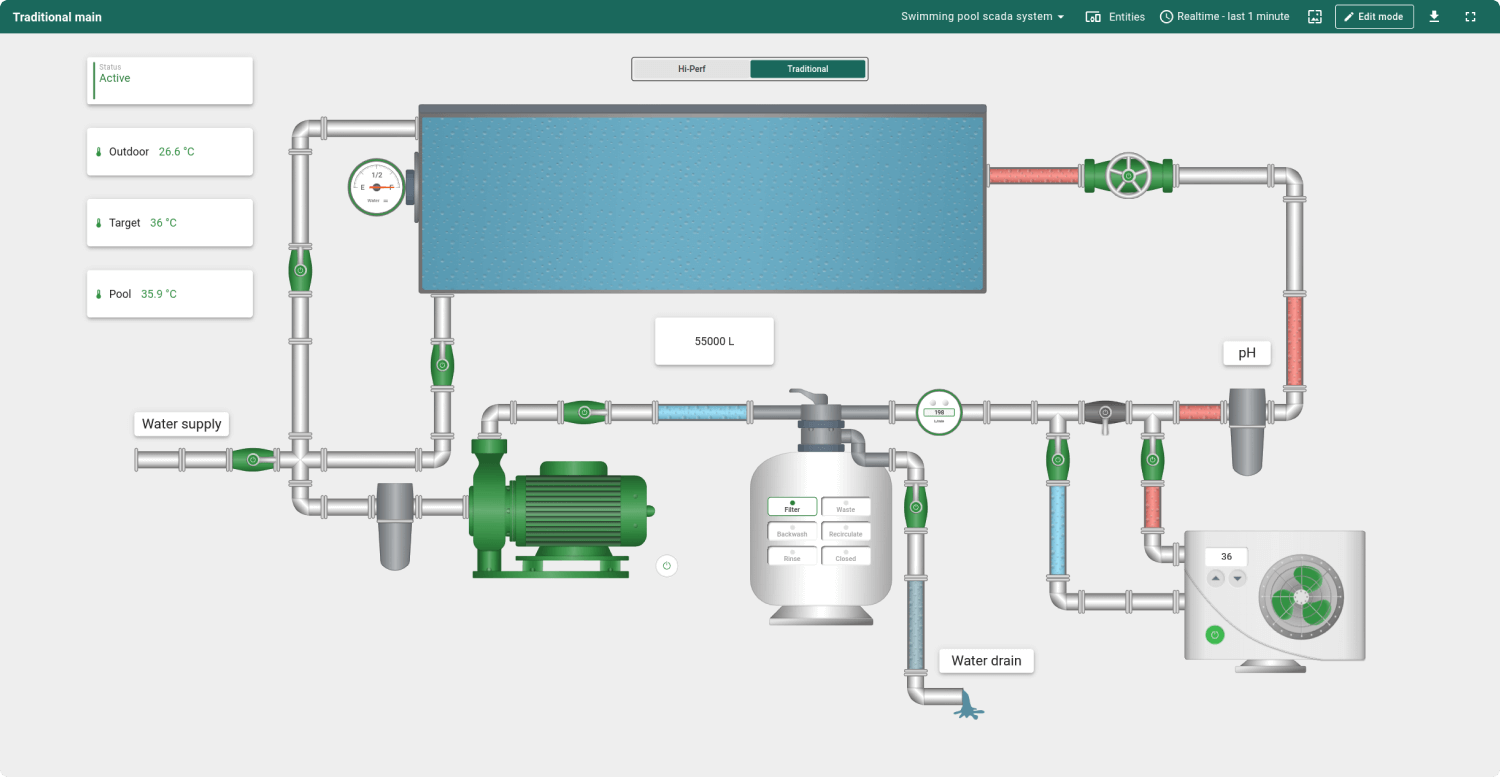

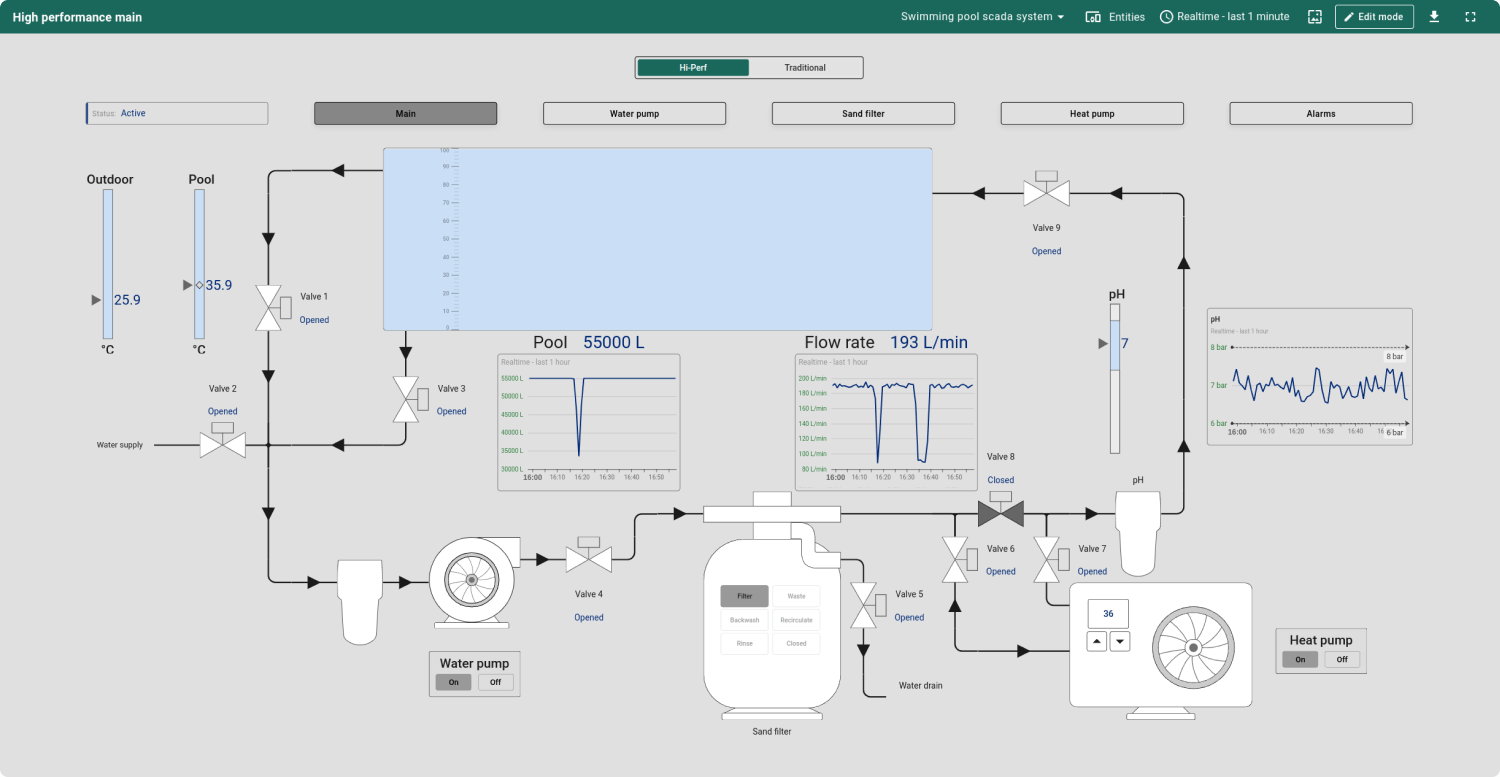

• 🎛️ SCADA Dashboard: A feature-rich dashboard offering real-time visualization of water temperature, pump status, and valve positions.
• 🤖 Modbus Emulator: A complete Docker environment simulating 14 distinct devices (Sand filter, Heat pump, etc.), allowing you to see the solution in action immediately.

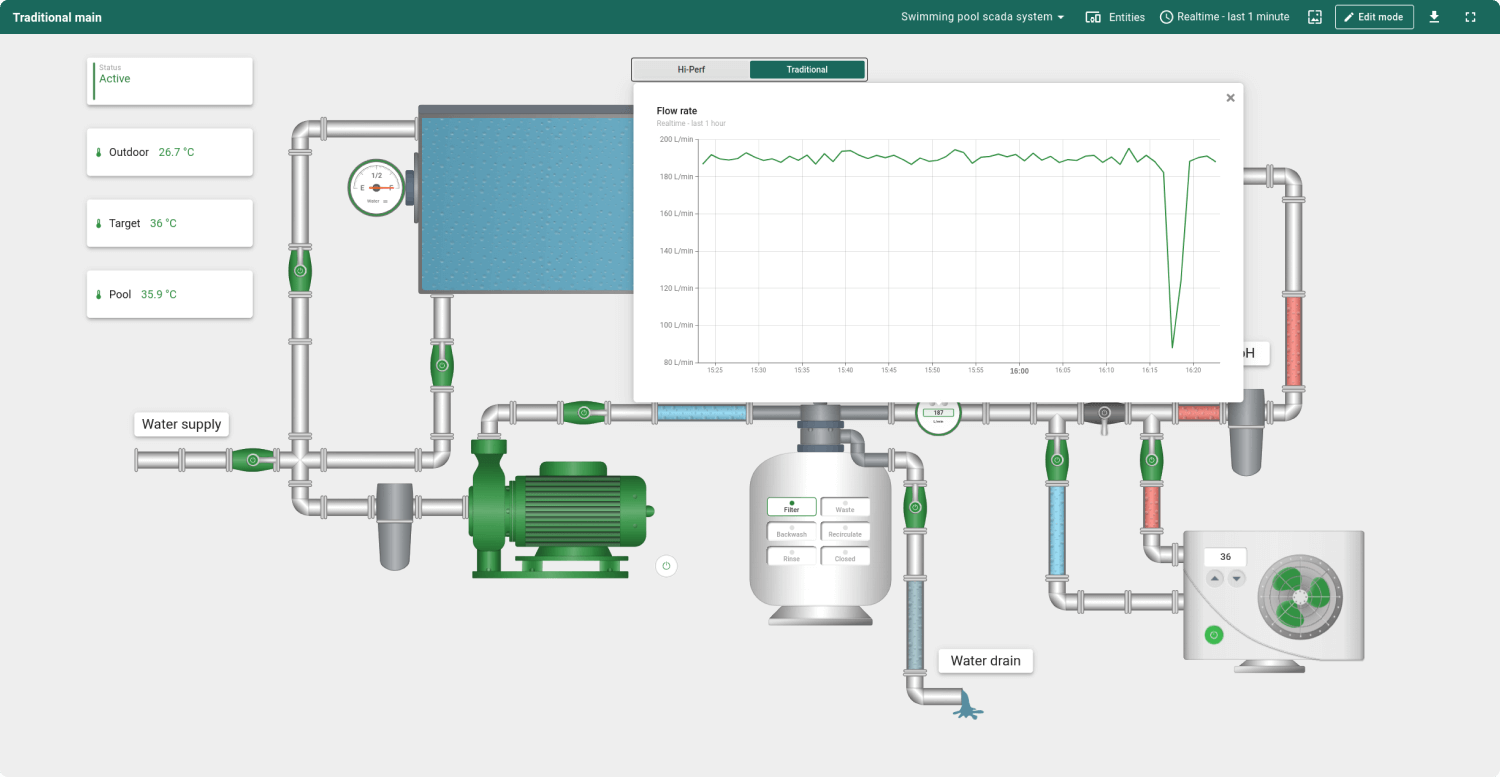

• 🧮 Flow Logic: Pre-configured Calculated Fields that analyze valve states to visualize water flow through Filter, Heat, and Drain segments.
• 🚨 Equipment Alarms: Automated rules that trigger on critical events, such as Heat Pump Vibration (>5.0), Sand Filter Pressure anomalies, or Water Pump Overheating.
• 📡 Auto-Configured Gateway: The solution automatically configures the Pool System Gateway to communicate with the pool devices using the Modbus protocol.

🌟 Why use this template?

• 💧 Water Quality Management: Automate the monitoring of the Water level meter and Filter PH sensor to ensure sanitary conditions without constant manual checking.

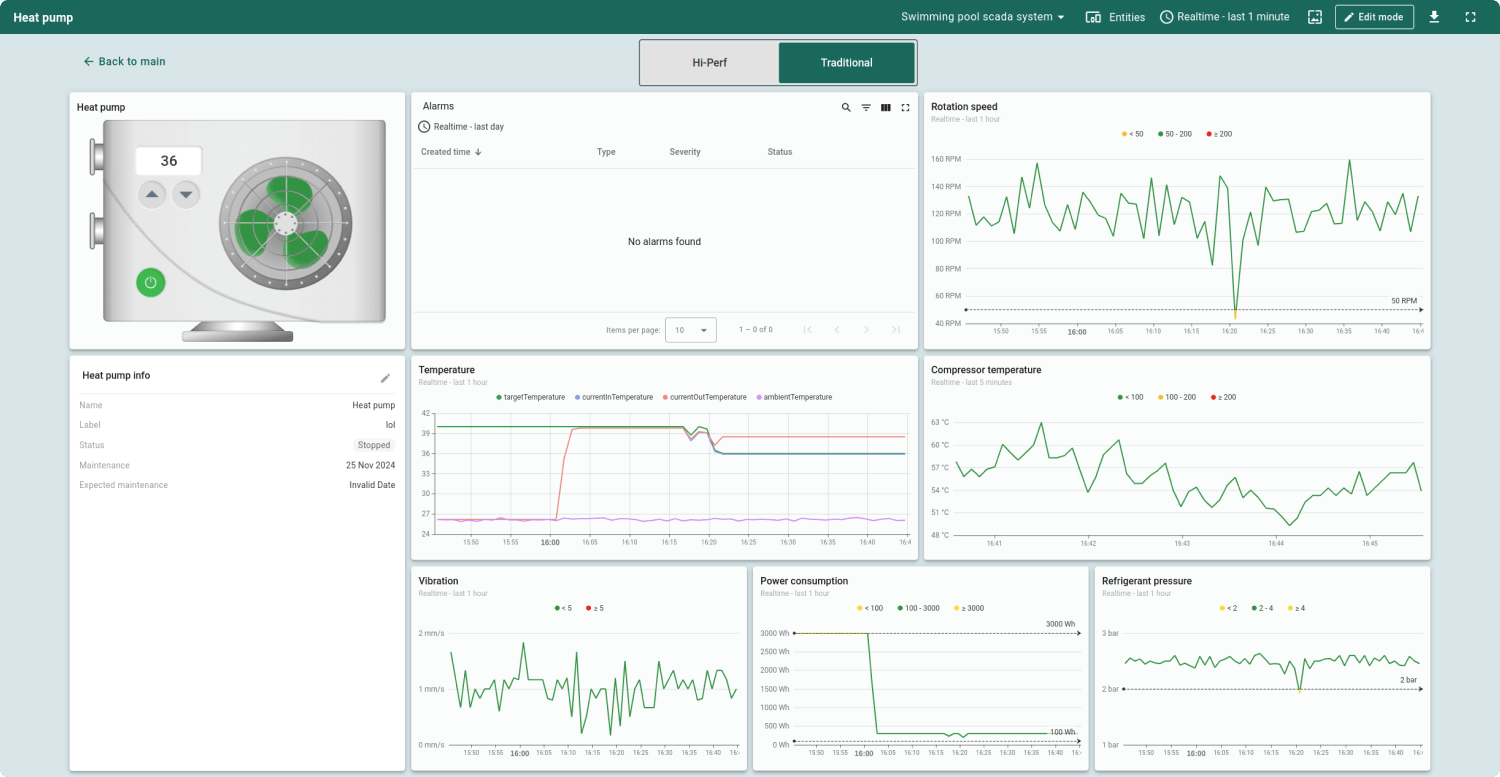

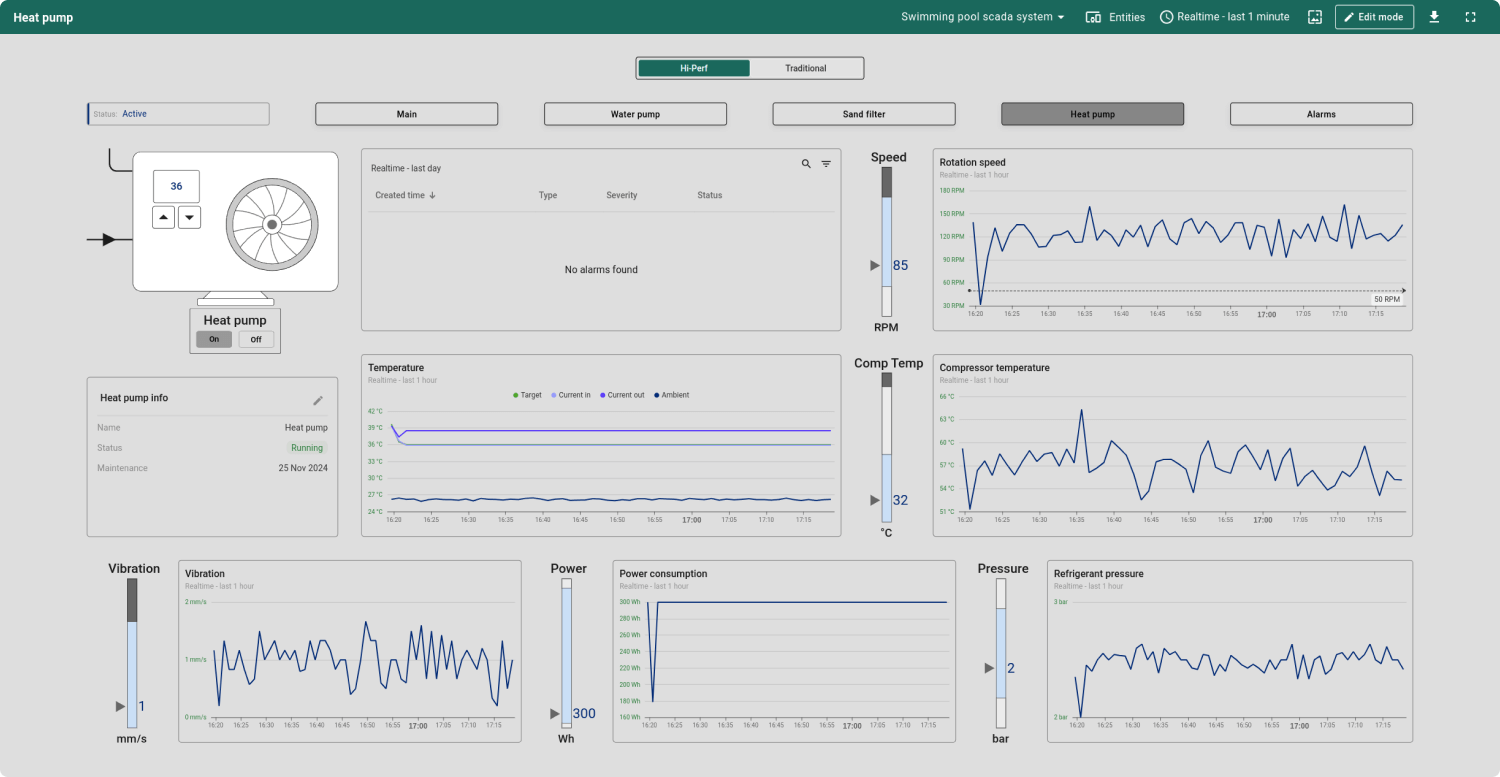

• 🌡️ Smart Temperature Control: Integrate Heat pump telemetry to intelligently monitor compressor temperature and refrigerant pressure, ensuring consistent water temperature while optimizing energy usage.
• ⚙️ Equipment Health: Prevent downtime by tracking the performance of the Sand filter and pumps through real-time monitoring of vibration, rotation speed, and pressure.

✨ Key Features

• Unified SCADA View: Consolidate data from 14 distinct subsystems (Valves, Pumps, Sensors, Heaters) into a single, real-time command center.
• Complex Flow Logic: Utilizes Calculated Fields to dynamically determine the flow status of specific pipe segments (Drain, Filter, Heat) based on the state of valves like the Main intake valve and Pool weir valve.
• Remote Management: Enable operators to remotely alter system states, such as switching operational modes or opening/closing specific valves.

🌍 Real-World Applications

This template serves as a robust foundation for various sectors:

• 🏊 Public Swimming Pools: Centralize monitoring for municipal pools to reduce maintenance costs and ensure public safety.
• 🏨 Hotels & Spas: Maintain premium guest experiences by ensuring perfect water temperature and clarity automatically.
• 🏞️ Water Parks: Manage complex networks of pumps and filtration systems across multiple attractions from a single dashboard.

🔌 How to connect real devices?

• IoT Gateway: The solution is designed to use the ThingsBoard IoT Gateway to connect Modbus TCP/UDP or RTU devices.
• Modbus Protocol: Direct integration with PLCs controlling valves, pumps, and heaters via Modbus Connector.
• MQTT API: Alternatively, integrate custom controllers using the MQTT Gateway API.
