Configure device details dashboards in ThingsBoard Mobile Application

ThingsBoard allows configuring device details dashboard to be displayed when tapping on the device with the specific type. Device details dashboard is configurable in the device profile form:

  1. Go to the Device profiles through the main menu on the left of the screen;
  2. Click on the device profile you want to modify;
  3. In the opened device profile details click edit button;

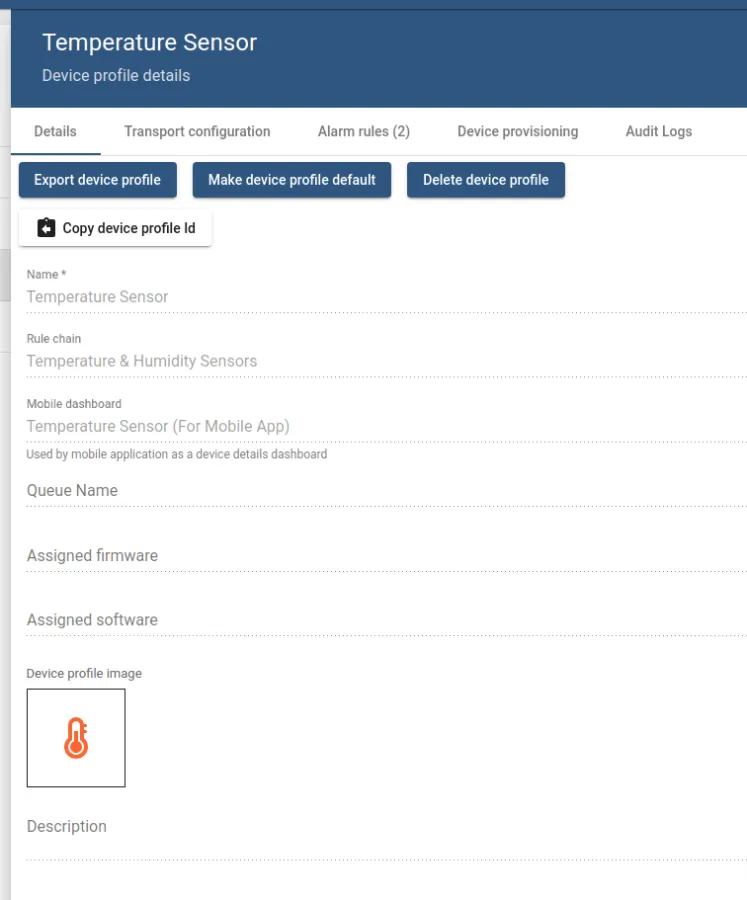

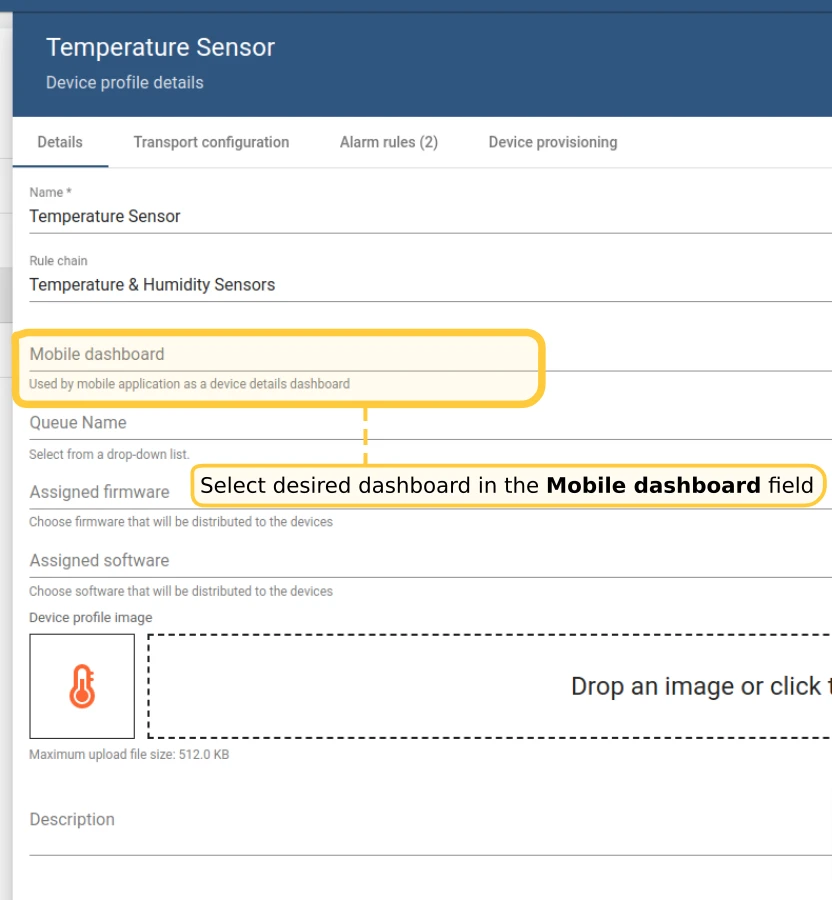

  4. Select desired dashboard in the Mobile dashboard field;
  5. Click Apply changes button;
Doc info icon

Note: In order to display specific device data, dashboard should be configured to use Entity from dashboard state alias in widgets datasources.

To verify your configuration run the mobile app. Then navigate to the devices list. Tap on the device having type for which dashboard was configured.

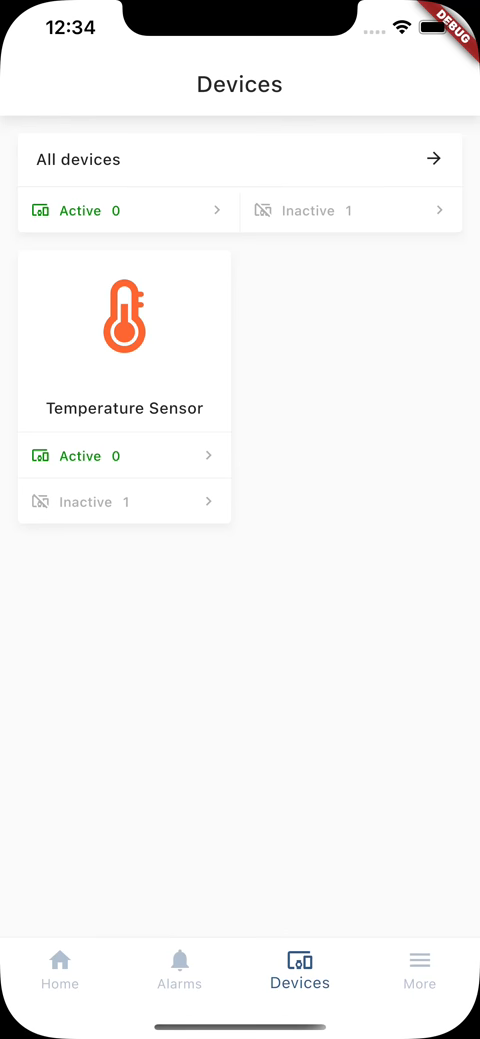

Device dashboard frame
