Device Provisioning

The IoT Gateway supports device provisioning, letting it automatically register itself on the ThingsBoard platform and obtain credentials on first startup — no manual per-device credential setup required.

How It Works

  ┌──────────────────────────────────────────────┐
  │  Gateway starts                              │
  └─────────────────────┬────────────────────────┘
                        │
                        ▼
  ┌──────────────────────────────────────────────┐
  │  Check: credentials stored locally?          │
  └──────────┬───────────────────────┬───────────┘
             │ Yes                   │ No
             ▼                       ▼
  ┌──────────────────┐   ┌────────────────────────┐
  │  Connect using   │   │  Send provision        │
  │  stored creds    │   │  request (key+secret)  │
  └──────────────────┘   └───────────┬────────────┘
                                     │
                                     ▼
                         ┌────────────────────────┐
                         │  Platform creates or   │
                         │  reuses device entity, │
                         │  generates credentials │
                         └───────────┬────────────┘
                                     │
                                     ▼
                         ┌────────────────────────┐
                         │  Credentials saved     │
                         │  to config dir         │
                         └───────────┬────────────┘
                                     │
                                     ▼
                         ┌────────────────────────┐
                         │  Connect to platform   │
                         └────────────────────────┘

If credentials need to be rotated or the authentication type changed, you can remove the stored credentials and the gateway will re-provision on the next start.

Environment Variables

Provisioning is configured via environment variables — typically set in docker-compose.yml or your system environment.

Variable	Required	Description
`TB_GW_PROVISIONING_DEVICE_KEY`	Yes	Provisioning device key (from the device profile)
`TB_GW_PROVISIONING_DEVICE_SECRET`	Yes	Provisioning device secret (from the device profile)
`TB_GW_PROVISIONING_DEVICE_NAME`	No	Name assigned to the device in ThingsBoard. A random name is generated if not set
`TB_GW_PROVISIONING_DEVICE_ACCESS_TOKEN`	No	If set, the platform assigns this token and uses Access Token authentication
`TB_GW_PROVISIONING_DEVICE_USERNAME`	No	MQTT Basic authentication username
`TB_GW_PROVISIONING_DEVICE_PASSWORD`	No	MQTT Basic authentication password
`TB_GW_PROVISIONING_DEVICE_CLIENT_ID`	No	MQTT Basic authentication client ID
`TB_GW_PROVISIONING_DEVICE_CA_CERT_FILENAME`	No	CA certificate filename in the `config/` folder. If set, the gateway generates a client certificate and uses X.509 Certificate authentication

The credentials type is determined by which optional variables you provide:

Variables set	Credentials type
`ACCESS_TOKEN`	Access Token
`USERNAME` / `PASSWORD` / `CLIENT_ID`	MQTT Basic
`CA_CERT_FILENAME`	X.509 Certificate
(none)	Platform default

Resetting Provisioned Credentials

To force re-provisioning (e.g. to rotate credentials or switch authentication type), use the gateway_remove_provisioned_credentials service RPC method. The gateway deletes its stored credentials and re-provisions on the next restart.

Example: Setting Up Device Provisioning

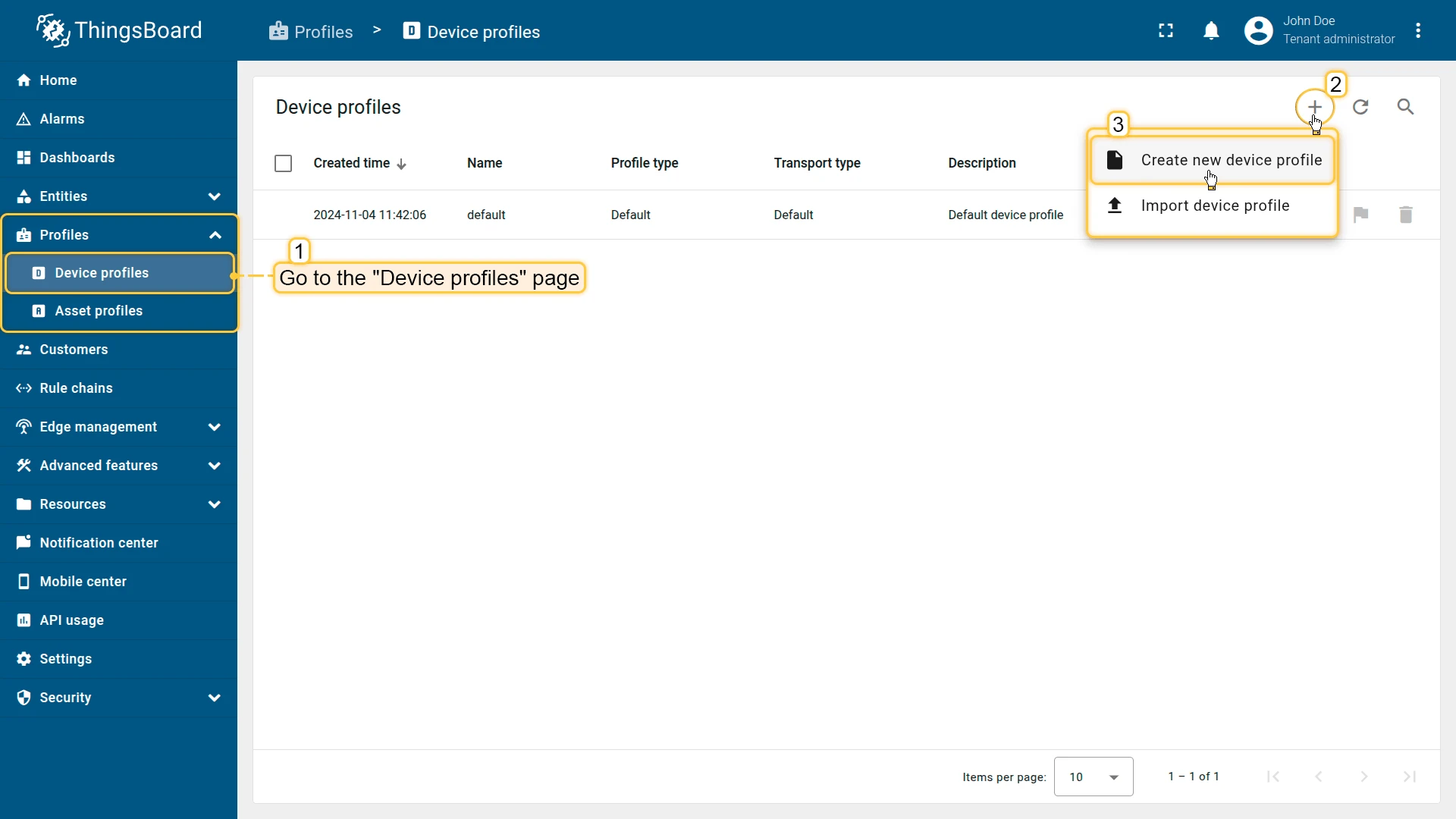

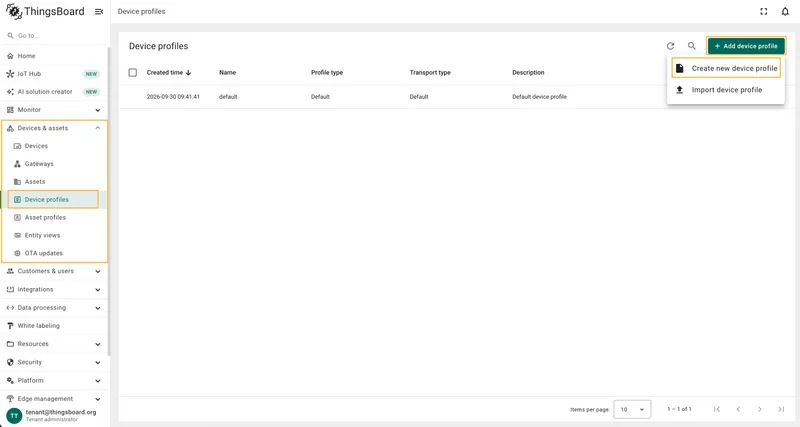

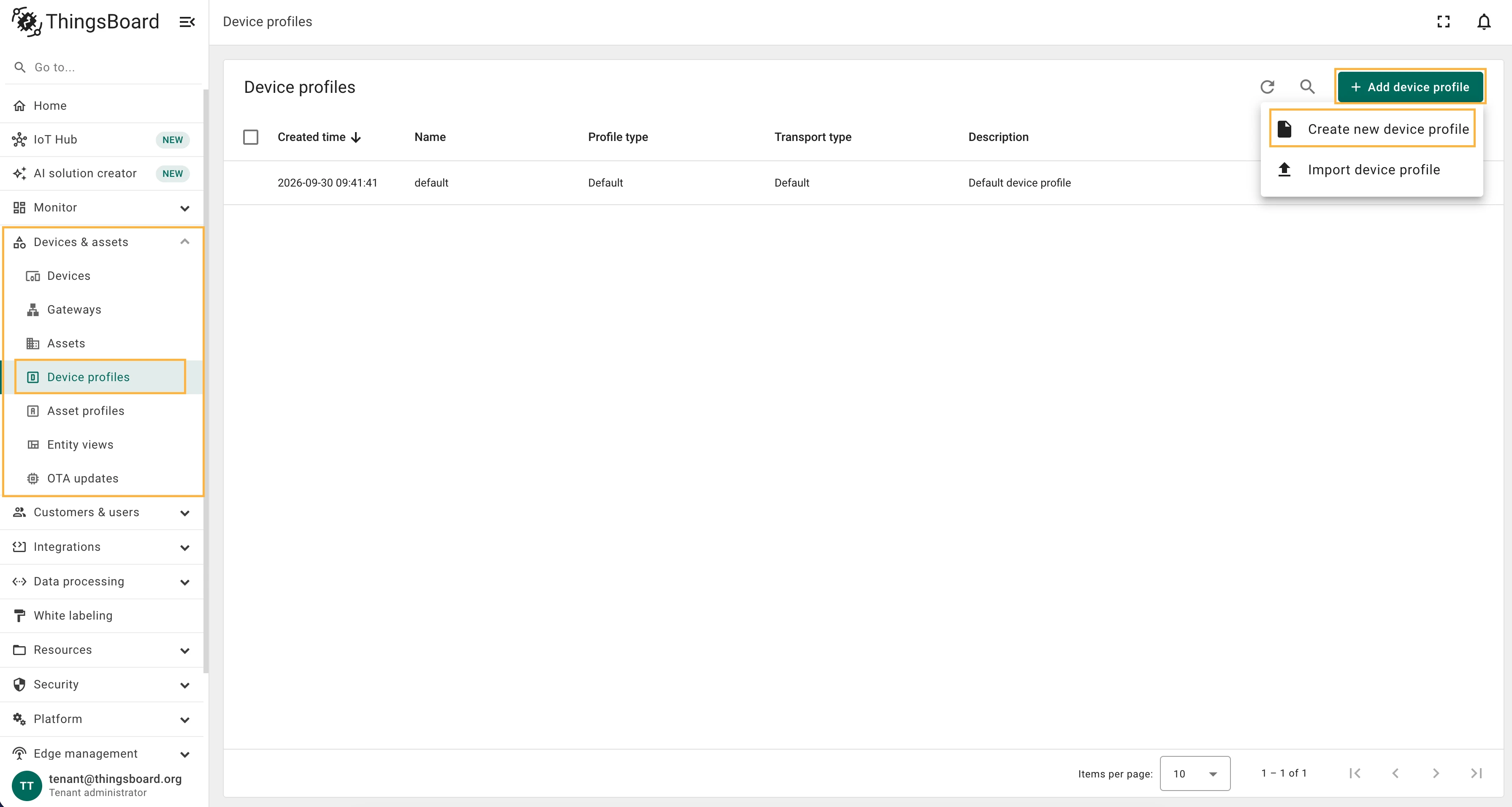

Create a Device Profile — go to Device profiles, click + and select Create new device profile.

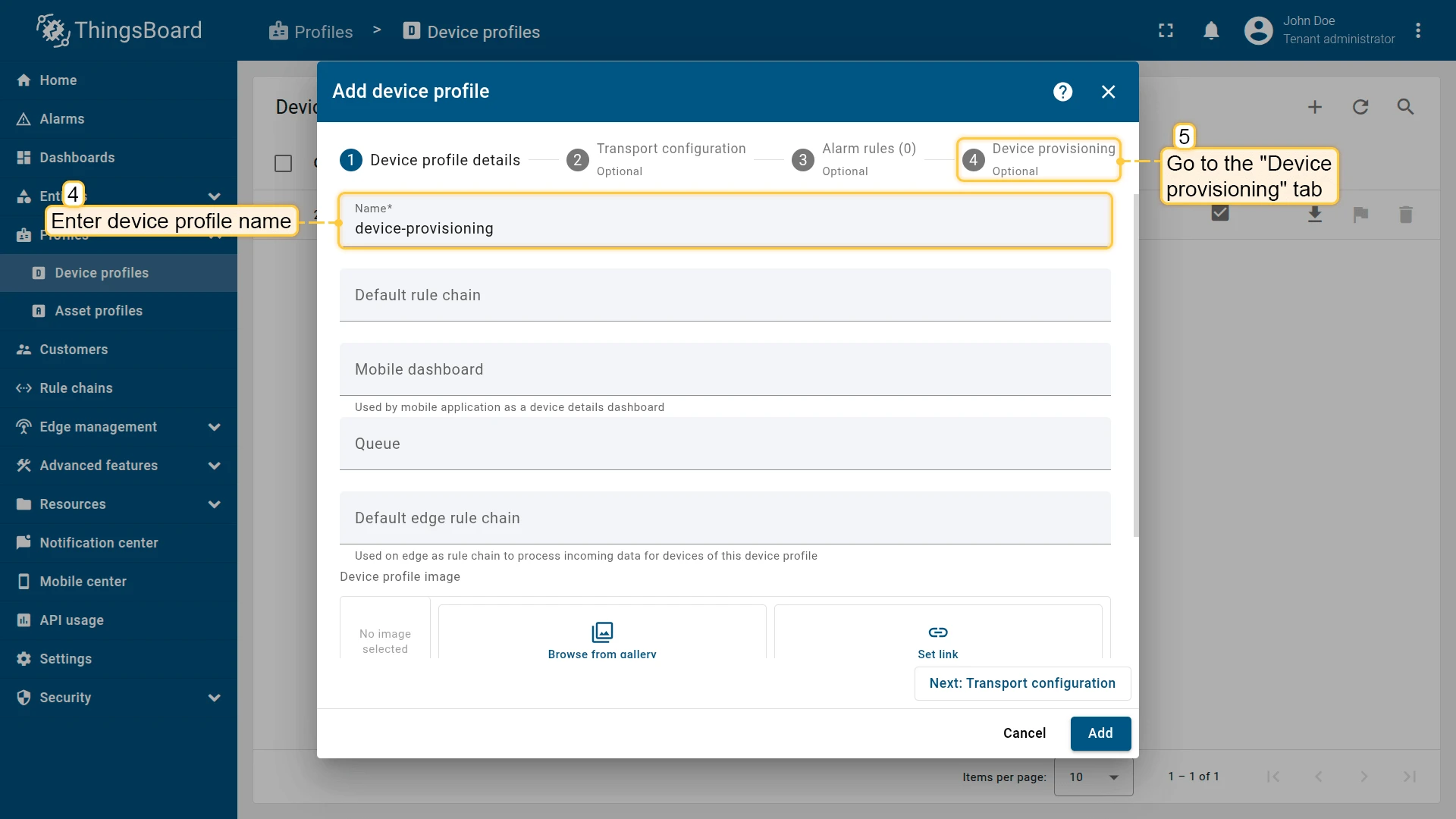

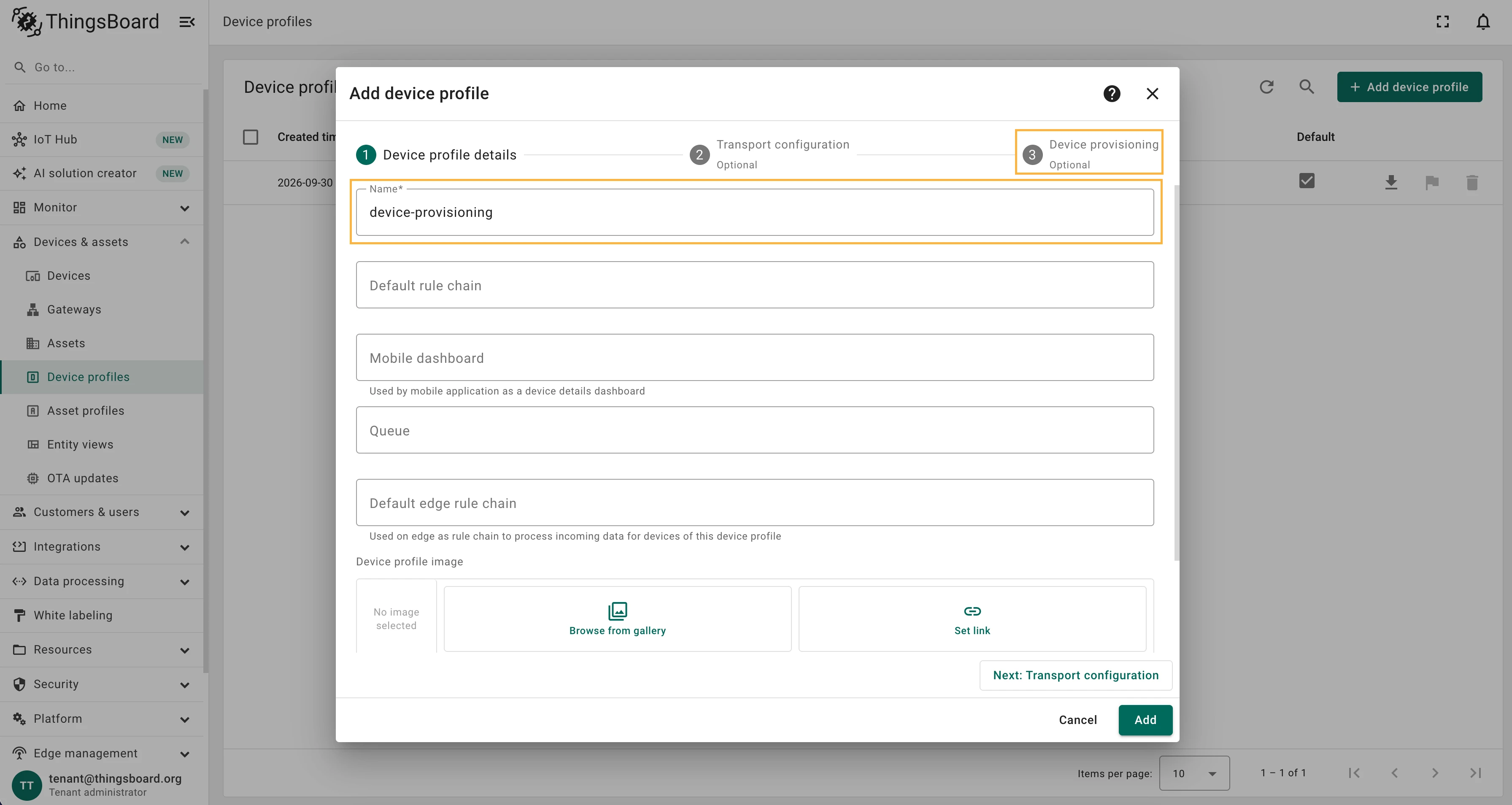

Enter a profile name and open the Device provisioning tab.

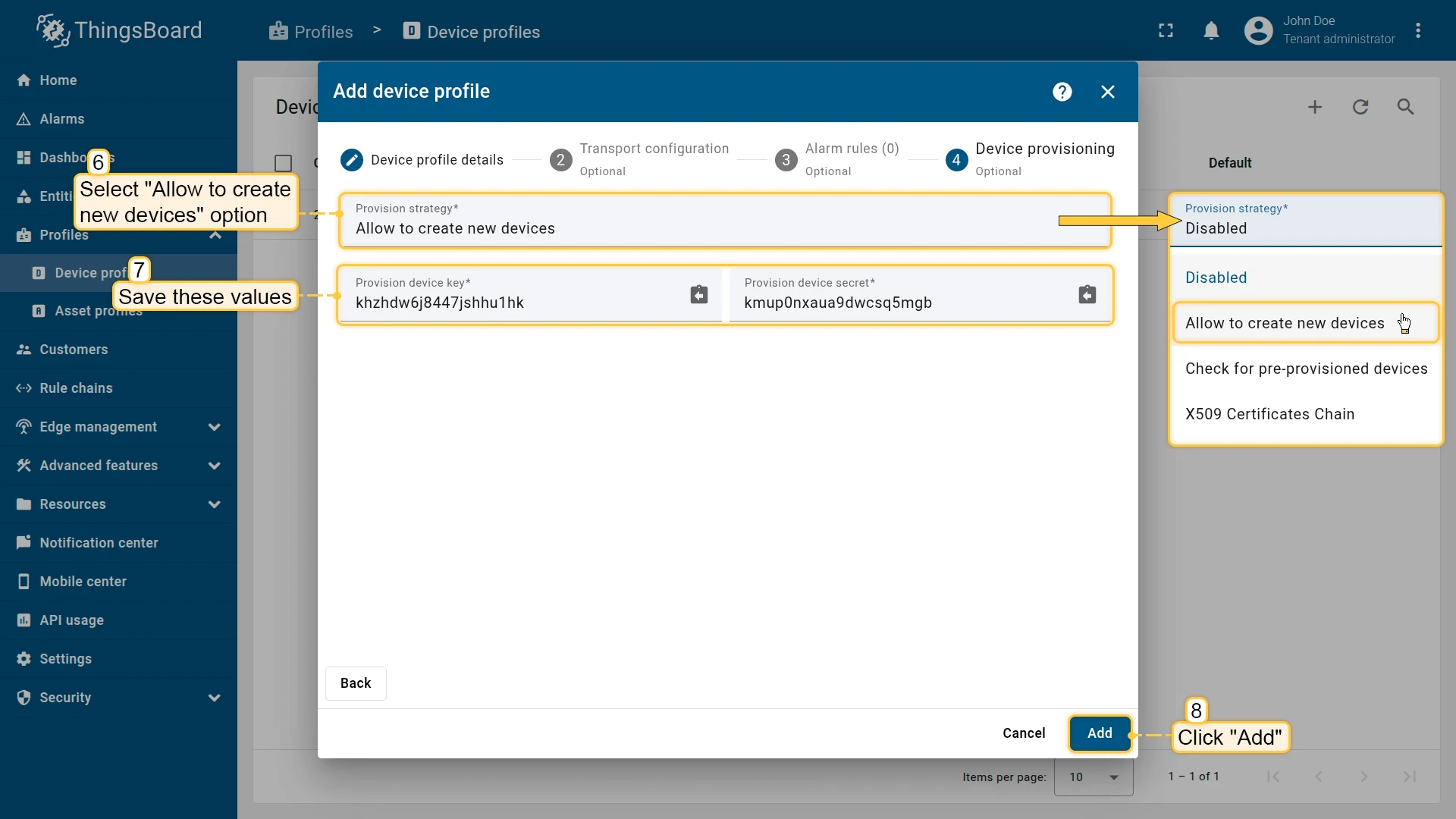

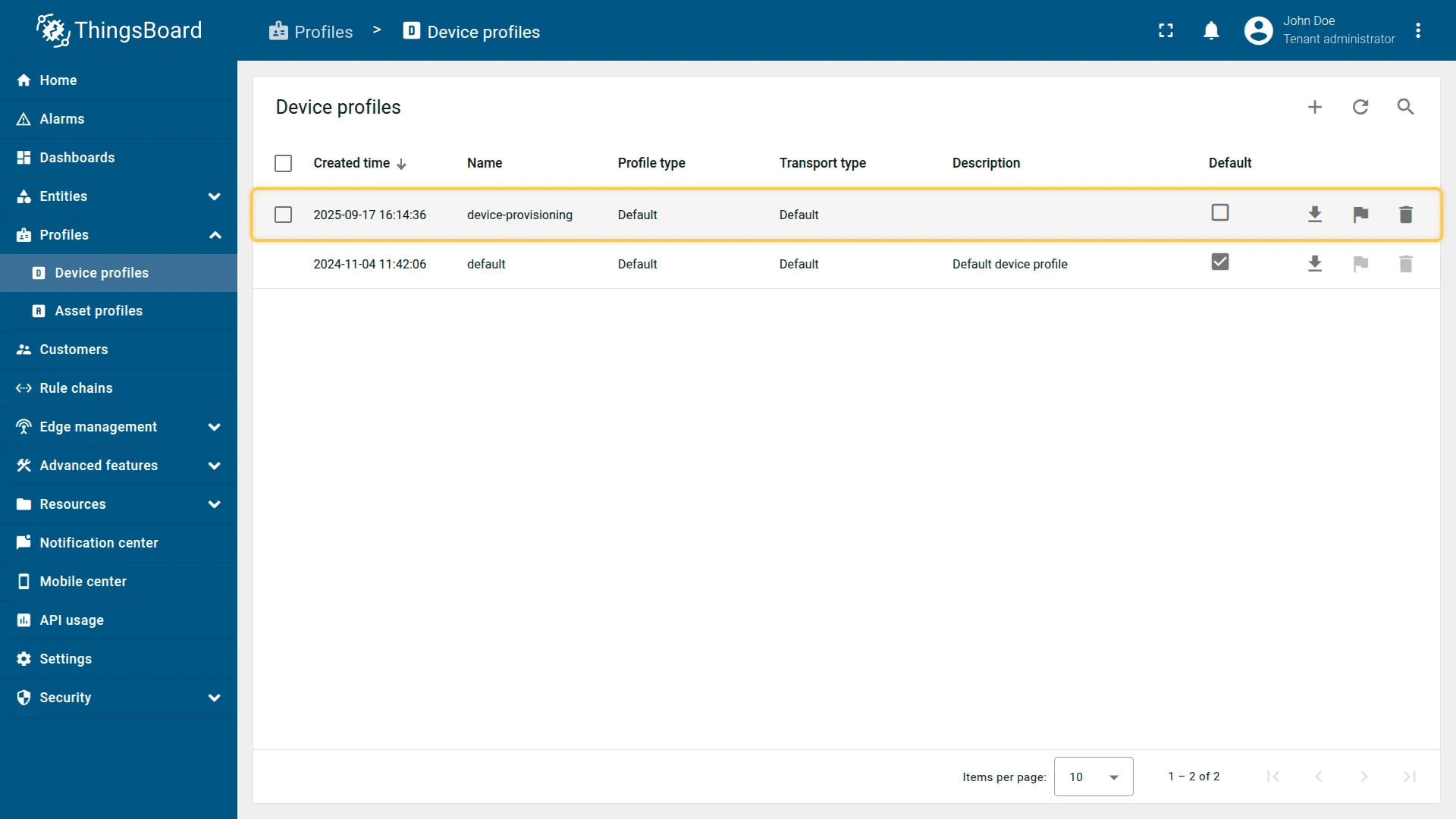

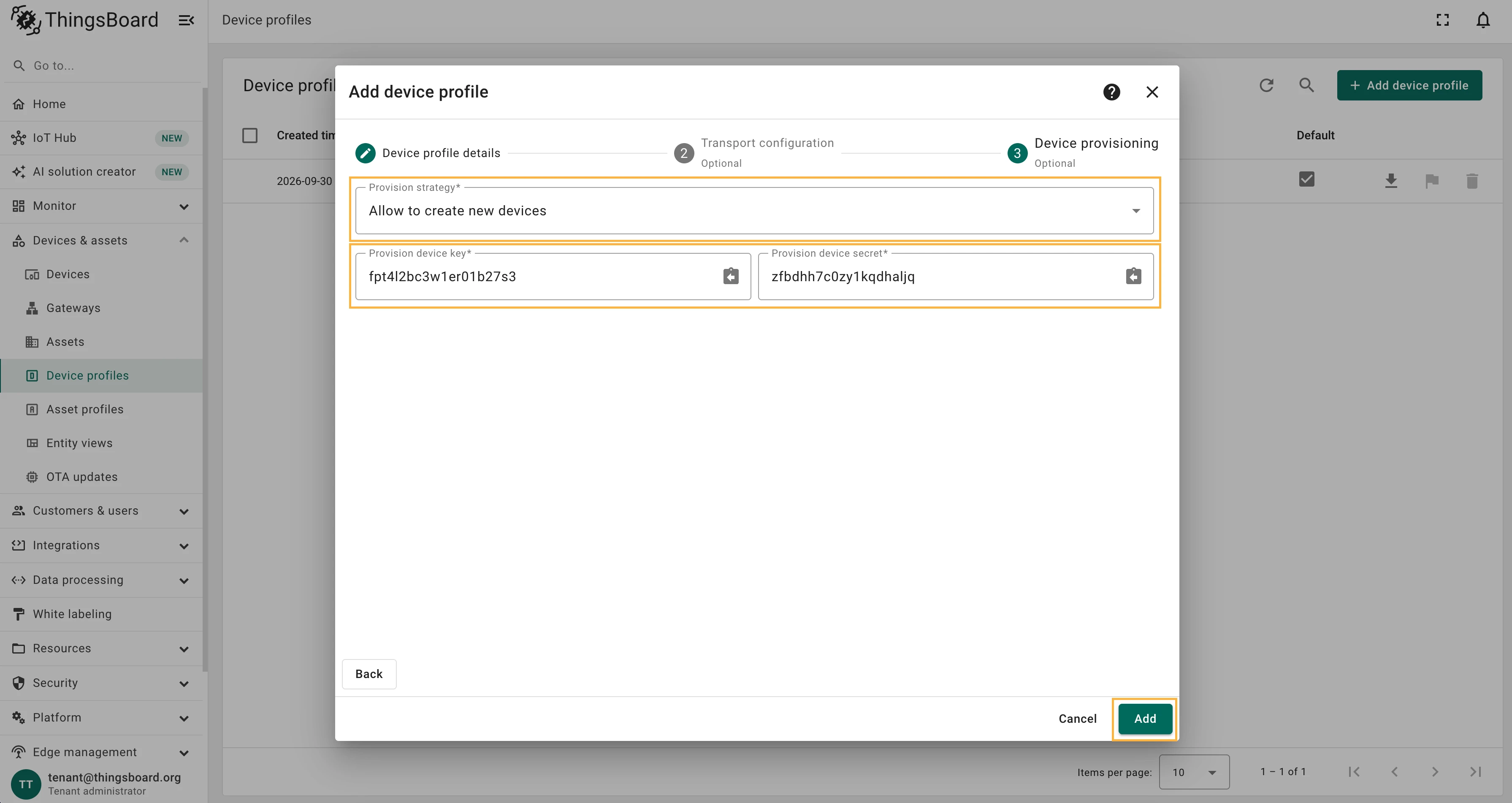

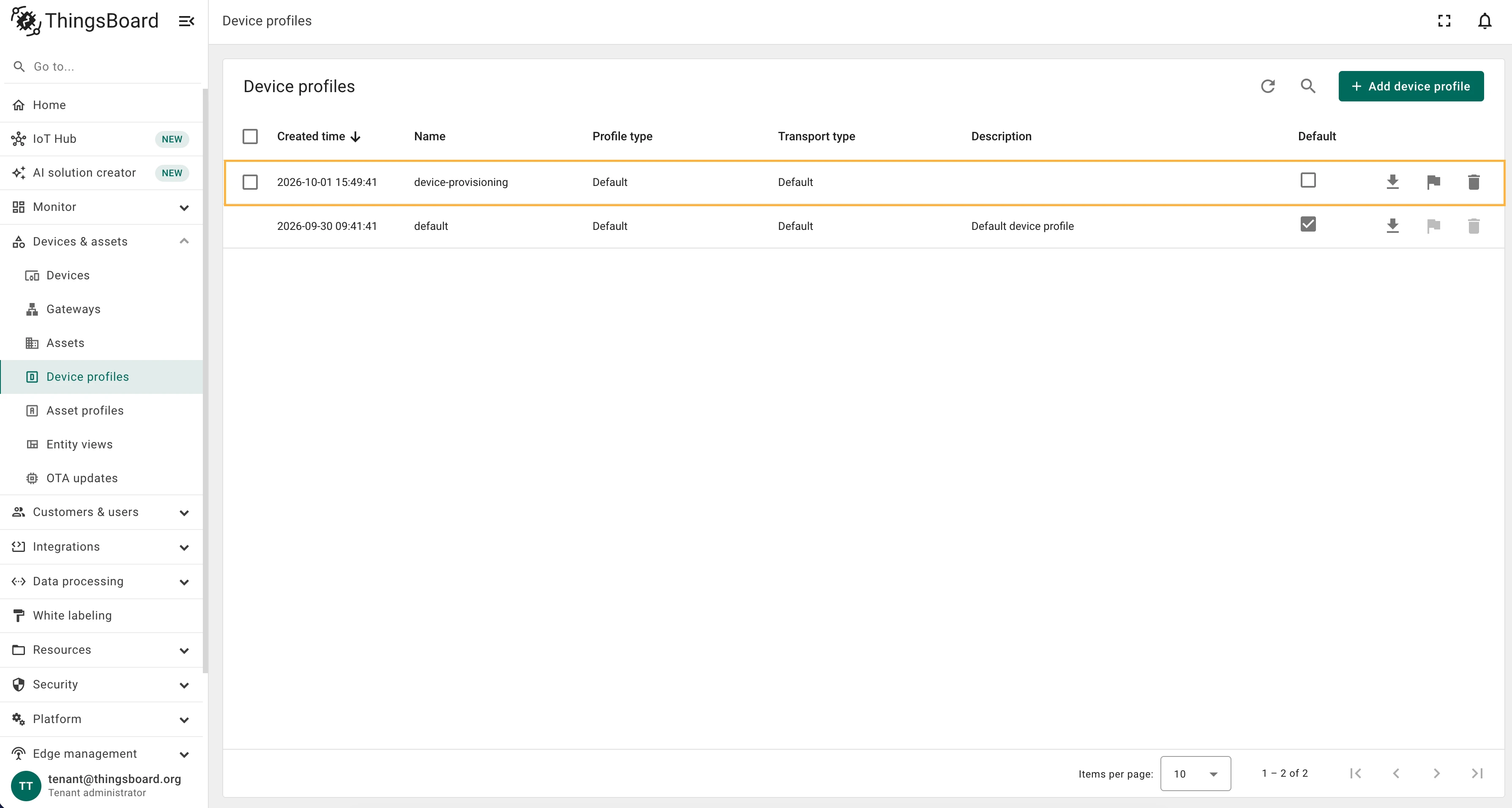

Select Allow to create new devices, then copy and save the Provisioning device key and Provisioning device secret. Click Add.

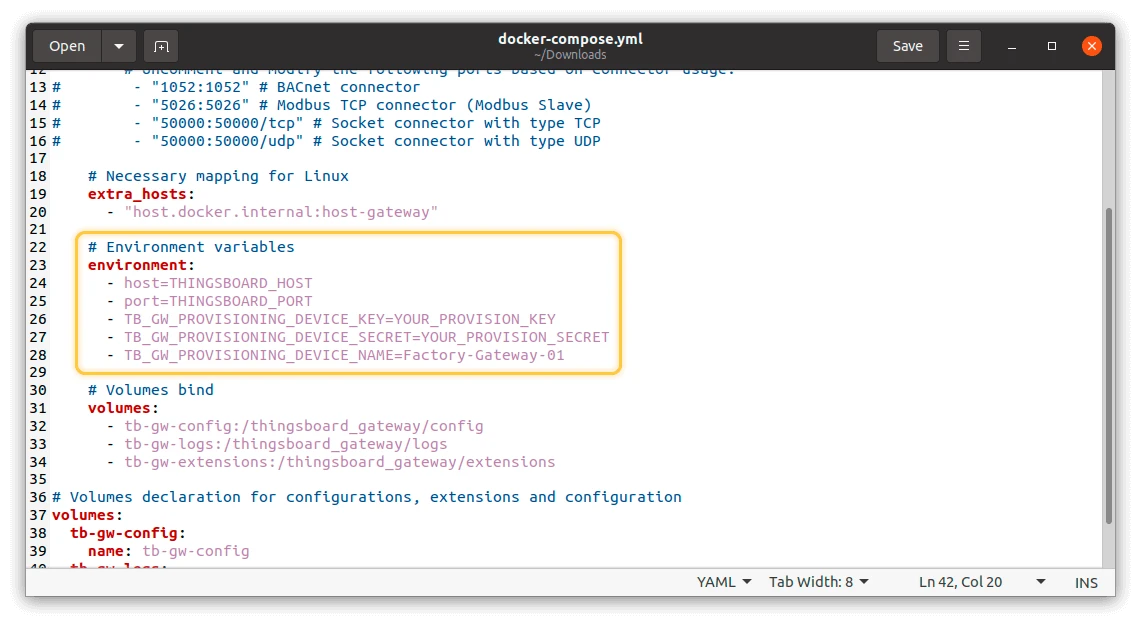

Download the Gateway docker-compose.yml and open it in a text editor.

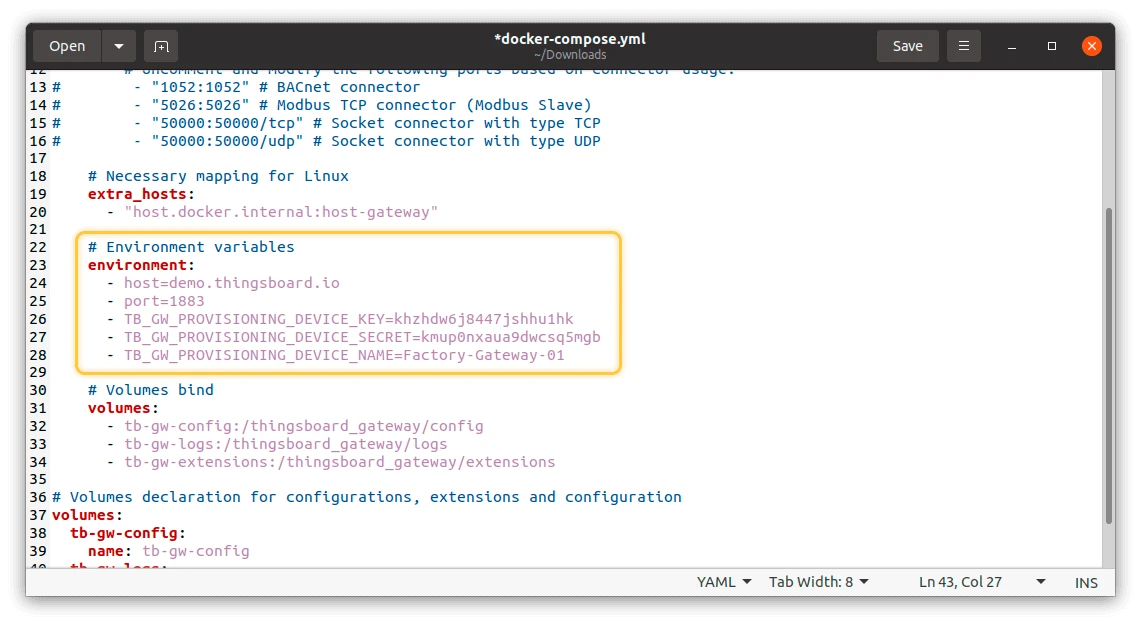

Set the provisioning environment variables, replacing the placeholders with your values:
```
environment:
  - host=THINGSBOARD_HOST
  - port=THINGSBOARD_PORT
  - TB_GW_PROVISIONING_DEVICE_KEY=YOUR_PROVISION_KEY
  - TB_GW_PROVISIONING_DEVICE_SECRET=YOUR_PROVISION_SECRET
  - TB_GW_PROVISIONING_DEVICE_NAME=Factory-Gateway-01
```
Replace THINGSBOARD_HOST and THINGSBOARD_PORT with the host and port of your ThingsBoard instance, and YOUR_PROVISION_KEY / YOUR_PROVISION_SECRET with the values from Step 3.
Start the Gateway:
Terminal window
```
docker compose up
```

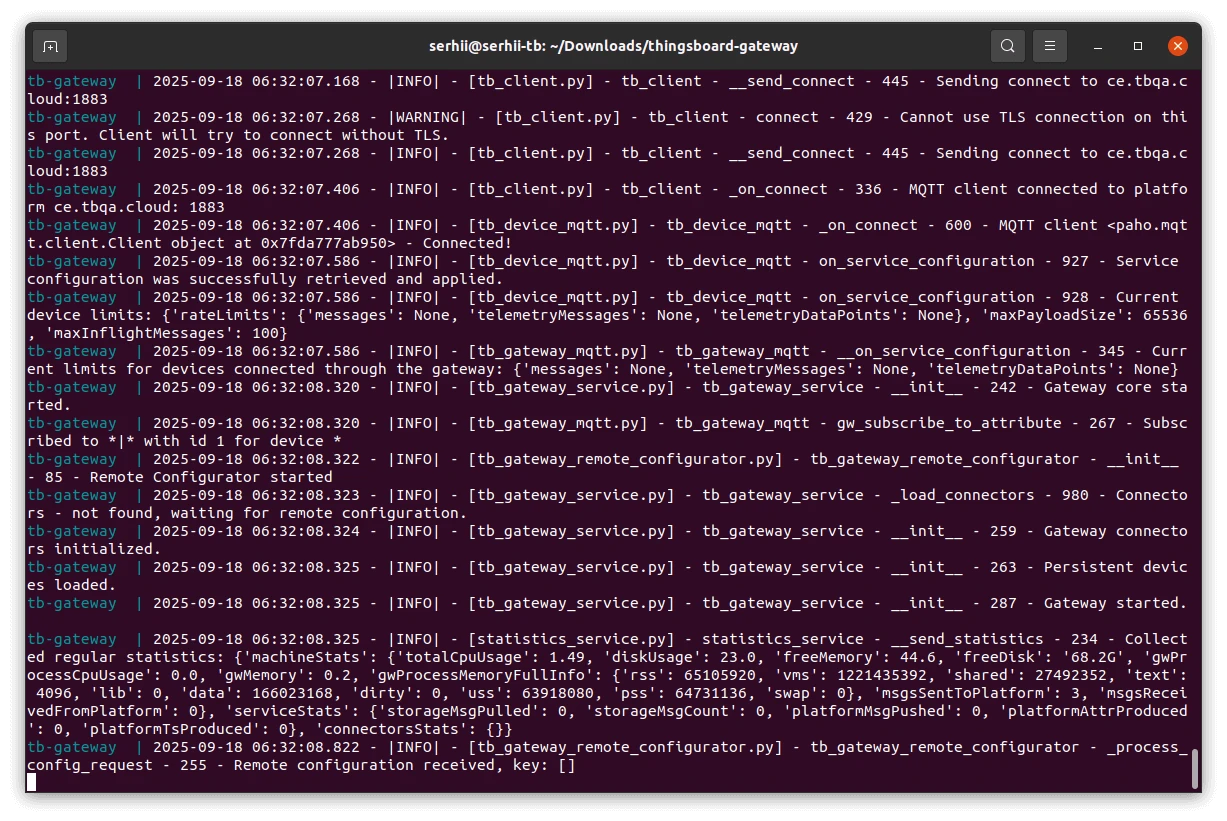

The gateway auto-registers, receives credentials, and connects to the platform.

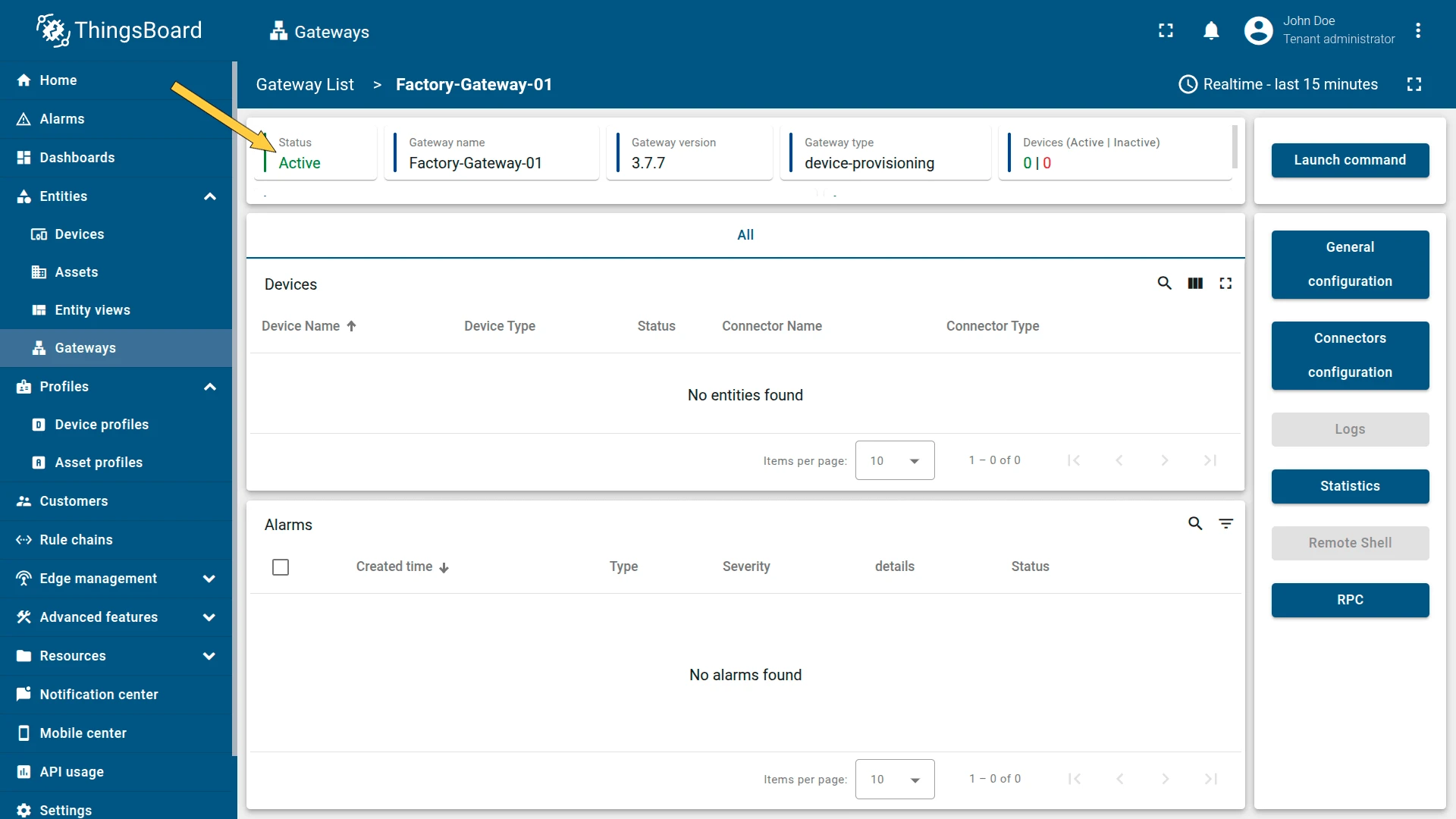

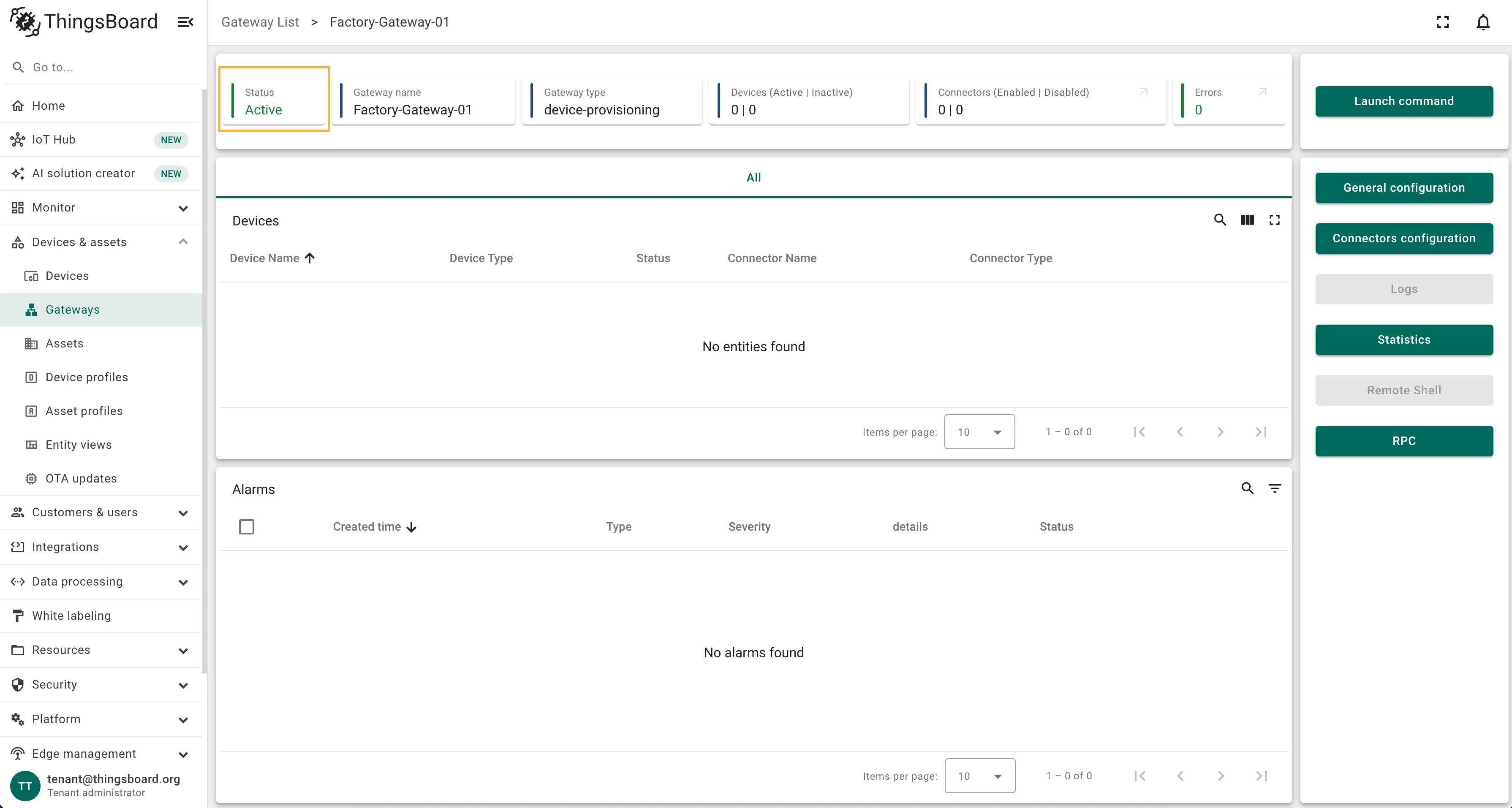

In the ThingsBoard UI, verify the gateway appears as active on the Gateways page or in the device details.
