n8n is a workflow automation platform with a fair-code license that combines traditional business process automation with AI capabilities.

The ThingsBoard n8n Node provides deep and native integration between n8n and the ThingsBoard IoT Platform, enabling you to manage IoT infrastructure directly from n8n workflows.

• Manage IoT devices, assets, and customers directly from n8n workflows
• Access and manipulate telemetry data in real-time with attribute and time-series operations
• Monitor alarms and create automated responses based on alarm severity and type
• Navigate entity relationships to understand your IoT infrastructure topology
• Build AI-powered IoT automation using n8n AI Agents with natural language commands
• Automate complex IoT workflows with 61 operations across 8 resources

When to use n8n with ThingsBoard

ThingsBoard already provides powerful automation capabilities through its Rule Engine.
However, n8n complements ThingsBoard by enabling advanced workflow automation that goes beyond IoT-specific logic.

Use n8n with ThingsBoard when you need:

• Integration with external business systems (CRM, ERP, Google Sheets, Slack, Email, Databases)
• Human-in-the-loop workflows (approvals, notifications, AI decisions)
• Scheduled and batch operations
• Complex orchestration across multiple systems
• AI-driven automation using natural language

Requirements

Before you begin, ensure you have the following:

• ThingsBoard Cloud: Fully managed cloud service available at thingsboard.cloud

• Authentication credentials: Valid username and password with appropriate permissions on the ThingsBoard instance
• n8n instance:
  • Local n8n installation: Self-hosted n8n on your infrastructure, or
  • Docker-based n8n deployment: n8n running in Docker containers
  • Cloud n8n: The ThingsBoard node requires official verification to be listed in the n8n Cloud catalog.

Installation

This section describes all available methods for installing the ThingsBoard n8n Community Node.

Prerequisites

Make sure that n8n is already installed and running. Installation instructions are available in the official n8n documentation.

AI Agent Configuration (Optional)

Note: If you are using the ThingsBoard node only as a regular workflow node (not for AI Agents), you can skip this step.

If you plan to use the ThingsBoard node as a tool for AI Agents, you must enable community node tool usage in n8n.
Add the following environment variables:

1
2
N8N_COMMUNITY_PACKAGES_ENABLED=true
N8N_COMMUNITY_PACKAGES_ALLOW_TOOL_USAGE=true

How to set these:

• GUI Self-Hosted
  The variables must be set before starting n8n. It is not possible to configure them via the UI. Set them in your shell profile or system environment.
• Local/npm installation
  Export the variables in your shell before running n8n start (see Method 2).
• Docker
  Add the variables to the docker-compose.yml file in the environment section (see Method 3).

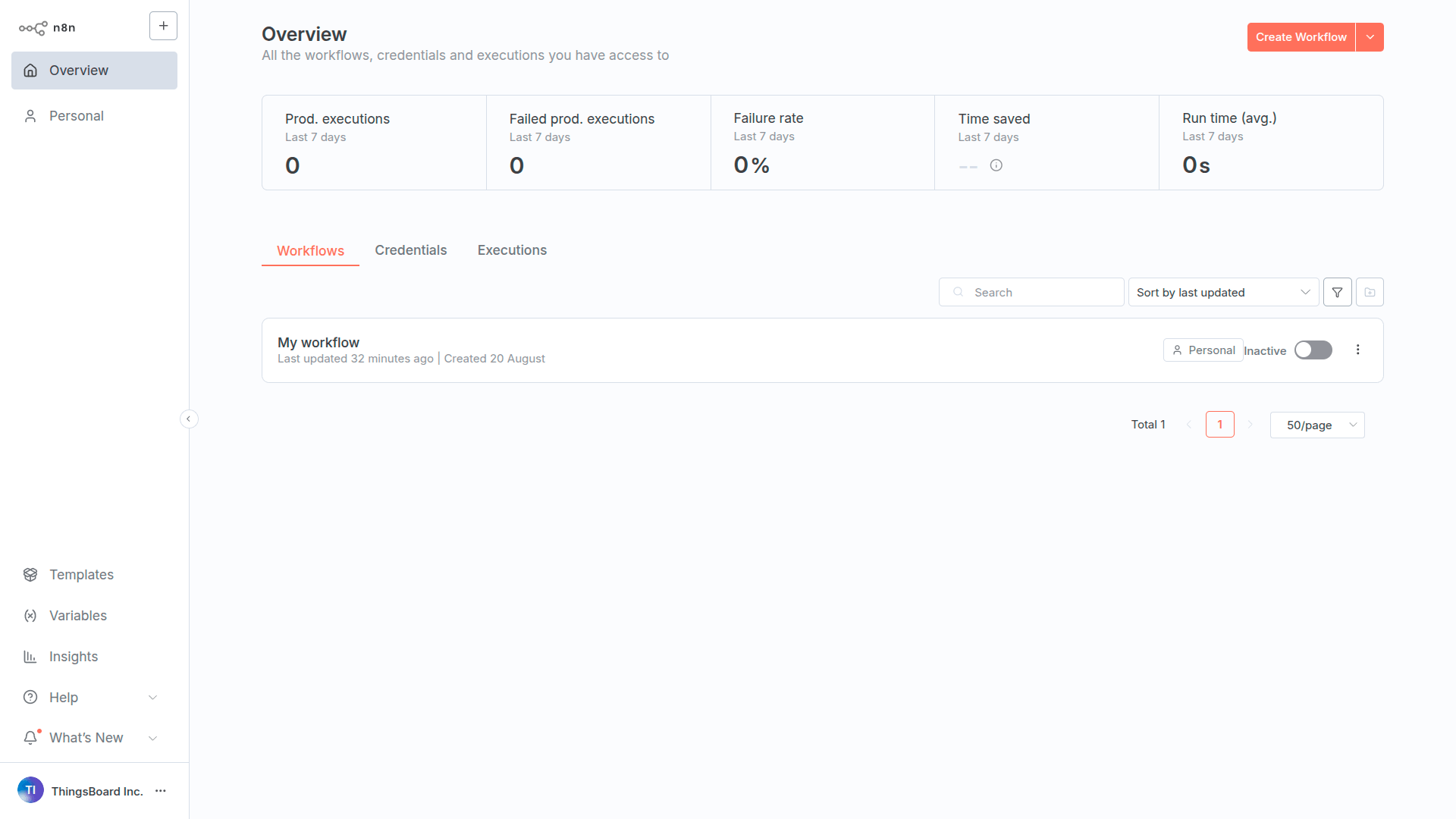

Method 1: GUI installation (Recommended for Self-Hosted)

For self-hosted n8n instances, you can install directly via the web interface:

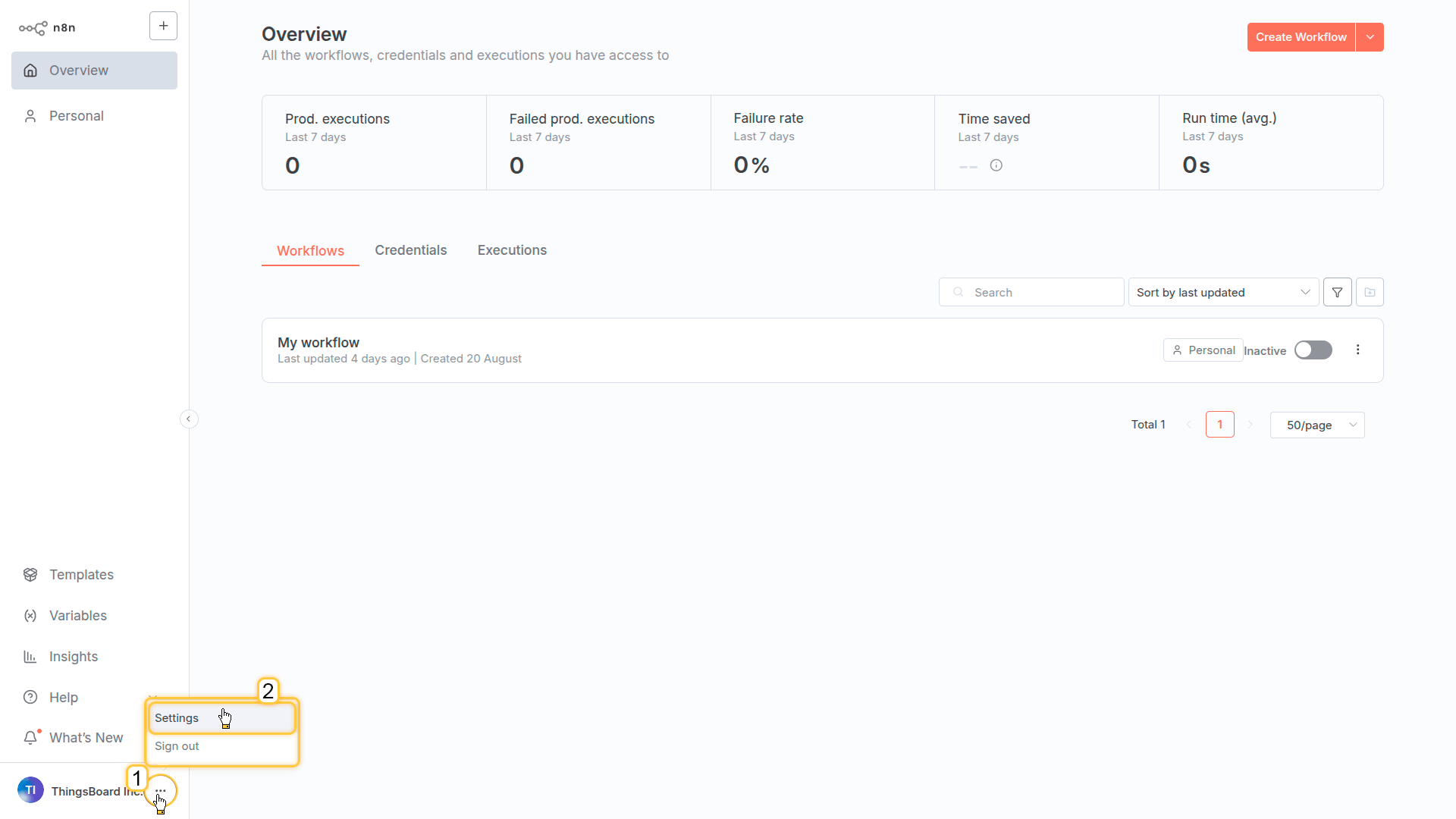

1. Open n8n in your browser.
2. In the bottom-left corner, click the three dots button and select Settings from the dropdown menu.

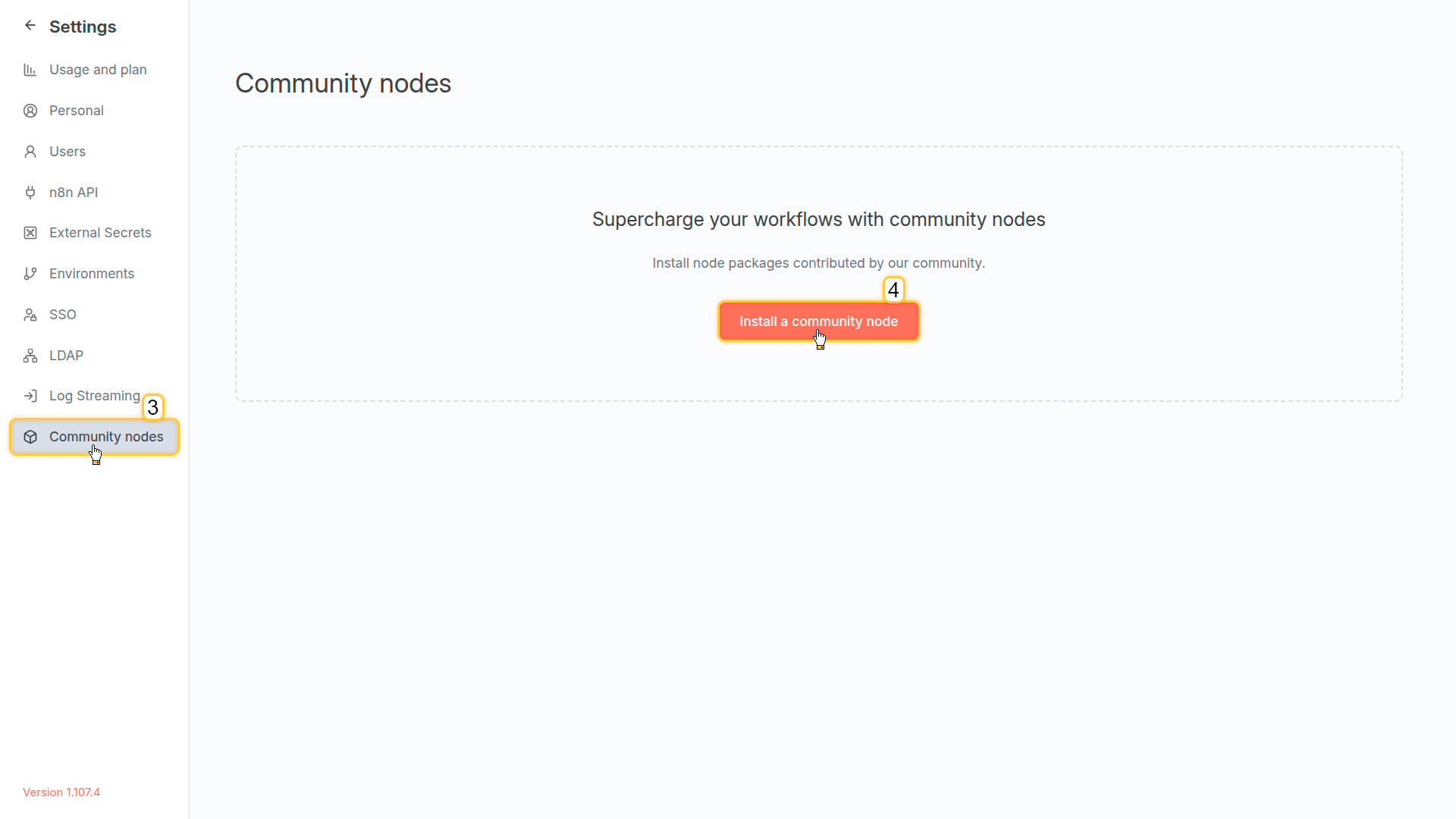

3. Go to the Community Nodes tab.
4. Click Install a community node.

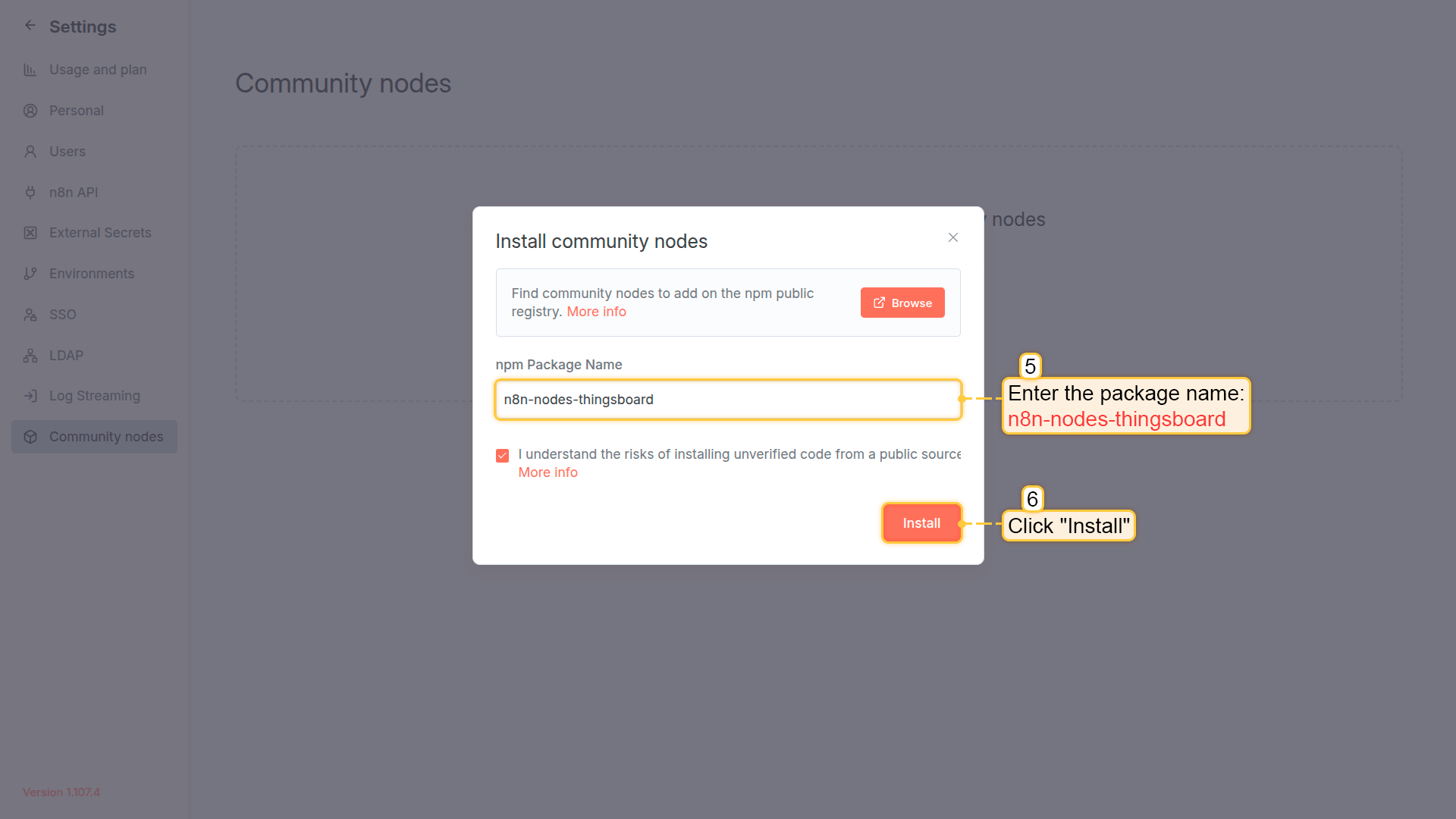

5. Enter the package name: n8n-nodes-thingsboard and click Install.
6. Wait for the installation to complete.
7. Refresh the browser page.

Note: This method requires owner/admin permissions and is only available for self-hosted n8n (not n8n Cloud).

AI Agent Tool Usage: To use the ThingsBoard node as an AI Agent tool, you must set the N8N_COMMUNITY_PACKAGES_ALLOW_TOOL_USAGE=true environment variable before starting n8n. This cannot be configured via the GUI - see the AI Agent Configuration section above.

Method 2: Manual installation (npm)

For local n8n installations, install the node via npm:

1
2
3
4
5
6
# Create and navigate to the nodes directory
mkdir -p ~/.n8n/nodes
cd ~/.n8n/nodes

# Install the ThingsBoard node
npm install n8n-nodes-thingsboard

After installation, restart n8n:

1
2
# If running n8n directly
n8n start

To use the ThingsBoard node as an AI Agent Tool, restart n8n with the environment variable:

1
2
# If running n8n directly
N8N_COMMUNITY_PACKAGES_ALLOW_TOOL_USAGE=true n8n start

Method 3: Docker installation

Step 1: Create a directory for n8n and navigate to it:

1
2
mkdir n8n
cd n8n

Step 2: Create a docker-compose.yml file in this directory:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
services:
  n8n:
    image: n8nio/n8n:latest
    ports:
      - "5678:5678"
    environment:
      - N8N_BASIC_AUTH_ACTIVE=true
      - N8N_BASIC_AUTH_USER=admin
      - N8N_BASIC_AUTH_PASSWORD=password
      # Uncomment the lines below to use ThingsBoard node as AI Agent tool
      # - N8N_COMMUNITY_PACKAGES_ENABLED=true
      # - N8N_COMMUNITY_PACKAGES_ALLOW_TOOL_USAGE=true
    volumes:
      - n8n_data:/home/node/.n8n

volumes:
  n8n_data:

AI Agent Tool Usage: To use the ThingsBoard node as an AI Agent tool, uncomment the two environment variable lines in the environment section above. See the AI Agent Configuration section for details.

Step 3: Start the services:

1
docker-compose up -d

Step 4: After n8n starts, install the ThingsBoard node using the GUI method (Method 1):

1. Open n8n in your browser (http://localhost:5678)
2. Navigate to Settings → Community Nodes
3. Install n8n-nodes-thingsboard
4. Refresh your browser

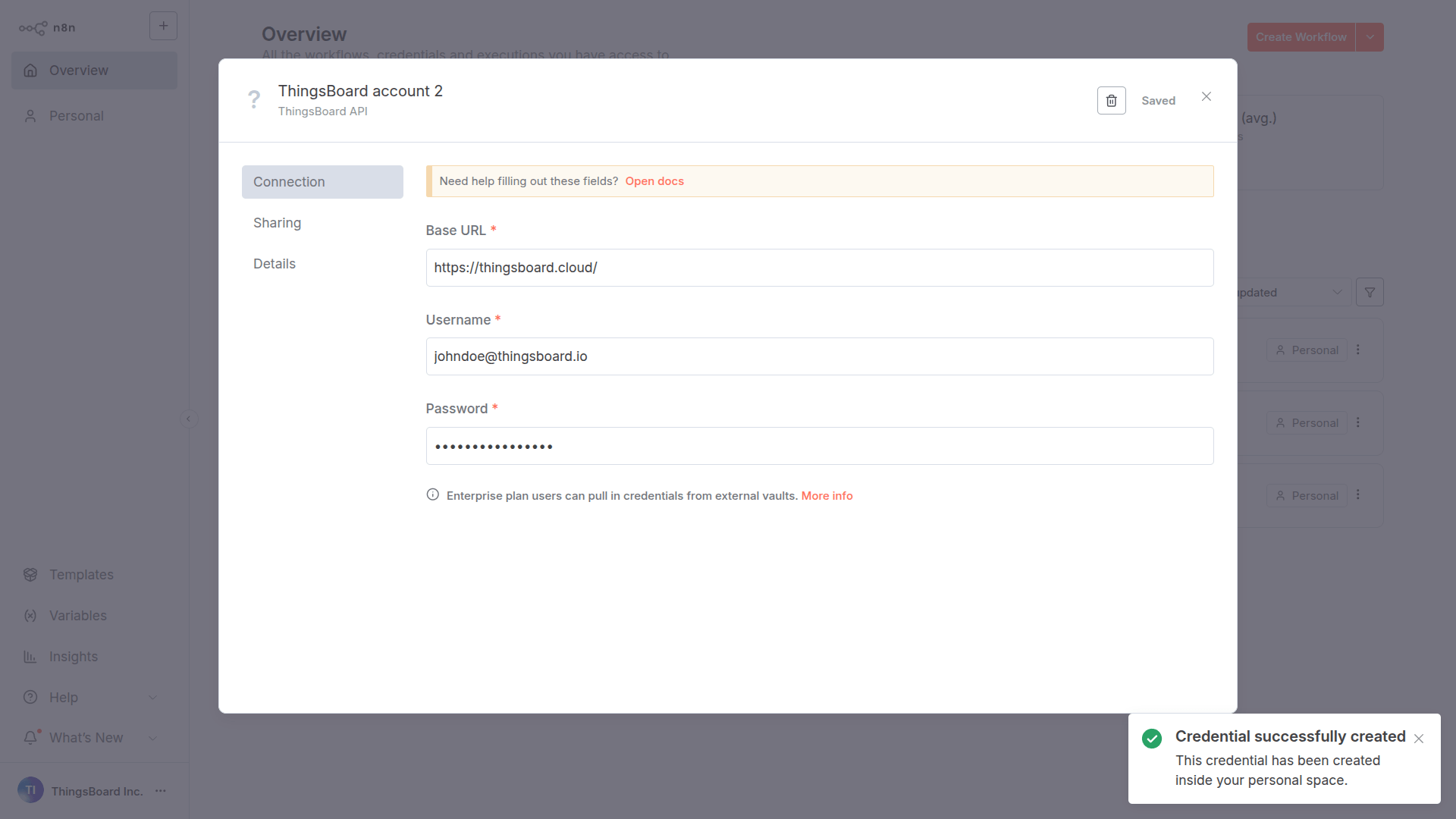

Credentials configuration

Before using the ThingsBoard node, configure your connection credentials:

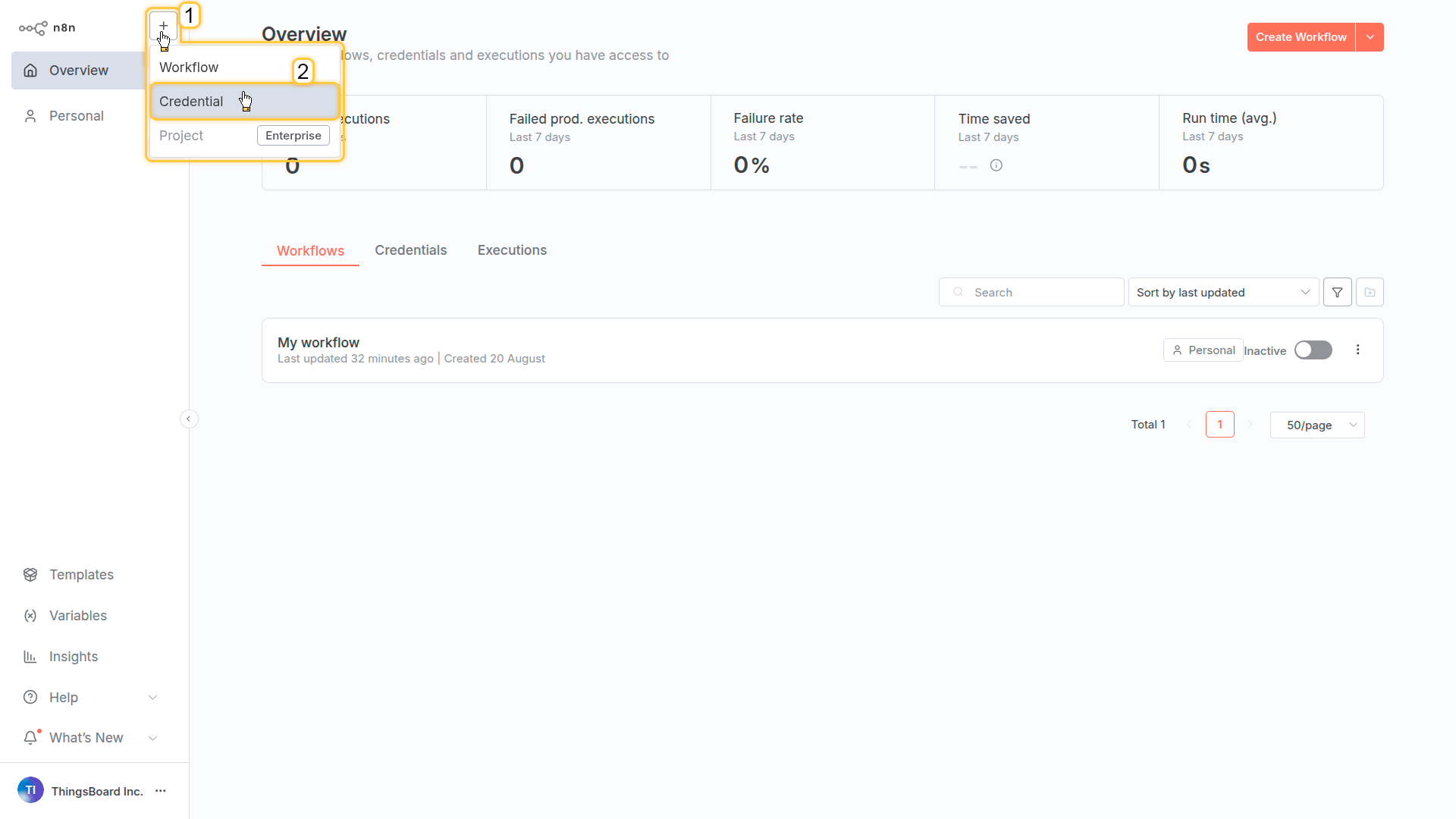

1. In the top-left corner, click + and select Credentials from the dropdown menu.

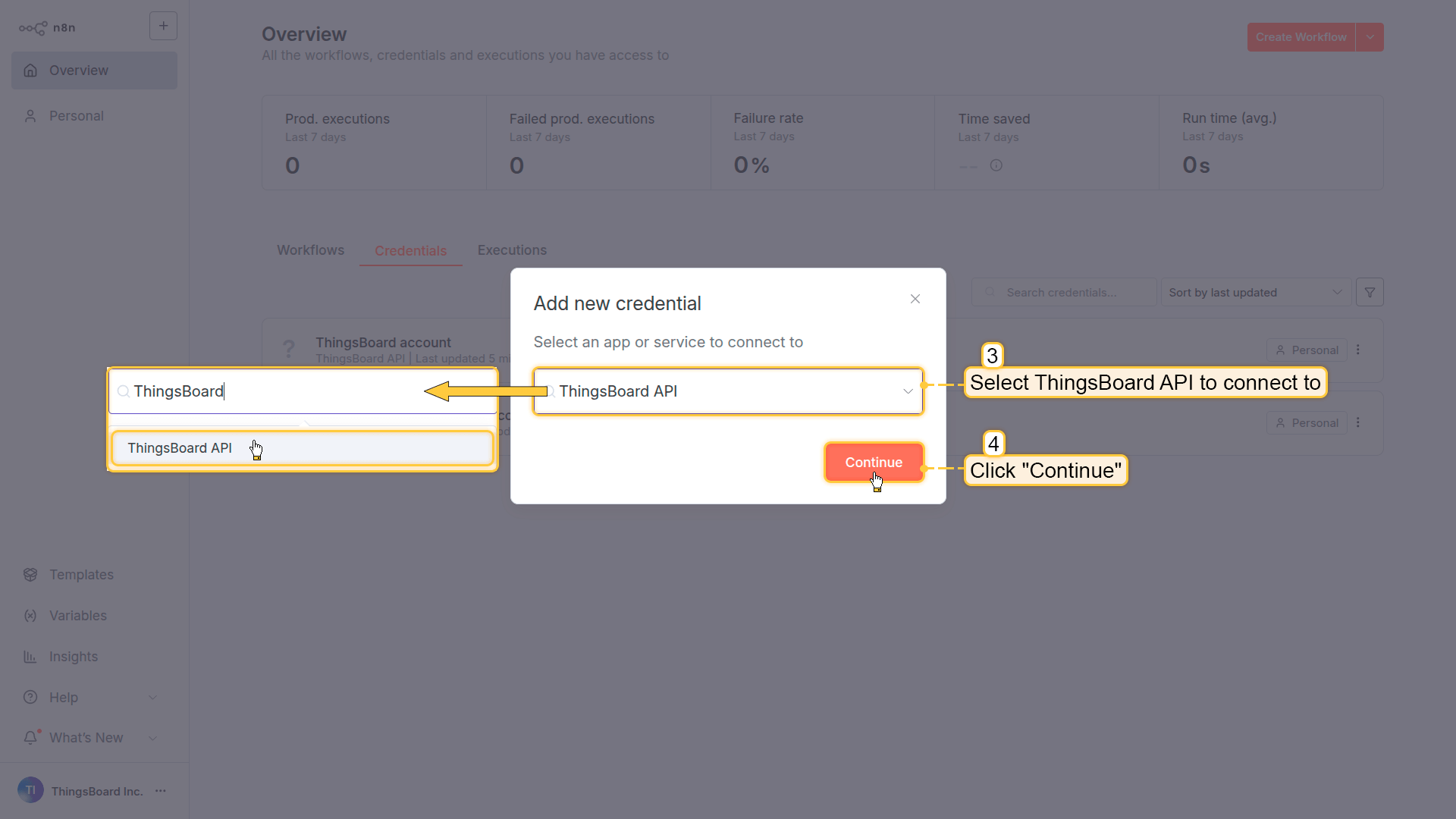

2. Search and select ThingsBoard API to connect to and click Continue.

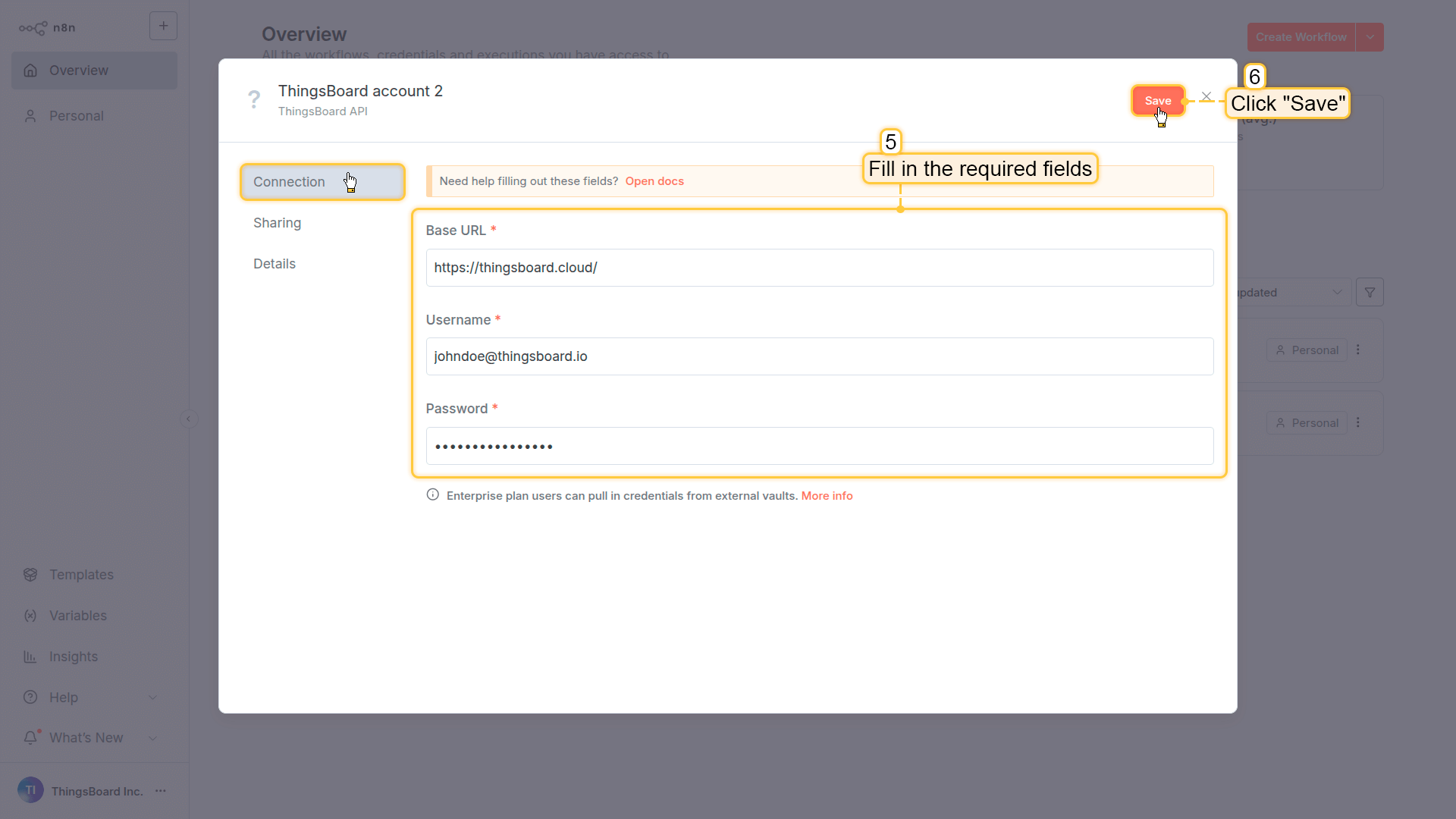

3. Fill in the required fields:
   • Base URL — your ThingsBoard instance URL (without a trailing slash) (for example https://thingsboard.cloud)
   • Username — your ThingsBoard account username (email)
   • Password — your ThingsBoard account password
4. Click Save to store the credentials.

The credentials are encrypted and stored securely by n8n. You can reuse the same credentials across multiple ThingsBoard nodes in different workflows.

Installation Verification

After installing the node and restarting n8n, follow these steps to verify that the ThingsBoard n8n Node has been successfully installed and is available:

1. Open n8n in your browser Typically, the n8n interface is available at http://localhost:5678
   (or via a custom domain/port if modified in your configuration).
2. Create a new workflow
   In the top-right corner of the interface, click Create Workflow.

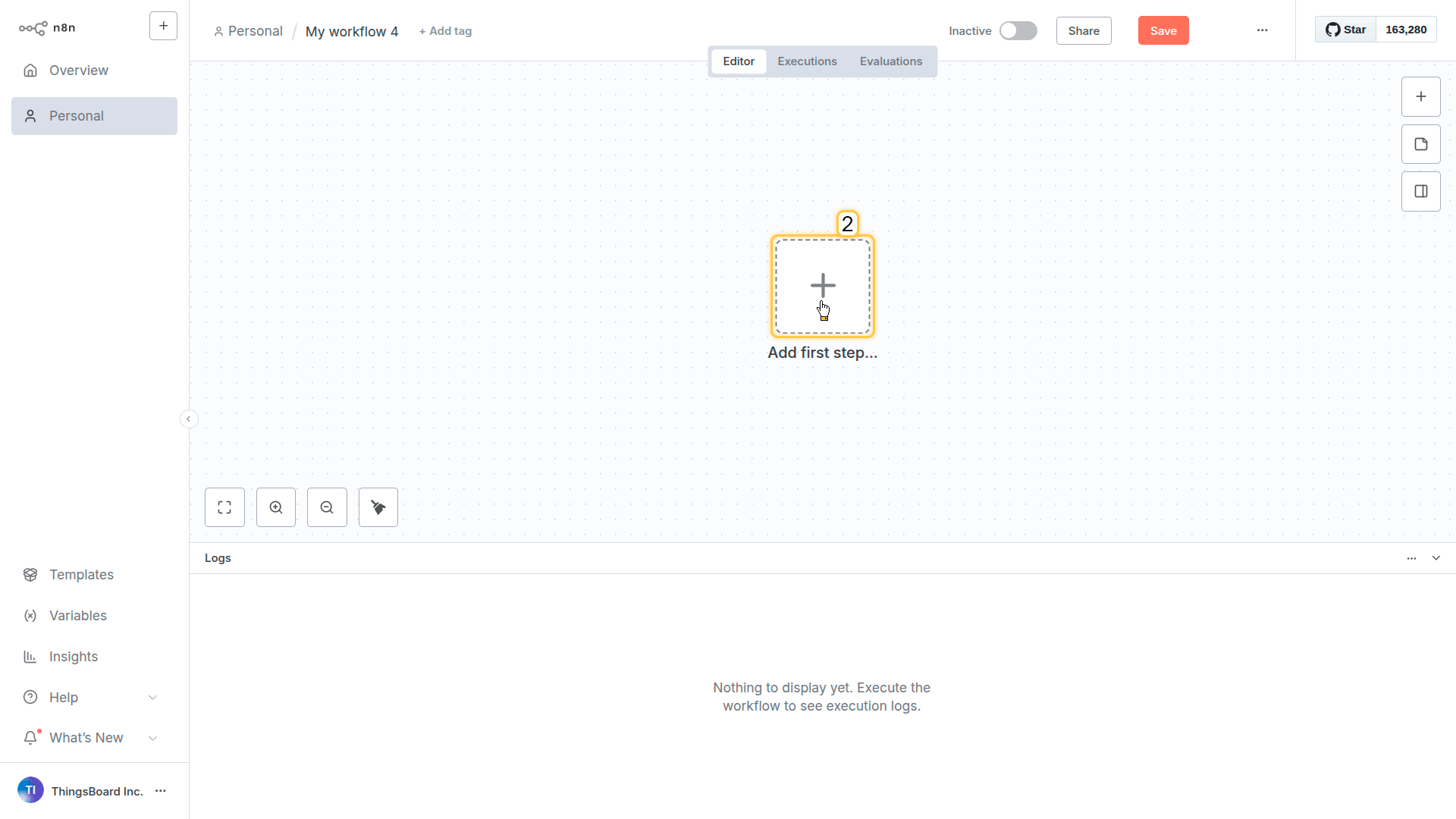

3. Add a new node
   On the workflow canvas, click the + button to open the list of available nodes.

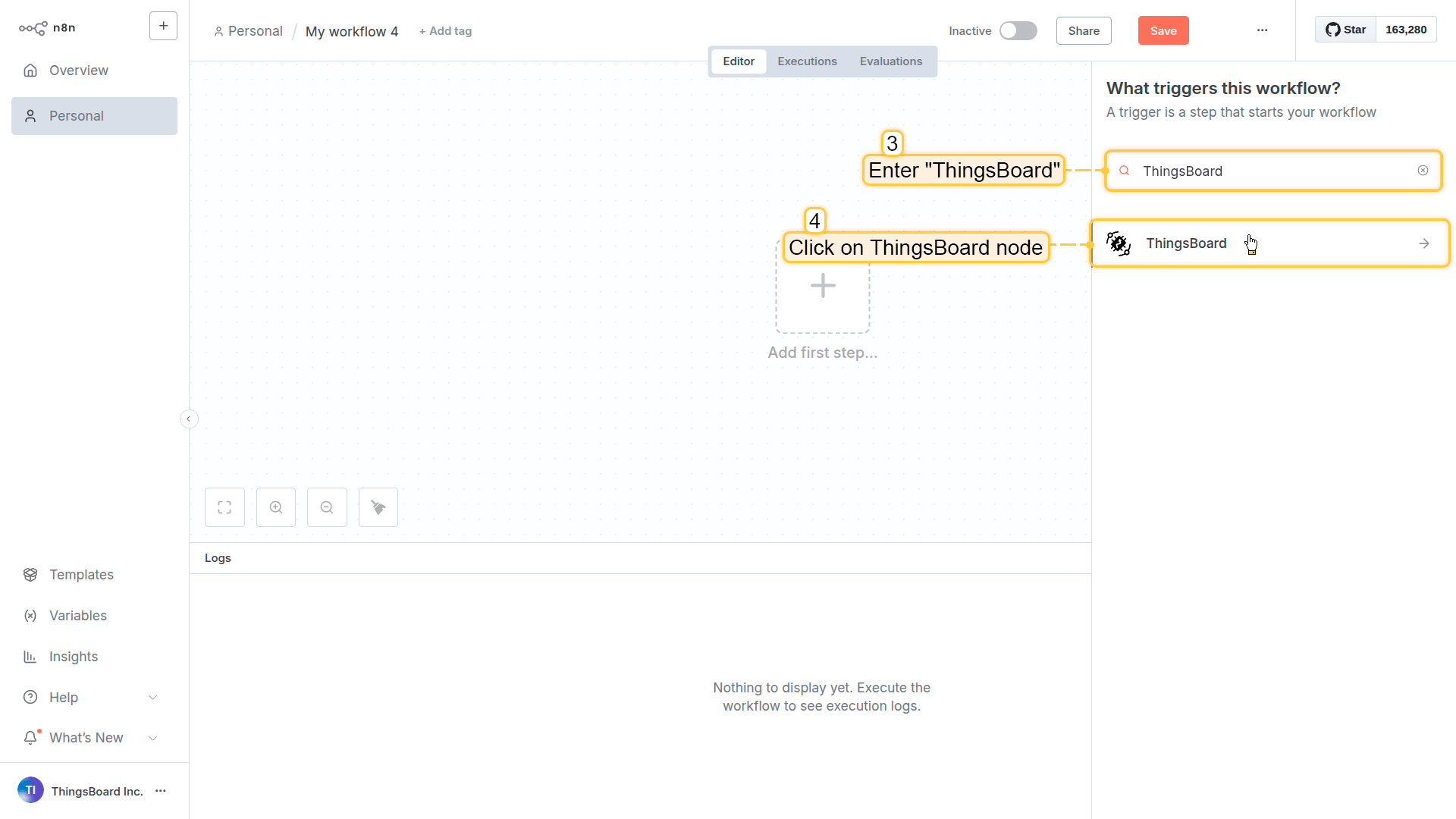

4. Find the ThingsBoard node
   In the node search field, type ThingsBoard. The ThingsBoard node should appear in the search results. Click on it.

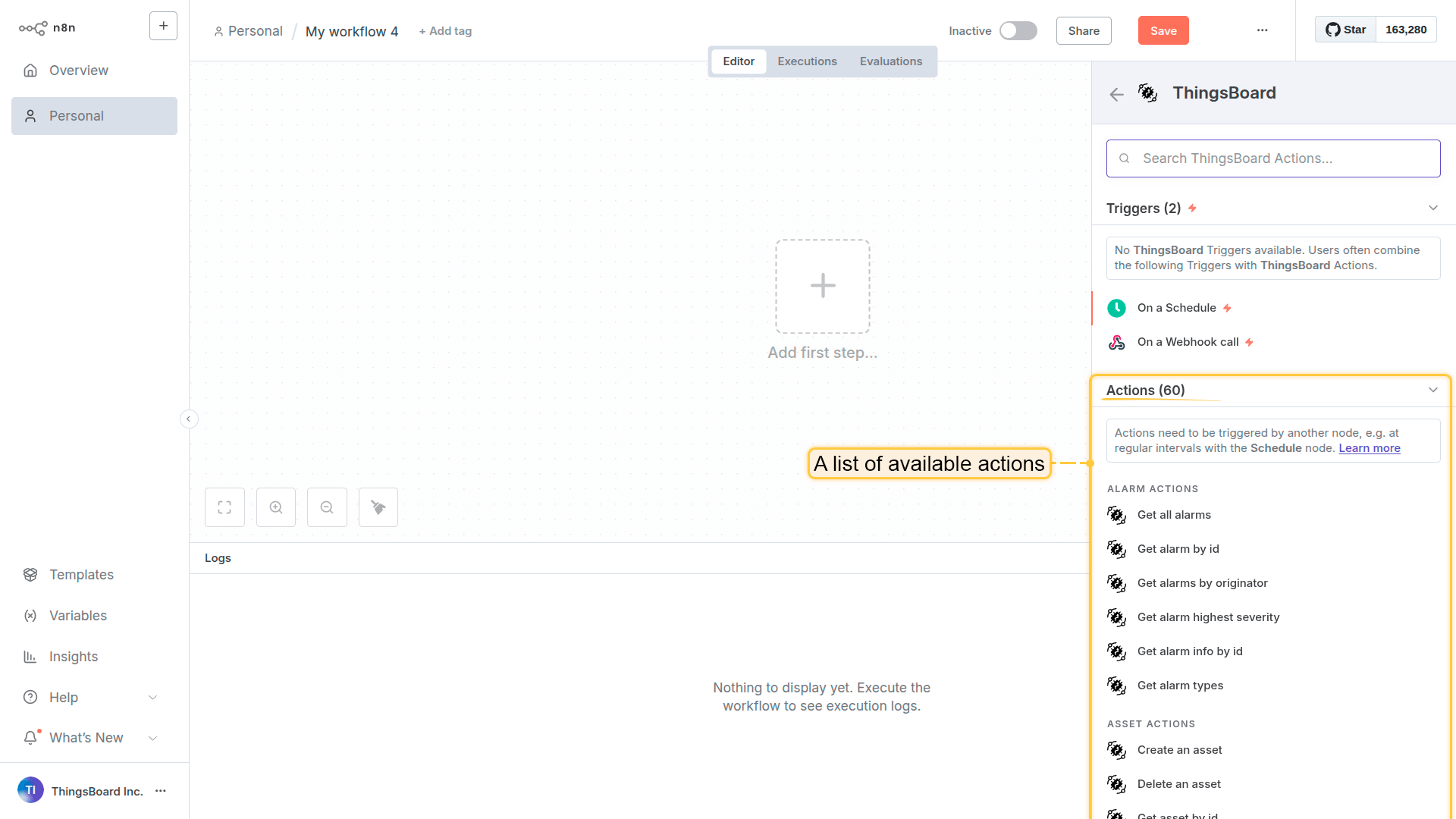

5. Verify node availability
   A list of available actions will be displayed.

Note: the number of operations may differ between Community Edition and Professional Edition.

If you don't see the node:

• Verify the npm installation completed without errors
• Ensure you restarted n8n after installation
• Check n8n logs for any loading errors

Usage

The ThingsBoard node supports two usage modes:

1. As a Standard Node

Add the ThingsBoard node to your workflow canvas to directly perform IoT operations. This is the traditional workflow approach where you configure operations manually.

Use cases:

• Direct Operations: Configure operations with fixed values (e.g., save specific attributes to a device on a schedule)
• Dynamic Operations: Pass data from previous nodes using expressions (e.g., process alarm webhook → extract entity ID → get attributes → send notification)

Operation Modes: For create operations (Device, Asset, Dashboard), you can choose:

• Params Mode: Use simple form fields (name, type, label, customer ID)
• JSON Mode: Paste a complete ThingsBoard entity JSON object

2. As a Tool for AI Agents

Connect ThingsBoard operations to an AI Agent node to enable conversational IoT control with natural language commands.

Use case: “Show me all devices” → Agent calls ThingsBoard → Natural language response

Prerequisites: See the AI Agent Configuration section above for environment variable setup.

Screenshot showing ThingsBoard as a tool in AI Agent configuration will be added here

See Usage Examples below for detailed walkthroughs with screenshots.

Available Operations

The ThingsBoard n8n node provides comprehensive IoT operations organized by resource type:

• Device Operations - Create, retrieve, delete, and manage devices with customer assignments
• Asset Operations - Full asset lifecycle management with profiles and assignments
• Customer Operations - Create and manage customers and customer-entity relationships
• Dashboard Operations - Create and manage dashboards and their configurations
• Telemetry Operations - Get/save attributes and time-series data with TTL settings
• Alarm Operations - Fetch and monitor alarms by severity, type, or originator

• Relation Operations - Navigate entity relationships with bidirectional support

• Entity Group Operations - Manage entity groups and query entities by group

For a complete list of operations, see the node documentation on npm or explore available operations in the n8n node interface.

Common Integration Patterns

Here are proven workflow patterns for different automation scenarios:

Pattern 1: IoT Data Pipeline

1
Webhook → ThingsBoard (Save Telemetry) → Process Data → Save Attributes

Receive sensor data via webhook, save to ThingsBoard, process it, and update device attributes.

Pattern 2: Device Management

1
Schedule Trigger → Get Tenant Devices → Filter Inactive → Send Alert

Daily check for inactive devices and send notifications to administrators.

Pattern 3: Data Export

1
ThingsBoard (Get Timeseries) → Transform Data → Google Sheets / Database

Export telemetry data for reporting and analysis in external systems.

Pattern 4: Intelligent Monitoring

1
2
3
4
5
AI Agent ← Chat Interface
    ↓
ThingsBoard Tools (Get/Save/Delete operations)
    ↓
Automated device management based on natural language commands

Enable non-technical users to manage IoT infrastructure through conversational AI.

Usage Examples

This section provides practical examples demonstrating the three usage patterns of the ThingsBoard n8n node.

Example 1: AI Agent Tool - Conversational IoT Control

Use the ThingsBoard node as a tool for AI Agents to enable intelligent, natural language IoT automation.

Workflow Configuration:

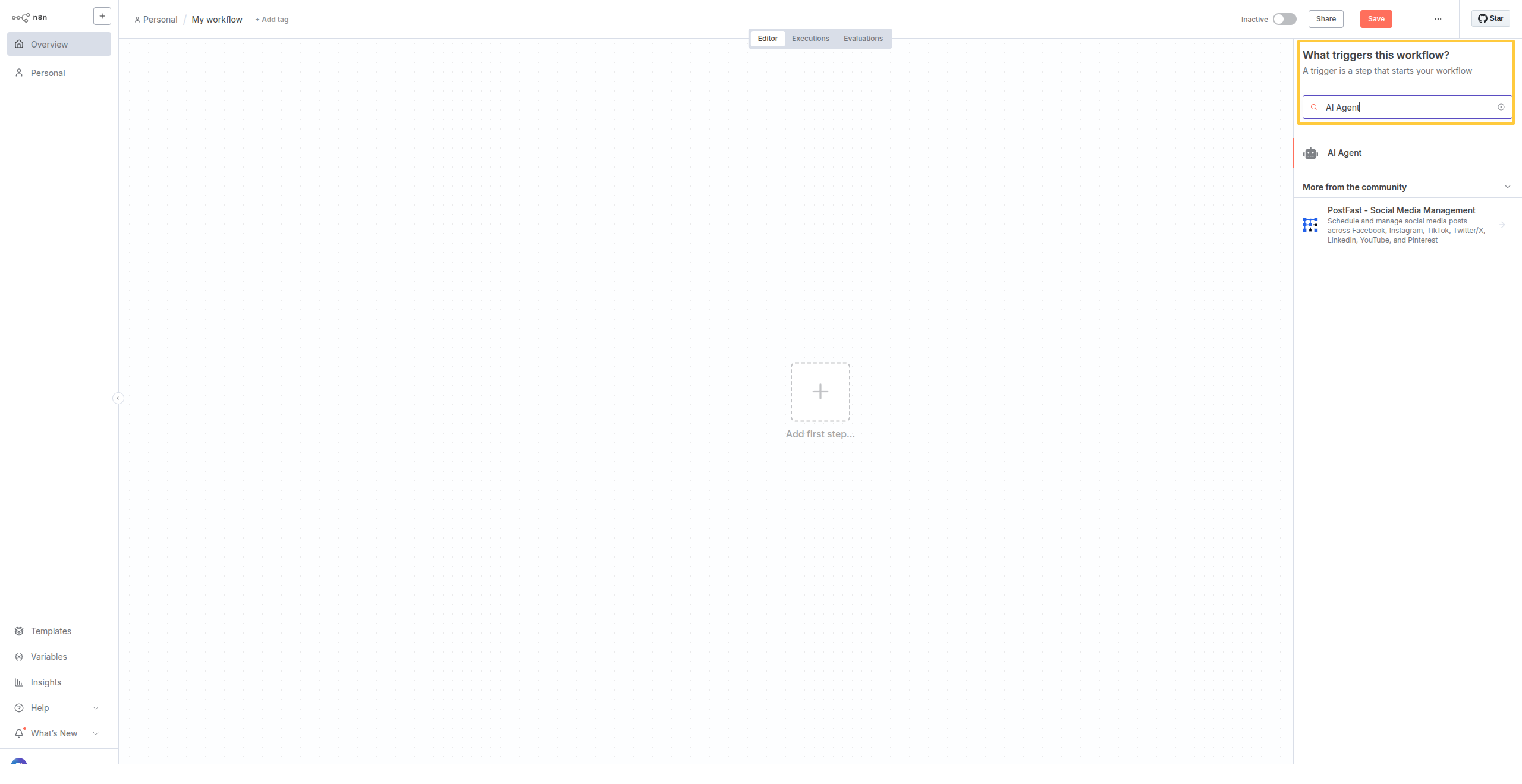

1. Create a new workflow with AI Agent node
   • Choose your AI Model (Gemini, Anthropic, ChatGPT, etc.)
   • Configure memory settings

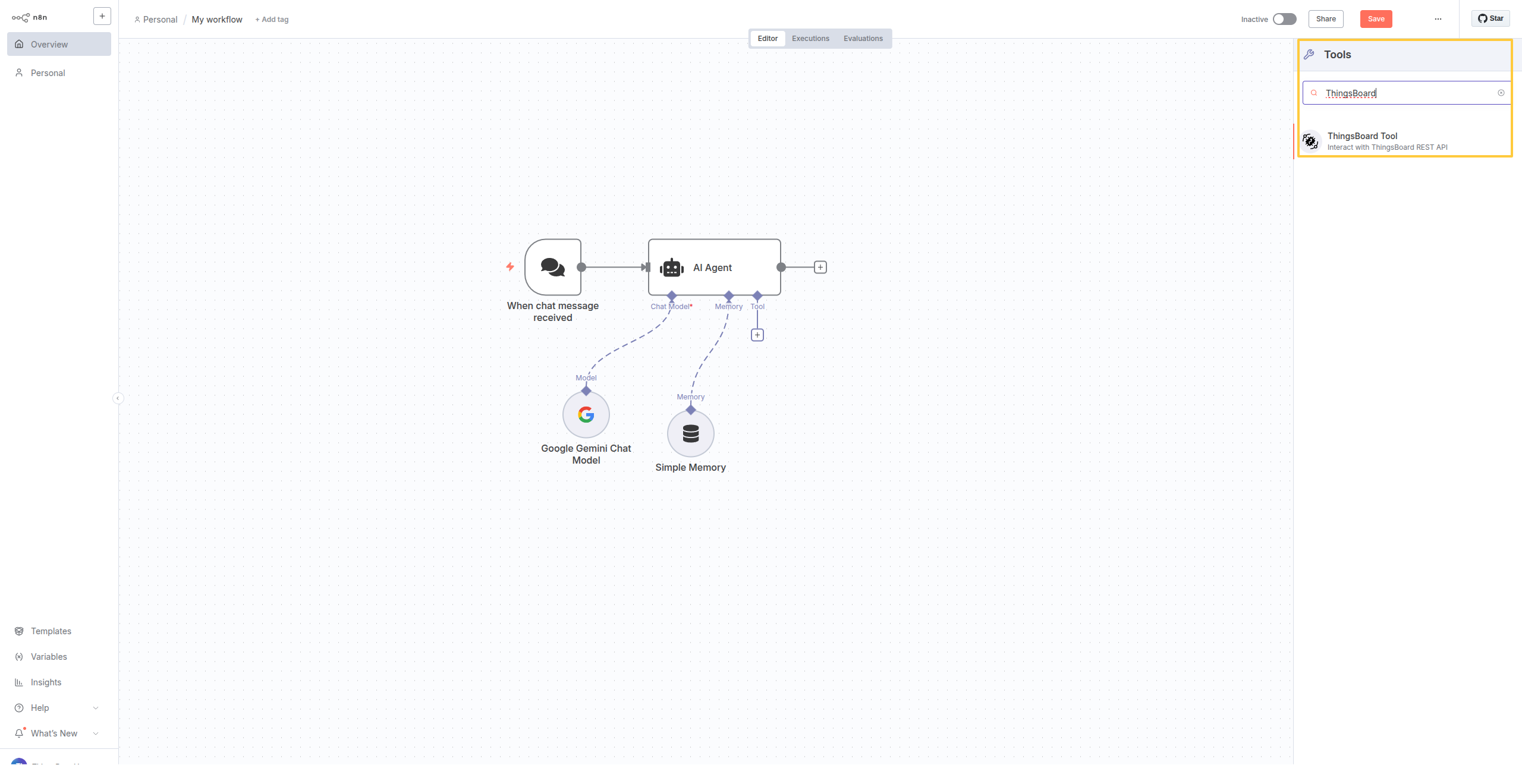

2. Add ThingsBoard Tools
   • Select ThingsBoard from the Tools list
   • Add Get devices and Get timeseries operations
3. Open chat and interact
   • Open the chat interface
   • Write your natural language query

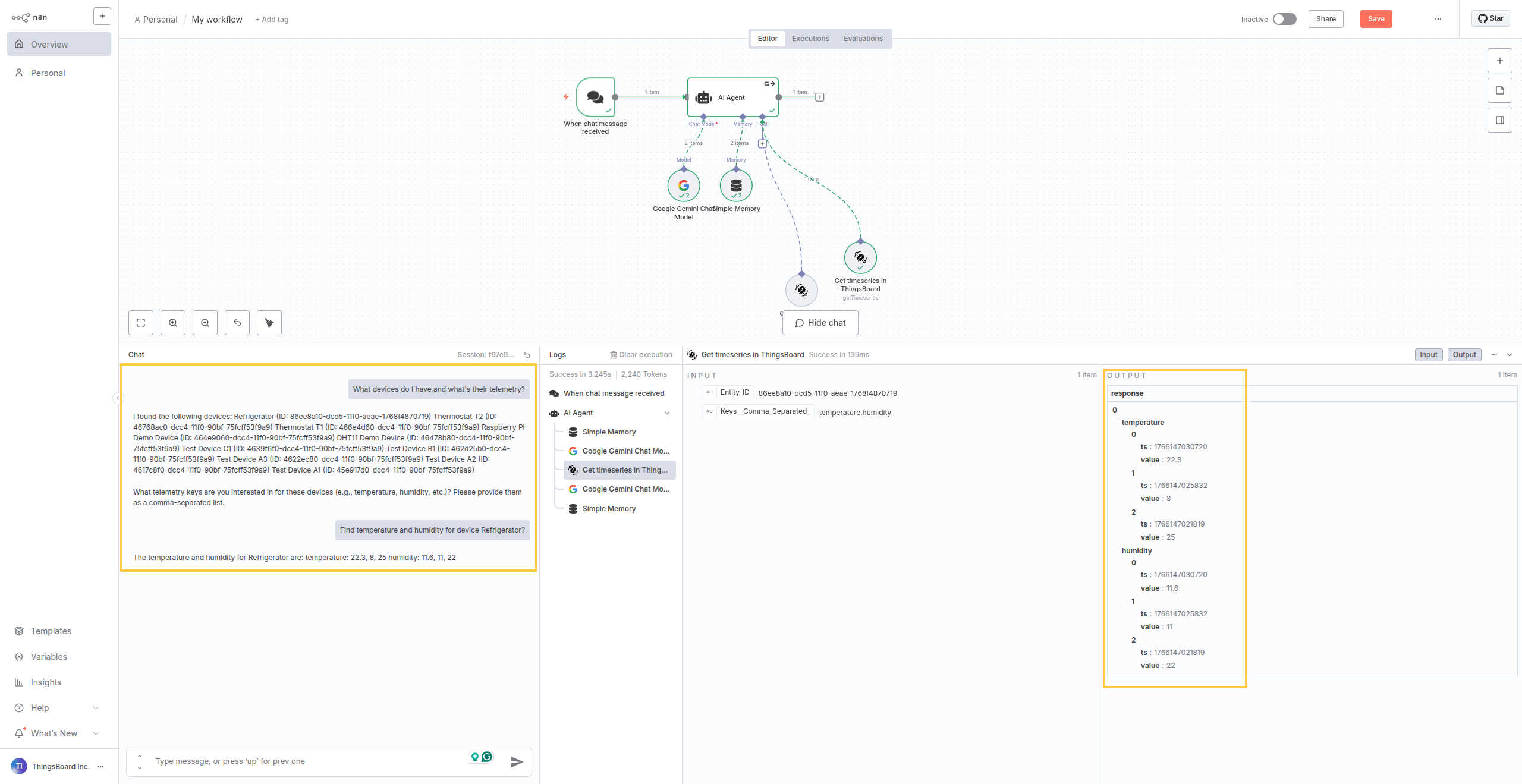

How it works:

1. User sends a chat message: “What devices do I have and what’s their telemetry?”
2. AI Agent (powered by Google Gemini, Anthropic, or OpenAI GPT-4) has access to ThingsBoard tools

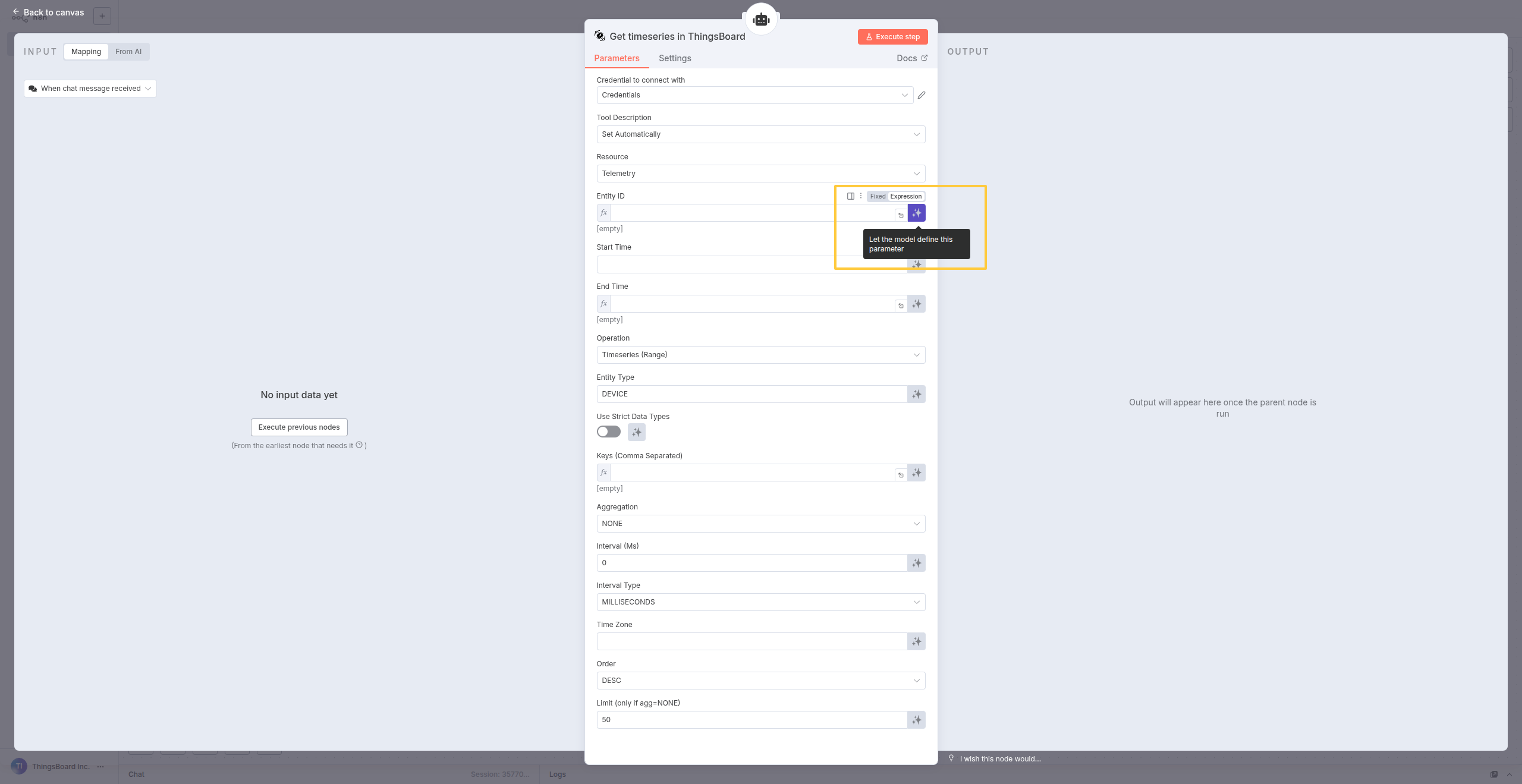

3. The AI model automatically determines which parameter values to pass based on the conversation context
4. Agent autonomously calls:
   • Get devices in ThingsBoard → Retrieves device list
   • Get timeseries in ThingsBoard → Fetches latest telemetry
5. Agent responds in natural language with the actual data

Natural language commands:

• “Show me the temperature of my living room sensor”
• “Which devices are offline right now?”
• “Update the threshold on device X to 30 degrees”
• “Send me an alert if any temperature exceeds 25°C”

The AI agent understands context and calls the appropriate ThingsBoard operations automatically!

Example 2: Direct Operations - Fixed Values

Configure operations with hardcoded values directly in the node interface. Perfect for scheduled tasks and testing.

Use Case: Save configuration attributes to a specific device on a schedule

Configuration:

• Resource: Telemetry
• Operation: Save Entity Attributes
• Entity Type: DEVICE
• Entity ID: 2d2c8cc0-d75a-11f0-9e9b-db8ef79a21ad (hardcoded)
• Scope: SERVER_SCOPE
• Attributes JSON: Direct JSON input

1
2
3
4
5
6
7
8
9
10
11
{
  "stringKey": "value1",
  "booleanKey": true,
  "doubleKey": 42.0,
  "longKey": 73,
  "jsonKey": {
    "someNumber": 42,
    "someArray": [1, 2, 3],
    "someNestedObject": {"key": "value"}
  }
}

Typical Use Cases:

• Daily configuration updates on a schedule
• Testing API operations during development
• One-time bulk data migrations
• Periodic attribute updates with fixed values

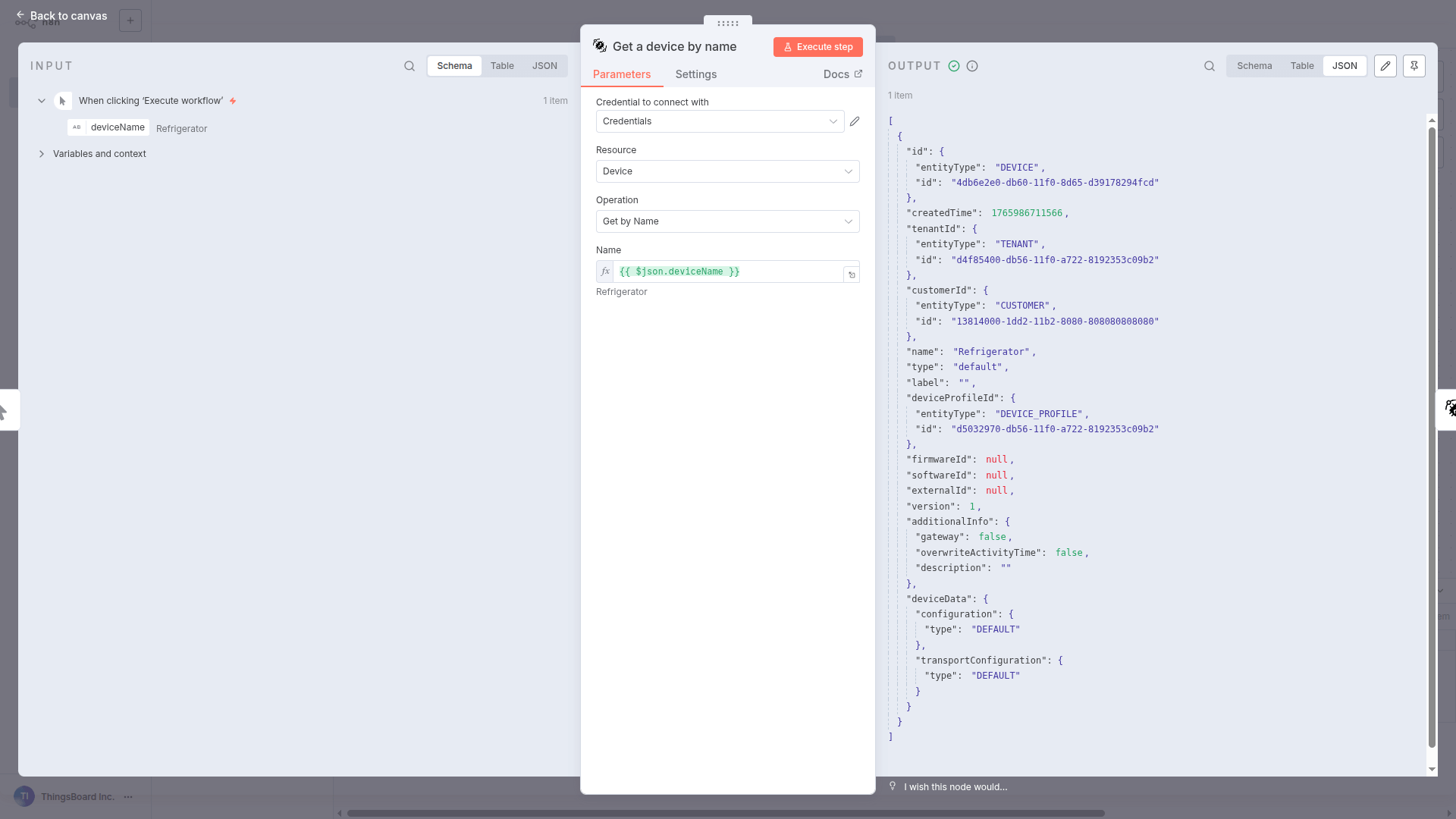

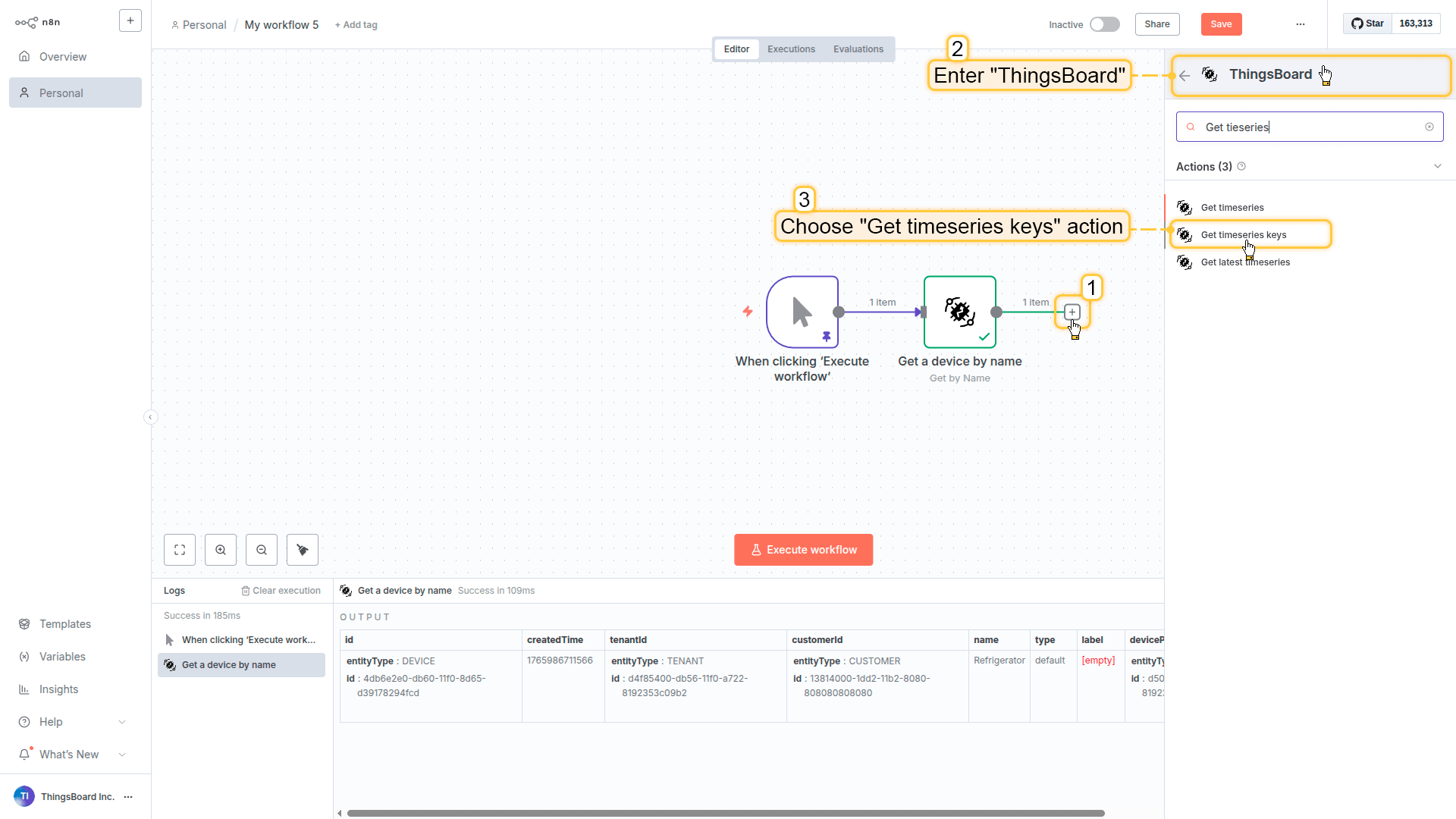

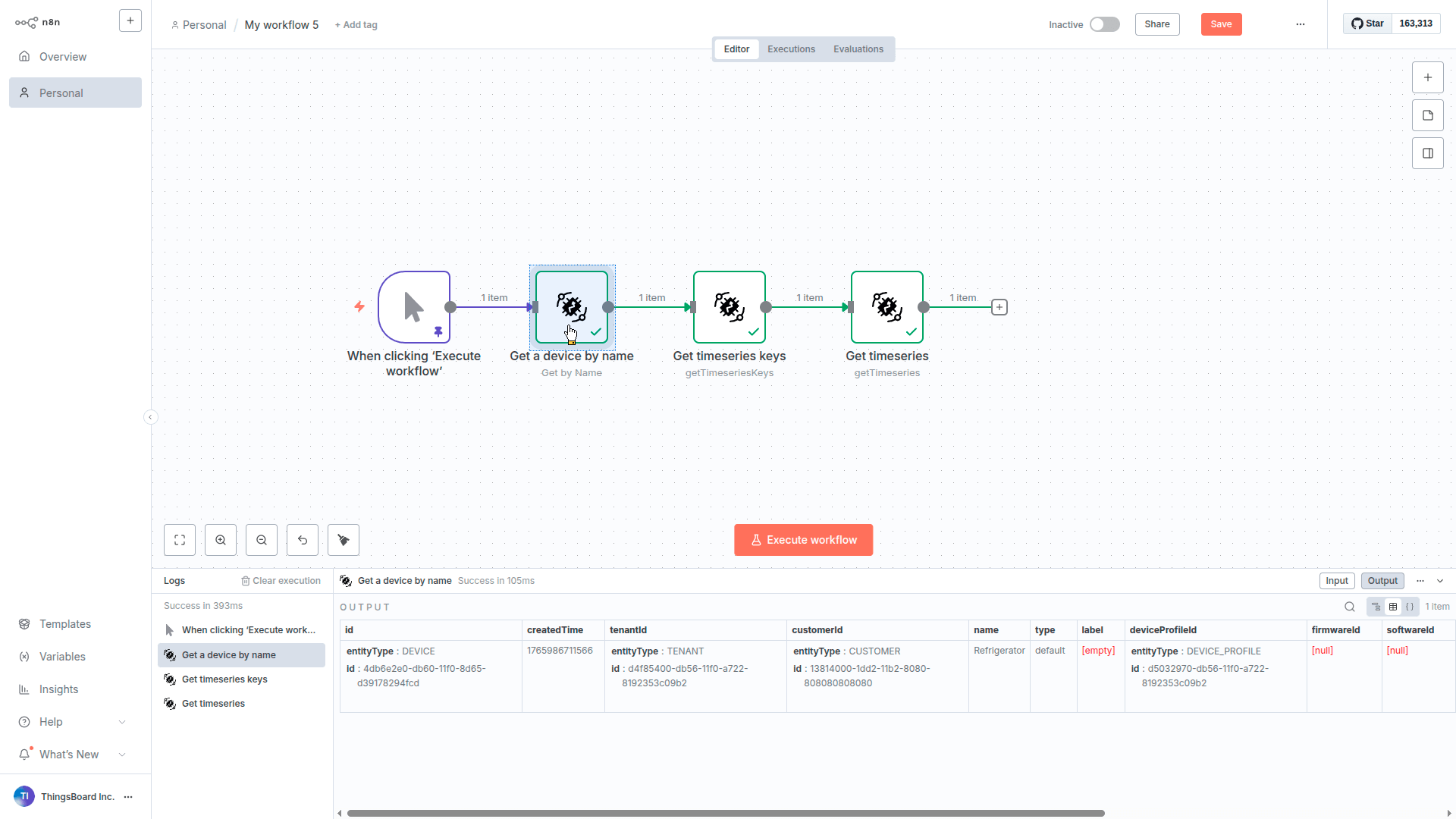

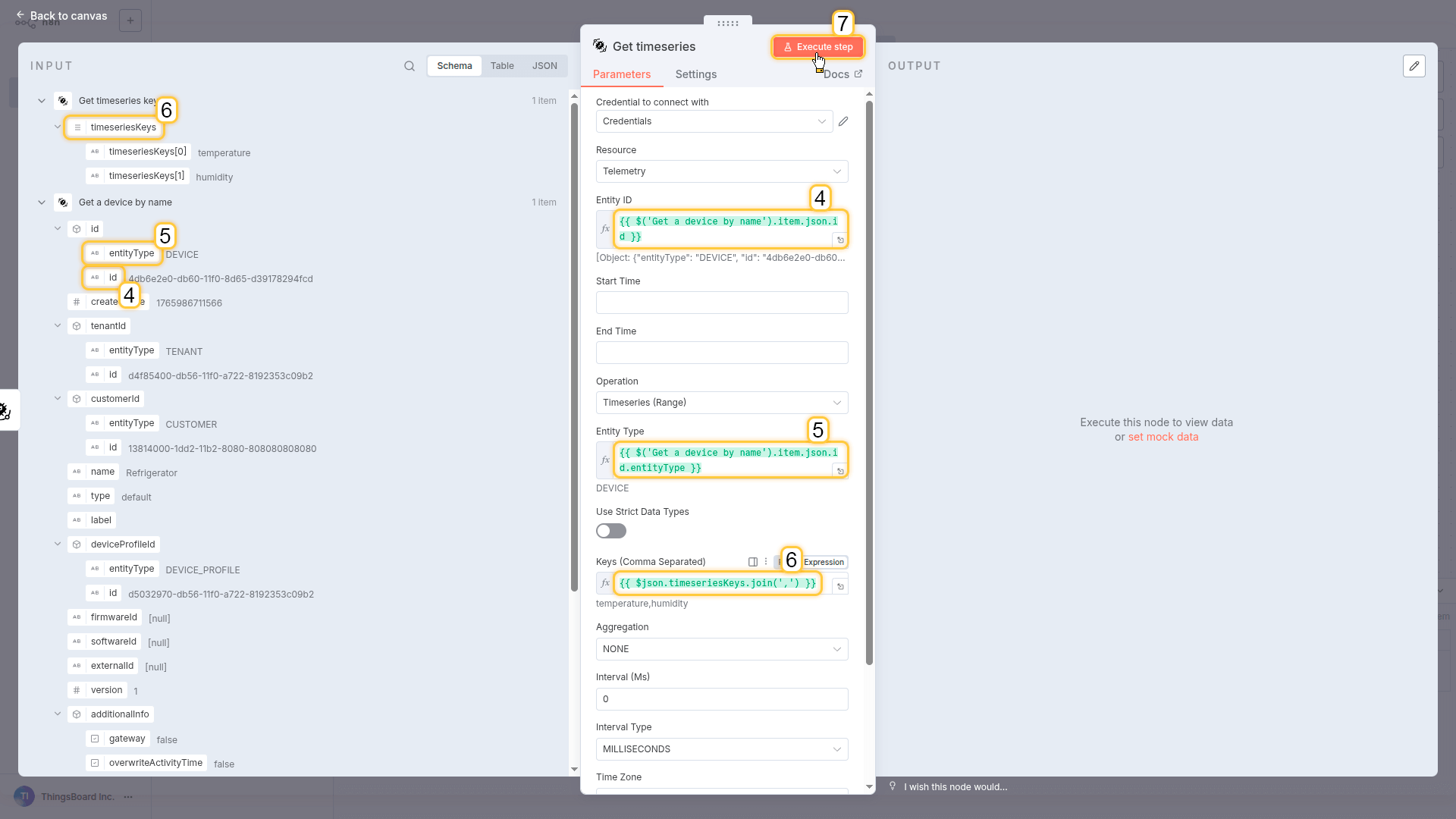

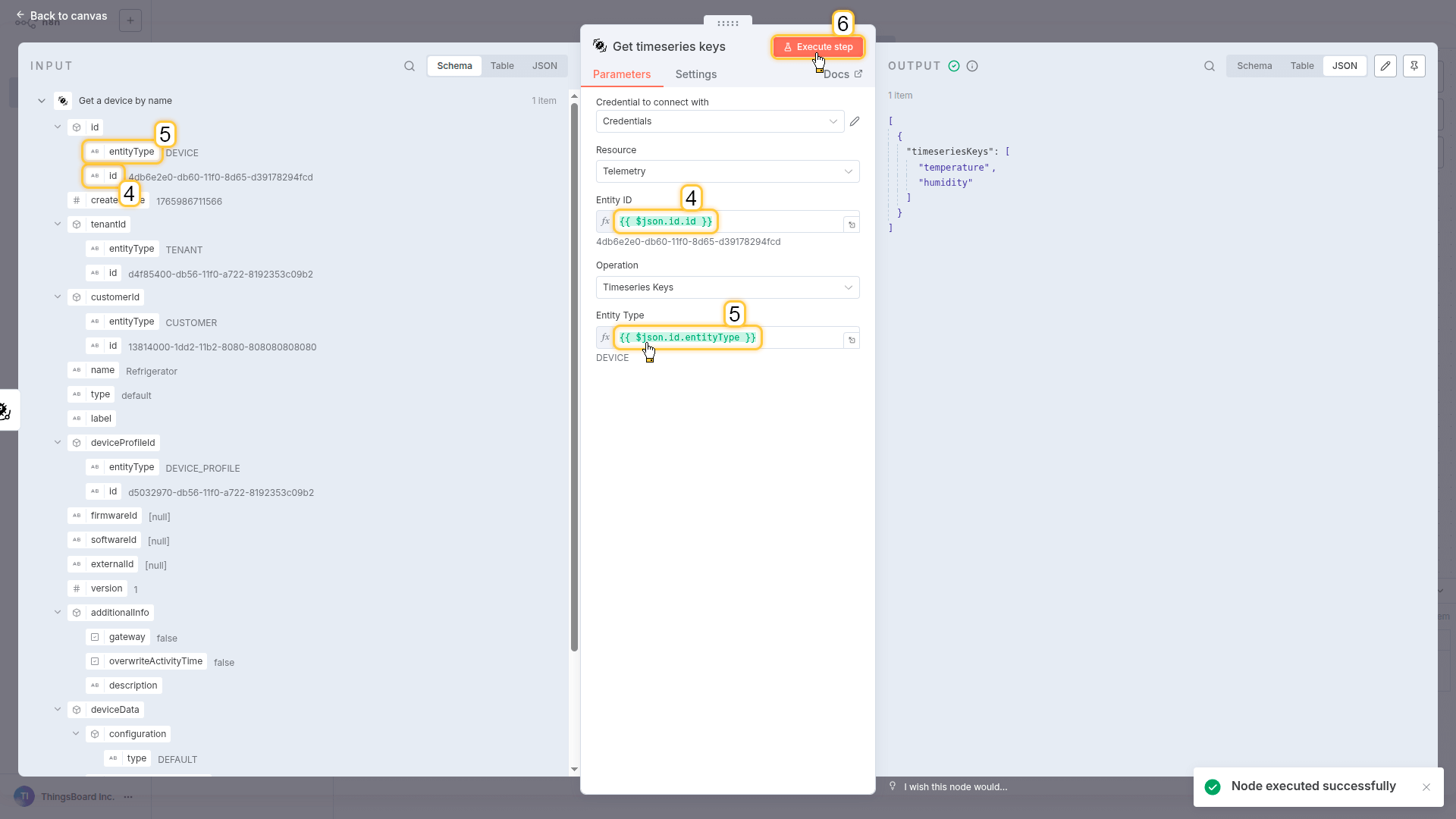

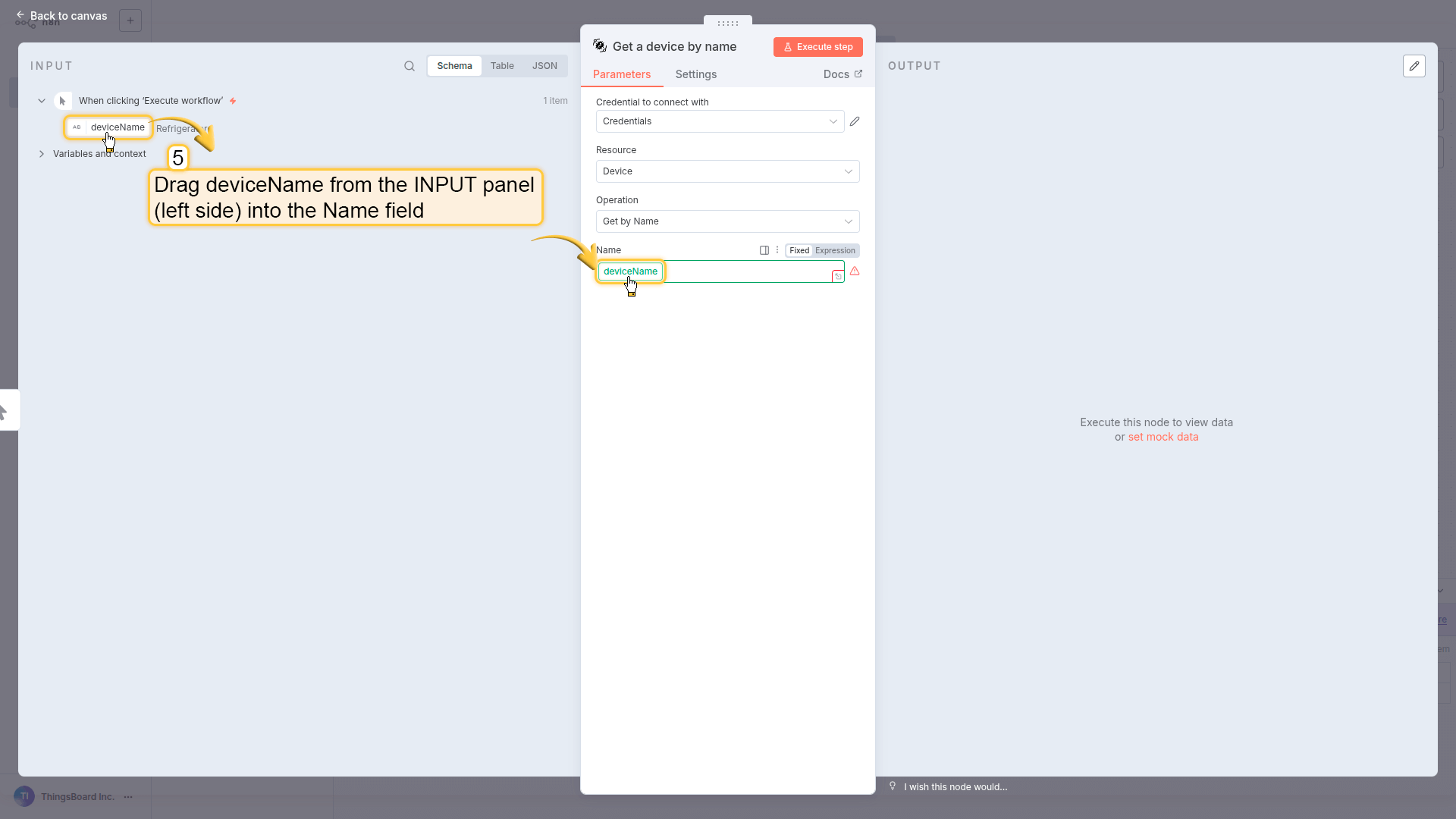

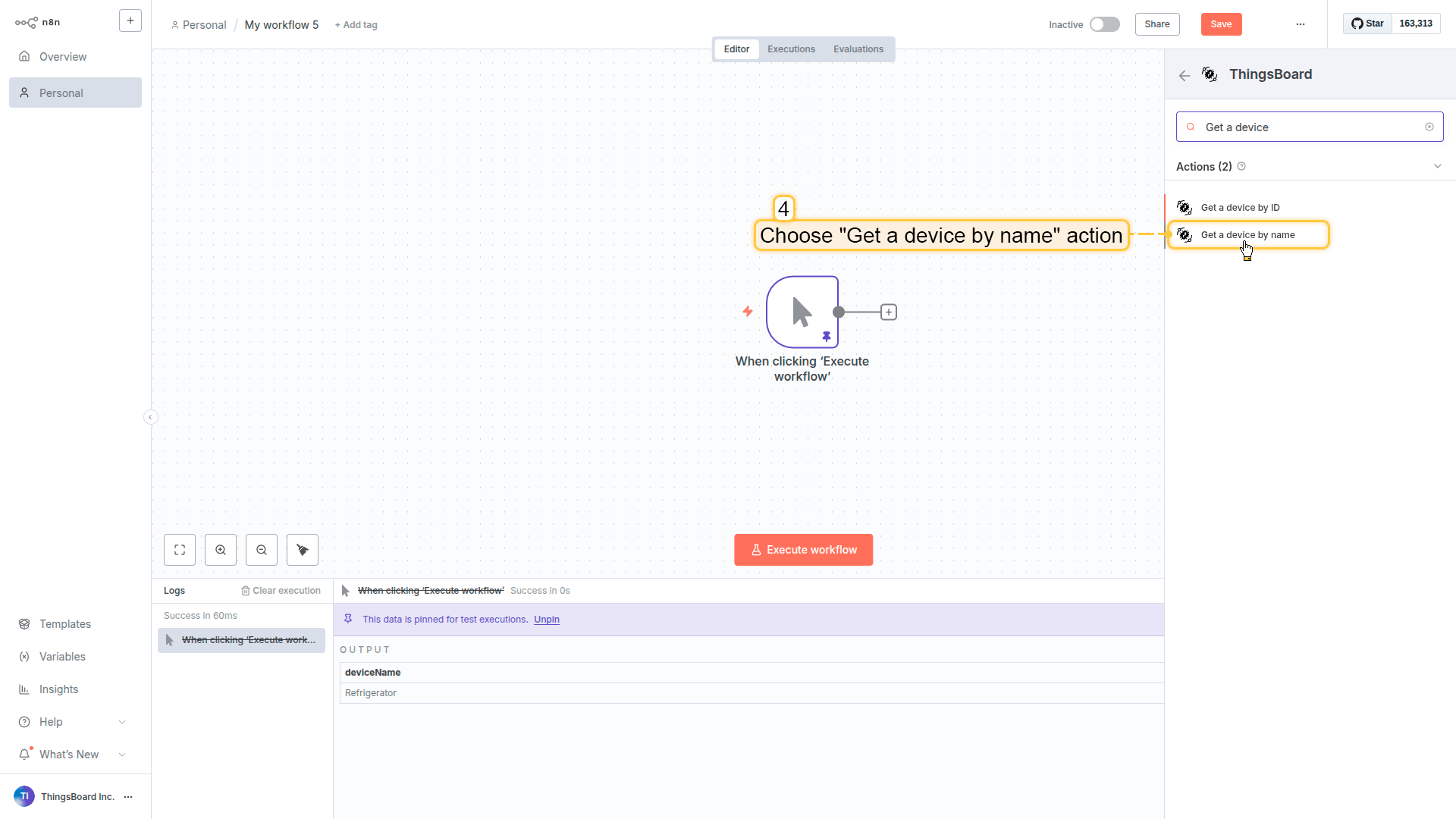

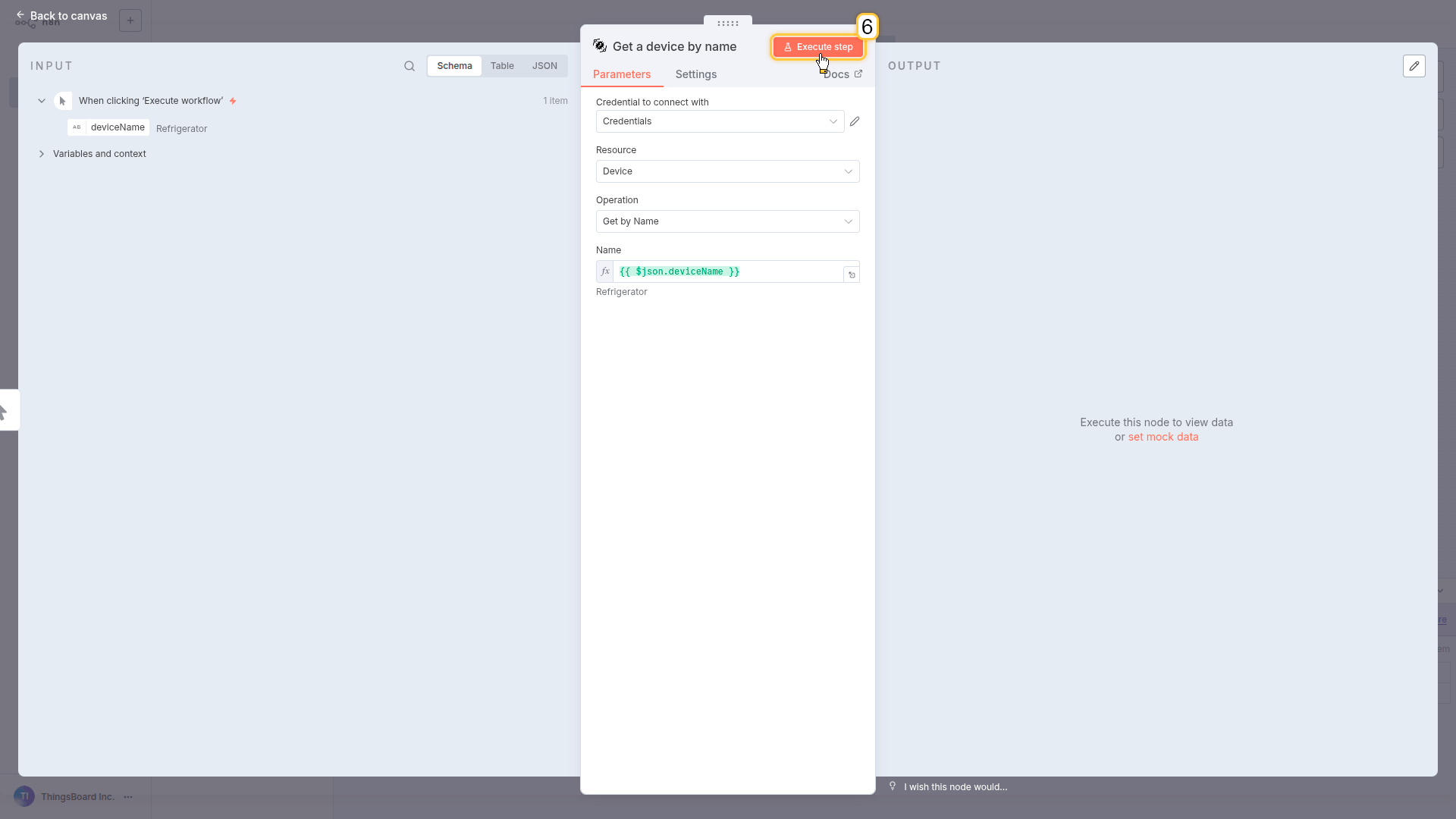

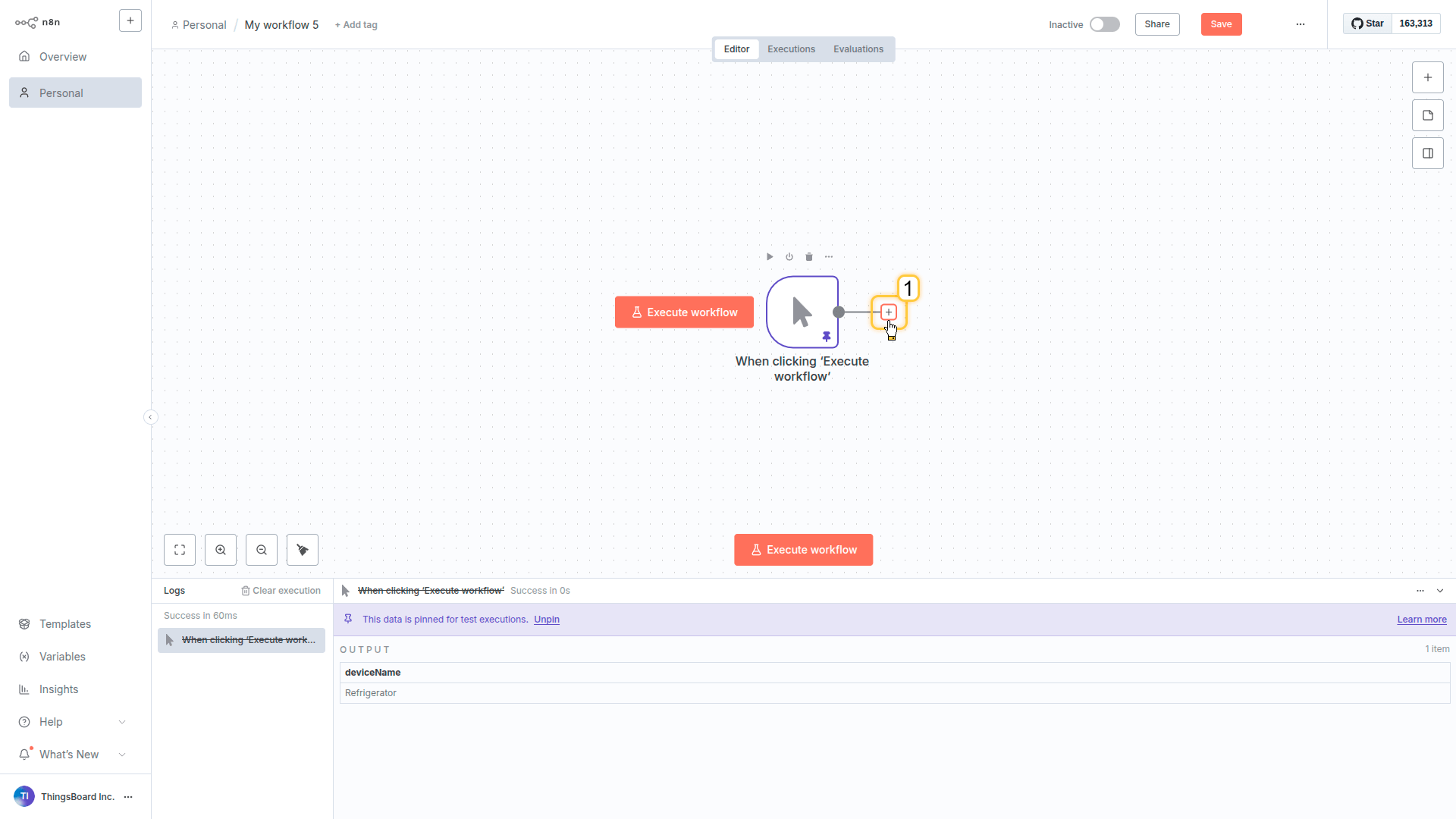

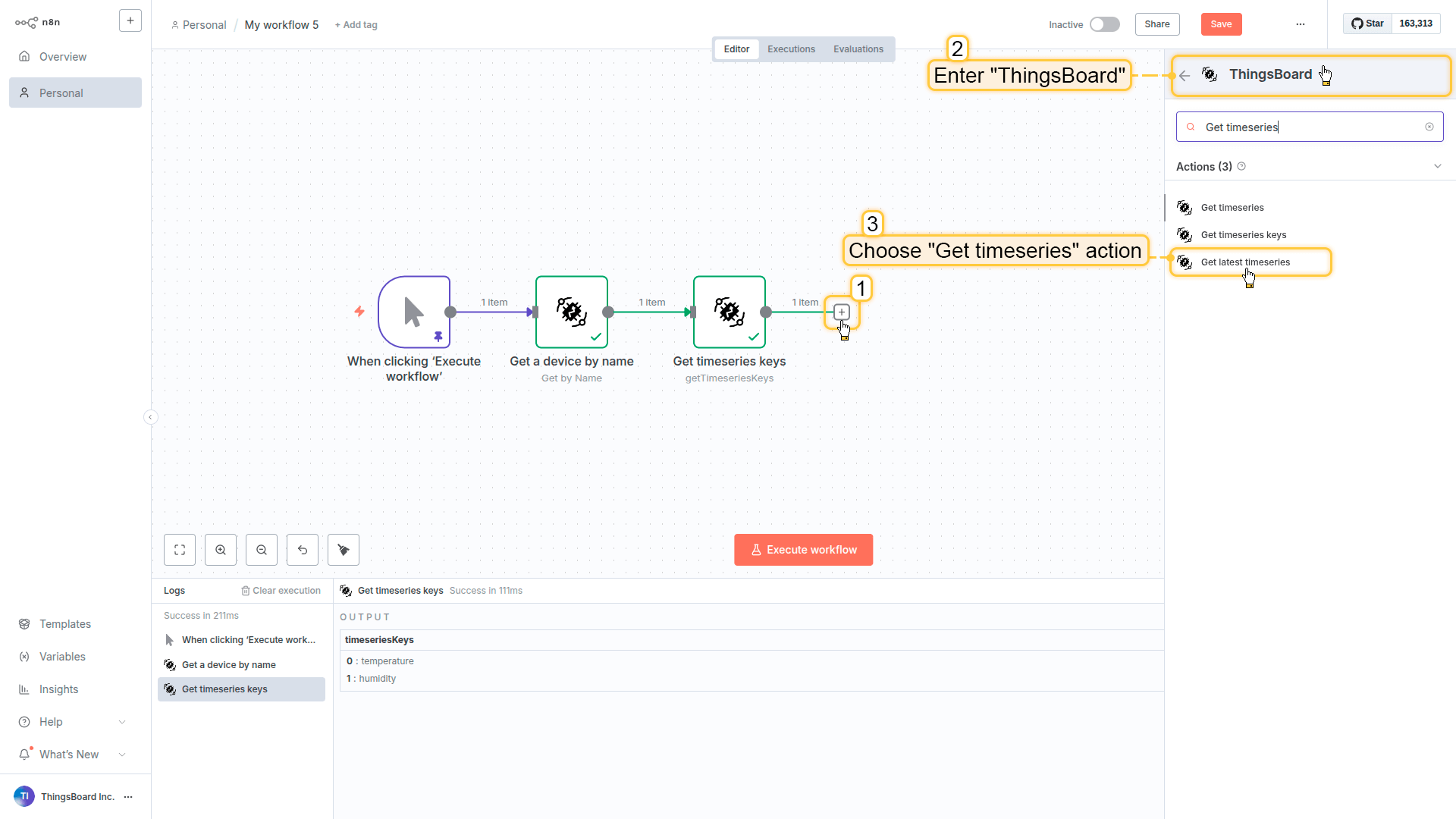

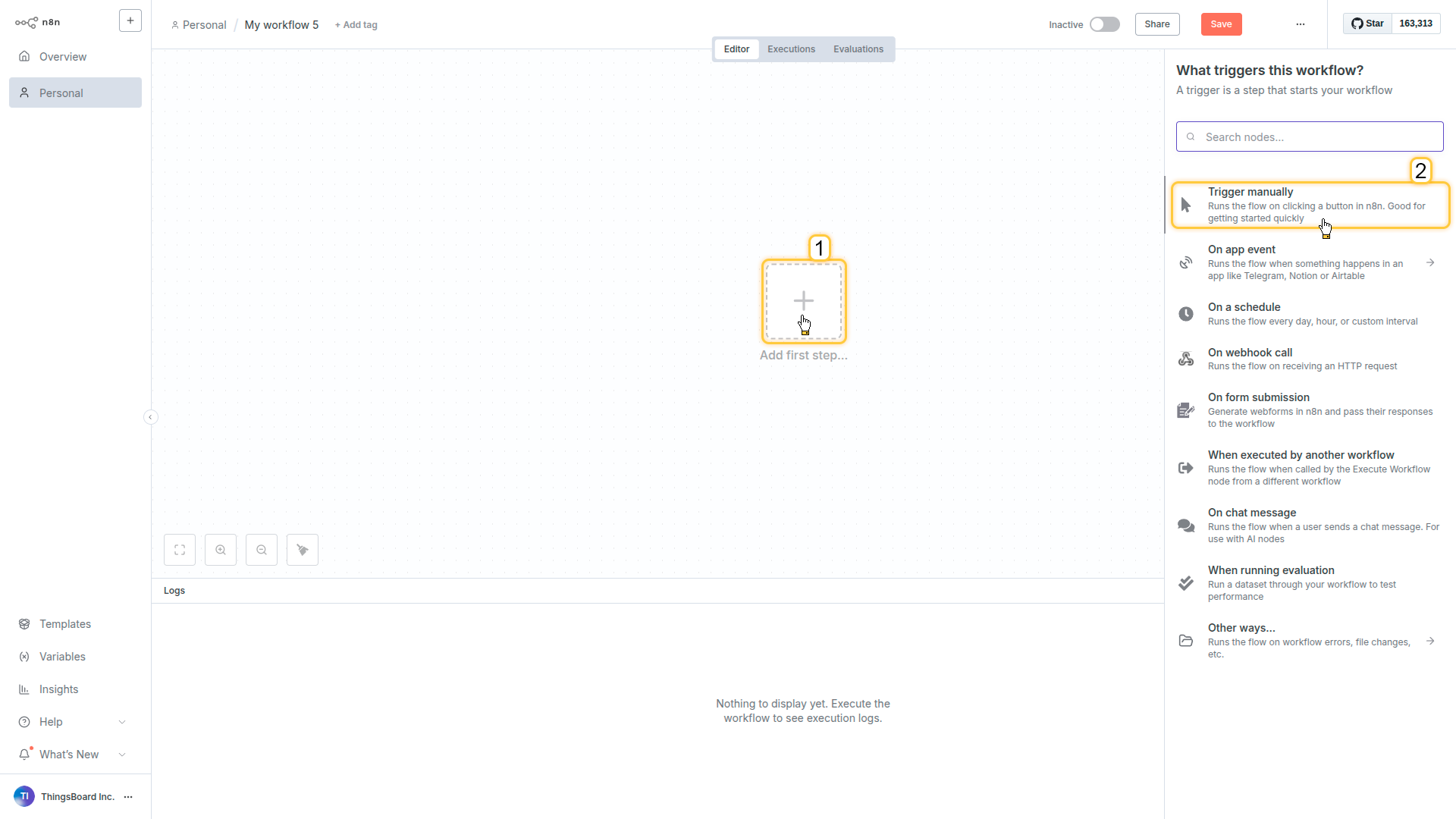

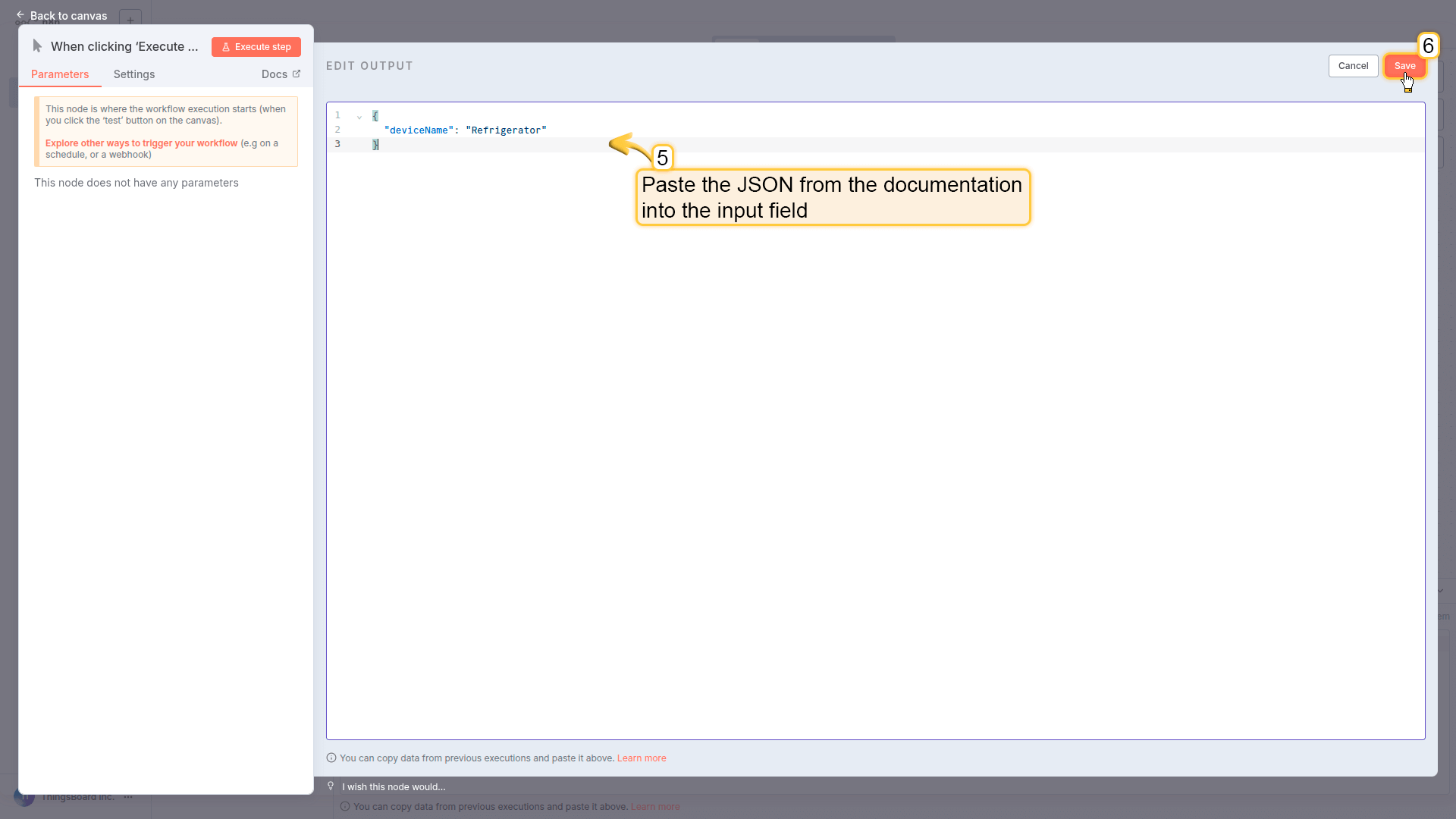

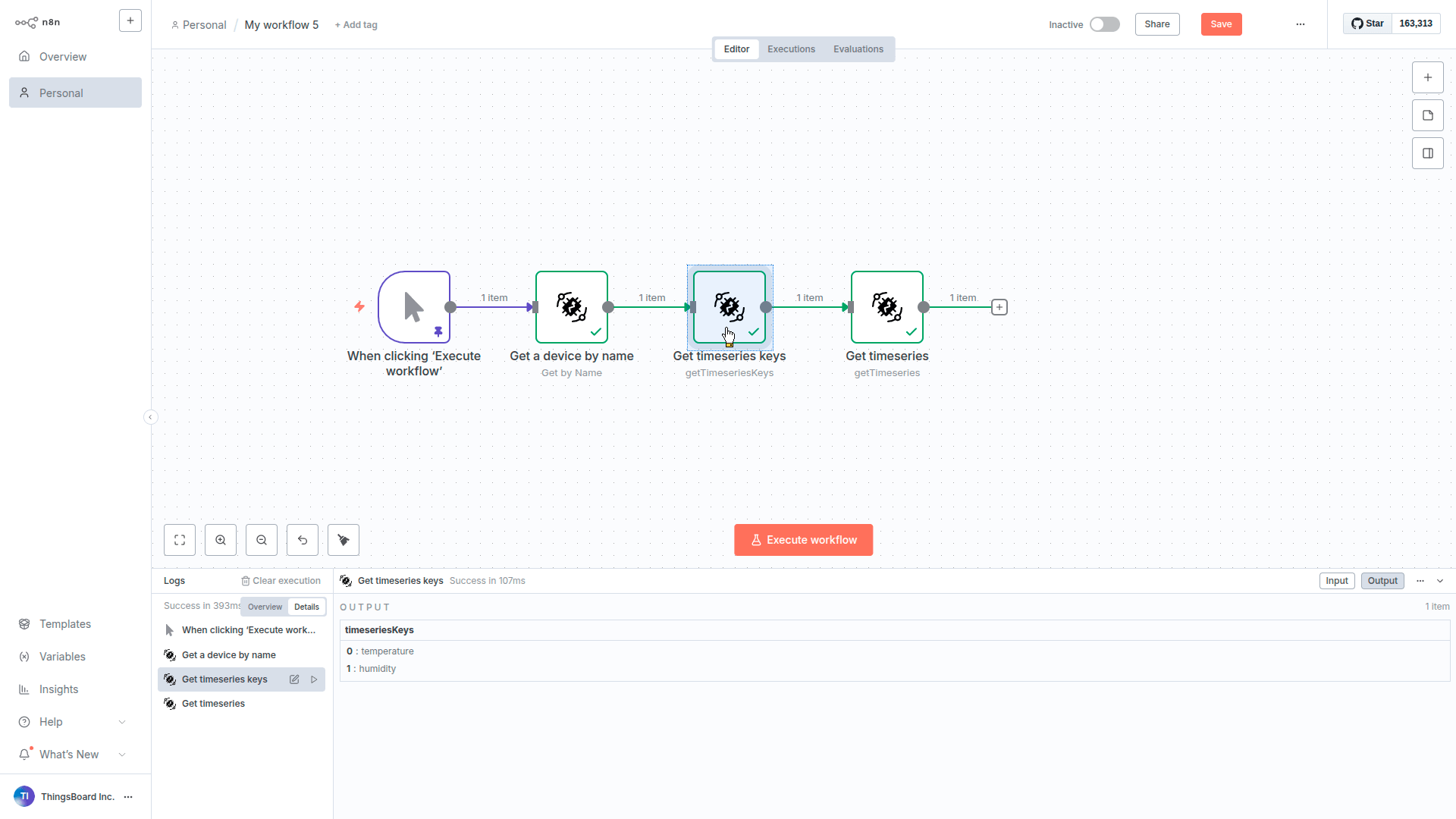

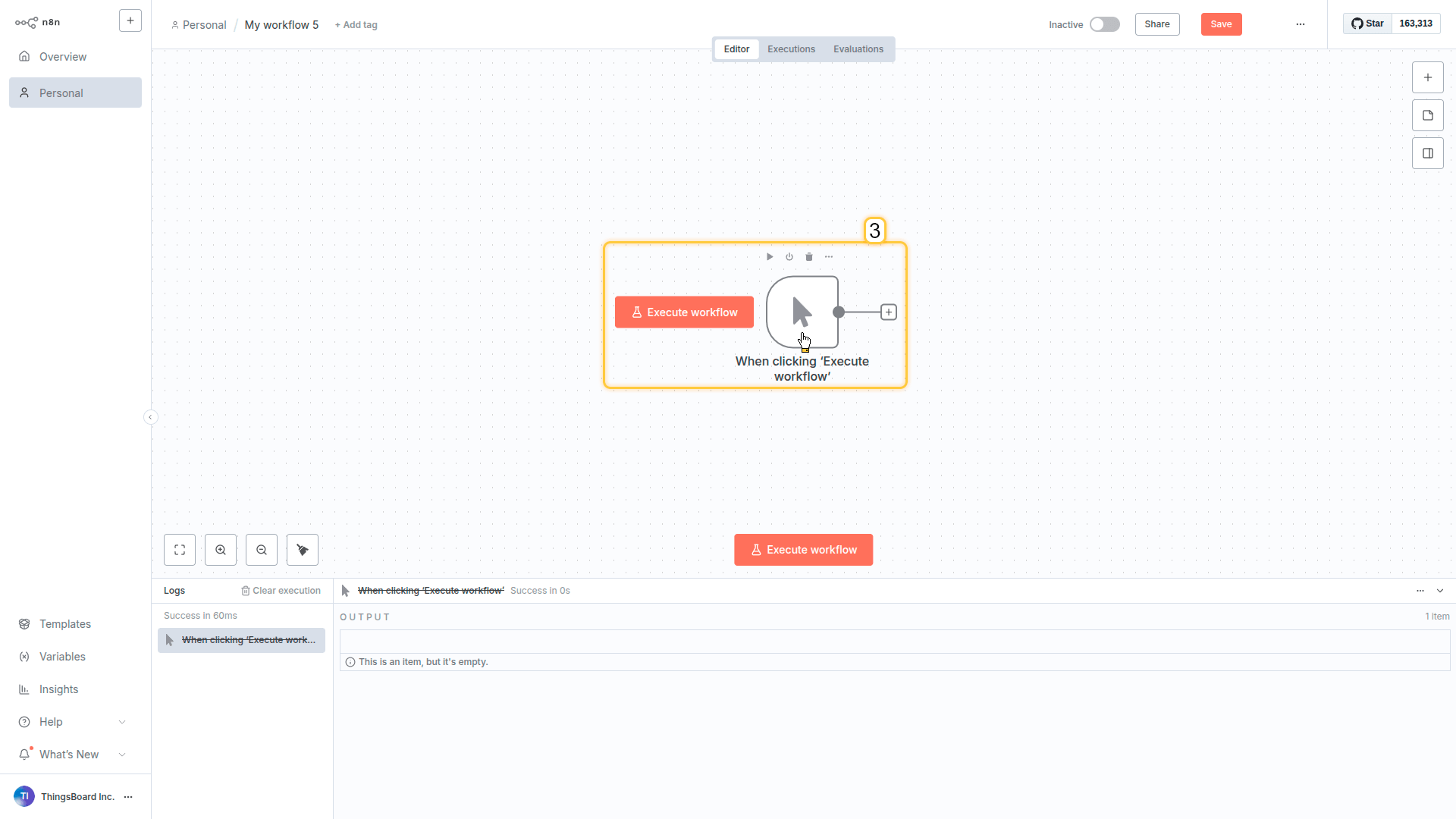

Example 3: Dynamic operations - device telemetry query

This example demonstrates how to build a dynamic, data-driven workflow in n8n by passing data between nodes using expressions.
You will learn how to:

• accept dynamic input (device name),
• find a device in ThingsBoard by its name,
• retrieve available telemetry keys,
• query telemetry data for that device.

Use case

Find a device by name and retrieve its telemetry data dynamically.

This pattern is commonly used when:

• device identifiers are not known in advance,
• workflows are triggered by external input (webhooks, chat, API calls),
• you want to reuse the same workflow for different devices.

Workflow steps

Step 1: Trigger — manual JSON input

This step simulates an external input (for example, webhook or API call).

Configuration

• Click Add first step…
• Select Trigger manually
• Click on the trigger node to open its configuration
• In the top-right corner, click the pencil icon
• Paste the following JSON into the input field:

1
2
3
{
  "deviceName": "Refrigerator"
}

• Save the changes
• Back to canvas

Result

The workflow now has an input parameter deviceName that will be used in subsequent steps.

Step 2: ThingsBoard — Get device by name

This step retrieves the device entity from ThingsBoard using the name provided by the trigger.

Configuration

• Click the + button to the right of the trigger node
• Find and select ThingsBoard
• Choose Get device by name action
• In the Parameters panel:
  • Drag deviceName from the INPUT panel (left side) into the Name field
    This creates a dynamic reference to the trigger input.
• Click Execute step
• Back to canvas

Result

The node returns the full device object, including:

• Device ID
• Type
• Additional metadata

Step 3: ThingsBoard — Get timeseries keys

This step retrieves all available telemetry keys for the selected device.

Configuration

• Click the + button to the right of the Get a device by name node.
• Select ThingsBoard
• Choose Get timeseries keys action
• Set parameters dynamically:
  • Entity ID
  • Entity Type
    You can drag these values directly from the INPUT panel (left side)
• Click Execute step
• Back to canvas

Result

The node returns a list of telemetry keys available for the device (e.g. temperature, humidity).

Step 4: ThingsBoard — Get timeseries data

This step retrieves the actual telemetry values using the keys obtained in Step 3.

Configuration

• Click the + button to the right of the Get timeseries keys node.
• Select ThingsBoard
• Choose Get timeseries action
• Configure parameters:
  • Get a device by name -> id -> id to Entity ID
  • Get a device by name -> id -> entityType to Entity Type

  • Get timeseries keys -> timeseriesKeys to Keys (Comma Separated)

    Note: The Keys field accepts a comma-separated string. Since timeseriesKeys returns an array, you need to convert it using the .join(',') operation.

• Click Execute step
• Back to canvas

Result

The workflow returns time-series telemetry data for the selected device and time range.

Final result

This workflow dynamically:

1. Accepts a device name as input
2. Finds the corresponding device in ThingsBoard
3. Discovers available telemetry keys
4. Retrieves telemetry values for the specified time window

Notes and best practices

• Although this example uses Trigger manually, the same workflow can be triggered by:
  • Webhook
  • Schedule
  • HTTP Request
  • Chat / AI Agent
• Always prefer dynamic expressions over hardcoded IDs for reusable workflows

API Reference

The ThingsBoard n8n node is built on top of the ThingsBoard REST API. For detailed information about API endpoints, request/response formats, and additional parameters, refer to the ThingsBoard REST API documentation.

Links

• npm Package: n8n-nodes-thingsboard
• GitHub Repository: thingsboard/thingsboard-n8n-node
• n8n Documentation: docs.n8n.io
• n8n Community: community.n8n.io
• ThingsBoard REST API: REST API Reference

Support

If you encounter issues or have questions about the ThingsBoard n8n node:

• GitHub Issues: Report bugs or request features
• ThingsBoard Community: Get help from the community
• n8n Community: n8n community

License

MIT License - see the LICENSE file for details.
