Bulk provisioning

TBMQ provides a bulk import tool that lets system administrators manage large numbers of MQTT client credentials using a CSV file.

The import implements an upsert pattern: the system identifies existing credentials by Name. If a match is found, the entry is updated; otherwise, a new one is created.

Each line in the CSV file corresponds to one credential record. The file must contain at least two columns: Name and either Username or Client ID.

Example CSV:

Name	Client type	Client ID	Username	Password	Sub auth rule patterns	Pub auth rule patterns	Description
Sensor_Device	DEVICE	sensor-01	mqtt-user-01	secretPass	sensors/1/data;sensors/all/data	sensors/1/cmd	Demo device client
Application_Manager	APPLICATION	app-mgr-01				alerts/.*

How the broker processes this file:

Sensor_Device — creates a new DEVICE credential using client ID sensor-01, username mqtt-user-01, and the description Demo device client. The plain-text password is encoded on import. Subscribe and publish topic patterns are parsed using ; as the delimiter.

Application_Manager — creates a new APPLICATION credential with client ID app-mgr-01. Username, password, and description are null because those cells are empty. The subscribe auth rule pattern is null, which forbids all subscriptions. The publish auth rule is set to alerts/.*.

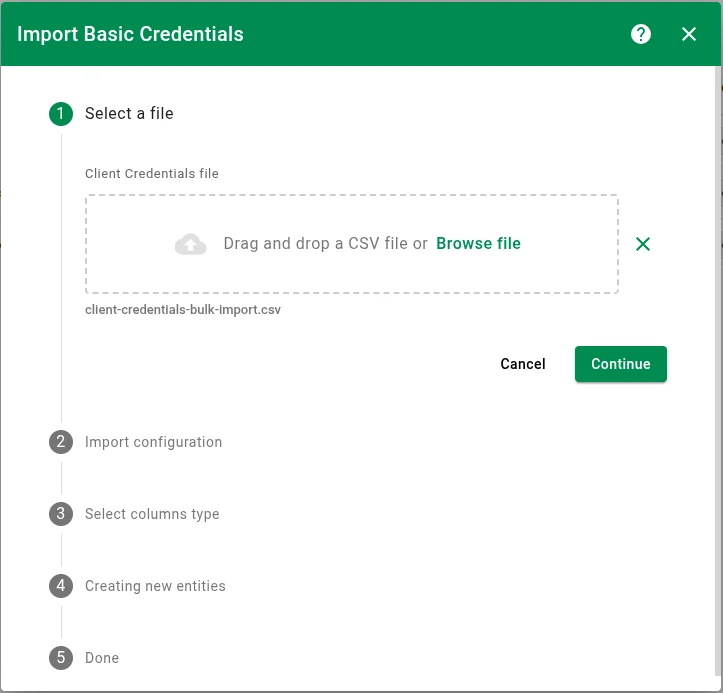

1. Select a file

   Upload your prepared CSV file.

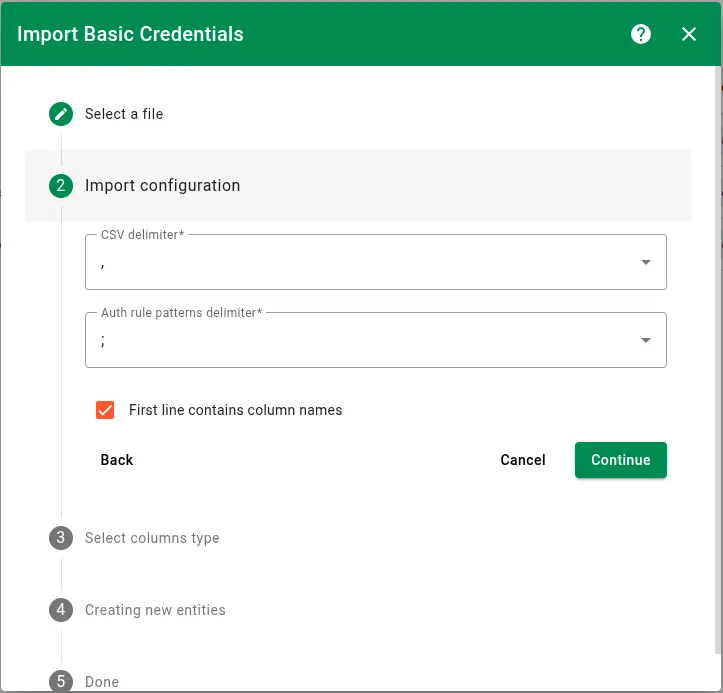

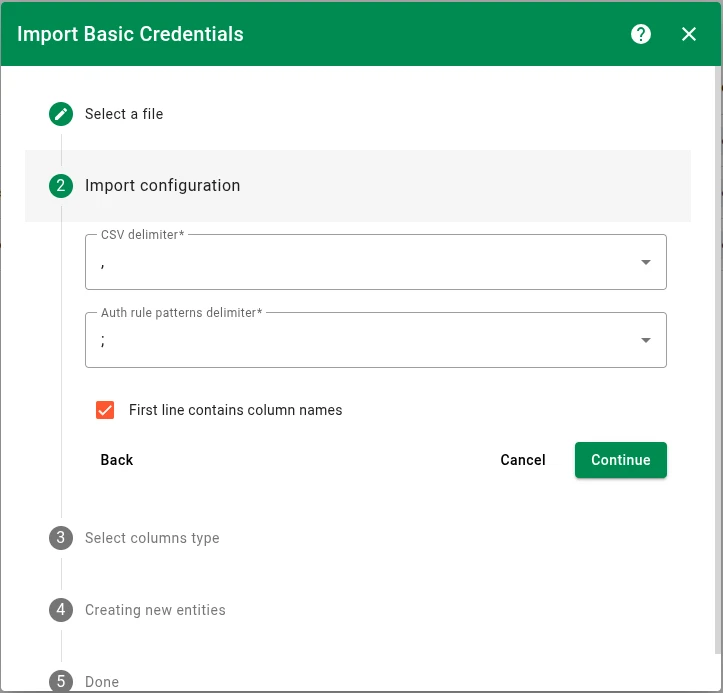

2. Import configuration

   Configure how the system reads the file:

   • CSV delimiter — the character separating values (,, ;, |, or TAB).
   • Auth rule patterns delimiter — the delimiter used to split multiple topic patterns within a single cell. Must differ from the CSV delimiter.
   • First line contains column names — when enabled, the first row is used for automatic column mapping in the next step.

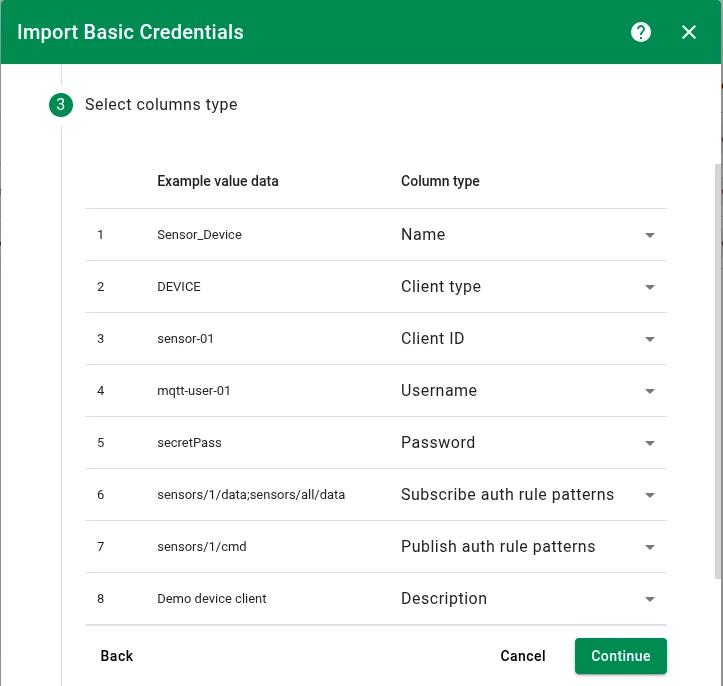

3. Map columns

   Map each CSV column to a credential field:

   • Name — required for identification and upsert logic.
   • Client type — DEVICE or APPLICATION. Defaults to DEVICE if not mapped.
   • Client ID — the unique MQTT client identifier.
   • Username — the MQTT username.
   • Password — the MQTT password, encoded during import.
   • Subscribe auth rule patterns — list of allowed subscribe topics.
   • Publish auth rule patterns — list of allowed publish topics.
   • Description — optional description.



4. Processing

   The system processes the file line by line using your column mapping.

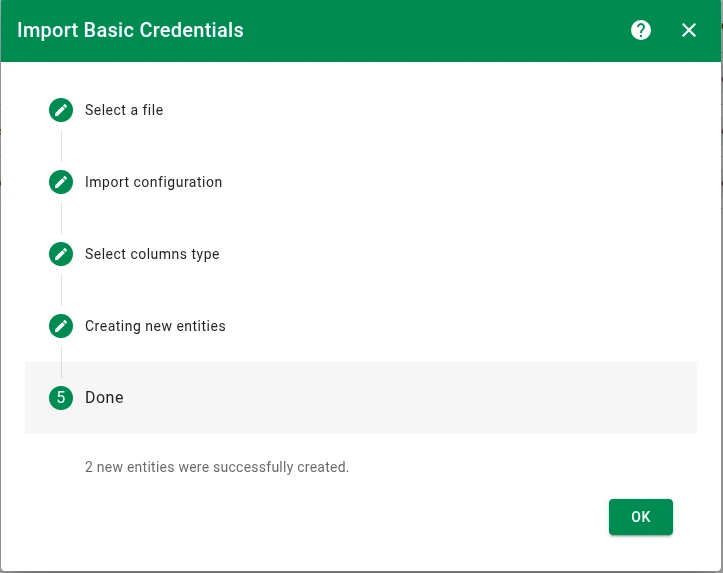

5. Results

   A summary shows the number of created entries, updated entries, and errors.

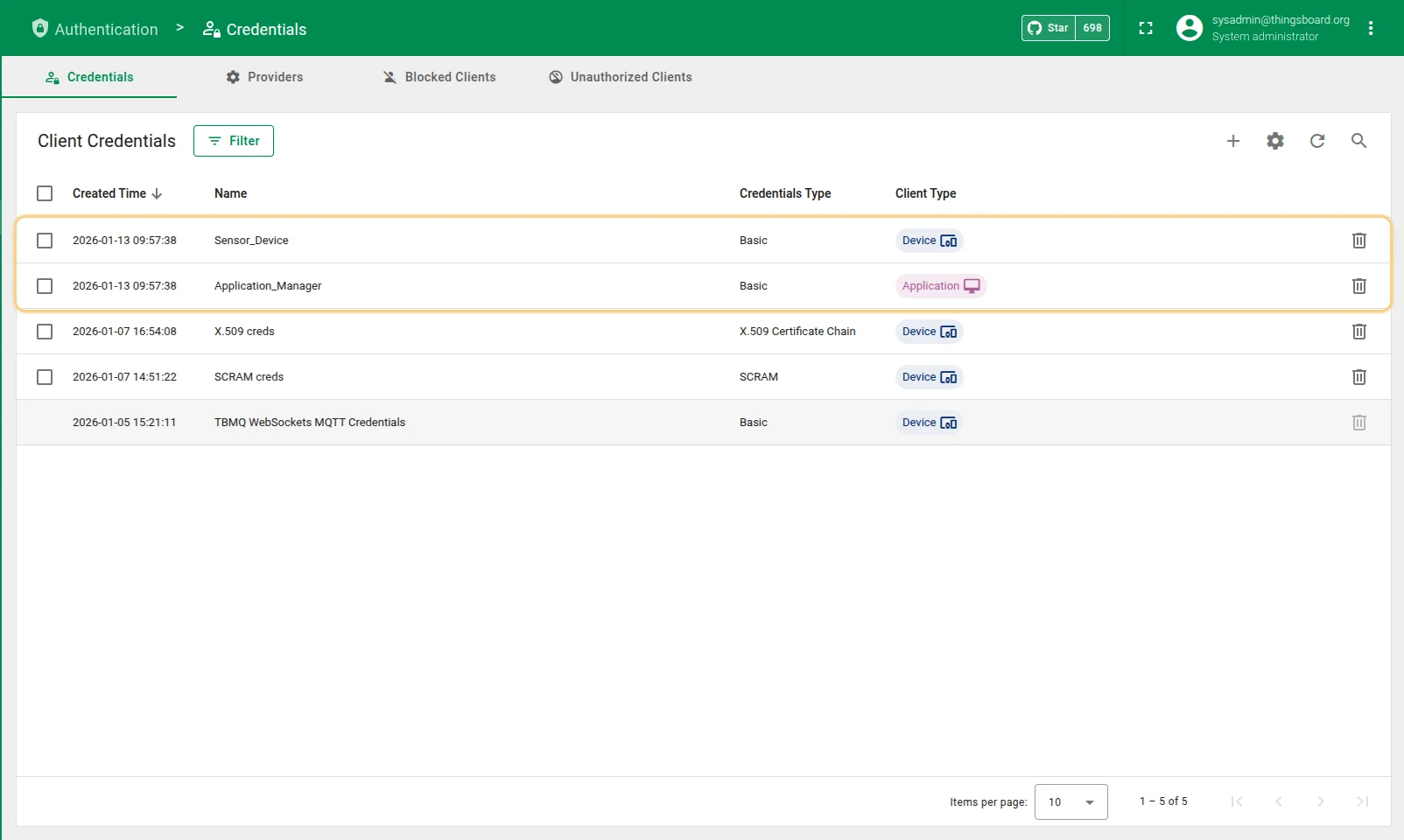

   Import results summary. Import results detail view.

• To update a field: Provide a new value in the corresponding CSV column — see the password policy below for exceptions.
• To preserve existing data: Do not map the column, or leave the cell empty — with the exception of authorization rule patterns, which follow their own policy below.

Existing passwords are protected during bulk import:

• If a credential already has a password, it cannot be changed or cleared via bulk import.
• A password can only be set if the credential is newly created or if the existing credential has no password.

The system interprets mapped versus unmapped authorization columns differently:

New credentials:

Column state	Result
Column mapped, cell empty	Authorization rule set to null — forbids all topics
Column not mapped	Authorization rule set to .* — allows all topics

Existing credentials:

Column state	Result
Column mapped, cell empty	Authorization rule updated to null — revokes all permissions
Column not mapped	Authorization rule preserved — existing permissions unchanged
