ThingPark Integration

The Actility ThingPark integration connects ThingsBoard to the ThingPark LoRaWAN network server. Use it to bring telemetry from LoRaWAN devices already registered in ThingPark into ThingsBoard for monitoring, and rule-based automation — including sending commands back to those devices.

A LoRaWAN device sends an uplink to ThingPark, which forwards it over HTTP to the integration’s endpoint. The uplink converter decodes the payload into telemetry and attributes, and the ThingsBoard Core Service stores the data, creating the device automatically on first contact. For downlink, the Rule Engine hands a message to the integration; the downlink converter encodes it, and ThingPark delivers it to the device.

Before creating the integration, ensure:

• You have access to ThingsBoard PE or ThingsBoard Cloud with integration functionality enabled for your tenant.
• You have permissions to create integrations and data converters.
• You have an Actility ThingPark account with a ThingPark Wireless OSS instance.
• You have at least one LoRaWAN device registered in ThingPark, with its DevEUI and AppEUI on hand.

The uplink converter decodes the incoming ThingPark message (JSON containing DevEUI_uplink) and maps it to the ThingsBoard data model — it resolves the target device and extracts fields into telemetry and attributes. For the full decoder function reference, see Uplink data converter.

If your device is in the built-in catalog, use the Library tab — see Converters library for ready-to-use decoder functions for over 100 devices.

Sample payload:

{
  "DevEUI_uplink": {
    "Time": "2024-01-15T10:30:00.000+00:00",
    "DevEUI": "0018B20000000123",
    "FPort": 1,
    "FCntUp": 42,
    "ADRbit": 1,
    "MType": 4,
    "FCntDn": 5,
    "payload_hex": "0364011a",
    "mic_hex": "a1b2c3d4",
    "Lrcid": "00000065",
    "LrrRSSI": -85.0,
    "LrrSNR": 7.25,
    "SpFact": 7,
    "SubBand": "G0",
    "Channel": "LC1",
    "Lrrid": "FF0000C8",
    "Late": 0,
    "LrrLAT": 48.8566,
    "LrrLON": 2.3522
  }
}

DevEUI identifies the device. payload_hex contains the raw application payload. LrrRSSI and LrrSNR are radio quality metrics from the receiving gateway.

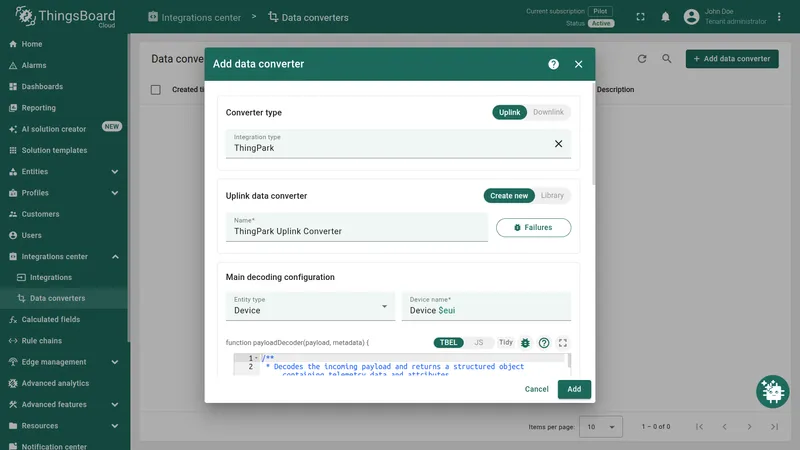

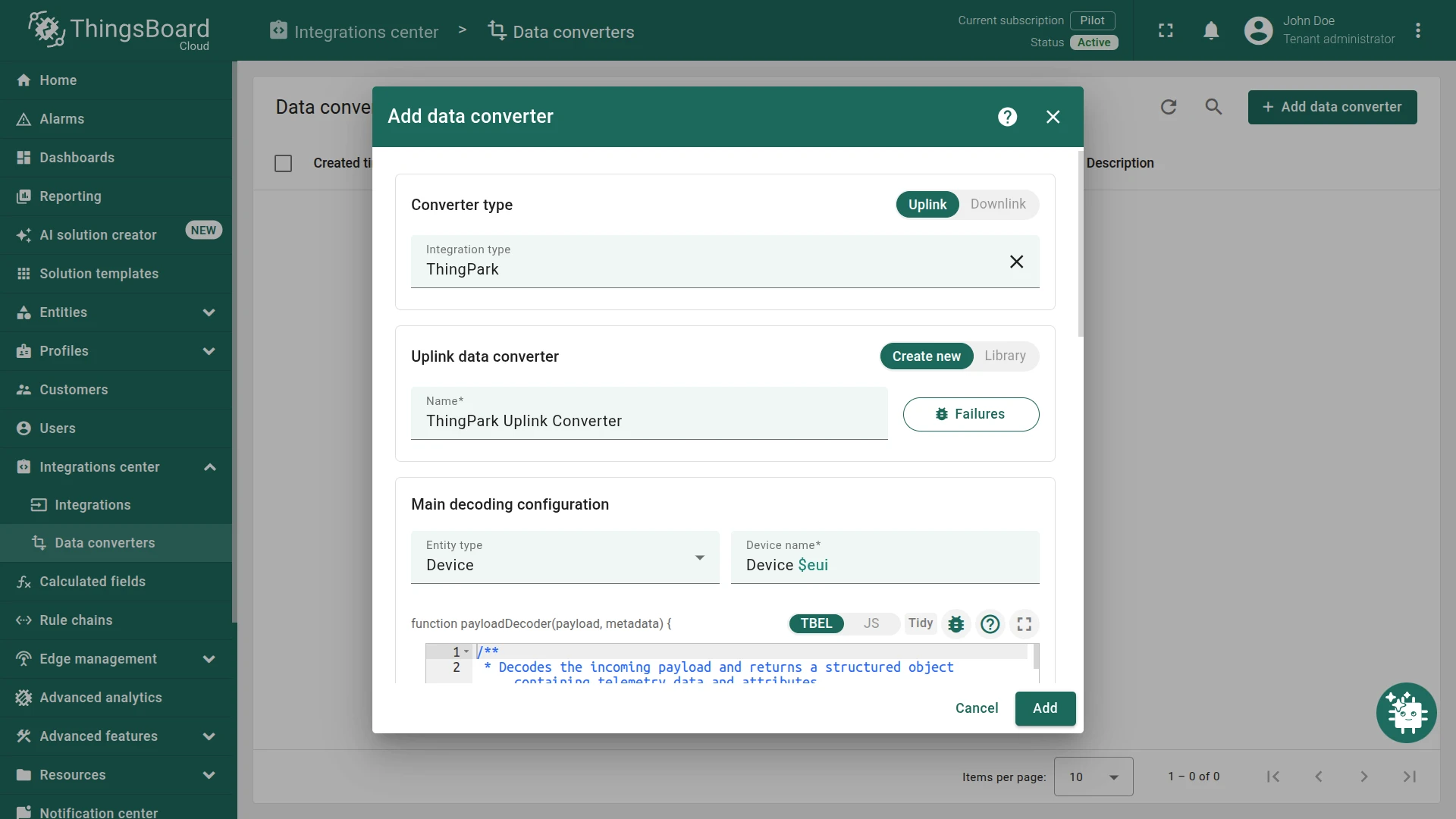

1. Go to Integrations center ⇾ Data converters.
2. Click + Add data converter ⇾ Create new converter.
3. Converter type — leave Uplink (selected by default).
4. Integration type — in the search field, enter ThingPark and select ThingPark from the list.
5. Name — enter a converter name, for example ThingPark Uplink Converter.

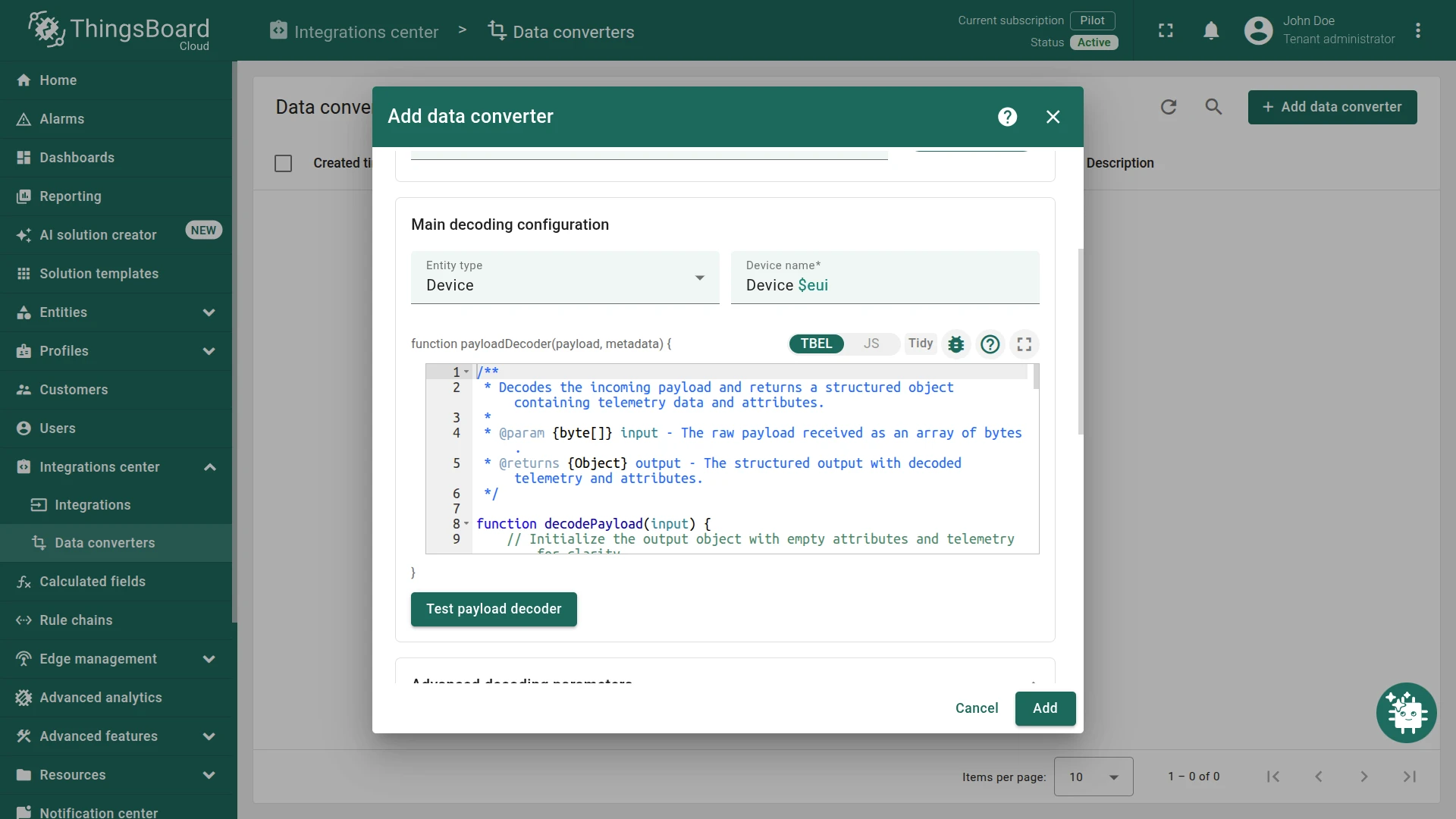

6. In Main decoding configuration:
   • The default device name pattern Device $eui uses the DevEUI from the ThingPark message as the unique device name in ThingsBoard. Change it if you prefer a different naming scheme.
   • The default decoder is pre-filled. Leave it unchanged for this guide, or paste the decoder function below.

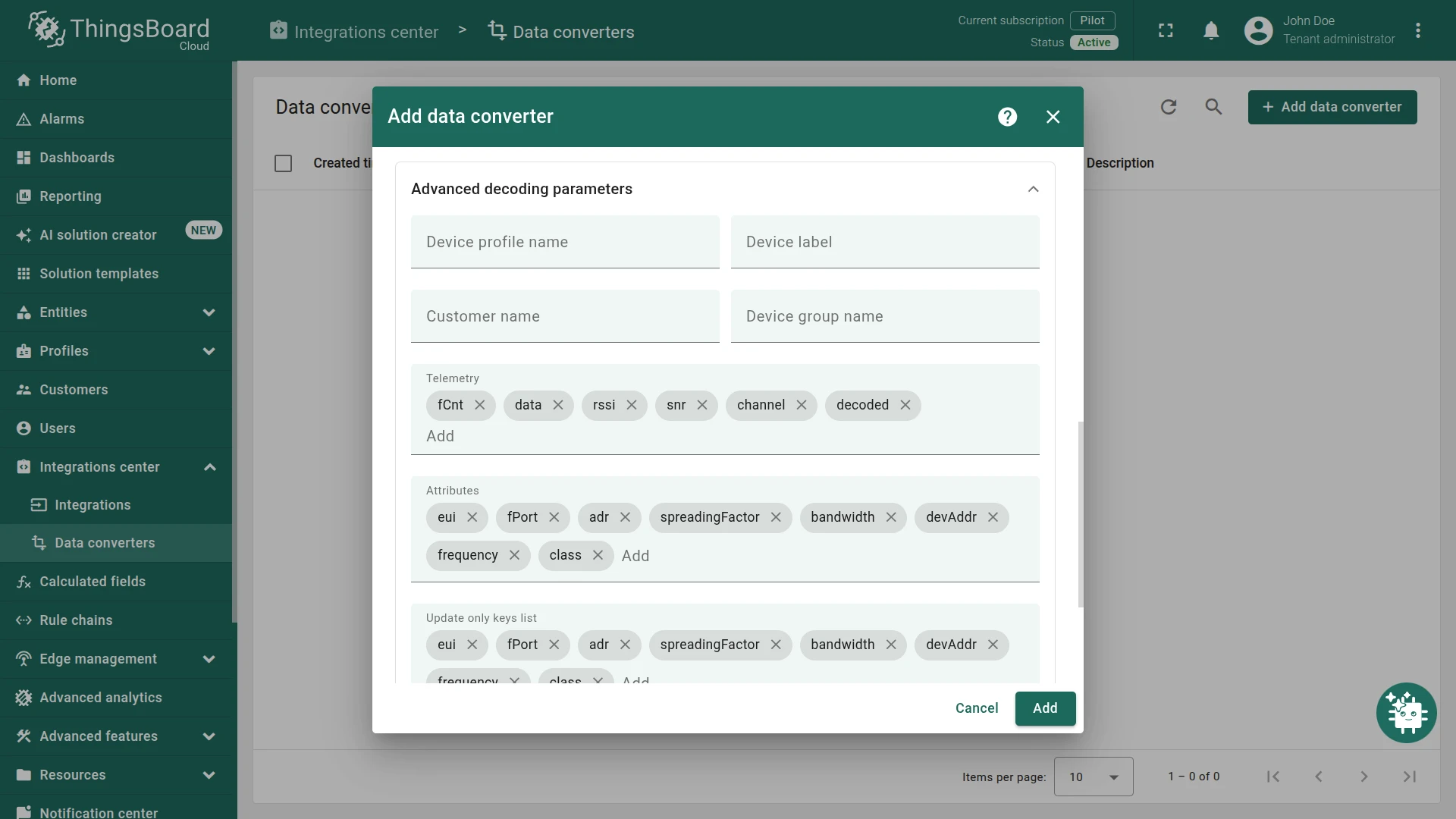

7. Review Advanced decoding parameters — pre-populated for ThingPark, auto-extracting telemetry keys channel, data, fCnt, rssi, and snr, plus attribute keys bandwidth, eui, fPort, and spreadingFactor. Adjust if needed.
8. Click Add.

The decoder below handles both message formats ThingPark can send: a pre-decoded JSON payload (payloadFormat is JSON) or a raw hex payload (payloadFormat is BINARY). Adapt the binary field offsets to match your device protocol.

/**
* Decodes the incoming payload and returns a structured object containing telemetry data and attributes.
*
* @param {byte[]} input - The raw payload received as an array of bytes.
* @returns {Object} output - The structured output with decoded telemetry and attributes.
*/

function decodePayload(input) {
  // Initialize the output object with empty attributes and telemetry for clarity.
  var result = { attributes: {}, telemetry: {}};

  // Extract the timestamp from metadata (represented in milliseconds).
  var timestamp = metadata.ts; // ts is the timestamp parsed from the incoming message's time, or returns the current time if it cannot be parsed.

  if (metadata.payloadFormat == 'JSON') {
    // payloadFormat is 'JSON' when ThingPark sends a pre-decoded JSON payload
    // (DevEUI_uplink contains a "payload" object).
    // All fields from the decoded payload object are put directly into telemetry.
    var decoded = decodeToJson(input);
    result.telemetry = {
      ts: timestamp,
      values: decoded
    };
    return result;
  }

  // payloadFormat is 'BINARY' when raw hex payload is received (payload_hex field).

  // Decode serial number (SN) from the first 4 bytes of the payload.
  // Press '?' icon in the top right corner to learn more about built in helper functions and capabilities.
  result.attributes.sn = parseBytesToInt(input, 0, 4);

  // Combine the timestamp with decoded values and add it to the telemetry.
  result.telemetry = {
    ts: timestamp,
    values: {
      // Decode battery level from the 5th byte of the payload.
      battery: parseBytesToInt(input, 4, 1),
      // Decode temperature from the 6th and 7th bytes of the payload (divided by 100).
      temperature: parseBytesToInt(input, 5, 2) / 100.0,
      // Decode saturation from the 8th byte of the payload.
      saturation: parseBytesToInt(input, 7, 1)
    }
  };

  // Return the fully constructed output object.
  return result;
  // Same logic, less code:
  // return {
  //     attributes: {
  //         sn: parseBytesToInt(input, 0, 4)
  //     },
  //     telemetry: {
  //         ts: convertDateToTimestamp(metadata.time),
  //         values: {
  //             battery: parseBytesToInt(input, 4, 1),
  //             temperature: parseBytesToInt(input, 5, 2) / 100.0,
  //             saturation: parseBytesToInt(input, 7, 1)
  //         }
  //     }
  // };
}

var result = decodePayload(payload);
// Uncomment this code block to overwrite values set in the main configuration window. Useful if you extract device/asset/customer/group names from the payload;
// result.type = 'DEVICE'; // Entity type allows you to choose type of created entity. Can be 'DEVICE' or 'ASSET'.
// result.name = 'Temperature Sensor'; // Device or asset name (the value must be unique)
// result.profile = 'IndustrialSensorProfile'; // Device or asset profile name.
// result.customer = 'MyCustomer'; // If customer is not null - created entity will be assigned to customer with such name.
// result.group = 'SensorsGroup'; // If group is not null - created entity will be added to the entity group with such name.

// Return the final result object.
return result;

/**
* Decodes the incoming payload and returns a structured object containing telemetry data and attributes.
*
* @param {number[]} input - The raw payload received as an array of bytes.
* @returns {Object} output - The structured output with decoded telemetry and attributes.
*/

function decodePayload(input) {
  // Initialize the output object with empty attributes and telemetry for clarity.
  var result = { attributes: {}, telemetry: {}};

  // Extract the timestamp from metadata (represented in milliseconds).
  var timestamp = metadata.ts; // ts is the timestamp parsed from the incoming message's time, or returns the current time if it cannot be parsed.

  if (metadata.payloadFormat == 'JSON') {
    // payloadFormat is 'JSON' when ThingPark sends a pre-decoded JSON payload
    // (DevEUI_uplink contains a "payload" object instead of raw "payload_hex").
    // All fields from the decoded payload object are put directly into telemetry.
    var decoded = decodeToJson(input);
    result.telemetry = {
      ts: timestamp,
      values: decoded
    };
    return result;
  }

  // payloadFormat is 'BINARY' when raw hex payload is received (payload_hex field).

  // Decode serial number (SN) from the first 4 bytes of the payload.
  // Press '?' icon in the top right corner to learn more about built in helper functions and capabilities.
  result.attributes.sn = parseBytesToInt(input, 0, 4);

  // Initialize an object to store decoded key/value telemetry data.
  var values = {};

  // Decode battery level from the 5th byte of the payload.
  values.battery = parseBytesToInt(input, 4, 1);

  // Decode temperature from the 6th and 7th bytes of the payload (divided by 100).
  values.temperature = parseBytesToInt(input, 5, 2) / 100.0;

  // Decode saturation from the 8th byte of the payload.
  values.saturation = parseBytesToInt(input, 7, 1);

  // Combine the timestamp with values and add it to the telemetry.
  result.telemetry = {
    ts: timestamp,
    values: values
  };

  // Return the fully constructed output object.
  return result;
  // Same logic, less code:
  // return {
  //     attributes: {
  //         sn: parseBytesToInt(input, 0, 4)
  //     },
  //     telemetry: {
  //         ts: convertDateToTimestamp(metadata.time),
  //         values: {
  //             battery: parseBytesToInt(input, 4, 1),
  //             temperature: parseBytesToInt(input, 5, 2) / 100.0,
  //             saturation: parseBytesToInt(input, 7, 1)
  //         }
  //     }
  // };
}

var result = decodePayload(payload);
// Uncomment this code block to overwrite values set in the main configuration window. Useful if you extract device/asset/customer/group names from the payload;
// result.type = 'DEVICE'; // Entity type allows you to choose type of created entity. Can be 'DEVICE' or 'ASSET'.
// result.name = 'Temperature Sensor'; // Device or asset name (the value must be unique)
// result.profile = 'IndustrialSensorProfile'; // Device or asset profile name.
// result.customer = 'MyCustomer'; // If customer is not null - created entity will be assigned to customer with such name.
// result.group = 'SensorsGroup'; // If group is not null - created entity will be added to the entity group with such name.

// Return the final result object.
return result;

/**
* Converts a byte array to a string and parses it as JSON.
*
* @param {number[]} payload - The array of bytes.
* @returns {Object} - The parsed JSON object.
*/
function decodeToJson(payload) {
  return JSON.parse(String.fromCharCode.apply(String, payload));
}

/**
* Parse a slice of bytes from an array into an integer (big-endian).
*
* @param {number[]} input - The array of bytes.
* @param {number} offset - The starting index.
* @param {number} length - The number of bytes to convert.
* @returns {number} - The resulting integer.
*/
function parseBytesToInt(input, offset, length) {
  var result = 0;
  for (var i = offset; i < offset + length; i++) {
    result = (result << 8) | (input[i] & 0xFF);
  }
  return result;
}

What the Converter Receives

ThingsBoard passes two variables to the decoder:

This metadata object — available to the decoder script as metadata.xxx — is separate from the Metadata column shown on the integration and converter Events tabs (see Verify Converter Events), which displays integration-level context rather than these per-message fields.

Adapting the Decoder to Your Device

• Match your payload structure — update byte offsets, lengths, and field names in decodePayload to match your device’s binary specification.
• Add or remove fields — add more parseBytesToInt calls (or parseBytesToFloat, string extraction, etc.) for additional sensors; remove entries your device does not transmit.
• Use a pre-decoded payload — if your ThingPark application decodes the payload before forwarding it (DevEUI_uplink contains a payload object instead of payload_hex), metadata.payloadFormat is 'JSON' and the decoder already handles this path with decodeToJson(input) — no binary parsing needed.
• Override device identity from the payload — set result.name, result.profile, result.group, or result.customer to derive device identity from payload content rather than the Main decoding configuration template.

1. Go to Integrations center ⇾ Integrations and click + Add integration.

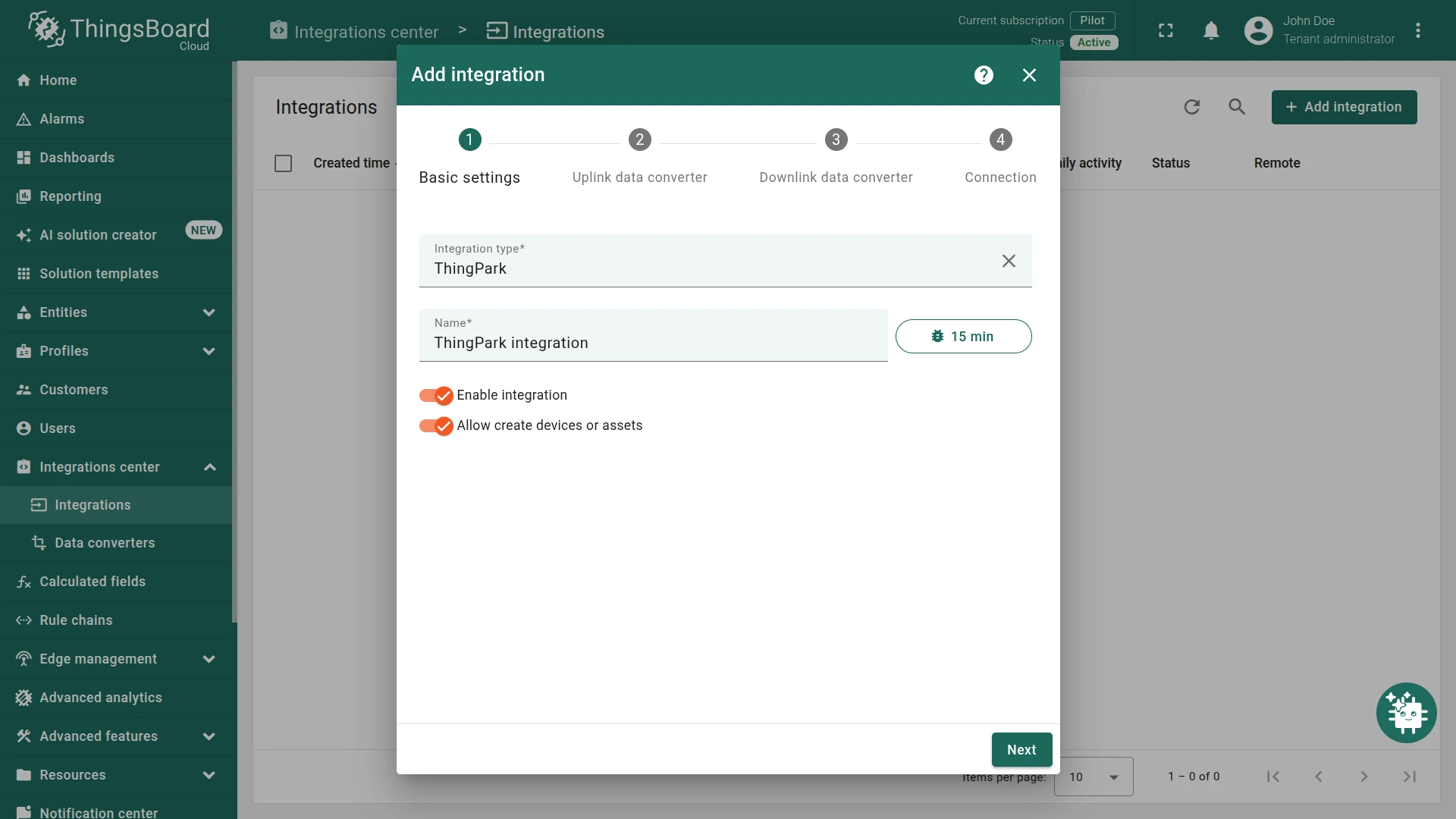

2. Basic settings:
   • Set Integration type to ThingPark.
   • Enter a Name, or keep the default ThingPark integration.
   • Leave Enable integration and Allow create devices or assets enabled so that devices are created automatically when data is received for the first time.
   • Click Next.

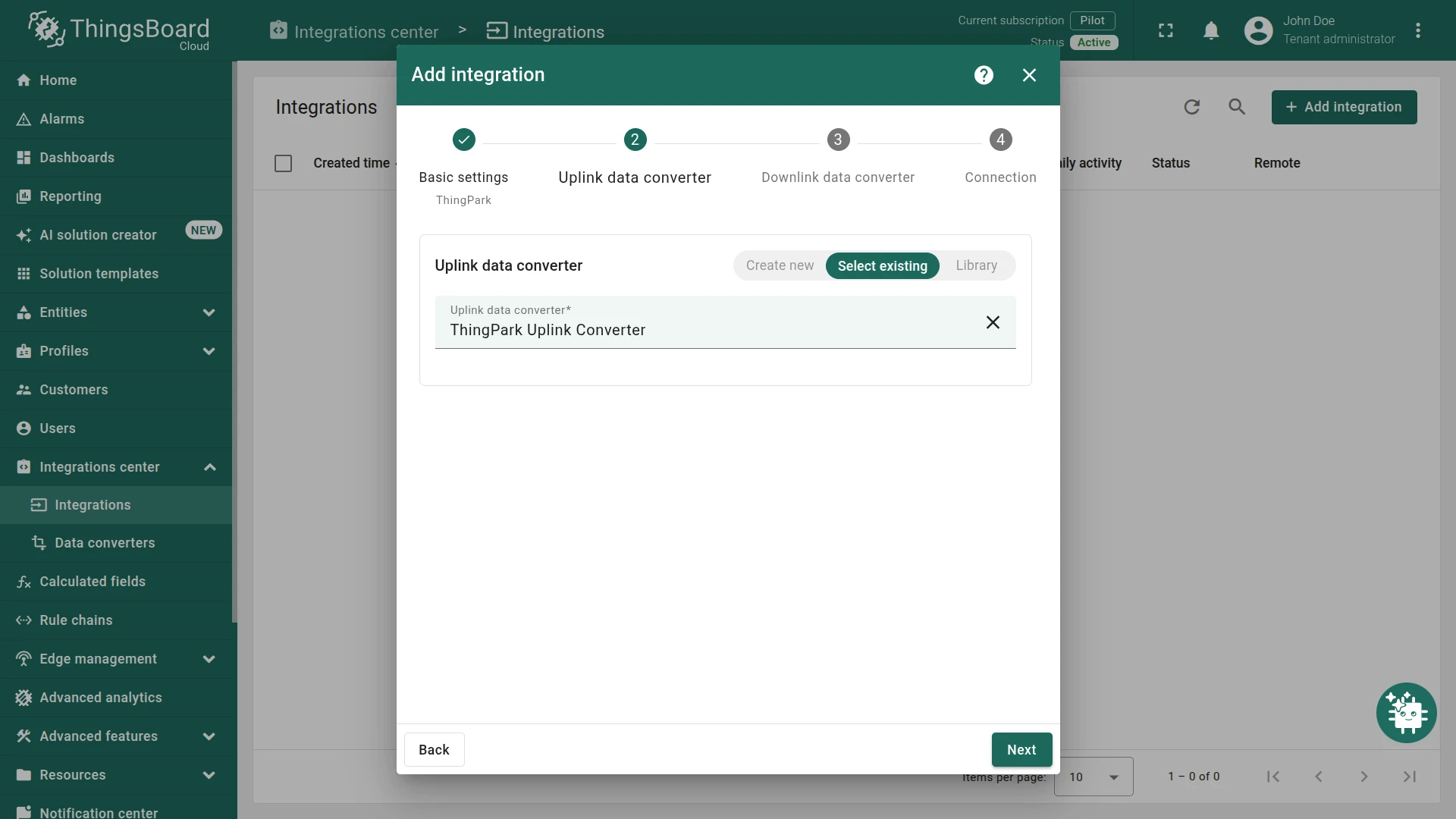

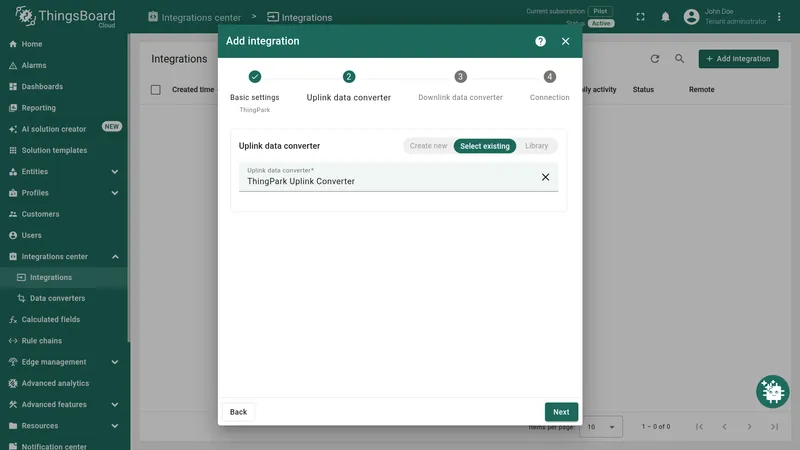

3. Uplink data converter:
   • Click Select existing and choose the ThingPark Uplink Converter created above, or click Create new to define the decoder inline.
   • Click Next.

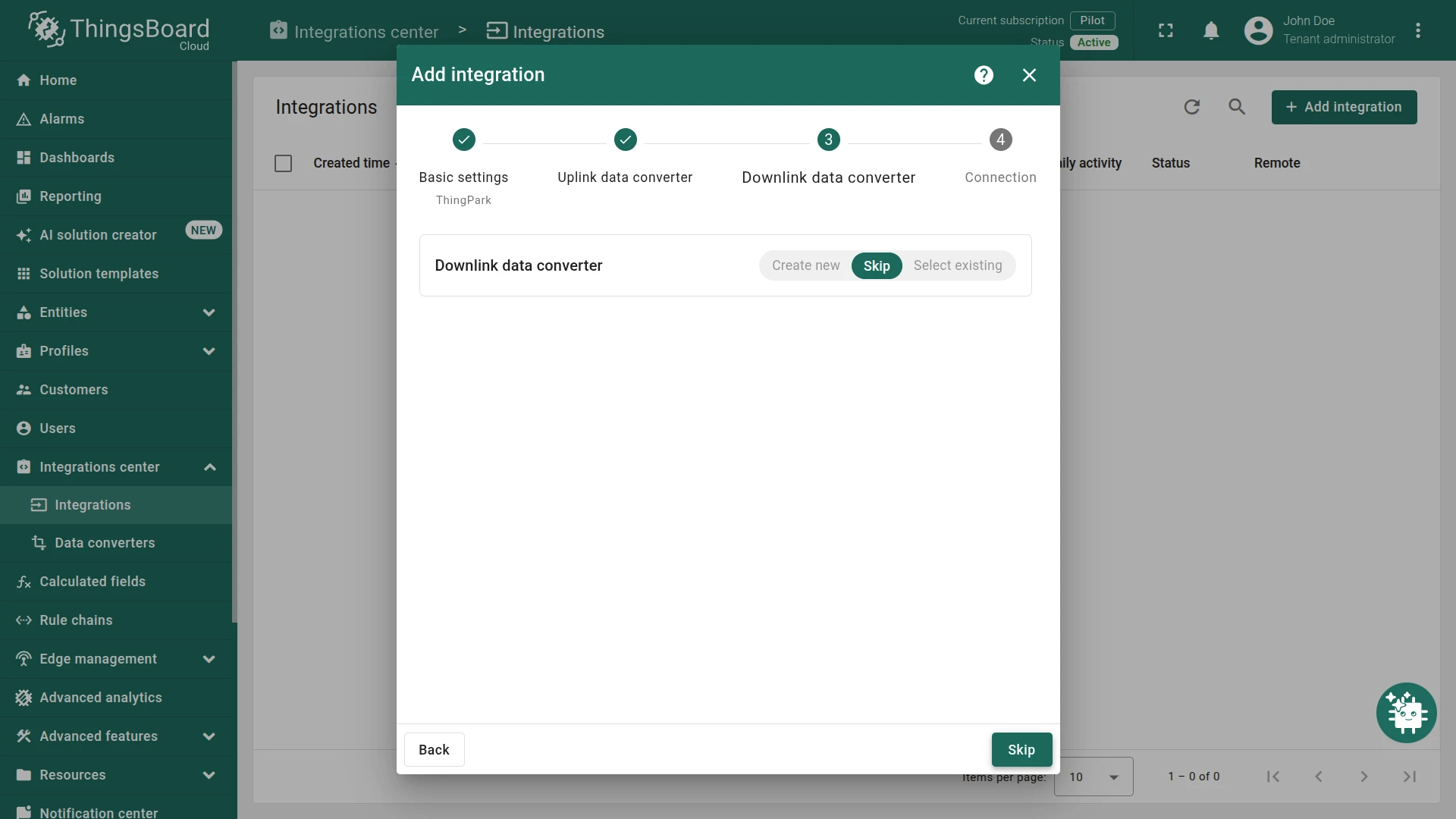

4. Downlink data converter:
   • Click Skip — a downlink converter is only needed when ThingsBoard must send commands back to devices. See Configure and Test Downlink to add one later.

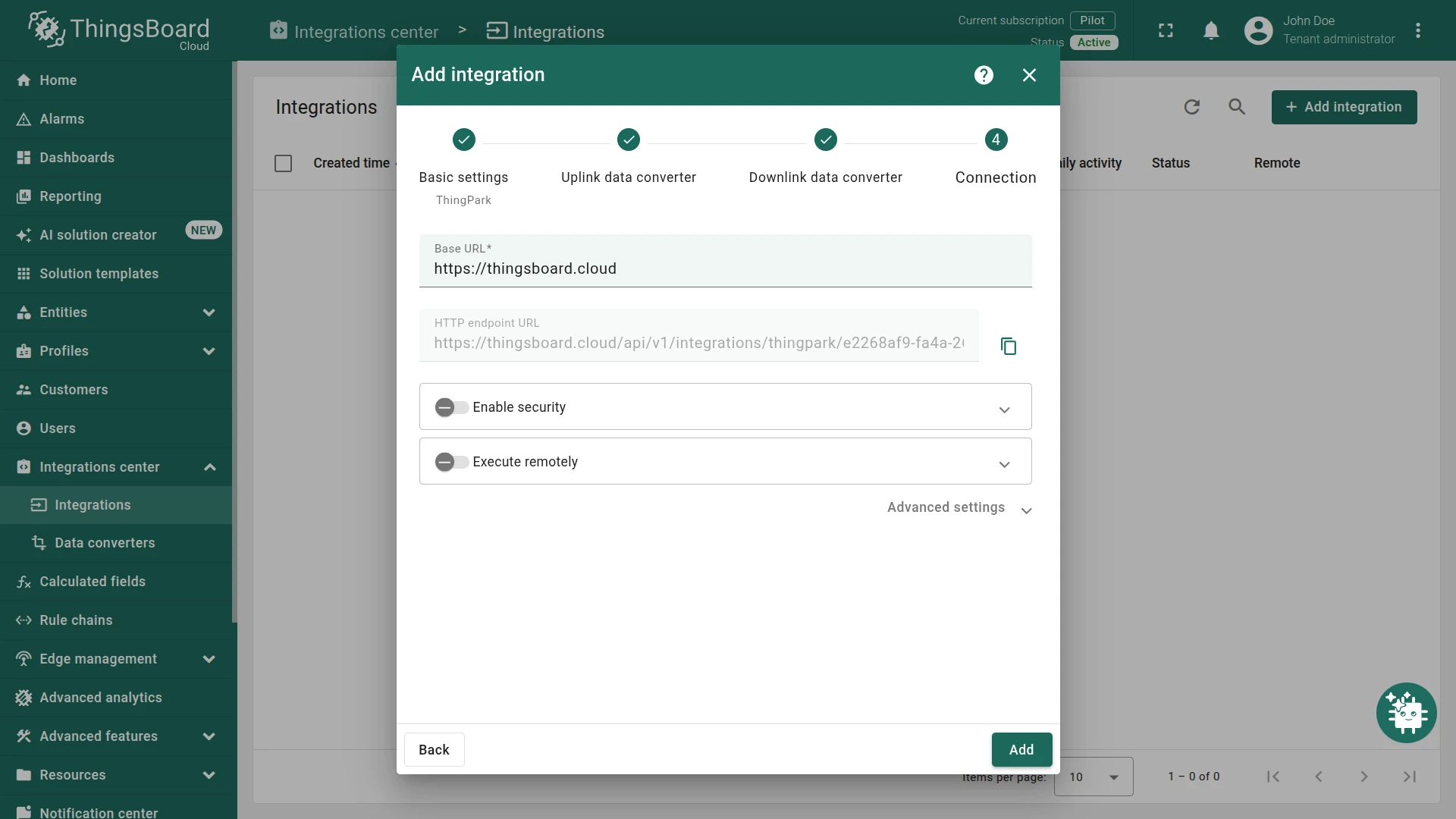

5. Connection:
   • Base URL — pre-filled with your ThingsBoard instance URL (for example, https://thingsboard.cloud).
   • Copy the HTTP endpoint URL — paste this into your ThingPark application as the destination routing address so Actility forwards uplinks to ThingsBoard.
6. Click Add to finish creating the integration.

Set Integration type to ThingPark, enter a name, and click Next. Click Select existing, choose ThingPark Uplink Converter, and click Next. Click Skip — the downlink converter can be added later if needed. Copy the HTTP endpoint URL and paste it into the ThingPark routing profile. Click Add to complete the integration.

Base URL

The base address of the ThingsBoard server used to construct the HTTP endpoint URL. For ThingsBoard Cloud, this is https://thingsboard.cloud.

HTTP Endpoint URL

The auto-generated webhook address for this integration, in the form:

https://{base-url}/api/v1/integrations/thingpark/{integration-id}

Paste this URL into your ThingPark application server routing profile as the destination so Actility forwards device uplink messages to ThingsBoard.

Enable Security

When enabled, ThingsBoard validates an HMAC-SHA256 signature on incoming requests. Configure:

Enable Security for Automatic Token Updates

When enabled, ThingPark can refresh the authentication token automatically without manual intervention.

Execute Remotely

When enabled, ThingsBoard generates an Integration key and Integration secret for running the integration outside the ThingsBoard cluster — useful when ThingsBoard is not publicly reachable from your ThingPark deployment. See Remote Integration.

Advanced Settings

• Replace response status from ‘No-Content’ to ‘OK’ — some ThingPark deployments expect an HTTP 200 OK response instead of 204 No Content. Enable this toggle if your ThingPark installation logs HTTP errors after a successful uplink delivery.
• Downlink URL — pre-filled with ThingPark’s downlink delivery endpoint (e.g. https://api.thingpark.com/thingpark/lrc/rest/downlink). Required only if you configure a downlink converter and rule chain — see Configure and Test Downlink.
• Description — optional free-text description for this integration.
• Metadata — key-value pairs injected into every uplink message as integrationMetadata in converter scripts; click Add to define entries.

Configure your ThingPark application to route uplink messages to the ThingsBoard HTTP endpoint URL copied in Create ThingPark Integration. In ThingPark Wireless OSS, this is set on the application’s routing or destination profile — see the official ThingPark documentation for the exact navigation in your ThingPark deployment, since menu names can differ between ThingPark plans and versions.

After the integration and converter are configured, and the device is transmitting through ThingPark, confirm that ThingsBoard receives, decodes, and stores the data correctly.

Wait for your device to transmit an uplink through ThingPark, or emulate one by sending an HTTP request directly to the ThingsBoard endpoint with curl — bypassing ThingPark entirely. This is useful to verify the integration and converter before connecting real hardware.

Replace $HTTP_ENDPOINT_URL with the HTTP endpoint URL copied in Create ThingPark Integration:

curl -v \
  -H "Content-Type: application/json" \
  -d '{"DevEUI_uplink":{"Time":"2026-03-20T14:42:52.653+00:00","DevEUI":"20635F00C5000660","FPort":1,"FCntUp":42,"payload_hex":"00BC614E5F092950","LrrRSSI":-85.0,"LrrSNR":7.25,"SpFact":7,"SubBand":"G0","Channel":"LC1"}}' \
  "$HTTP_ENDPOINT_URL"

The payload_hex value 00BC614E5F092950 matches the byte layout from the uplink converter: sn = 12345678, battery = 95, temperature = 23.45, saturation = 80.

Go to Integrations center ⇾ Integrations, open the ThingPark integration, and click the Events tab. With Event type set to Debug, a row appears with Type: Uplink and Status: OK. Click … in the Message column to inspect the raw DevEUI_uplink payload received from ThingPark.

Go to Integrations center ⇾ Data converters, open the uplink converter you configured for this integration, and click its Events tab. Click … in each column to inspect:

• In — the raw DevEUI_uplink JSON payload received by the converter.
• Out — the decoded result produced by the script: attributes.sn and telemetry.values (battery, temperature, saturation).
• Metadata — integration-level context, including integrationName and internal flags such as AS_ID, LrnDevEui, and LrnFPort.

Go to Entities ⇾ Devices. ThingsBoard automatically provisions a new device named Device <DevEUI> (e.g. Device 20635F00C5000660) on the first uplink, provided Allow create devices or assets is enabled. Open the device and check:

• Latest telemetry — battery, temperature, and saturation decoded by the script, alongside channel, data, fCnt, rssi, and snr extracted automatically from the ThingPark message by the Advanced decoding parameters.
• Client attributes — sn set by the script, alongside eui, fPort, spreadingFactor, and bandwidth extracted automatically.

Expected result: the device appears in Entities ⇾ Devices within seconds of the uplink, with telemetry and attributes matching the values above.

The downlink converter (encoder) transforms a Rule Engine message into the payload ThingsBoard sends back to the device. ThingsBoard posts the encoded payload to the Downlink URL — pre-filled under Advanced settings in the integration’s Connection step to https://api.thingpark.com/thingpark/lrc/rest/downlink; adjust it only if your ThingPark installation uses a different host. For the full encoder function reference, see Downlink data converter.

The encoder output must include two fields in metadata required for delivery:

1. Open the ThingPark integration and click the edit (pencil) icon.
2. Next to Downlink data converter, click Create new.
3. In the Add data converter dialog: enter a name (e.g. ThingPark Downlink Converter), paste the encoder function below, and click Add.
4. The converter is now assigned to the integration. Click Apply changes.

The encoder function:

// Encode downlink data from incoming Rule Engine message.
// msg - JSON message payload (e.g. { "state": "on" })
// msgType - message type, e.g. 'ATTRIBUTES_UPDATED'
// metadata - enriched by the Originator attributes node with device client attributes.
//            ThingsBoard prefixes client-scope attributes with "cs_":
//            metadata.cs_eui — Device EUI stored on first uplink (e.g. "20635F00C5000660")
//            metadata.cs_fPort — LoRaWAN frame port stored on first uplink (e.g. "1")

var eui = metadata.cs_eui;
if (eui == null) {
  raiseError("DevEUI is missing (expected metadata.cs_eui).");
}

// Read port from the device client attribute "fPort" (set per-device).
// Falls back to 1 if the attribute is not set.
var port = (metadata.cs_fPort != null && metadata.cs_fPort != '') ? parseInt(metadata.cs_fPort) : 1;

var result = {
  // Downlink data content type: JSON, TEXT, or BINARY (base64 format).
  contentType: "JSON",

  // Downlink data — serialise the full message payload as a JSON string.
  data: JSON.stringify(msg),

  // metadata must include DevEUI and fPort for ThingPark delivery.
  metadata: {
    "DevEUI": eui,
    "fPort": port
  }
};

return result;

// Encode downlink data from incoming Rule Engine message.
// msg - JSON message payload (e.g. { "state": "on" })
// msgType - message type, e.g. 'ATTRIBUTES_UPDATED'
// metadata - enriched by the Originator attributes node with device client attributes.
//            ThingsBoard prefixes client-scope attributes with "cs_":
//            metadata.cs_eui — Device EUI stored on first uplink (e.g. "20635F00C5000660")
//            metadata.cs_fPort — LoRaWAN frame port stored on first uplink (e.g. "1")

var eui = metadata.cs_eui;

// Read port from the device client attribute "fPort" (set per-device).
// Falls back to 1 if the attribute is not set.
var port = parseInt(metadata.cs_fPort) || 1;

var result = {
  // Downlink data content type: JSON, TEXT, or BINARY (base64 format).
  contentType: "JSON",

  // Downlink data — serialise the full message payload as a JSON string.
  data: JSON.stringify(msg),

  // metadata must include DevEUI and fPort for ThingPark delivery.
  metadata: {
    "DevEUI": eui,
    "fPort": port
  }
};

return result;

To trigger a downlink when an attribute changes (for example, a shared attribute update), add two nodes to the Root Rule Chain: an Originator attributes node (Enrichment category) that reads the device eui and fPort client attributes into message metadata, and an Integration Downlink node (Action category) that forwards the encoded message to the ThingPark integration.

1. Open Rule Chains ⇾ Root Rule Chain.
2. In the node panel, search for originator attributes. The node appears under the Enrichment category. Drag it onto the canvas.
3. Configure the node:
   • Name — Fetch eui and fPort.
   • Under Client attributes, add the following keys: eui and fPort.
   • Set Add originator attributes to to Metadata.
   • Click Add.
4. In the node panel, search for integration downlink. The node appears under the Action category. Drag it onto the canvas.
5. Configure the node:
   • Name — Downlink to ThingPark.
   • Integration — select your ThingPark integration.
   • Click Add.
6. Connect the Message Type Switch node to the Fetch eui and fPort node using the Post attributes and Attributes Updated relations.
7. Connect the Fetch eui and fPort node to the Downlink to ThingPark node using the Success relation.
8. Click Apply changes.

Adding or updating a shared attribute triggers the Rule Chain, which runs the downlink converter and posts the encoded command to ThingPark.

1. Go to Entities ⇾ Devices, select your device (e.g. Device 20635F00C5000660), and open the Attributes tab.
2. Switch to Shared attributes and click +.
3. Enter a key (e.g. powerState) and a value (e.g. on), then click Add.

Go to Integrations center ⇾ Data converters, open ThingPark Downlink Converter, and click the Events tab — a Downlink event should appear in the list:

• In — the ATTRIBUTES_UPDATED message containing powerState.
• Out — the encoded JSON payload, with DevEUI and fPort set in metadata.

Open the ThingPark Wireless Logger and confirm a downlink entry for the device — this indicates ThingsBoard successfully posted the payload to the Downlink URL for delivery to the device over LoRaWAN.

• Integrations Overview — how ThingsBoard connects to external platforms and how uplink/downlink flow works
• ThingPark Enterprise Integration — connect to a private, on-premise ThingPark Enterprise deployment instead of the hosted ThingPark network server
• Uplink Data Converter — full decoder function reference: input parameters, output fields, and scripting patterns
• Downlink Data Converter — full encoder function reference: input parameters, output fields, and scripting patterns
• Remote Integration — run the integration outside the ThingsBoard server to reach ThingPark from a private network
• TBEL scripting reference — built-in functions and operators for writing converter scripts
• Rule Engine — how the Root Rule Chain routes shared attribute updates to the downlink converter
• Abeeway Trackers with Actility ThingPark — complete end-to-end example: registering Abeeway trackers in ThingPark, building uplink and downlink converters, and visualizing GPS, battery, and temperature telemetry on a dashboard
