UDP Integration

Doc info icon
ThingsBoard PE Feature

Only Professional Edition supports Platform Integrations feature.
Use ThingsBoard Cloud or install your own platform instance.

UDP Integration allows to stream data from devices which use a UDP protocol to ThingsBoard and converts payloads of these devices into the ThingsBoard format.

Doc info icon

Please note UDP Integration can be started only as remote integration. It could be started on the same machine, where TB instance is running, or you can start in on another machine, that has access over the network to the TB instance.

Please review the integration diagram to learn more.


Prerequisites

In this tutorial, we will use:

  • The instance of the ThingsBoard Professional Edition installed locally;
  • UDP integration, running externally and connected to the ThingsBoard PE instance;

  • echo command which intended to display a line of text, and will redirect it’s output to netcat (nc) utility;
  • netcat (nc) utility to establish UDP connections, receive data from there and transfer them;

Suppose we have a sensor sending current temperature and humidity readings. Sensor SN-001 sends data to UDP integration on port 11560 of the machine where the UDP integration is running.

For demo purposes we assume that our device is smart enough to send data in 4 different payload types. You can select payload type based on your device capabilities and business cases:

In this case, the payload looks like this:

1
SN-001,default,temperature,25.7,humidity,69

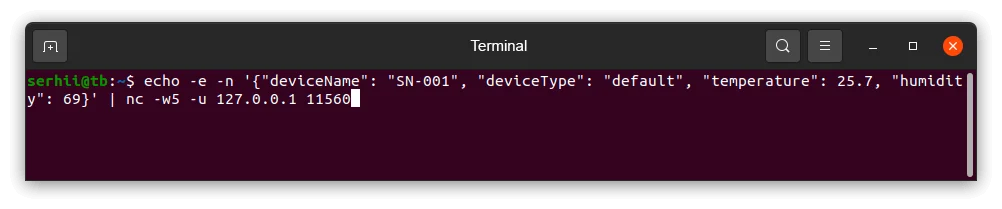

In this case, the payload looks like this:

1
2
3
4
5
6
{
  "deviceName": "SN-001",
  "deviceType": "default",
  "temperature": 25.7,
  "humidity": 69
}

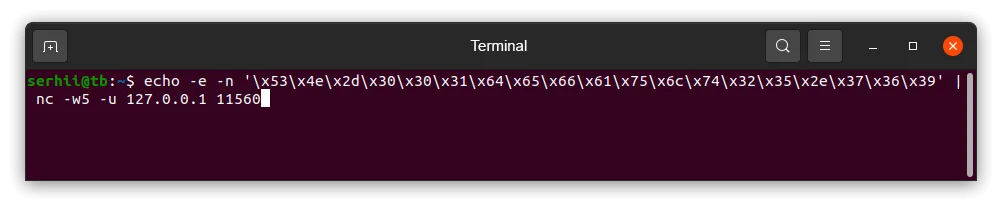

In this case, the payload looks like this:

1
\x53\x4e\x2d\x30\x30\x31\x64\x65\x66\x61\x75\x6c\x74\x32\x35\x2e\x37\x36\x39

Here is the description of the bytes in this payload:

  • 0-5 bytes - \x53\x4e\x2d\x30\x30\x31 - device name. If we convert it to text - SN-001;
  • 6-12 bytes - \x64\x65\x66\x61\x75\x6c\x74 - device type. If we convert it to text - default;
  • 13-16 bytes - \x32\x35\x2e\x37 - temperature telemetry. If we convert it to text - 25.7;
  • 17-18 bytes - \x36\x39 - humidity telemetry. If we convert it to text - 69.

In this case payload is hexadecimal string:

1
534e2d30303164656661756c7432352e373639

Here is the description of the bytes in this payload:

  • 0-5 bytes - 534e2d303031 - device name. If we convert it to text - SN-001;
  • 6-12 byte - 64656661756c74 - device type. If we convert it to text - default;
  • 13-16 byte - 32352e37 - temperature telemetry. If we convert it to text: - 25.7;
  • 17-18 byte - 3639 - humidity telemetry. If we convert it to text: - 69.
Doc info icon

Please note
On the machine, where UDP Integration is running, port 11560 must be opened for incoming connections - nc utility must be able to connect to UDP socket. In case you are running it locally, it should be fine without any additional changes.

Add UDP integration

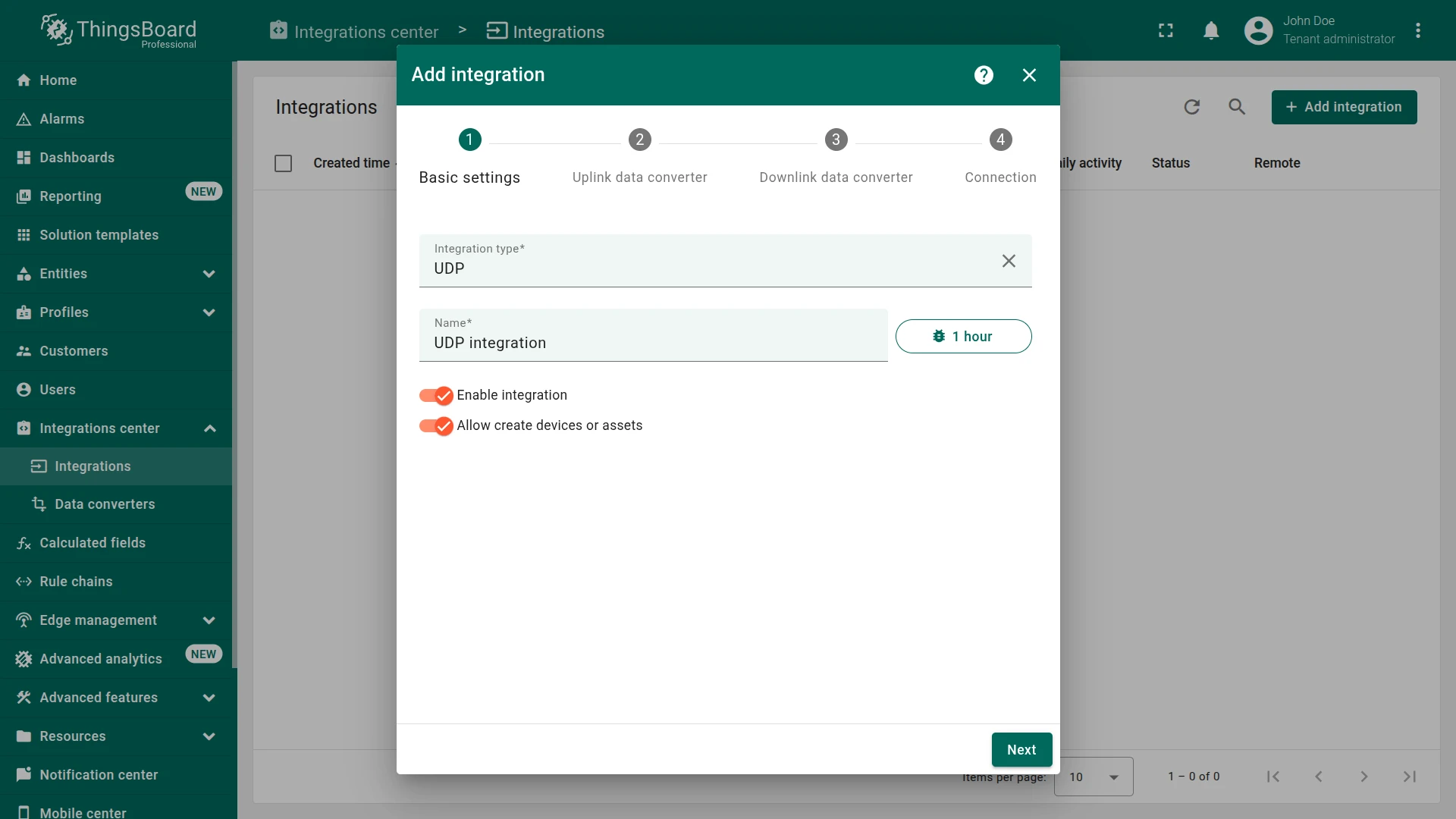

1. Basic settings.

Go to the “Integrations” page of the “Integrations center” section. Click “plus” button to start adding new integration. Select type “UDP” integration and click “Next”;



2. Uplink data converter.

An uplink converter that is a script for parsing and transforming the data received by UDP integration to format that ThingsBoard uses. deviceName and deviceType are required, while attributes and telemetry are optional. attributes and telemetry are flat key-value objects. Nested objects are not supported.

Choose device payload type to for decoder configuration:

One can use either TBEL (ThingsBoard expression language) or JavaScript to develop user defined functions. We recommend utilizing TBEL as it’s execution in ThingsBoard is much more efficient compared to JS.

Now copy the following TBEL script:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
/** Decoder **/

// decode payload to string
var strArray = decodeToString(payload);
var payloadArray = strArray.replaceAll("\"", "").replaceAll("\\\\n", "").split(',');

var telemetryPayload = {};
for (var i = 2; i < payloadArray.length; i = i + 2) {
    var telemetryKey = payloadArray[i];
    var telemetryValue = parseFloat(payloadArray[i + 1]);
    telemetryPayload[telemetryKey] = telemetryValue;
}

// Result object with device attributes/telemetry data
var result = {
    deviceName: payloadArray[0],
    deviceType: payloadArray[1],
    telemetry: telemetryPayload,
    attributes: {}
};

/** Helper functions 'decodeToString' and 'decodeToJson' are already built-in **/

return result;


If you want to use the JavaScript decoder function, use this script:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
/** Decoder **/

// decode payload to string
var strArray = decodeToString(payload);
var payloadArray = strArray.replace(/\"/g, "").replace(/\s/g, "").replace(/\\n/g, "").split(',');

var telemetryPayload = {};
for (var i = 2; i < payloadArray.length; i = i + 2) {
    var telemetryKey = payloadArray[i];
    var telemetryValue = parseFloat(payloadArray[i + 1]);
    telemetryPayload[telemetryKey] = telemetryValue;
}

// Result object with device attributes/telemetry data
var result = {
    deviceName: payloadArray[0],
    deviceType: payloadArray[1],
    telemetry: telemetryPayload,
    attributes: {}
  };

/** Helper functions **/

function decodeToString(payload) {
   return String.fromCharCode.apply(String, payload);
}

return result;


Paste the copied script to the decoder function section. Then, click “Next”;


Doc info icon

NOTE
Although the Debug mode is very useful for development and troubleshooting, leaving it enabled in production mode may tremendously increase the disk space, used by the database, because all the debugging data is stored there. It is highly recommended to turn the Debug mode off when done debugging.

One can use either TBEL (ThingsBoard expression language) or JavaScript to develop user defined functions. We recommend utilizing TBEL as it’s execution in ThingsBoard is much more efficient compared to JS.

Now copy the following TBEL script:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
/** Decoder **/

// decode payload to JSON
var data = decodeToJson(payload);

// Result object with device/asset attributes/telemetry data

var deviceName = data.deviceName;
var deviceType = data.deviceType;
var result = {
    deviceName: deviceName,
    deviceType: deviceType,
    attributes: {},
    telemetry: {
        temperature: data.temperature,
        humidity: data.humidity
    }
};

/** Helper functions 'decodeToString' and 'decodeToJson' are already built-in **/

return result;


If you want to use the JavaScript decoder function, use this script:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
/** Decoder **/

// decode payload to JSON
var data = decodeToJson(payload);

// Result object with device/asset attributes/telemetry data

var deviceName = data.deviceName;
var deviceType = data.deviceType;
var result = {
    deviceName: deviceName,
    deviceType: deviceType,
    attributes: {},
    telemetry: {
        temperature: data.temperature,
        humidity: data.humidity
   }
};

/** Helper functions **/

function decodeToString(payload) {
   return String.fromCharCode.apply(String, payload);
}

function decodeToJson(payload) {
   // covert payload to string.
   var str = decodeToString(payload);

   // parse string to JSON
   var data = JSON.parse(str);
   return data;
}

return result;


Paste the copied script to the decoder function section. Then, click “Next”;


Doc info icon

NOTE
Although the Debug mode is very useful for development and troubleshooting, leaving it enabled in production mode may tremendously increase the disk space, used by the database, because all the debugging data is stored there. It is highly recommended to turn the Debug mode off when done debugging.

One can use either TBEL (ThingsBoard expression language) or JavaScript to develop user defined functions. We recommend utilizing TBEL as it’s execution in ThingsBoard is much more efficient compared to JS.

Now copy the following TBEL script:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
/** Decoder **/

// decode payload to string
var payloadStr = decodeToString(payload);

// decode payload to JSON
// var data = decodeToJson(payload);

var deviceName = payloadStr.substring(0,6);
var deviceType = payloadStr.substring(6,13);

// Result object with device/asset attributes/telemetry data
var result = {
   deviceName: deviceName,
   deviceType: deviceType,
   attributes: {},
   telemetry: {
       temperature: parseFloat(payloadStr.substring(13,17)),
       humidity: parseFloat(payloadStr.substring(17,19))
   }
};

/** Helper functions 'decodeToString' and 'decodeToJson' are already built-in **/

return result;


If you want to use the JavaScript decoder function, use this script:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
/** Decoder **/

// decode payload to string
var payloadStr = decodeToString(payload);

// decode payload to JSON
// var data = decodeToJson(payload);

var deviceName = payloadStr.substring(0,6);
var deviceType = payloadStr.substring(6,13);

// Result object with device/asset attributes/telemetry data
var result = {
   deviceName: deviceName,
   deviceType: deviceType,
   attributes: {},
   telemetry: {
       temperature: parseFloat(payloadStr.substring(13,17)),
       humidity: parseFloat(payloadStr.substring(17,19))
   }
};

/** Helper functions **/

function decodeToString(payload) {
   return String.fromCharCode.apply(String, payload);
}

function decodeToJson(payload) {
   // covert payload to string.
   var str = decodeToString(payload);

   // parse string to JSON
   var data = JSON.parse(str);
   return data;
}

return result;


Paste the copied script to the decoder function section. Then, click “Next”;


Doc info icon

NOTE
Although the Debug mode is very useful for development and troubleshooting, leaving it enabled in production mode may tremendously increase the disk space, used by the database, because all the debugging data is stored there. It is highly recommended to turn the Debug mode off when done debugging.

One can use either TBEL (ThingsBoard expression language) or JavaScript to develop user defined functions. We recommend utilizing TBEL as it’s execution in ThingsBoard is much more efficient compared to JS.

Now copy the following TBEL script:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
/** Decoder **/

// decode payload to JSON
var data = decodeToJson(payload).reports[0].value;

// Result object with device telemetry data
var result = {
    deviceName: hexToString(data.substring(0, 12)),
    deviceType: hexToString(data.substring(12, 26)),
    telemetry: {
        temperature: parseFloat(hexToString(data.substring(26, 34))),
        humidity: parseFloat(hexToString(data.substring(34, 38))),
    }
};

/** Helper functions **/

// Hexadecimal string to string
function hexToString(hex) {
    return bytesToString(hexToBytes(hex));
}

return result;


If you want to use the JavaScript decoder function, use this script:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
/** Decoder **/

// decode payload to JSON
var data = decodeToJson(payload).reports[0].value;

// Result object with device telemetry data
var result = {
    deviceName: hexToString(data.substring(0, 12)),
    deviceType: hexToString(data.substring(12, 26)),
    telemetry: {
        temperature: parseFloat(hexToString(data.substring(26, 34))),
        humidity: parseFloat(hexToString(data.substring(34, 38))),
    }
};

/** Helper functions **/

function decodeToString(payload) {
    return String.fromCharCode.apply(String, payload);
}

// Hexadecimal string to string
function hexToString(hex) {
    var str = '';
    for (var i = 0; i < hex.length; i += 2) {
        var notNullValue = parseInt(hex.substr(i, 2), 16);
        if (notNullValue) {
            str += String.fromCharCode(notNullValue);
        }
    }
    return str;
}

function decodeToJson(payload) {
    // convert payload to string.
    var str = decodeToString(payload);

    // parse string to JSON
    var data = JSON.parse(str);
    return data;
}

return result;


Paste the copied script to the decoder function section. Then, click “Next”;


Doc info icon

NOTE
Although the Debug mode is very useful for development and troubleshooting, leaving it enabled in production mode may tremendously increase the disk space, used by the database, because all the debugging data is stored there. It is highly recommended to turn the Debug mode off when done debugging.

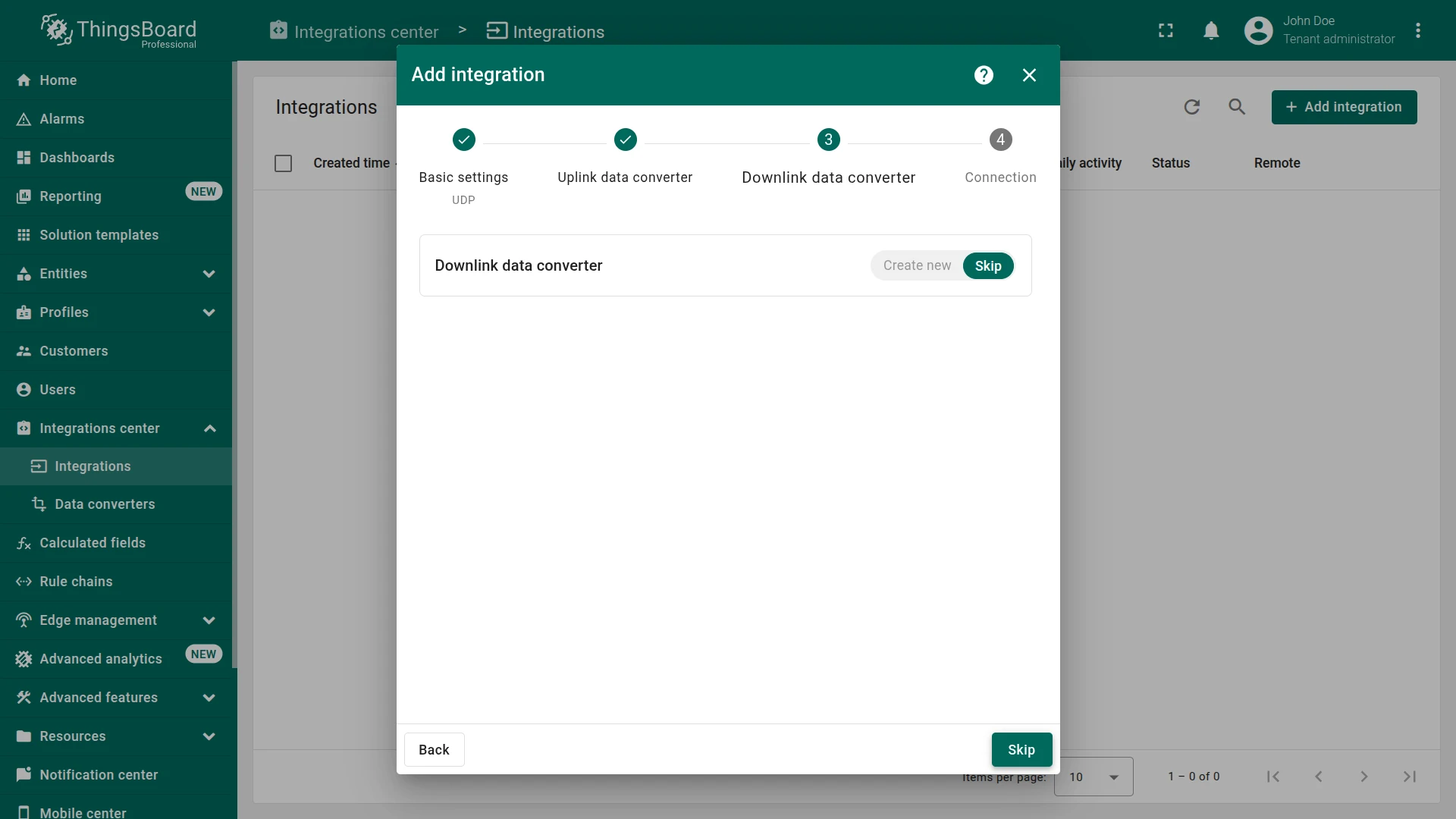

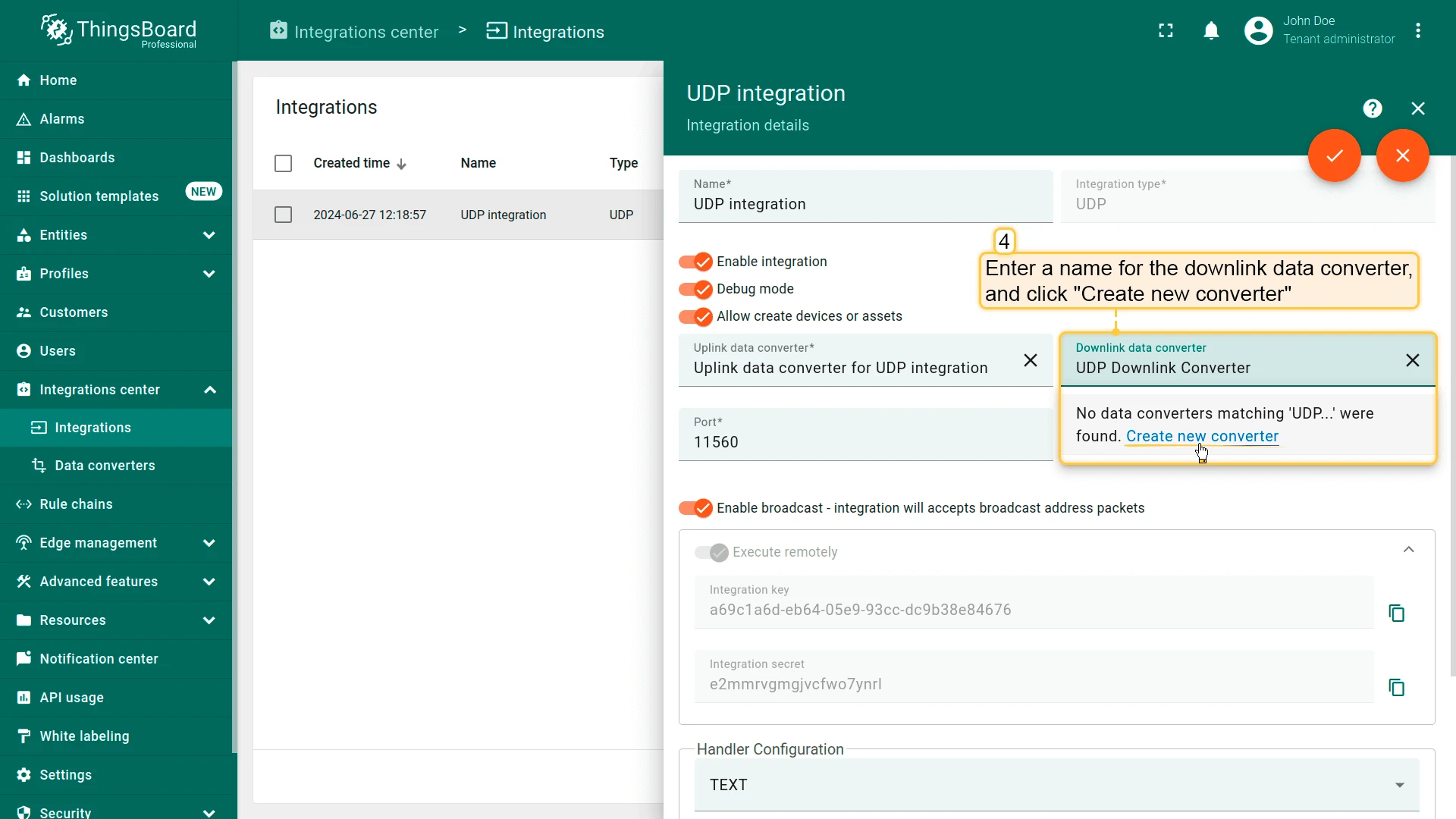

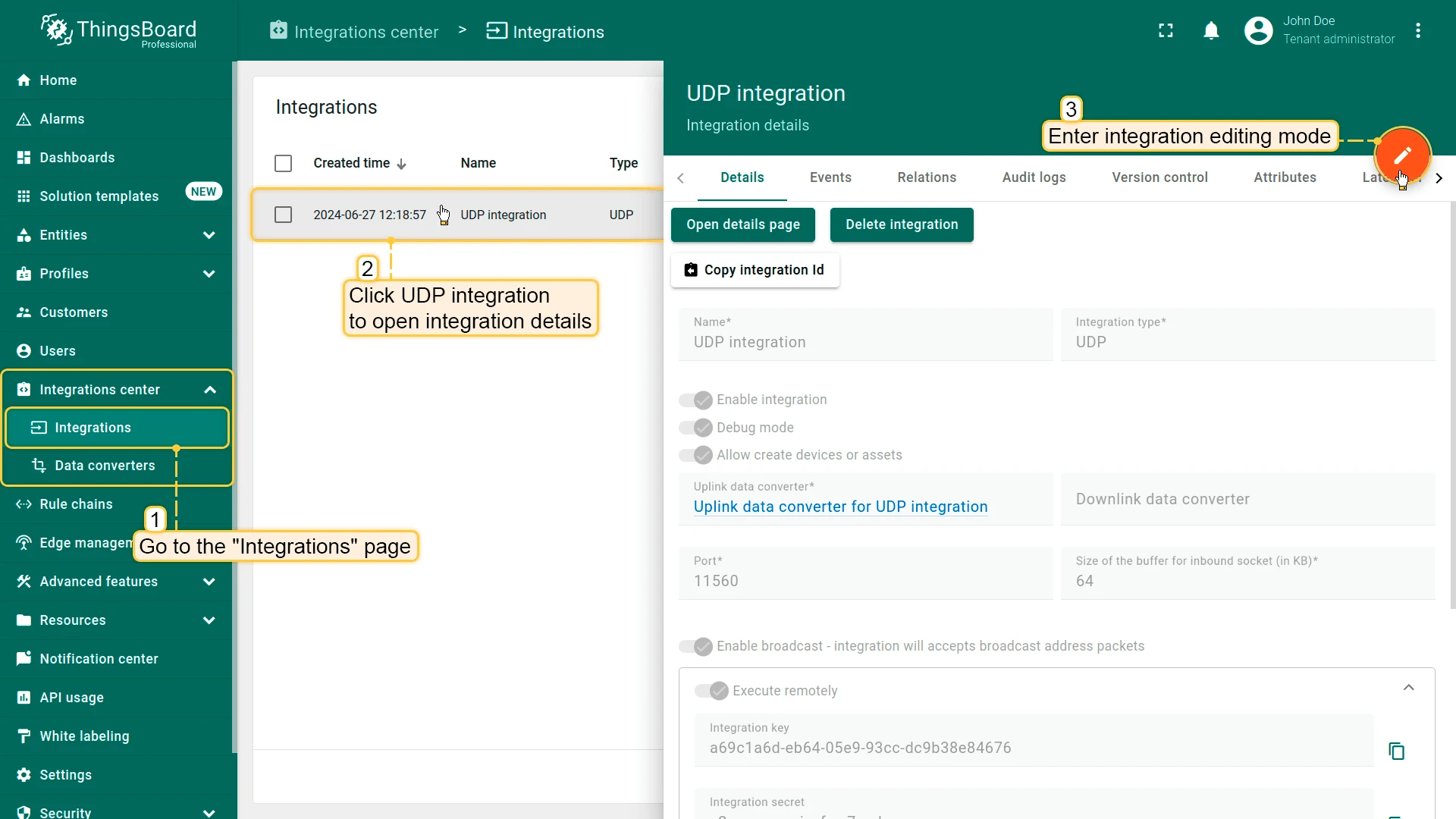

3. Downlink data converter.

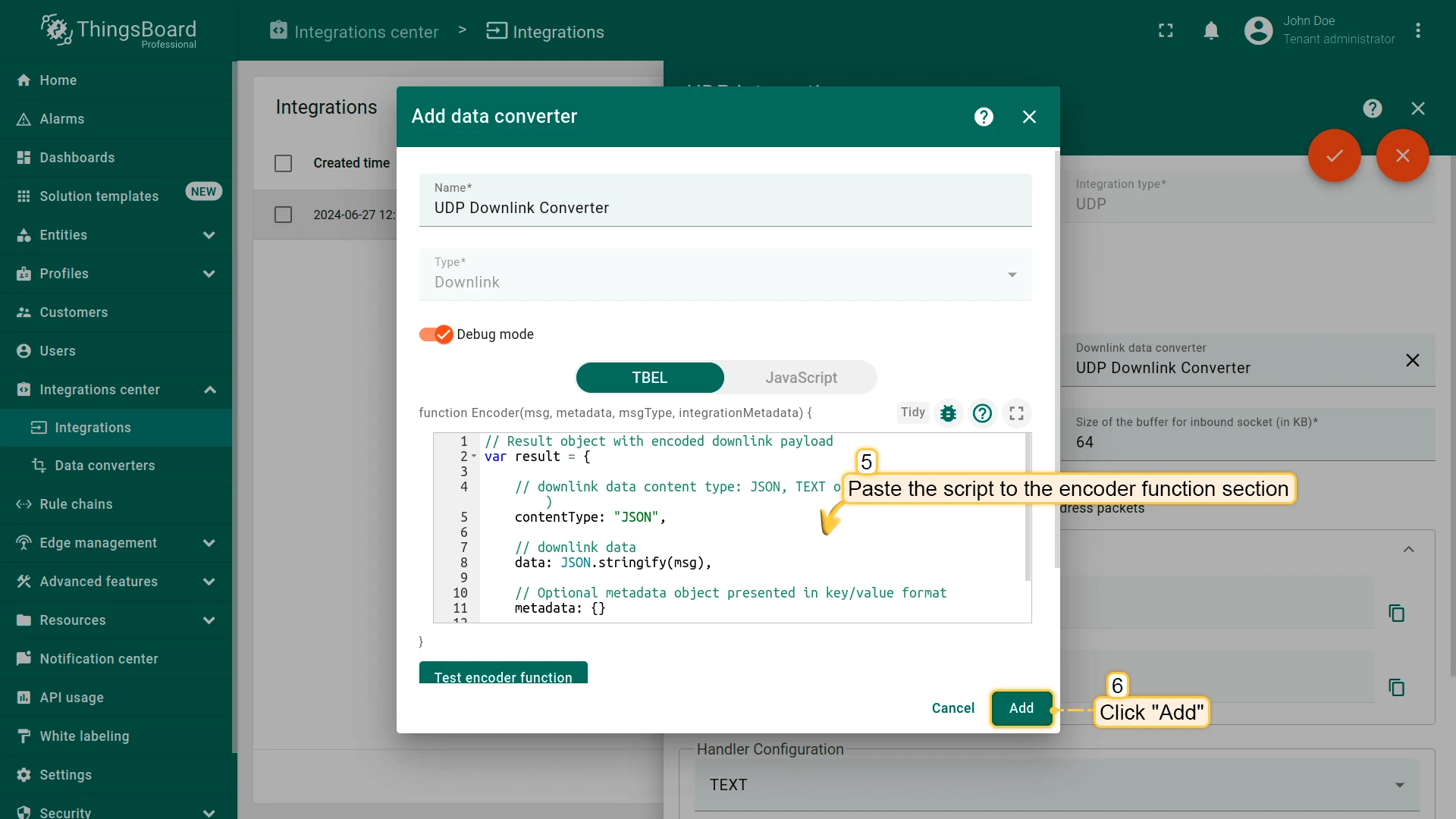

At the step of adding a downlink converter, you can also select a previously created or create a new downlink converter. But for now, leave the “Downlink data converter” field empty. Click “Skip”;

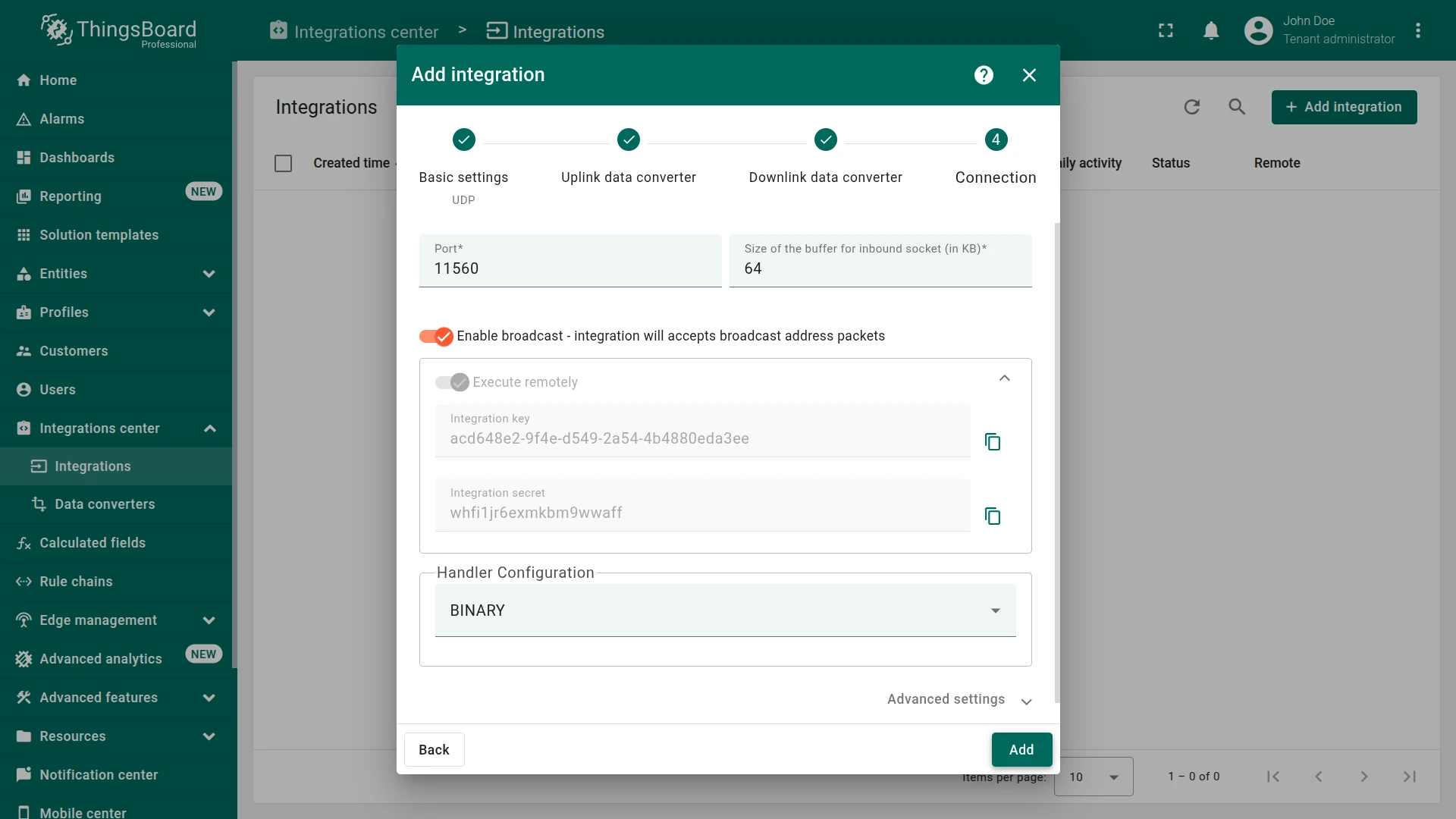

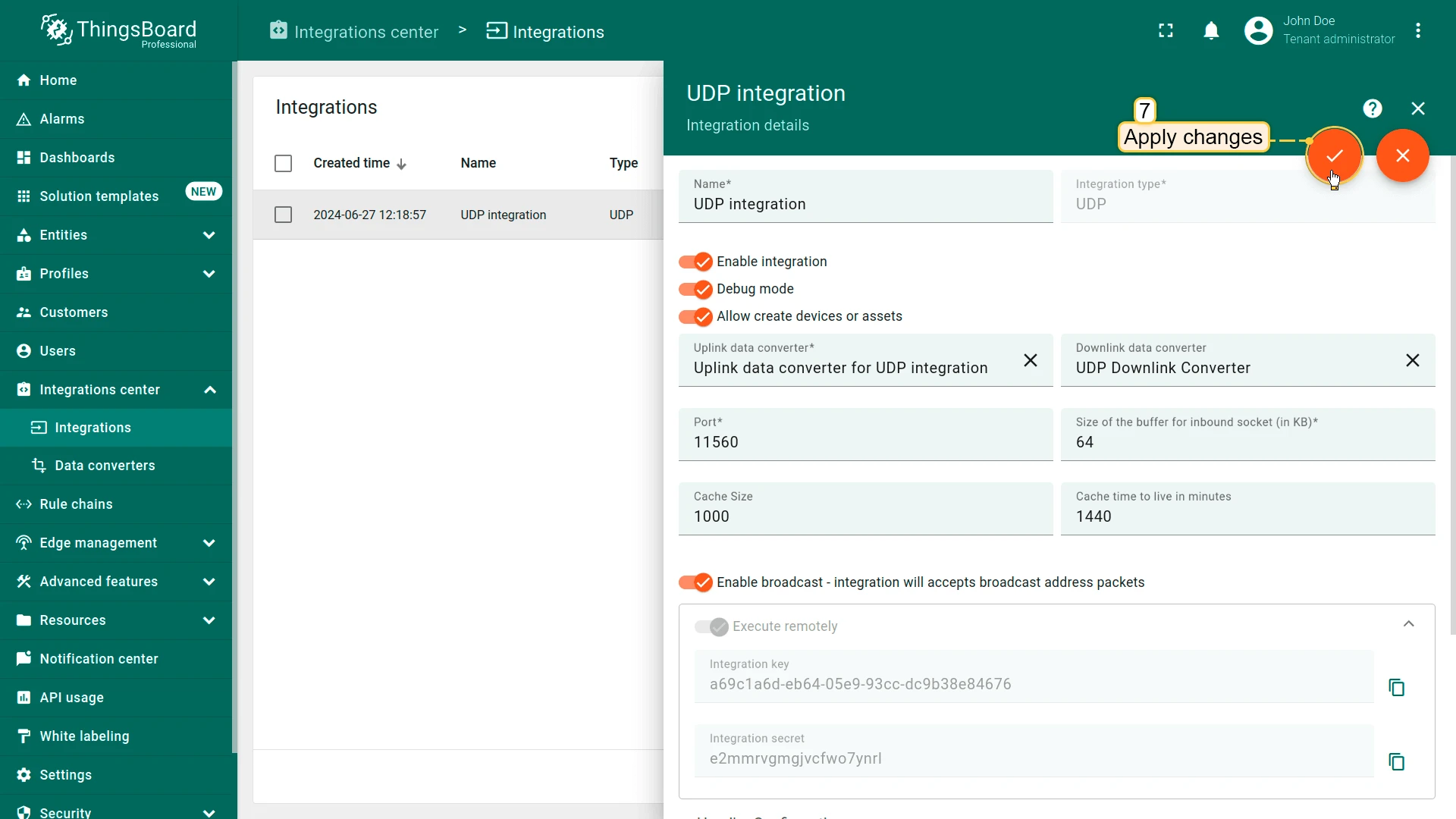

4. Connection.

As we mentioned earlier, “Execute remotely” option is checked and can not be modified - UDP Integration can be only remote type.

By default, UDP Integration will use 11560 port, but you can change this to any available port in your case.

Please note down Integration key and Integration secret - we will use these values later in the configuration on the remote UDP Integration itself.

We leave the Enable broadcast - integration will accepts broadcast address packets options by default. This flag indicates that integration will accept UDP packets sent to the broadcast address.


Choose device payload type for Handler Configuration:

Please select Handler Type as TEXT.


To parse the payload properly, please make sure that next values are set:

  • Charset Name - incoming bytes will be converted to string using provided charset; Leave it by default for this demo - UTF-8;

Click “Add” to finish adding integration.


Please select Handler Type as JSON.


Click “Add” to finish adding integration.


Please select Handler Type as BINARY.


Click “Add” to finish adding integration.


Please select Handler Type as HEX.


Click “Add” to finish adding integration.


Installing and running external UDP integration

Please refer to the remote integration guide and install UDP integration service locally or on separate machine.

Use Integration key and Integration secret from the above section for your UDP integration configuration.

Once ThingsBoard UDP integration has been created, the UDP server starts, and then it waits for data from the devices.

Choose device payload type to send uplink message:

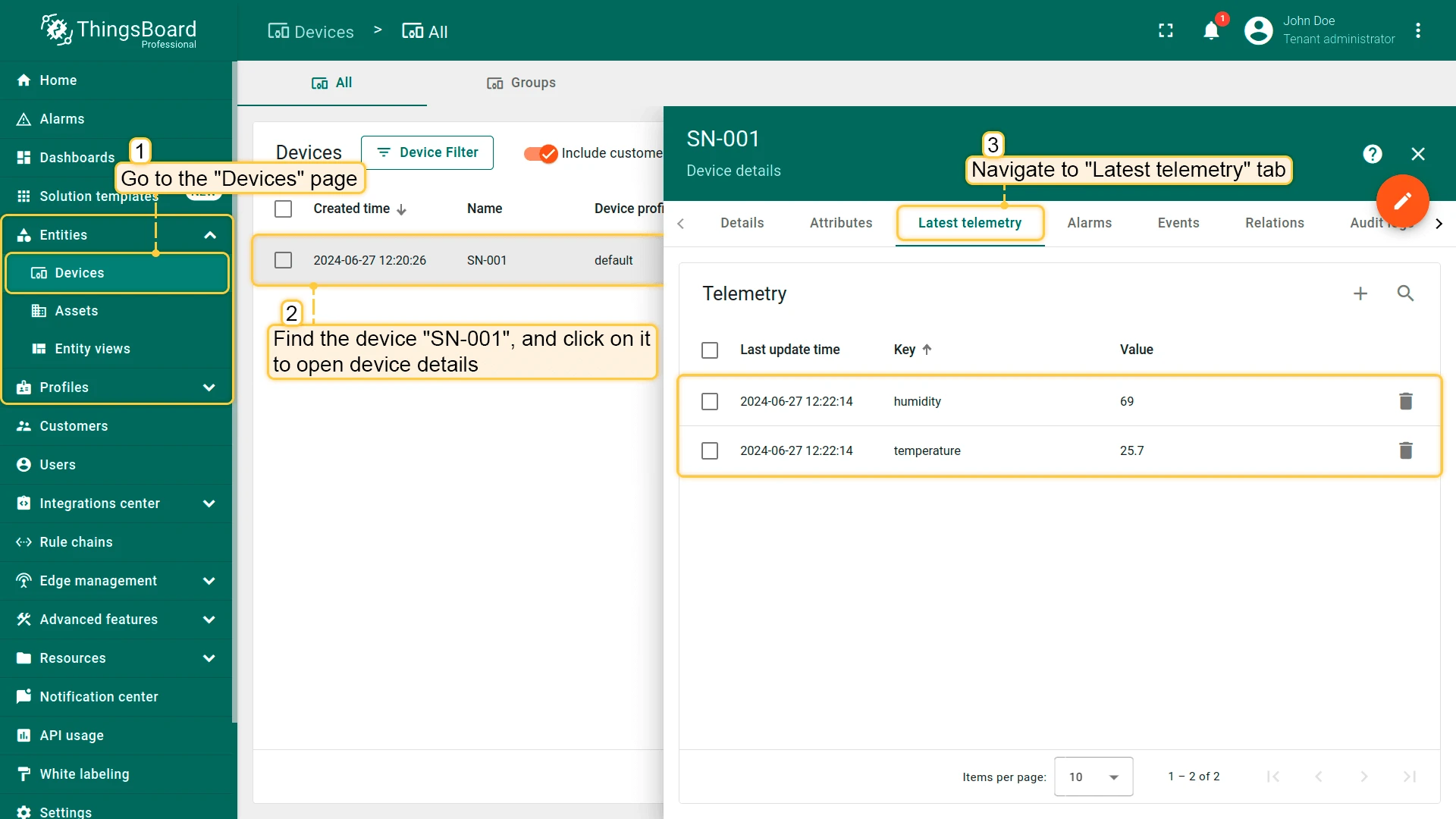

Once you go to “Devices” page you should find a SN-001 device provisioned by the UDP integration. Click the device, navigate to the “Latest telemetry” tab to see the “temperature” key and its value (25.7) there and also the “humidity” key and its value (69) there as well.


For sending Downlink messages from Thingsboard to the device, we need to define a downlink converter.

One can use either TBEL (ThingsBoard expression language) or JavaScript to develop user defined functions. We recommend utilizing TBEL as it’s execution in ThingsBoard is much more efficient compared to JS.

To add a downlink data converter to the UDP integration, follow these steps:

  • Go to the “Integrations” page, click UDP integration to open its details, and enter integration editing mode by clicking the “pencil” icon;

  • Enter a name for the downlink data converter and click “Create new converter”;

  • Paste the script to the encoder function section, and click “Add”;

  • Apply changes.

Doc info icon

Optionally, configure Cache Size and Cache time to live in minutes - features, that helps to avoid memory leak when we are storing connections (able just for UDP Downlink).
Cache Size - maximum size of messages for UDP client.
Cache time to live in minutes - time to storage messages.

Modify Root Rule Chain

When integration configured and ready to use, we need to go to “Rule Chains” page and configure the “Root Rule Chain” so that messages like “Attributes updated” and “Post attributes” are forwarded to the downlink data converter:

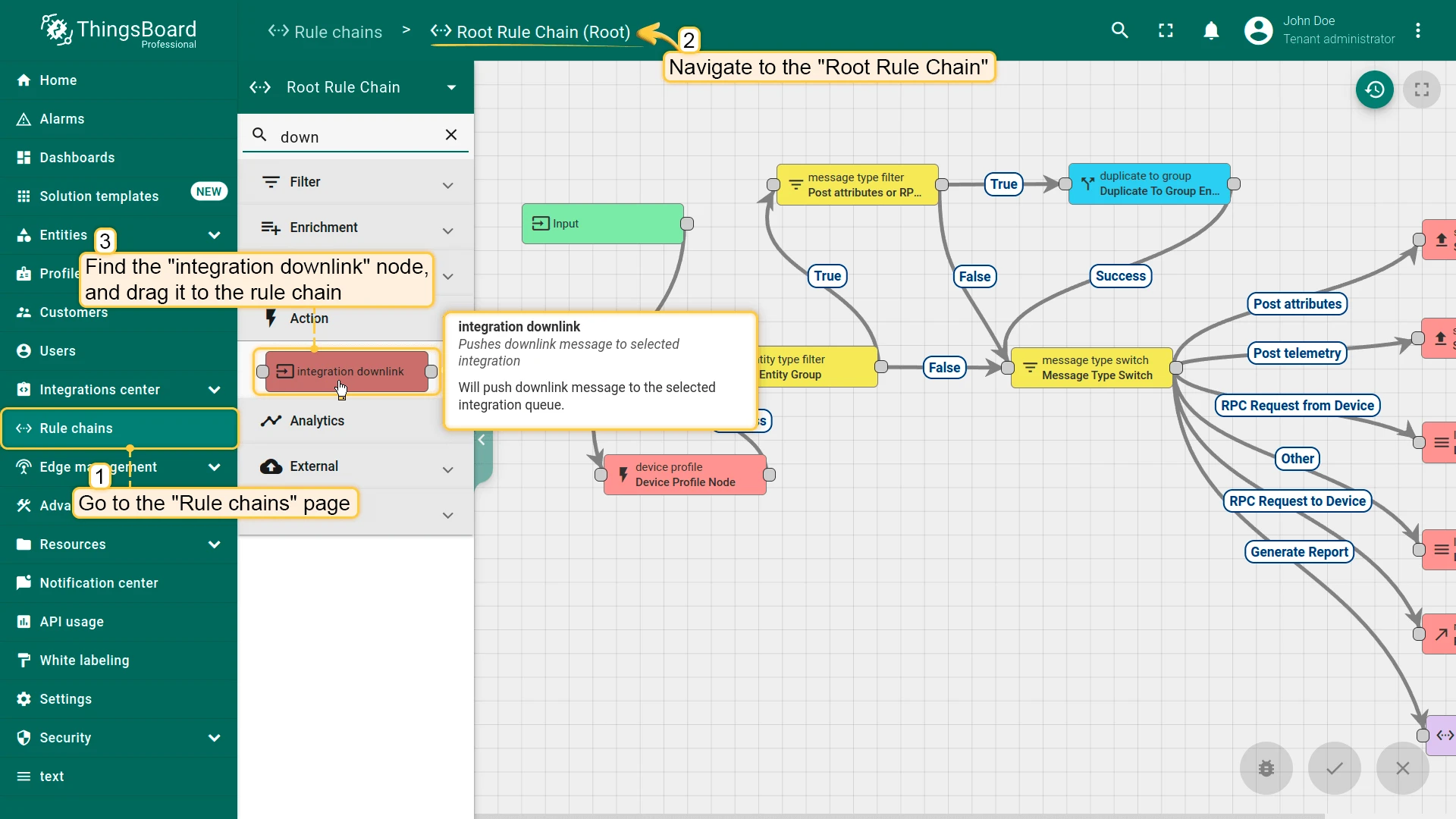

  • In the Root Rule Chain editor, find the “integration downlink” node and drag it to the rule chain;

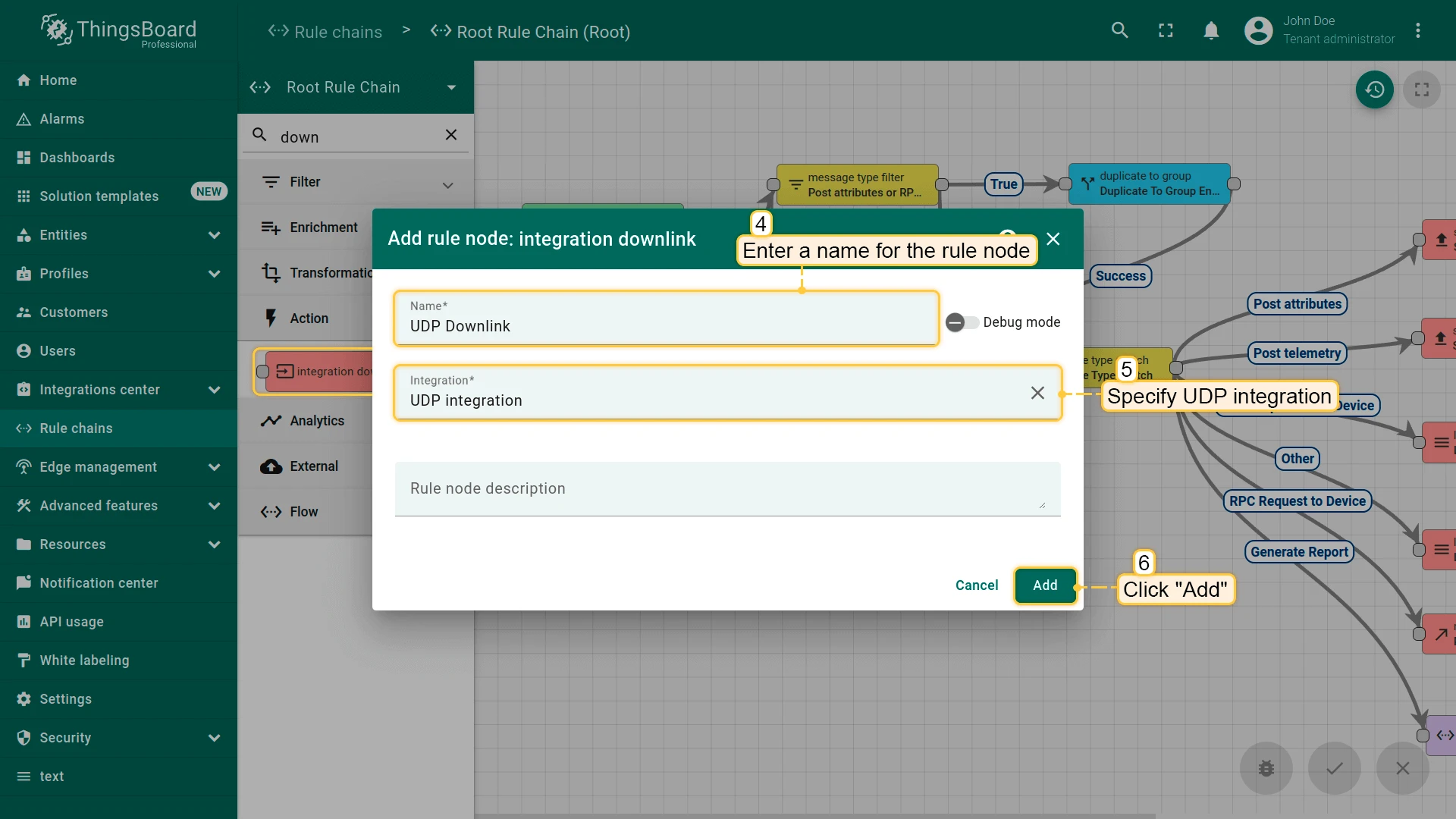

  • Name it “UDP Downlink”, specify our “UDP integration”, and click “Add”;

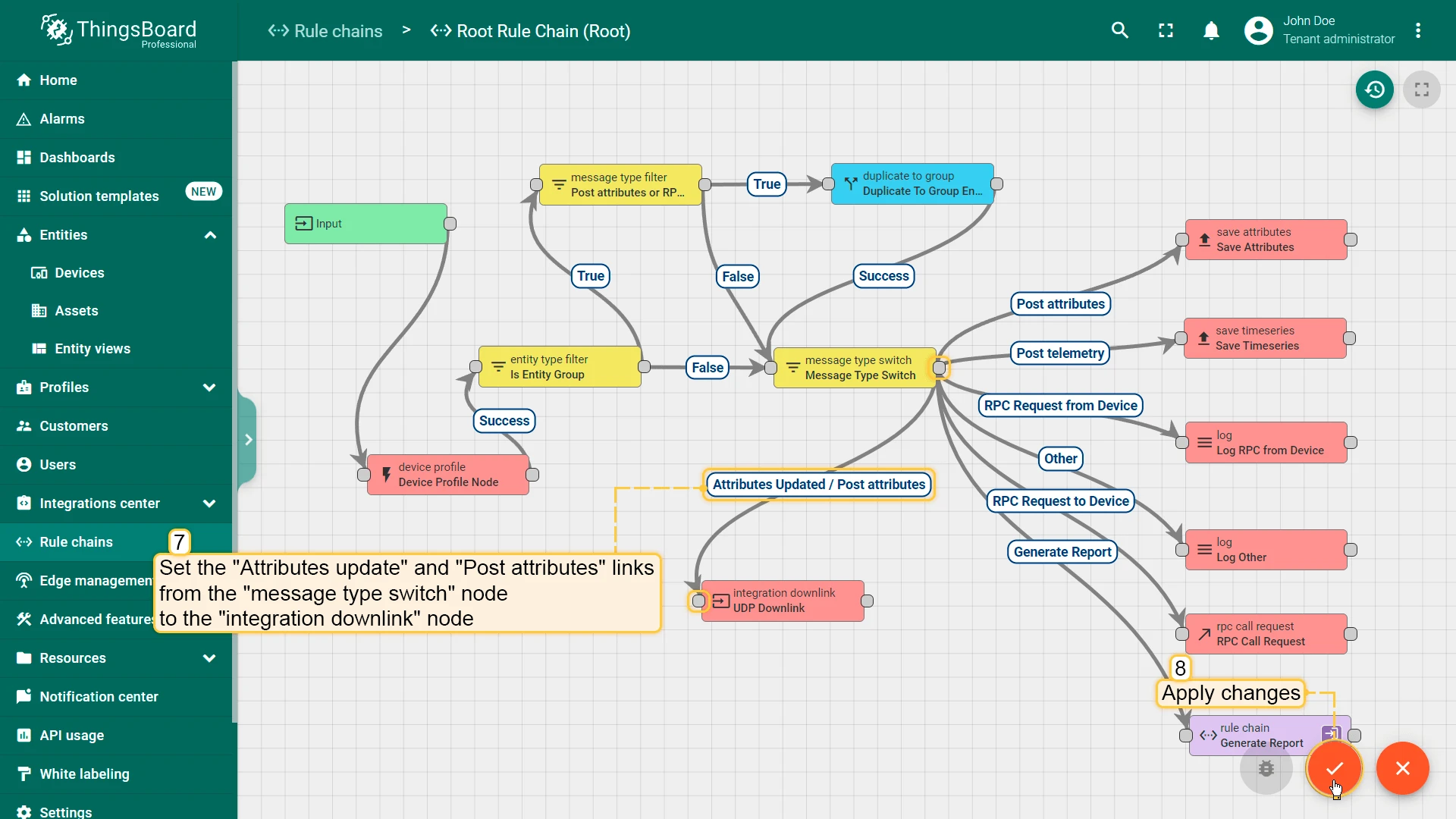

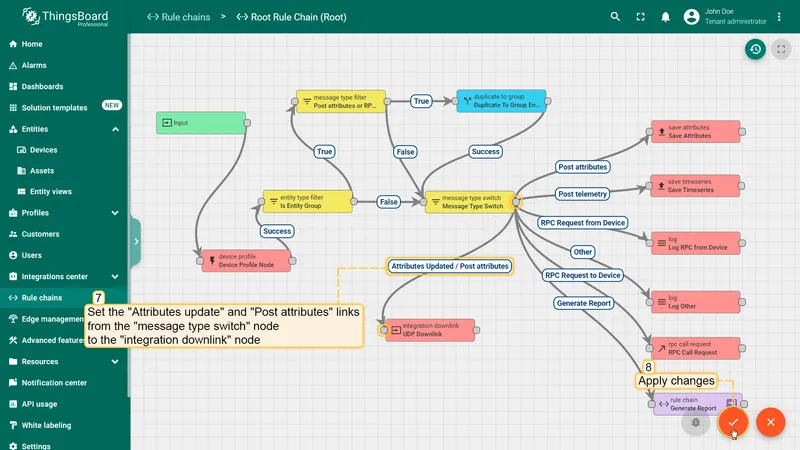

  • Drag the connection from the “message type switch” node to the “UDP integration” node with “Attributes updated” and “Post attributes” labels. Save all changes;

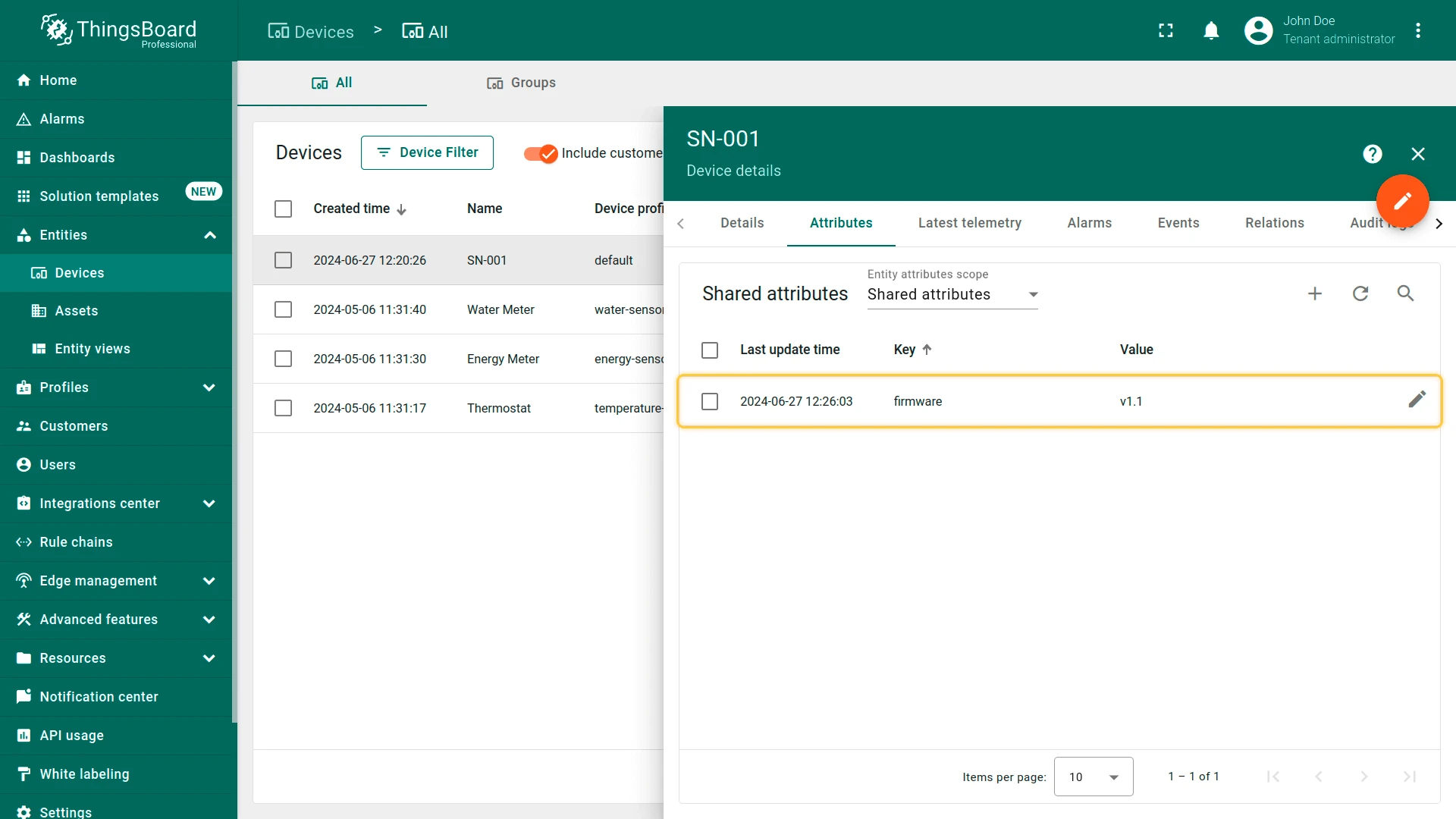

To test downlink, create some shared attribute on your device:

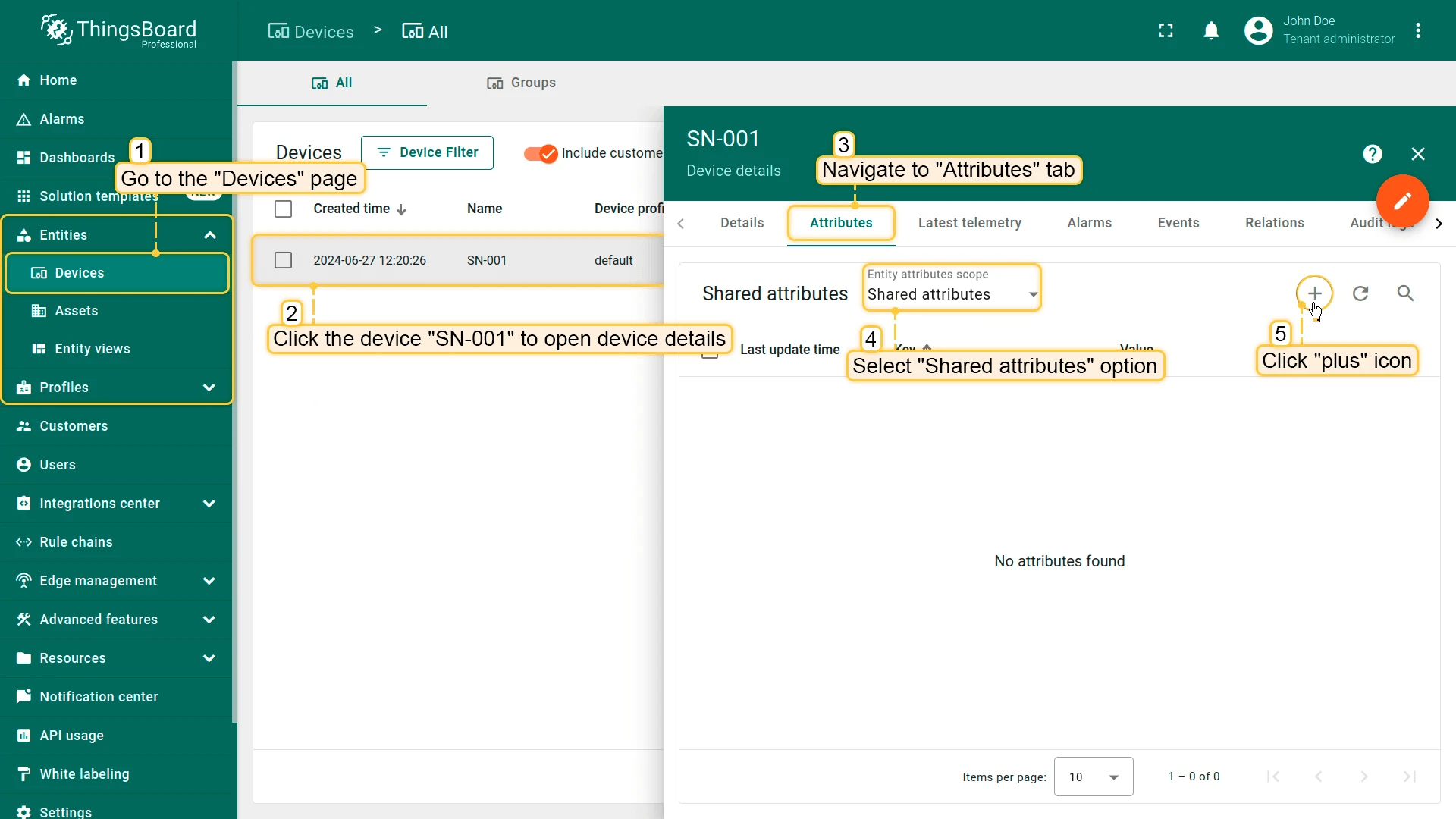

  • Go to the “Devices” page. Click your device and navigate to the “Attributes” tab. Select the “Shared attributes” option, and click the “plus” icon;

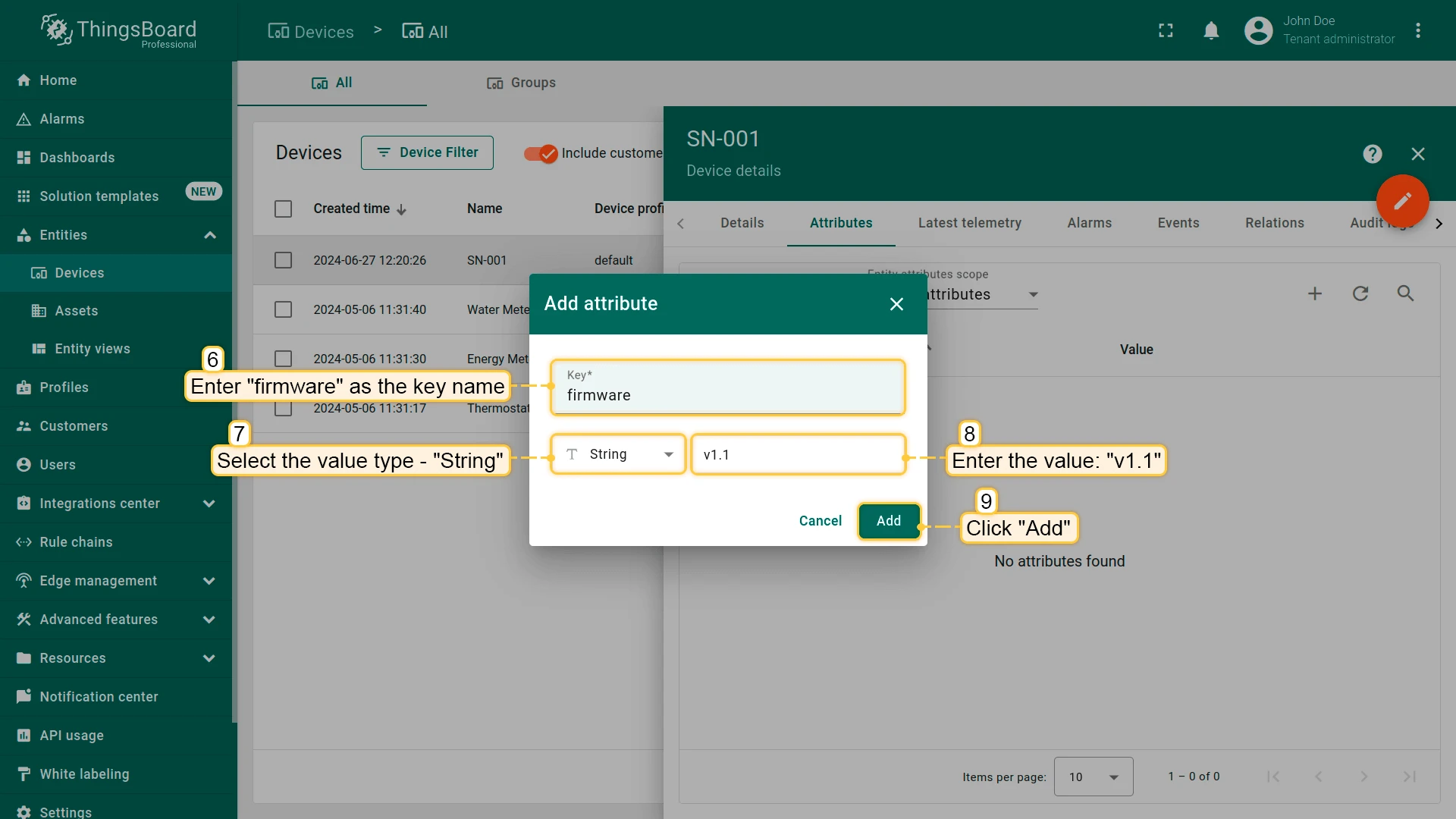

  • Enter the attribute name, and its value (for example, the key name is “firmware”, value: “v1.1”) and click “Save”;

To receive a downlink message you need to set the timeout for responses -w10 (this option determines how long you will wait for a response) and send the uplink message again:

1
echo -e 'SN-001,default,temperature,25.7,humidity,69' | nc -w10 -u 127.0.0.1 11560

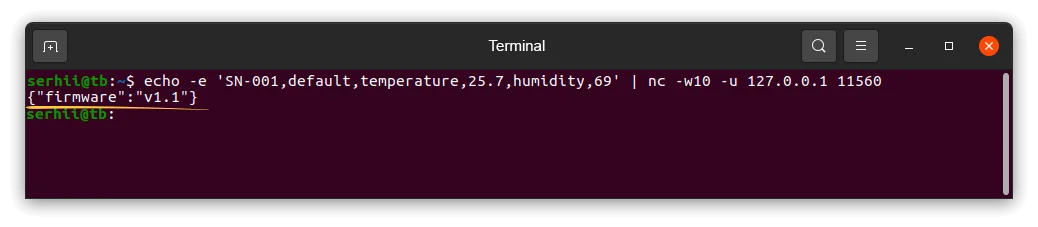

You should get the following response from the ThingsBoard in the terminal:


Doc info icon

Note
When you use UDP integration, and your connection established for a long time, you will receive just one Downlink message. All other will be saved on server side and will be sent on next Uplink.

Next steps
