SigFox Integration

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
/** Decoder **/

// decode payload to string
var json = decodeToJson(payload);
var deviceName = 'Sigfox-' + json.device;
var deviceType = 'Sigfox Airwits CO2';
var groupName = 'UC-0023 Sigfox Airwits CO2';

var attrByte = parseInt(json.data.substring(0, 2), 16); // force javascript to convert to INT
var autoCalibration = (attrByte & 0x1) === 1 ? "on" : "off"; // bitmask for first bit
var zeroPointAdjusted = ((attrByte & 0x2) >> 1) === 1 ? true : false; // bitmask for second bit; right shift one bit to get second bit to the LSB position
var transmitPower = ((attrByte & 0x4) >> 2) === 1 ? "full" : "low"; // bitmask for third bit; right shift two bits to get third bit to the LSB position
var powerControl = ((attrByte & 0x8) >> 3) === 1 ? "on" : "off"; // bitmask for third bit; right shift three bits to get fourth bit to the LSB position
var firmwareVersion = attrByte >> 4; // shift right to bring the nibble down to the first four bits; result is INT

var temperature = parseInt(json.data.substring(2, 6), 16) / 10.0 - 40;
var humidity = parseInt(json.data.substring(6, 8), 16);
var co2 = parseInt(json.data.substring(8, 12), 16);

var co2Baseline = 0;
var co2BaselineN = parseInt(json.data.substring(12, 14), 16);
if(co2BaselineN === 0){ // see documentation for more information on baseline
    co2Baseline = 400;
}else{
    co2Baseline = co2BaselineN * 10;
}

var result = {
// Use deviceName and deviceType or assetName and assetType, but not both.
    deviceName: deviceName,
    deviceType: deviceType,
    groupName: groupName,
    telemetry: {
        ts: json.time + "000",
        values:{
            //rssi: parseFloat(json.rssi),
            //snr: parseFloat(json.snr),
            temperature: toFixed(temperature, 1),
            humidity: humidity,
            co2: co2,
            co2Baseline: co2Baseline
        }
    },
    attributes:{
        //station: json.station,
        sigfox_id: json.device,
        autoCalibration: autoCalibration,
        zeroPointAdjusted: zeroPointAdjusted,
        transmitPower: transmitPower,
        powerControl: powerControl,
        fwVersion: firmwareVersion
    }
};

/** Helper functions 'decodeToString' and 'decodeToJson' are already built-in **/

return result;

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
/** Decoder **/

// decode payload to string
var json = decodeToJson(payload);
var deviceName = 'Sigfox-' + json.device;
var deviceType = 'Sigfox Airwits CO2';
var groupName = 'UC-0023 Sigfox Airwits CO2';

var attrByte = parseInt(json.data.substring(0, 2), 16); // force javascript to convert to INT
var autoCalibration = (attrByte & 0x1) === 1 ? "on" : "off"; // bitmask for first bit
var zeroPointAdjusted = ((attrByte & 0x2) >> 1) === 1 ? true : false; // bitmask for second bit; right shift one bit to get second bit to the LSB position
var transmitPower = ((attrByte & 0x4) >> 2) === 1 ? "full" : "low"; // bitmask for third bit; right shift two bits to get third bit to the LSB position
var powerControl = ((attrByte & 0x8) >> 3) === 1 ? "on" : "off"; // bitmask for third bit; right shift three bits to get fourth bit to the LSB position
var firmwareVersion = attrByte >> 4; // shift right to bring the nibble down to the first four bits; result is INT

var temperature = parseInt(json.data.substring(2, 6), 16) / 10 -40;
var humidity = parseInt(json.data.substring(6, 8), 16);
var co2 = parseInt(json.data.substring(8, 12), 16);

var co2Baseline = 0;
var co2BaselineN = parseInt(json.data.substring(12, 14), 16);
if(co2BaselineN === 0){ // see documentation for more information on baseline
    co2Baseline = 400;
}else{
    co2Baseline = co2BaselineN * 10;
}

var result = {
// Use deviceName and deviceType or assetName and assetType, but not both.
    deviceName: deviceName,
    deviceType: deviceType,
    groupName: groupName,
    telemetry: {
        ts: json.time + "000",
        values:{
            //rssi: parseFloat(json.rssi),
            //snr: parseFloat(json.snr),
            temperature: parseFloat(temperature.toFixed(1)),
            humidity: parseFloat(humidity),
            co2: co2,
            co2Baseline: co2Baseline
        }
    },
    attributes:{
        //station: json.station,
        sigfox_id: json.device,
        autoCalibration: autoCalibration,
        zeroPointAdjusted: zeroPointAdjusted,
        transmitPower: transmitPower,
        powerControl: powerControl,
        fwVersion: firmwareVersion
    }
};


/** Helper functions **/

function decodeToString(payload) {
    return String.fromCharCode.apply(String, payload);
}

function decodeToJson(payload) {
    // covert payload to string.
    var str = decodeToString(payload);

    // parse string to JSON
    var data = JSON.parse(str);
    return data;
}

return result;

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

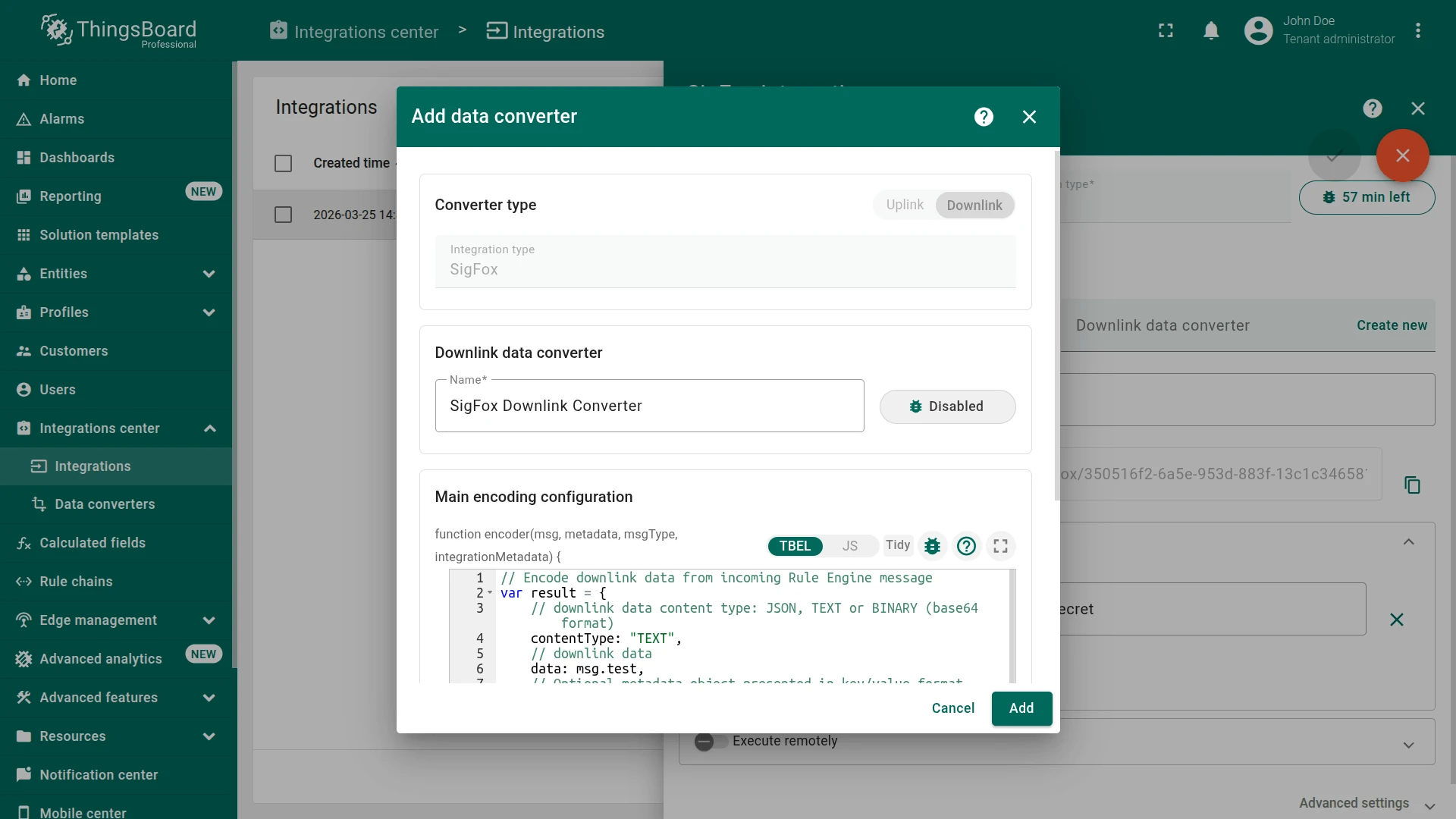

// Encode downlink data from incoming Rule Engine message
// msg - JSON message payload downlink message json
// msgType - type of message, for ex. 'ATTRIBUTES_UPDATED', 'POST_TELEMETRY_REQUEST', etc.
// metadata - list of key-value pairs with additional data about the message
// integrationMetadata - list of key-value pairs with additional data defined in Integration executing this converter
// Result object with encoded downlink payload
var result = {
    // downlink data content type: JSON, TEXT or BINARY (base64 format)
    contentType: "TEXT",
    // downlink data
    data:  msg.test,
    // Optional metadata object presented in key/value format
    metadata: {
        "device": "2203961"
    }
};
return result;

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
// Encode downlink data from incoming Rule Engine message
// msg - JSON message payload downlink message json
// msgType - type of message, for ex. 'ATTRIBUTES_UPDATED', 'POST_TELEMETRY_REQUEST', etc.
// metadata - list of key-value pairs with additional data about the message
// integrationMetadata - list of key-value pairs with additional data defined in Integration executing this converter
// Result object with encoded downlink payload
var result = {
    // downlink data content type: JSON, TEXT or BINARY (base64 format)
    contentType: "TEXT",
    // downlink data
    data:  msg.test,
    // Optional metadata object presented in key/value format
    metadata: {
        "device": "2203961"
    }
};
return result;
