Markdown/HTML Card

A versatile widget for static or dynamic content on a ThingsBoard dashboard. It renders Markdown or free‑form HTML, and it can work with or without data sources. Use it for notes, contextual hints, KPIs, banners, or compact info cards alongside charts, tables, and maps.


Markdown vs HTML

  • Markdown is a simple syntax for formatting text. Its advantages are speed and simplicity — you don't need to know HTML to produce clean formatting.
  • HTML — choose this when you need precise control over layout, styling, or interactive elements (tables, icons, embedded media, complex grids).

Key capabilities

  • Dynamic or static content. Author in Markdown or HTML; mix text, lists, tables, links, images, icons.
  • Optional data. Pull telemetry/attributes via entity alias and data keys to inject values in a template or process them in a value function.
  • Actions & navigation. Handle clicks on HTML elements (by id) to navigate to dashboard states, open dialogs/popovers, or trigger other actions.
  • Styling. Add styles in the dedicated Markdown/HTML CSS section (recommended) or place inline styles in your markup.
  • Fast integration. Works well alongside other widgets (time series, tables, maps) and is ideal for notes, contextual explanations, and compact info cards.

Add the widget

  • Open your dashboard and switch to Edit mode.
  • Click “Add widget” at the top of the screen.
  • Choose the Markdown/HTML Card widget from the Cards widget bundle and place it on the dashboard.

Data sources (optional)

The Markdown/HTML Card can work with no data sources (purely static content) or with one or more data sources.

In the Data tab:

  1. Choose the data source type: Entity, Device, Entities count, Alarms count or Function.
  2. Configure filters and data keys (attributes / latest telemetry).
    The added keys become available to the widget's content logic.

Configuration

Go to the widget's Appearance tab to manage its content and styles.


Static Markdown/HTML template

Create static layouts with multiple variables, like ${key}, where key is the data key's label.

Basic numeric formatting for a data key's value is supported via ${key:n}, where n is the number of decimal places. For example:

  • ${key} — display key value as is (no formatting).
  • ${key:0} — display key value with no decimal places.
  • ${key:2} — display key value with two decimal places.

Example:

The Smart Device sends a temperature value to ThingsBoard. Display the temperature value in a card.

Datasource:

  • Type: Device
  • Device: Smart Device
  • Data key: temperature

Use the following Markdown/HTML pattern:

1
2
3
### Temperature value card
- **Current entity**: ${entityName}
- **Current temperature**: ${temperature:1} °C

Notes

  • ${entityName} – the system name of the entity from the data source.
  • ${temperature:1} - value of the temperature telemetry with one digit after the decimal point.

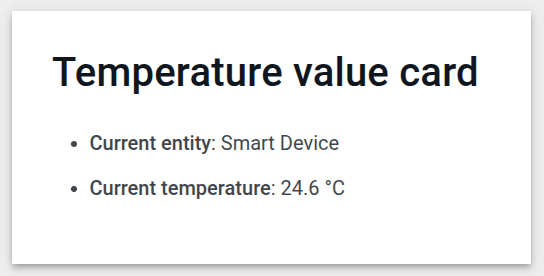

Result:


Download this widget and import it into your dashboard.


Dynamic Markdown/HTML content

Best for conditions, calculations, combining multiple keys, or switching layouts.

To use:

  1. Turn on Markdown/HTML value function to generate the card content via JavaScript.
  2. Implement a JavaScript function that receives data and the widget context ctx, then returns a string with Markdown or HTML.

Example:

The Smart Device sends a temperature value to ThingsBoard. Display the temperature in a card with color rules:

  • If the temperature is below 20 °C, the value is shown blue.
  • If it's between 20 °C and 25 °C, the value is green.
  • If it's above 25 °C, the value is red.

Datasource:

  • Type: Device
  • Device: Smart Device
  • Data key: temperature

Use the following value function:

1
2
3
4
5
const entity = data[0];
const color = entity.temperature > 25 ? "red" : entity.temperature > 20 ? 'green' : 'blue'
const entityName = `### Temperature value card\n - Current entity: <span >${entity.entityName}</span>\n `
const temp = `- Current temperature: <span style="color:${color};">${entity.temperature.toFixed(1)} °C</span>\n `
return entityName + temp;

What it does

  1. Use the first datasource: entity is data[0].
  2. Choose a value color based on temperature:
    • > 25 → “red”
    • > 20 (and ≤ 25) → “green”.
    • ≤ 20 → “blue”.
  3. Build strings with Markdown + HTML:
    • entityName - the entity's name.
    • temp a string with the temperature value, colored** according to the selected rule.
    • toFixed(1) - rounds the temperature to one decimal place.

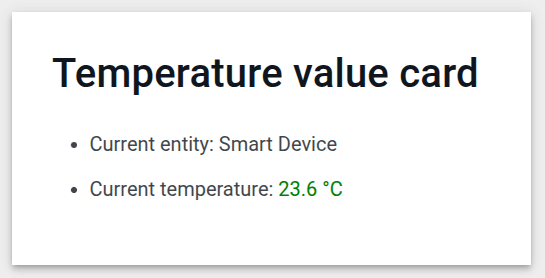

Result:


Download this widget and import it into your dashboard.


Content styling (CSS)


Apply default Markdown style

Applies ThingsBoard's built‑in Markdown typography (headings, paragraphs, lists, tables, code) aligned with the current dashboard theme.

  • ON (recommended for most cases): you get clean defaults that match the dashboard look & feel.
  • OFF: minimal browser defaults — choose this when you want full visual control via your own CSS.

You can still override default styles in Markdown/HTML CSS.


Markdown/HTML CSS

Use the Markdown/HTML CSS section to style your card—tune headings, spacing, fonts, colors, and icons so the card matches your design system.

These rules apply only inside this widget’s container, so they won’t leak into other widgets.

Example:

1. Wrap your content in a container class and target everything through it.

1
2
3
4
5
6
7
8
9
10
11
<div class="office-card">
  <h3>${entityName}</h3>
  <p class="blue-box">
    <strong>Current temperature:</strong>
    <span class="temp-value">${temperature:1}</span> °C
  </p>
  <p class="green-box">
    <strong>Current humidity:</strong>
    <span class="hum-value">${humidity:0}</span> %
  </p>
</div>

2. Write CSS in Markdown/HTML CSS section using selectors.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
.office-card {
  box-sizing: border-box;
  padding: 16px;
  margin: 6px 0;
  text-align: center;
  font-family: system-ui, -apple-system, Segoe UI, Roboto, Arial, "Noto Sans";
}

.office-card h3 {
  margin: 0 0 12px;
  font-size: 24px;
}

.blue-box {
  background: #2196F31A;
  border: 2px solid #2196F3;
  border-radius: 10px;
  padding: 10px;
  margin: 8px 0;
  font-weight: 700;
}

.green-box {
  background: #4CAF501A;
  border: 2px solid #4CAF50;
  border-radius: 10px;
  padding: 10px;
  margin: 6px 0;
  font-weight: 700;
}

.temp-value,
.hum-value {
  font-weight: 700;
  font-variant-numeric: tabular-nums;
}

How it works

  • .office-card { … }root scope. Any selector prefixed with .office-card applies only inside this card.
  • h3 rule — increases the title size and adds spacing under it (margin: 0 0 12px).
  • p rule — adds a gray background, borders, and rounded corners.
  • .temp-value — targets just the numeric value:
    • color: #2e7d32 highlights the telemetry value in green.
    • font-weight: 600 makes the value stand out.

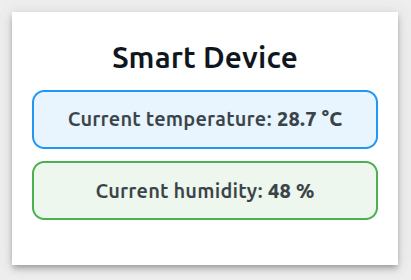

Result:


Download this widget and import it into your dashboard.


Card styling

In the Widget card tab:

  • Title & Icon — set a descriptive title/icon consistent with your dashboard.
  • Card styles — configure text color, background, padding, margin, border radius, and shadow.
  • Card buttons — optionally disable Enable fullscreen and Enable data export for purely informational cards.

Actions & navigation

The Markdown/HTML Card widget supports the following actions:

  • Widget header button — adds an action button to the widget header; clicking it triggers the configured action.
  • On HTML element click — clicking a specific HTML element inside the widget (by its id) triggers the configured action.

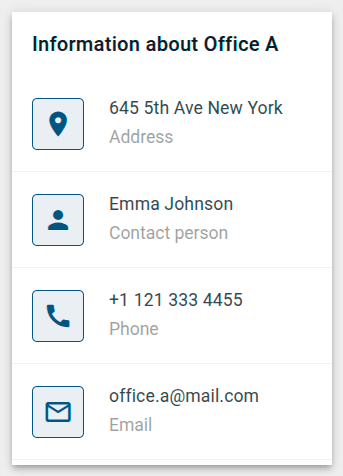

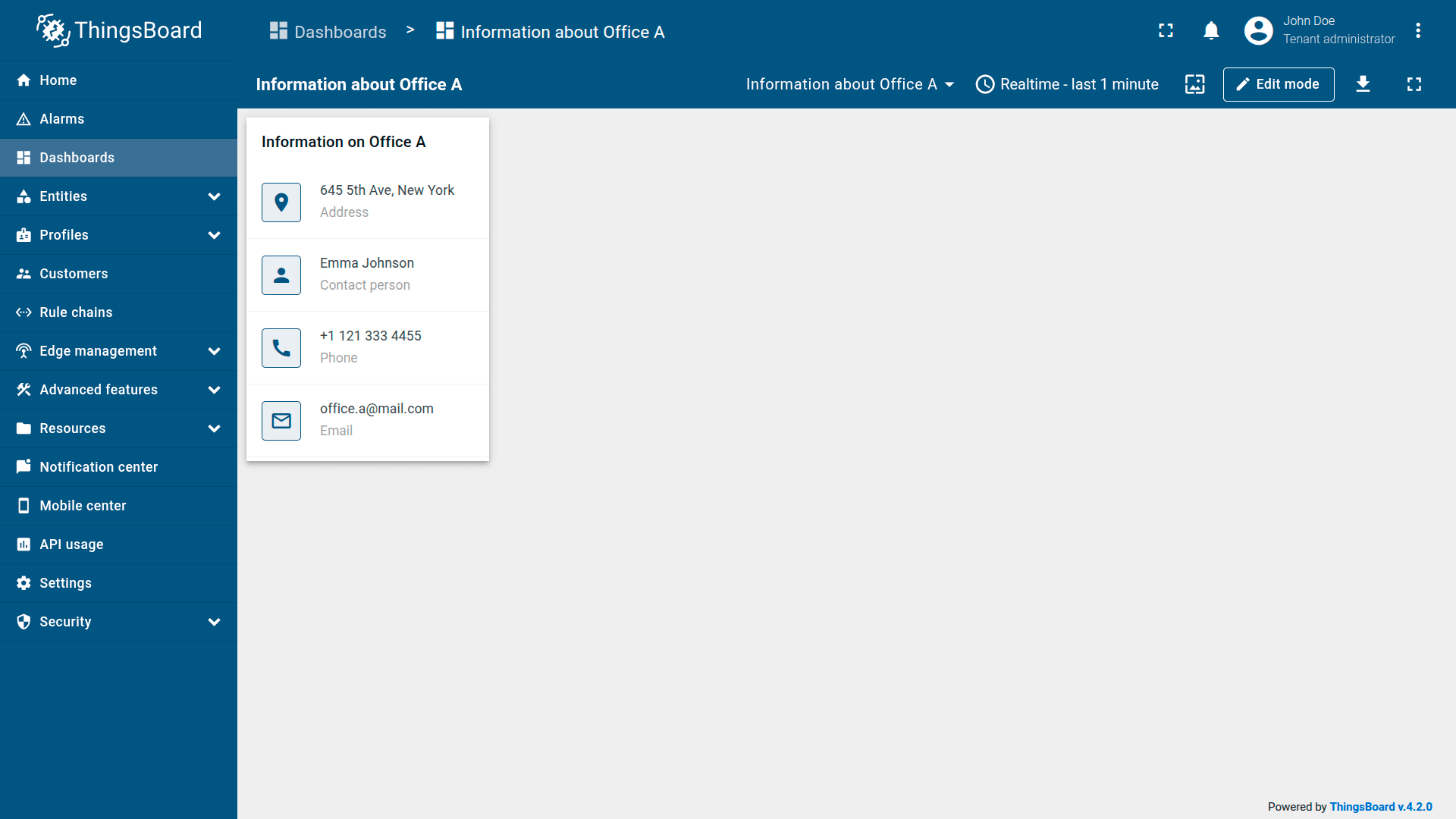

Example: Office information card

Create a compact office info card.

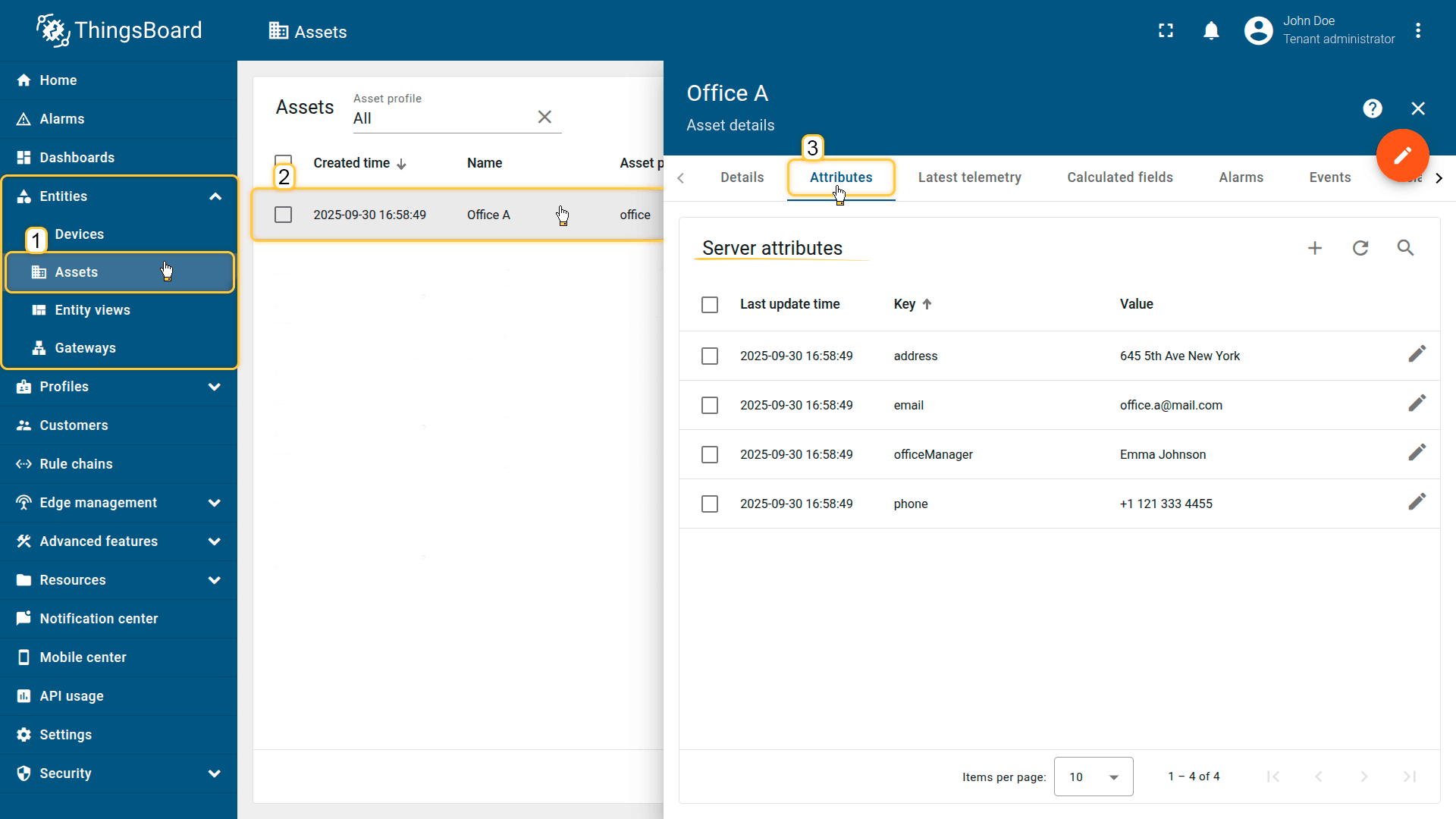

Step 1. Prepare the entity

Create the Asset named “Office A” with the following attributes:

  • address: 645 5th Ave, New York
  • officeManager: Emma Johnson
  • phone: +1 121 333 4455
  • email: [email protected]

(You can also import a prefilled Asset from CSV).


Step 2.1 Add the widget

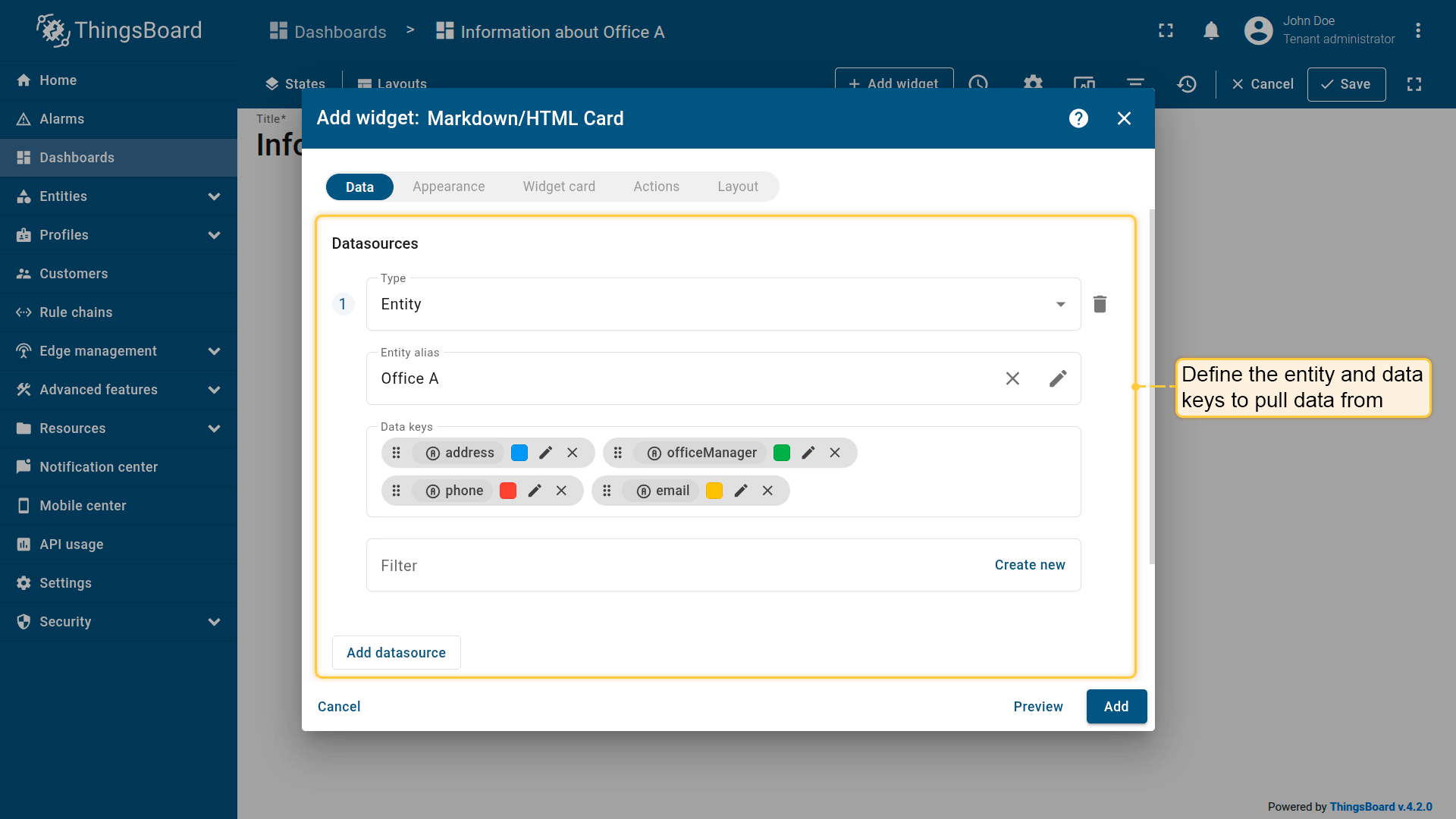

Step 2.2 Configure data ("Data" tab)

  • Define the entity and data keys to pull data from.
    • Create a new Entity alias with the filter type Single entity, choose the Office A asset, and click “Add”.
    • In the Data keys section, add the following keys: address, officeManager, email, and phone.

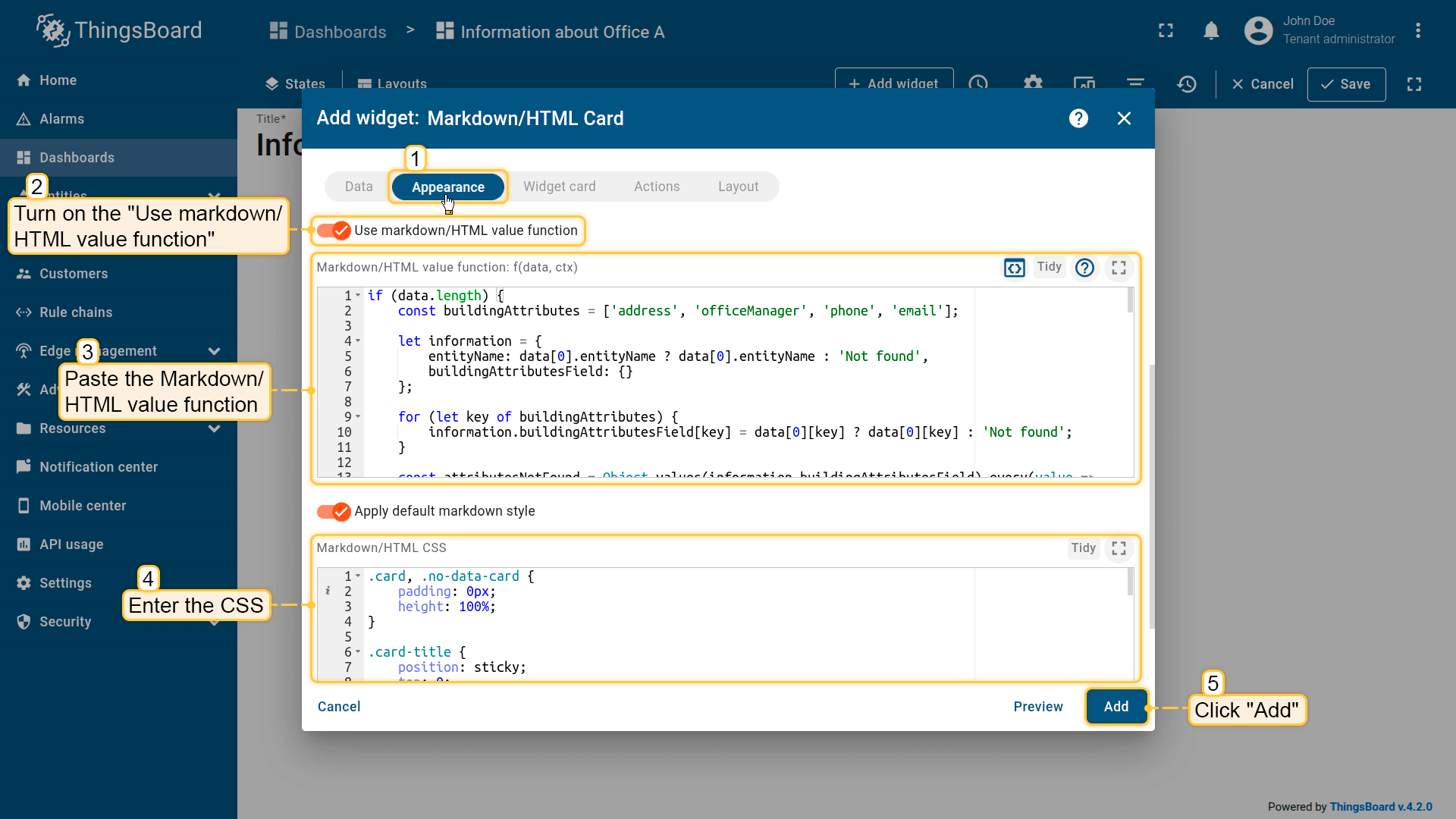

Step 2.3 Enable dynamic content ("Appearance" tab)

  • Turn on the “Use markdown/HTML value function” option.
  • Paste the Markdown/HTML value function provided below:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
if (data.length) {
    const buildingAttributes = ['address', 'officeManager', 'phone', 'email'];

    let information = {
        entityName: data[0].entityName ? data[0].entityName : 'Not found',
        buildingAttributesField: {}
    };

    for (let key of buildingAttributes) {
        information.buildingAttributesField[key] = data[0][key] ? data[0][key] : 'Not found';
    }

    const attributesNotFound = Object.values(information.buildingAttributesField).every(value => value === 'Not found');

    if (attributesNotFound) {
        return '<div class="no-data-card">' +
            `<h1 class="card-title">Information on ${information.entityName}</h1>` +
            '<div class="no-data-block">' +
                '<div class="no-data-content">' +
                    '<div><svg xmlns="http://www.w3.org/2000/svg" width="81" height="80" viewBox="0 0 81 80" fill="none"><path d="M14.8203 46.1166C16.6985 46.0291 18.2877 45.3003 19.588 43.9301C20.8883 42.56 21.5529 40.9274 21.5529 39.0325C21.5529 40.9274 22.1886 42.56 23.4889 43.9301C24.7892 45.3003 26.3784 46.0291 28.2566 46.1166C26.3784 46.204 24.7892 46.9328 23.4889 48.303C22.8602 48.9489 22.3653 49.7146 22.0329 50.5555C21.7005 51.3963 21.5374 52.2955 21.5529 53.2006C21.5529 51.3057 20.9172 49.6732 19.588 48.303C18.2877 46.9328 16.6985 46.204 14.8203 46.1166ZM21.5529 25.1267C25.1937 24.9518 28.2855 23.5234 30.8283 20.8413C33.371 18.1593 34.6424 14.9817 34.6424 11.2793C34.6424 14.9817 35.9138 18.1593 38.4566 20.8413C40.9994 23.5234 44.0912 24.9227 47.7609 25.1267C45.3626 25.2434 43.1665 25.9139 41.1439 27.1966C39.1501 28.4501 37.5608 30.141 36.3761 32.24C35.2203 34.3389 34.6424 36.5837 34.6424 39.0325C34.6424 35.3301 33.371 32.1234 30.8283 29.4413C28.2855 26.7301 25.1937 25.3017 21.5529 25.1267ZM31.1461 56.524C33.8912 56.4074 36.2317 55.3288 38.1387 53.3172C40.0458 51.3057 40.9994 48.9152 40.9994 46.1166C40.9994 48.9152 41.9529 51.3057 43.86 53.3172C45.7671 55.3288 48.0787 56.4074 50.8237 56.524C48.0787 56.6406 45.7671 57.7193 43.86 59.7308C41.9529 61.7423 40.9994 64.1328 40.9994 66.9315C40.9994 64.1328 40.0458 61.7423 38.1387 59.7308C36.316 57.7765 33.8041 56.6245 31.1461 56.524ZM50.8237 42.7057C53.5688 42.5891 55.8804 41.5105 57.7875 39.4989C59.6946 37.4874 60.6192 35.0969 60.6192 32.2691C60.6192 35.0678 61.5728 37.4583 63.4799 39.4698C65.3869 41.4813 67.7274 42.56 70.4725 42.6766C67.7274 42.7932 65.3869 43.8718 63.4799 45.8834C61.5728 47.8949 60.6192 50.2854 60.6192 53.084C60.6192 50.2854 59.6657 47.8949 57.7875 45.8834C55.8804 43.901 53.5688 42.8223 50.8237 42.7057Z" fill="#00695C" fill-opacity="0.4"/></svg></div>' +
                    '<p class="no-data-title">There is no information about the building</p>' +
                '</div>' +
            '</div>' +
        '</div>';
    } else {
        return '<div class="card">' +
            `<h1 class="card-title">Information on ${information.entityName}</h1>` +
            '<div class="attributes">' +
                '<div class="attribute_container">' +
                    '<div class="icon_wrapper">' +
                        '<tb-icon class="icon" color="primary" matButtonIcon>place</tb-icon>' +
                    '</div>' +
                    '<div class="attribute_content">' +
                        `<p class="attribute">${information.buildingAttributesField.address}</p>` +
                        '<span class="attribute_label">Address</span>' +
                    '</div>' +
                '</div>' +
                '<div class="attribute_container">' +
                    '<div class="icon_wrapper">' +
                        '<tb-icon class="icon" color="primary" matButtonIcon>person</tb-icon>' +
                    '</div>' +
                    '<div class="attribute_content">' +
                        `<p class="attribute">${information.buildingAttributesField.officeManager}</p>` +
                        '<span class="attribute_label">Contact person</span>' +
                    '</div>' +
                '</div>' +
                '<div class="attribute_container">' +
                    '<div class="icon_wrapper">' +
                        '<tb-icon class="icon" color="primary" matButtonIcon>call</tb-icon>' +
                    '</div>' +
                    '<div class="attribute_content">' +
                        `<p class="attribute">${information.buildingAttributesField.phone}</p>` +
                        '<span class="attribute_label">Phone</span>' +
                    '</div>' +
                '</div>' +
                '<div class="attribute_container">' +
                    '<div class="icon_wrapper">' +
                        '<tb-icon class="icon" color="primary" matButtonIcon>mail_outline</tb-icon>' +
                    '</div>' +
                    '<div class="attribute_content">' +
                        `<p class="attribute">${information.buildingAttributesField.email}</p>` +
                        '<span class="attribute_label">Email</span>' +
                    '</div>' +
                '</div>' +
            '</div>' +
        '</div>';
    }
}
  • Scroll to Markdown/HTML CSS and insert the CSS provided below:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
.card, .no-data-card {
    padding: 0px;
    height: 100%;
}

.card-title {
    position: sticky;
    top: 0;
    z-index: 2;
    font-size: 16px;
    letter-spacing: 0.25px;
    padding: 16px;
}
.attribute_container {
    display: flex;
    align-items: center;
    gap: 20px;
    padding: 16px;
    border-bottom: 1px solid #0000000d;
}

.icon {
    z-index: 1;
}

.icon_wrapper {
    display: flex;
    position: relative;
    align-items: center;
    padding: 8px;
    border: 1px solid var(--tb-primary-100, #305680);
    border-radius: 4px;
}

.icon_wrapper:before {
    content: '';
    z-index: 0;
    position: absolute;
    opacity: 0.1;
    background-color: var(--tb-primary-200, #305680);
    width: 100%;
    height: 100%;
    left: 0;
    top: 0;
}

.attribute, .attribute_label {
    font-size: 14px;
    line-height: 20px;
}

.attribute_label {
    color: #00000061;
}

.no-data-card {
    display: flex;
    flex-direction: column;
}

.no-data-block {
    display: flex;
    flex-direction: column;
    justify-content: center;
    height: 100%;
    max-width: 345px;
    padding: 0 15px;
    margin: 0 auto;
    text-align: center;
}

.no-data-content {
    transform: translateY(-30%);
}

.no-data-block p {
    font-weight: 500;
}

.no-data-title {
    color: rgba(0, 0, 0, 0.54);
}

.no-data-subtitle {
    font-size: 13px;
    color: rgba(0, 0, 0, 0.38);
}

Step 2.4 Card settings ("Widget card" tab)

  • Optionally disable “Enable fullscreen” and “Enable data export” if the card is informational only.
  • Click “Add”.

Step 2.5 Save

  • Resize the card freely within your dashboard layout. Then, save the dashboard.

Expected result

You'll see a compact, clean office contact card on the dashboard. Missing attributes display as “Not found”. Resize the card freely within your dashboard layout.


Download the configured widget

You can download the configured Office information card and reuse it on your dashboards.

Important: After importing, update the target entity and data keys in the entity alias.
